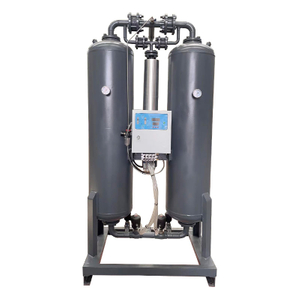

Zero Loss Blower Desiccant Air Dryer – Efficient & Reliable
Built for Performance: Consists of two adsorption towers, electric heater, blower, after-cooler, and intelligent control system.
Zero Compressed Air Loss: Uses ambient air for regeneration and cooling—no purge loss.
Key Benefits:
High energy efficiency, low operating costs
Simple design, easy maintenance
Ultra-low dew point performance
100% oil-free, contamination-free
Long-lasting desiccant
Stable under high load fluctuations
Technical Parameters
| SGD Series Zero Loss Blower Heat Desiccant Air Dryer | ||||
| Model | SGD-12 | SGD-15 | SGD-20 | |
| Capacity | m3/min | 13 | 17 | 23 |
| Heating power | kW | 9 | 12 | 15 |
| Blower power | kW | 2.2 | 3 | 3.3 |
| Air pipe connection | / | DN50 | DN50 | DN65 |
| Weight | Kg | 950 | 1150 | 1380 |
| Dimension | L | 1500 | 1600 | 1750 |
| W | 1450 | 1450 | 1500 | |
| H | 2150 | 2450 | 2780 | |
Main Applications
Oil & Gas: Instrument air for explosion-proof environments
Power & Chemical: High-purity compressed air requirements
Railway & Marine: Environments with unstable power supply
Laboratories & Precision Manufacturing: Ultra-low dew point requirements
