| Quantity: | |
|---|---|
1. PLC touchscreen control, optional remote control.
2. Automatic system alarm and shutdown in the event of inlet and outlet water pressure overload, overheating, or cooling water failure.
3. Runtime display and maintenance reminder.
4. Built-in water tank and circulation pump, no external piping required. Uses antifreeze, ensuring low-temperature stability.
5. Low vibration, low noise, and long life of wearing parts.
| Model No. | Flow rate (N m³/h) | Inlet pressure (Mpa) | Exhaust pressure (Mpa) | Power (kW) | Cylinder bore | Inlet connection size | Outlet connection sizes | Overall dimension (mm) | Weight (kg) | Speed (r/min) |
| RKWWY-5/4-150 | 5 | 0.4 | 15 | 4 | Ø50+Ø30+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 400 | 470 |
| RKWWY-10/4-150 | 10 | 0.4 | 15 | 5.5 | Ø65+Ø36+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 410 | 470 |
| RKWWY-15/4-150 | 15 | 0.4 | 15 | 7.5 | Ø65+Ø36+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 420 | 640 |
| RKWWY-20/4-150 | 20 | 0.4 | 15 | 1 1 | Ø70+Ø36+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 430 | 580 |
| RKWWY-25/4-150 | 25 | 0.4 | 15 | 1 1 | Ø70+Ø36+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 430 | 640 |
| RKWWY-30/4-150 | 30 | 0.4 | 15 | 15 | Ø90+Ø50+Ø30 | Rc 1/2 | G5/8 | 1350X1000X1100 | 450 | 470 |
| RKWWY-35/4-150 | 35 | 0.4 | 15 | 15 | Ø90+Ø50+Ø30 | Rc 1/2 | G5/8 | 1350X1000X1100 | 450 | 500 |
| RKWWY-40/4-150 | 40 | 0.4 | 15 | 15 | Ø90+Ø50+Ø30 | Rc 1/2 | G5/8 | 1350X1000X1100 | 450 | 580 |
| RKSWY-45/4-150 | 45 | 0.4 | 15 | 18.5 | 2-Ø70+ Ø50+Ø30 | Rc 1/2 | G5/8 | 1450X1100X1250 | 520 | 580 |
| RKSWY-50/4-150 | 50 | 0.4 | 15 | 18.5 | 2-Ø70+ Ø50+Ø30 | Rc 1/2 | G5/8 | 1450X1100X1250 | 520 | 580 |
| RKSWY-55/4-150 | 55 | 0.4 | 15 | 18.5 | 2-Ø70+ Ø50+Ø30 | Rc 1 | G5/8 | 1450X1100X1250 | 520 | 640 |
| RKSWY-60/4-150 | 60 | 0.4 | 15 | 22 | 2-Ø70+ Ø50+Ø30 | Rc 1 | G5/8 | 1450X1100X1250 | 540 | 720 |
| RKSWY-65/4- 150 | 65 | 0.4 | 15 | 22 | 2- Φ70+ Φ50+ Φ30 | Rc 1 | G5/8 | 1450*1100*1250 | 540 | 720 |
| RKSWY-70/4- 150 | 70 | 0.4 | 15 | 22 | 2- Φ70+ Φ50+ Φ30 | Rc 1 | G5/8 | 1450*1100*1250 | 540 | 720 |
| RKWWY-75/4- 150- Ⅱ | 75 | 0.4 | 15 | 15*2 | (Φ90+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2800*1250*1200 | 1060 | 580 |
| RKWWY-80/4- 150- Ⅱ | 80 | 0.4 | 15 | 15*2 | (Φ90+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2800*1250*1200 | 1060 | 580 |
| RKWWY-85/4- 150- Ⅱ | 85 | 0.4 | 15 | 15*2 | (Φ90+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2800*1250*1200 | 1060 | 580 |
| RKSWY-90/4- 150- Ⅱ | 90 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY-95/4- 150- Ⅱ | 95 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY- 100/4- 150- Ⅱ | 100 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY- 105/4- 150- Ⅱ | 105 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY- 1 10/4- 150- Ⅱ | 1 10 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY- 1 15/4- 150- Ⅱ | 1 15 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 640 |
| RKSWY- 120/4- 150- Ⅱ | 120 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 640 |
| RKSWY- 125/4- 150- Ⅱ | 125 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 640 |
| RKSWY- 130/4- 150- Ⅱ | 130 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 720 |
| RKSWY- 135/4- 150- Ⅱ | 135 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 720 |
| RKSWY- 140/4- 150- Ⅱ | 140 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 720 |

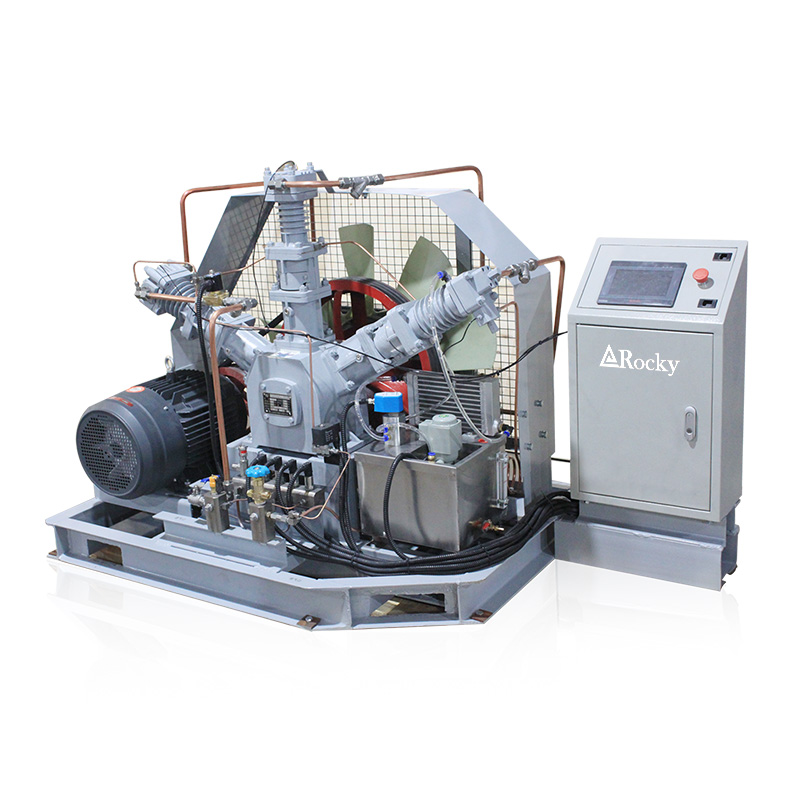

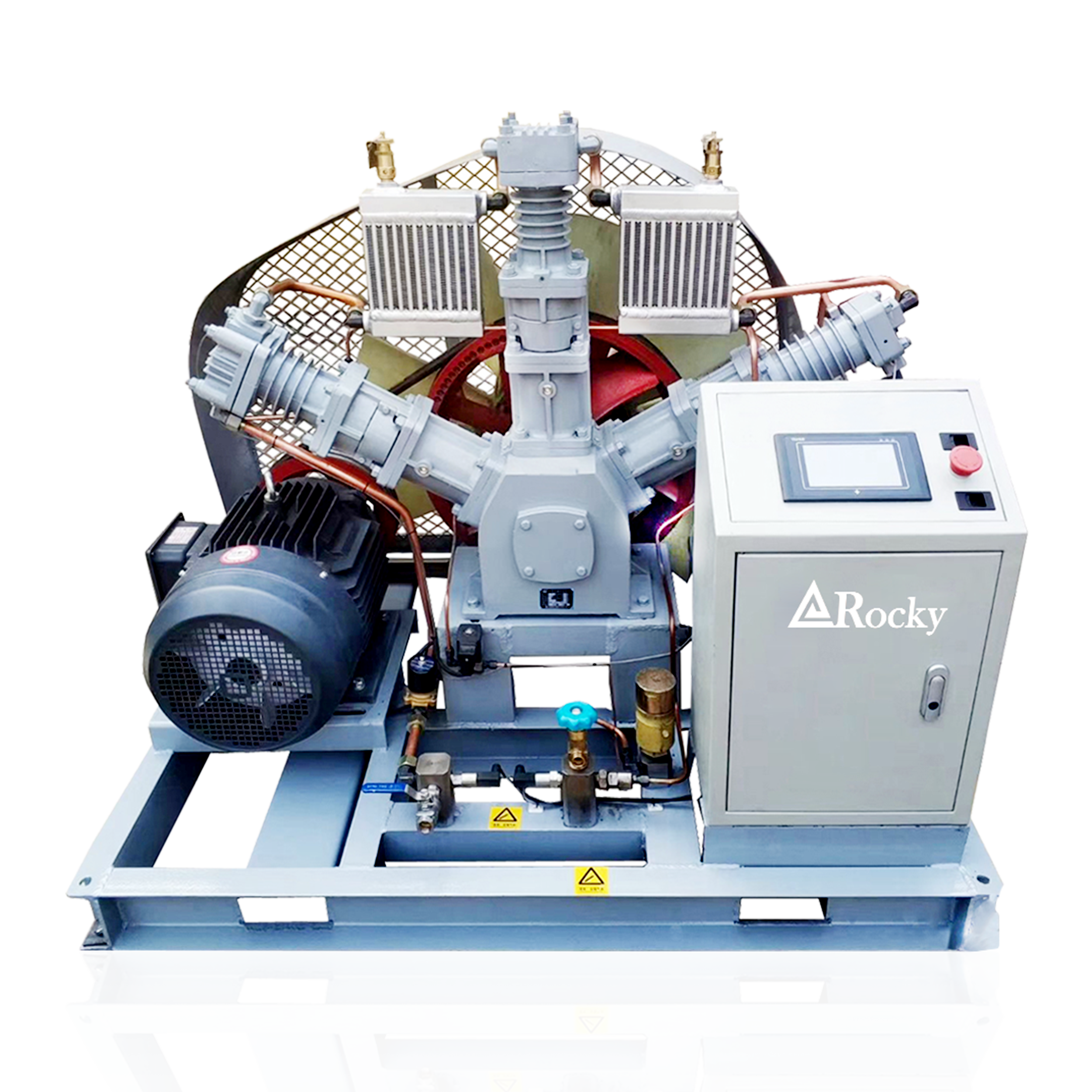

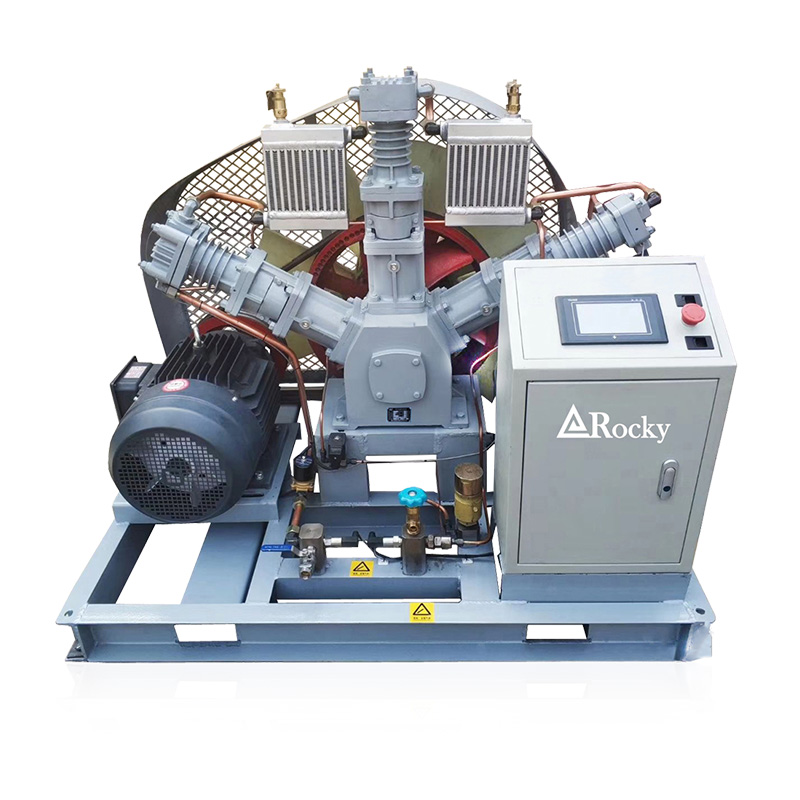

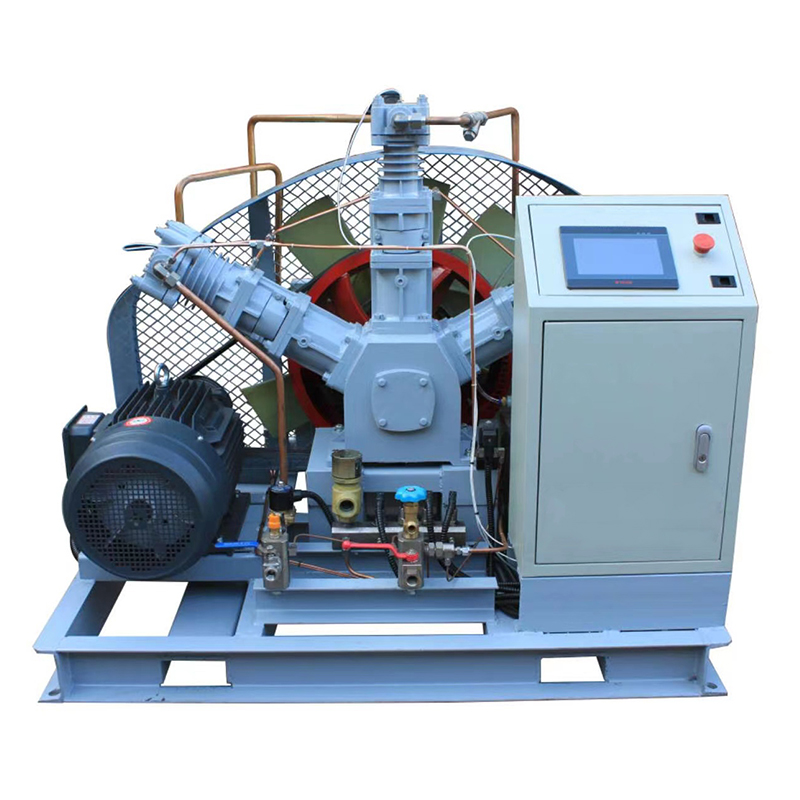

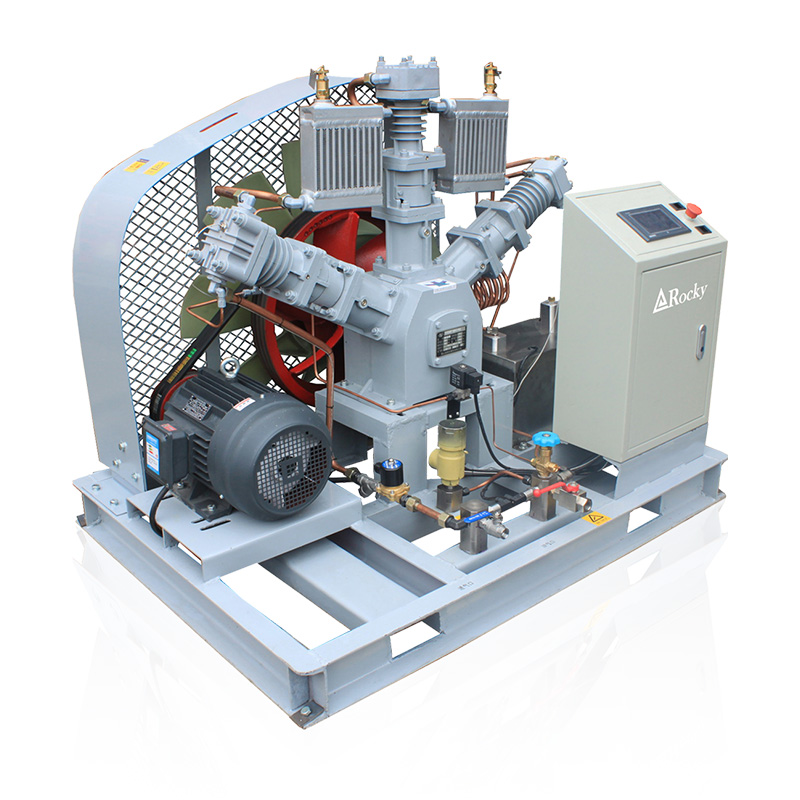

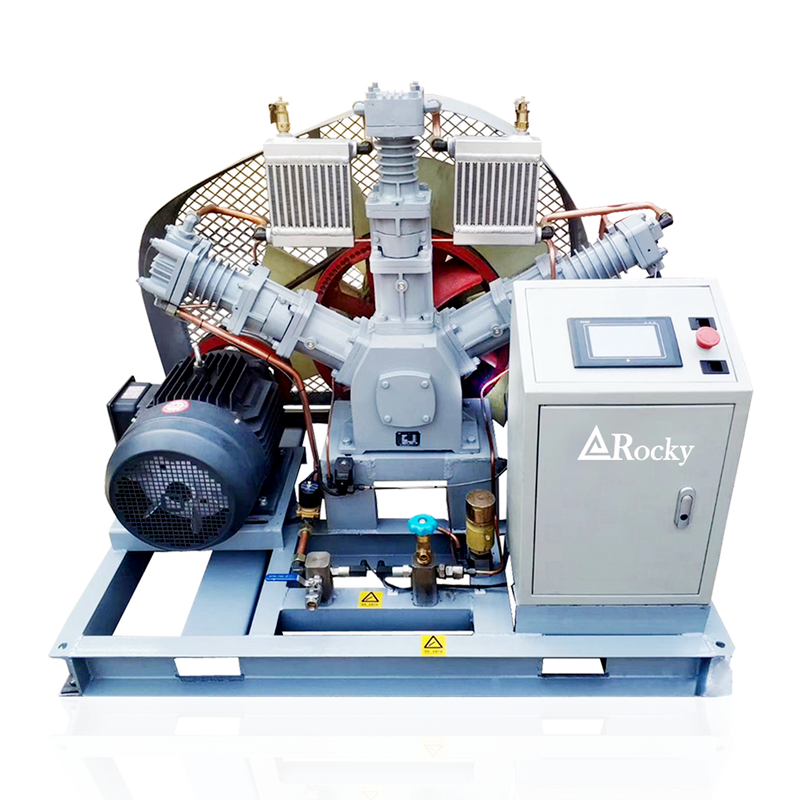

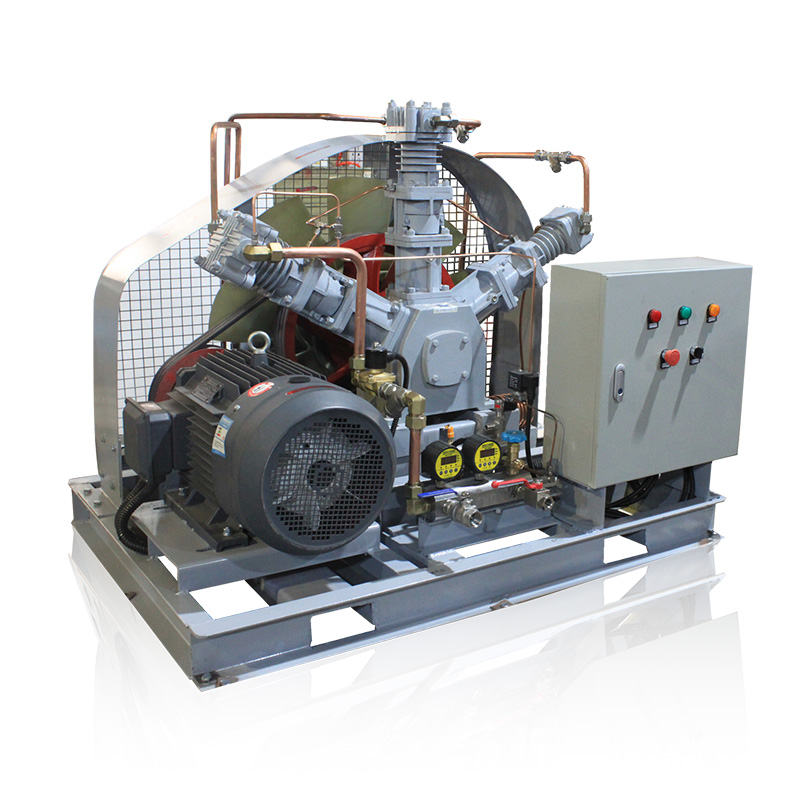

This oil-free oxygen booster compresses oxygen without secondary contamination and is suitable for use in the pharmaceutical, chemical, food, and scientific research industries. It can also be used for gas pressure boosting in the air separation industry.
Q1. How long is the delivery time ?
A: For standard voltage, 15 working days. Non-standard ,please contact our sales.
Q2. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q3. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Q4. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q5. Do you have any certificate?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q6. Do you offer OEM service?
A: Yes.Both OEM & ODM service can be accepted.
