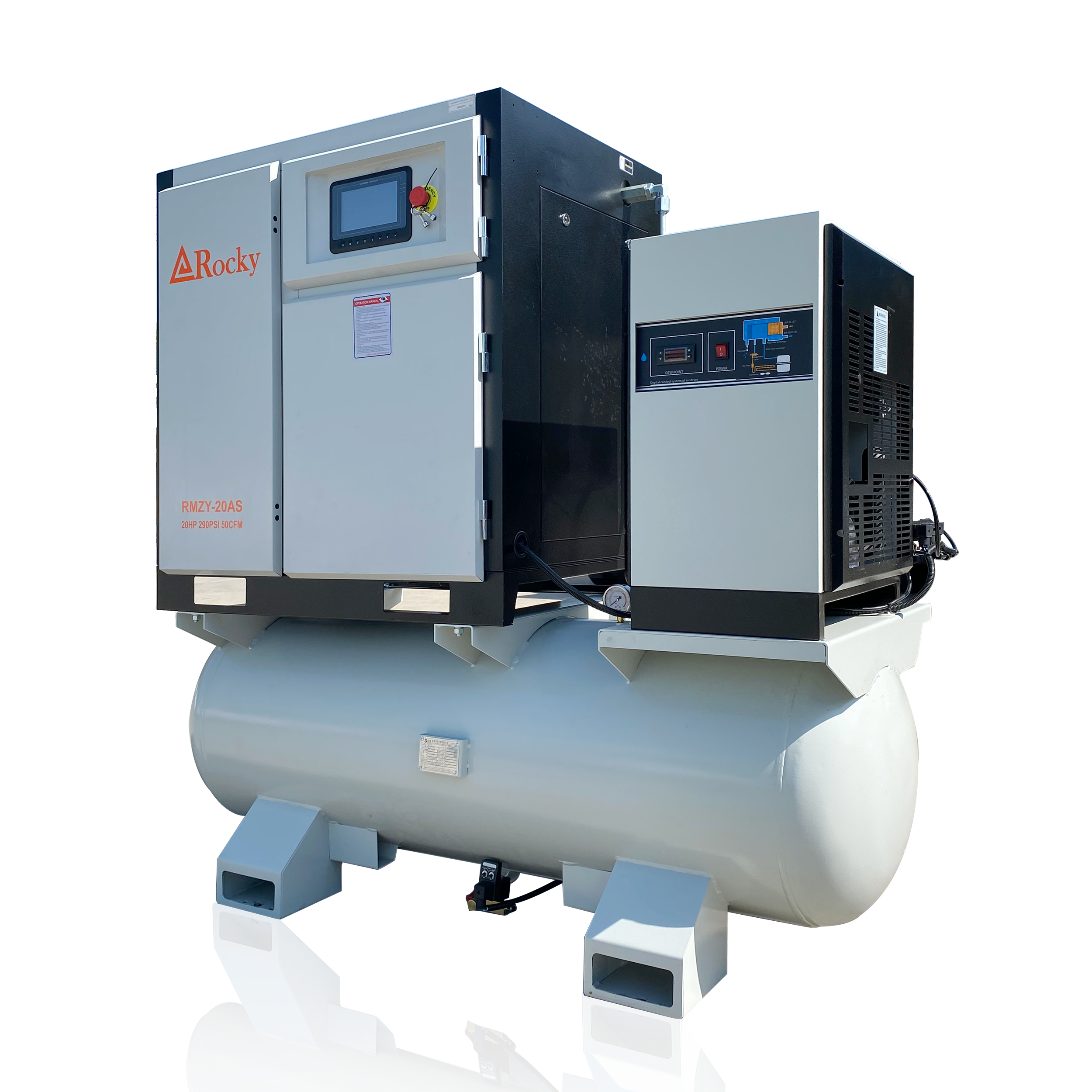

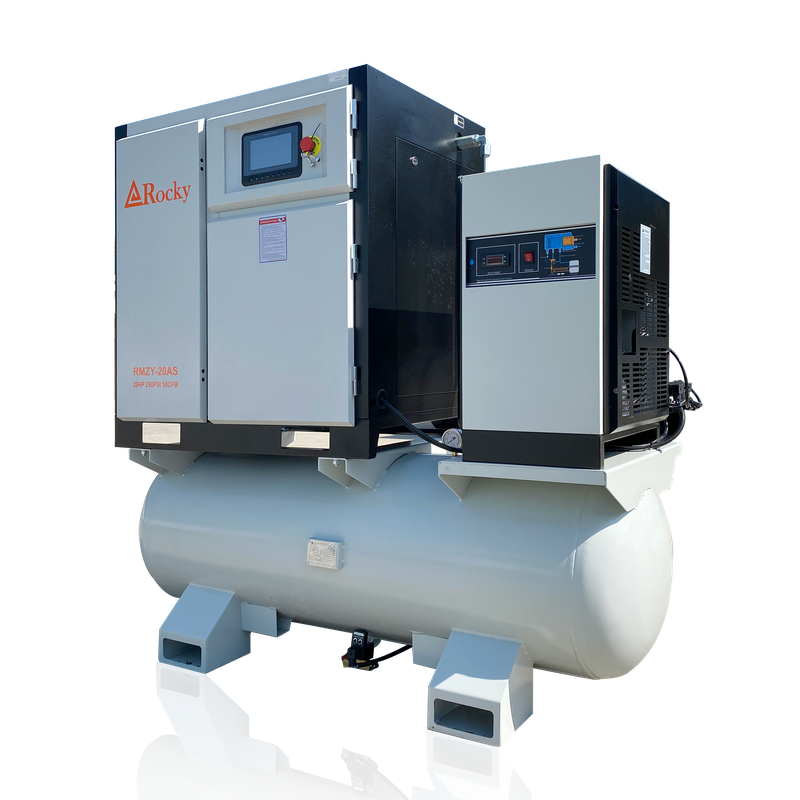

Rocky Multi-in-One Series – Integrated Air Compressor System for Laser Cutting
The Rocky Multi-in-One Series is a compact, all-in-one air compression solution specifically designed for the laser cutting industry. Combining a screw-type air compressor, refrigerated air dryer, and air storage tank into a single integrated unit, this system delivers a complete and efficient solution for producing clean, dry compressed air.
Product features
1. Advanced Screw Airend Technology
Provides exceptional stability, ensuring smoother cutting and a superior surface finish.
2. High-Efficiency Oil and Water Removal
Multiple high-efficiency filtration devices ensure the compressed air entering the laser cutting system is both dry and oil-free.
3. Thermostatic Control
Efficiently minimizes moisture content, enhancing system reliability and prolonging its operational lifespan.
4. Large-Capacity Air Storage Tank
Ensures stable air supply pressure while effectively separating and condensing moisture.
5. Integrated Automatic Drainage System
Improves air purity and dryness, ensuring the laser lens remains free from contamination.
6. All-in-One Design
Intuitive design, easy to operate, and highly portable for enhanced convenience.
| High Pressure Screw Air Compressor for Fiber Laser Cutting Application | |||||||||||
| Model | Air Delivery (m3/min) max | Exhaust pressure (bar) max | Power (kW/hp) | Noise dB(A) | Outlet diameter (In) | Dimensions (mm) | Weight (kg) | Exhaust pressure dew point (°C) | Exhaust dust content (μm) | Exhaust oil content (ppm) | Gas storage tank capacity (L) |
| RMZY-10A8 | 1.20 | 8 | 7.5/10 | 63 | G3/4 | 1505*740*1430 | 350 | 2~10 | 0.01 | 0.001 | 260 |
| RMZY-15A8 | 1.70 | 8 | 11/15 | 65 | G3/4 | 1800*900*1780 | 410 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-20A8 | 2.30 | 8 | 15/20 | 65 | G3/4 | 1800*900*1780 | 430 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-30A8 | 3.60 | 8 | 22/30 | 68 | G3/4 | 1800*900*1980 | 530 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-15A | 1.05 | 16 | 11/15 | 68 | G3/4 | 1800*900*1780 | 430 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-20A | 1.52 | 16 | 15/20 | 65 | G3/4 | 1800*900*1780 | 450 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-30A | 2.41 | 16 | 22/30 | 68 | G3/4 | 1880*900*1980 | 550 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-20AA | 1.52 | 16 | 15/20 | 65 | G3/4 | 2250*900*2080 | 450 | -20 | 0.01 | 0.001 | 400 |
| RMZY-30AA | 2.41 | 16 | 22/30 | 70 | G3/4 | 2250*900*2080 | 700 | -20 | 0.01 | 0.001 | 400 |
| RMZY-50AA | 3.90 | 16 | 37/50 | 70 | G3/4 | 2660*1000*2050 | 980 | -20 | 0.01 | 0.001 | 600 |
| RMZY-75AA | 5.50 | 16 | 55/75 | 70 | G3/4 | 3500*2330*2215 | 1540 | -20 | 0.01 | 0.001 | 1800 |
| RMZY-15AS | 1.05 | 20 | 11/15 | 65 | G3/4 | 1800*900*1780 | 460 | 2~10 | 0.01 | 0.001 | 400 |

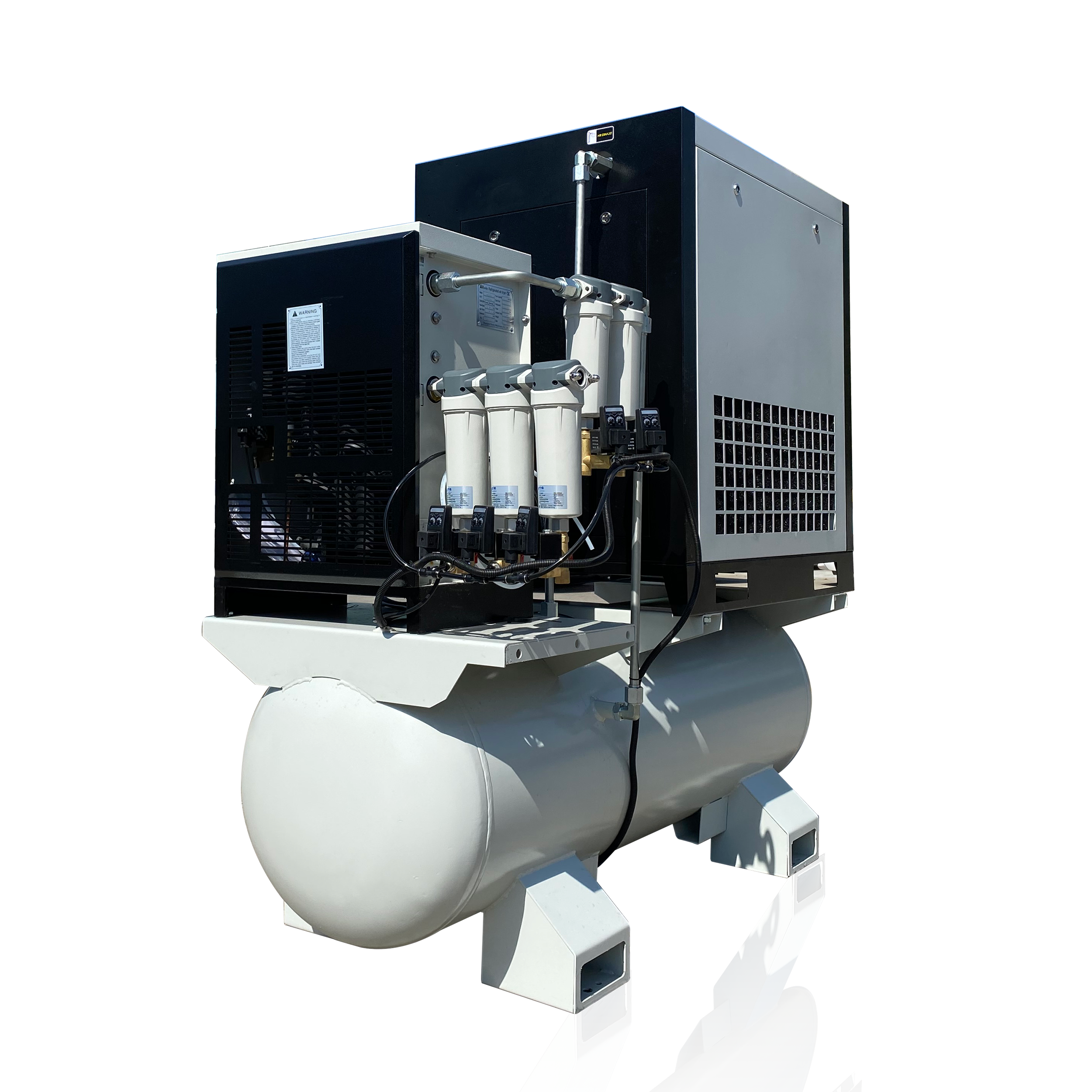

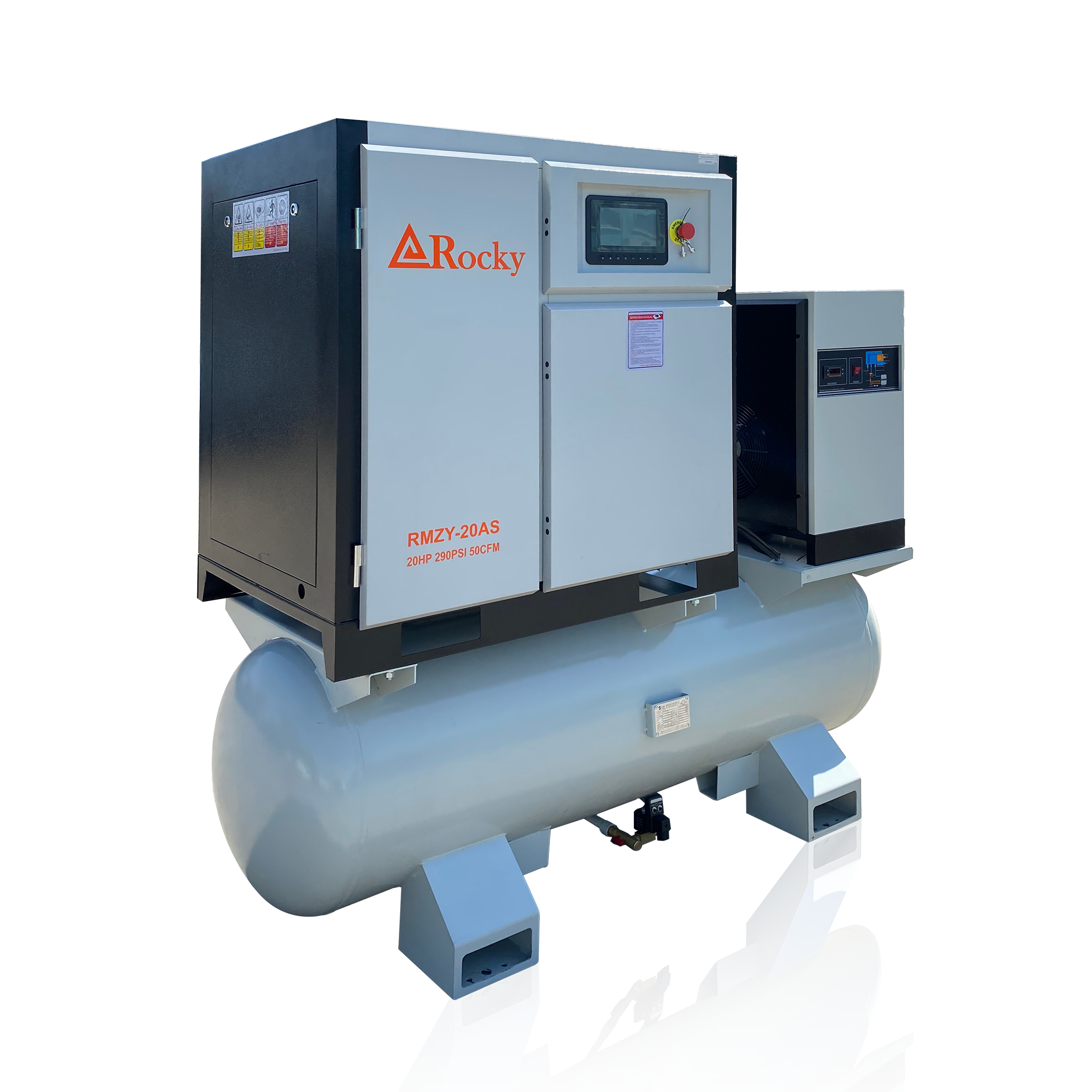

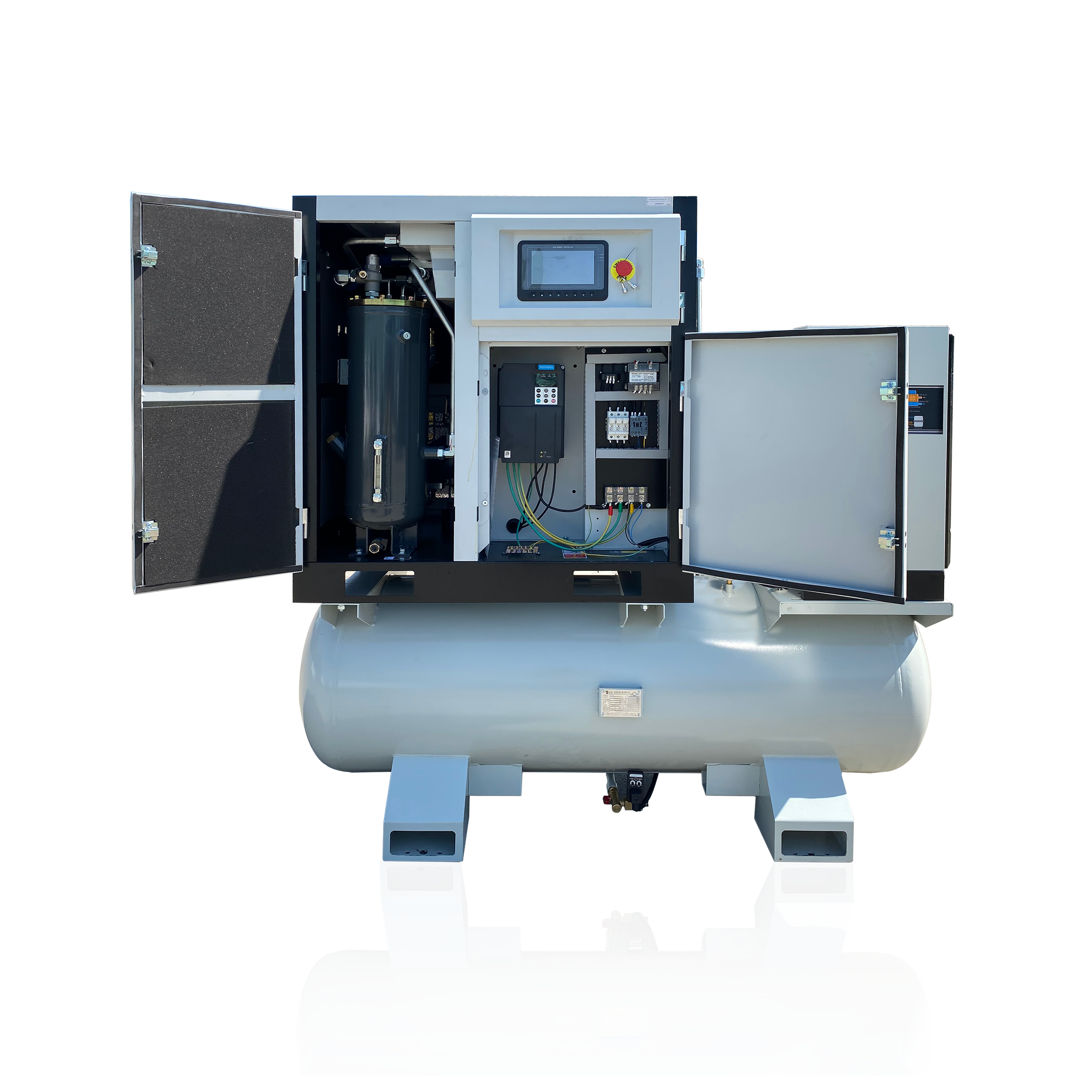

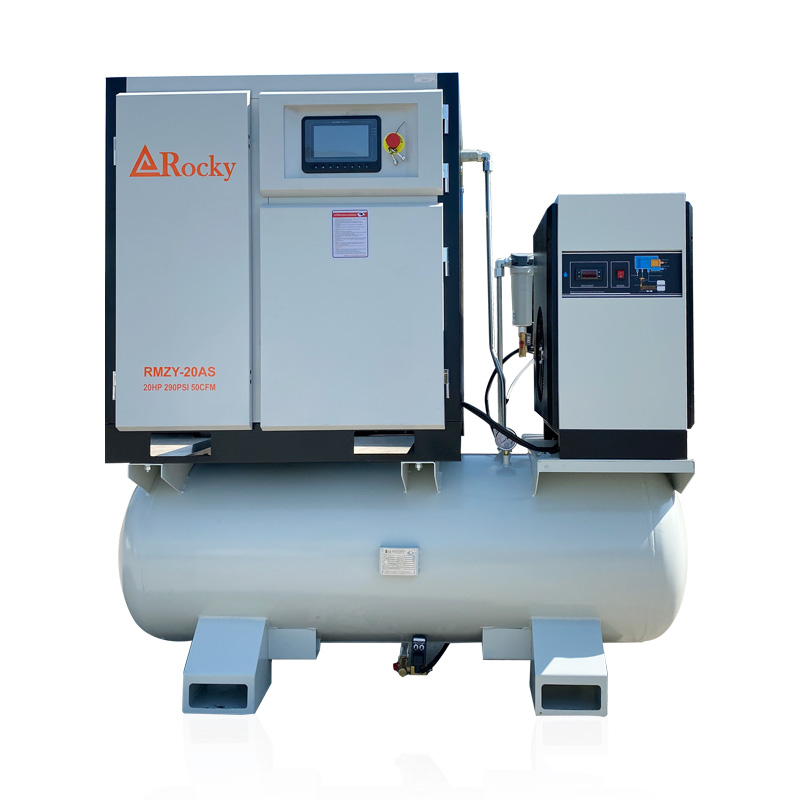

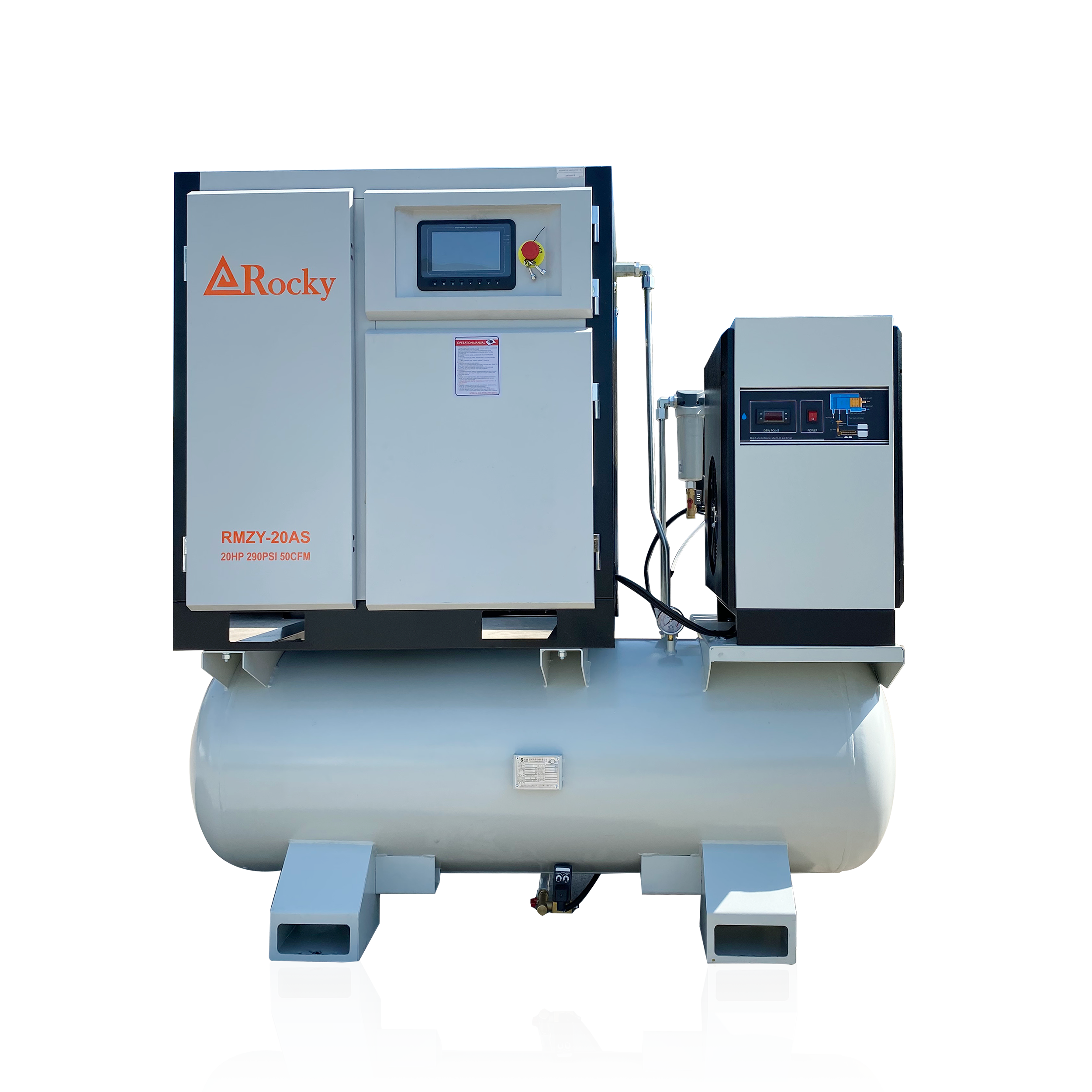

| RMZY-20AS | 1.52 | 20 | 15/20 | 65 | G3/4 | 1800*900*1780 | 480 | 2~10 | 0.01 | 0.001 | 400 |

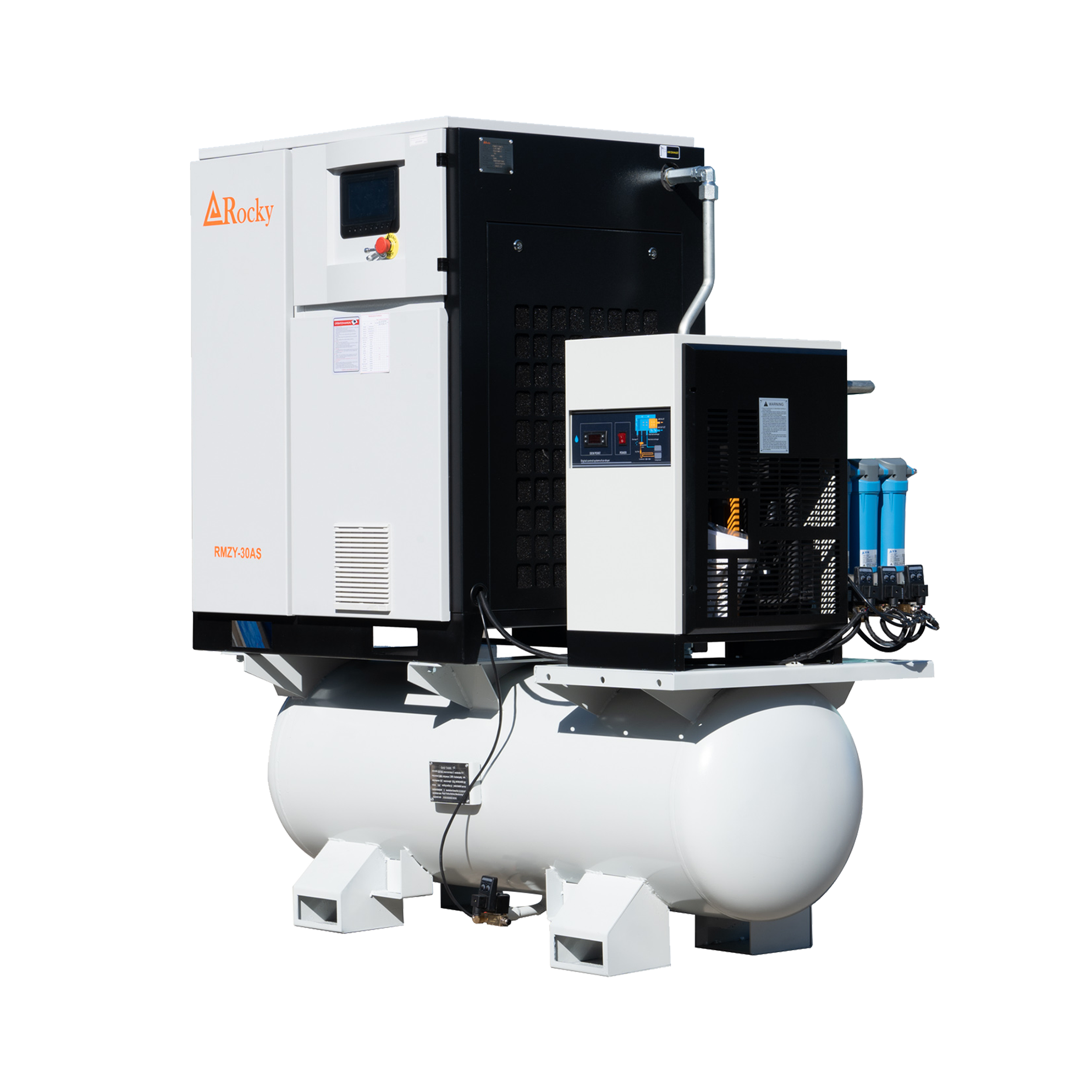

| RMZY-30AS | 2.41 | 20 | 22/30 | 68 | G3/4 | 1880*900*1980 | 600 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-20AAS | 1.52 | 20 | 15/20 | 65 | G3/4 | 2250*900*2080 | 740 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-30AAS | 2.41 | 20 | 22/30 | 70 | G3/4 | 2250*900*2080 | 780 | -20 | 0.01 | 0.001 | 400 |
| RMZY-50AAS | 3.90 | 20 | 37/50 | 70 | G3/4 | 2660*1000*2050 | 1080 | -20 | 0.01 | 0.001 | 600 |
| RMZY-75AAS | 5.50 | 20 | 55/75 | 70 | G3/4 | 3500*2330*2215 | 1540 | -20 | 0.01 | 0.001 | 1800 |
| Note: 1."A" indicates an additional absorption dryer. 2."S" indicates "Super High 20 bar" discharge pressure. 3.All compressors feature adjustable pressure settings. | |||||||||||
Application Industries
Automotive Manufacturing, Electronics & Electrical, Mechanical Processing, Laser Cutting, Pneumatic Grinding, Chemical Production, Gas Transportation, Reactor Agitation, Raw Material Mixing, Oil Extraction, Pharmaceuticals, Food Processing, Beverage Production, Textiles, Thermal Power Generation, Mining, Metal Smelting, and other Industries.
FAQ
Q1. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q2. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q3. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Q4. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q5. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q6. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.
Q7. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.
