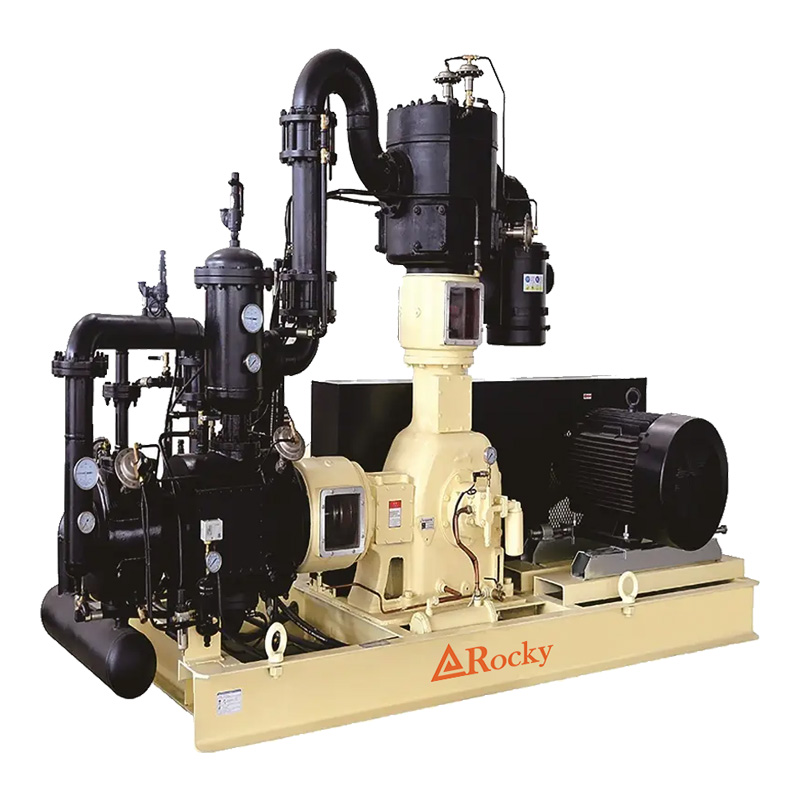

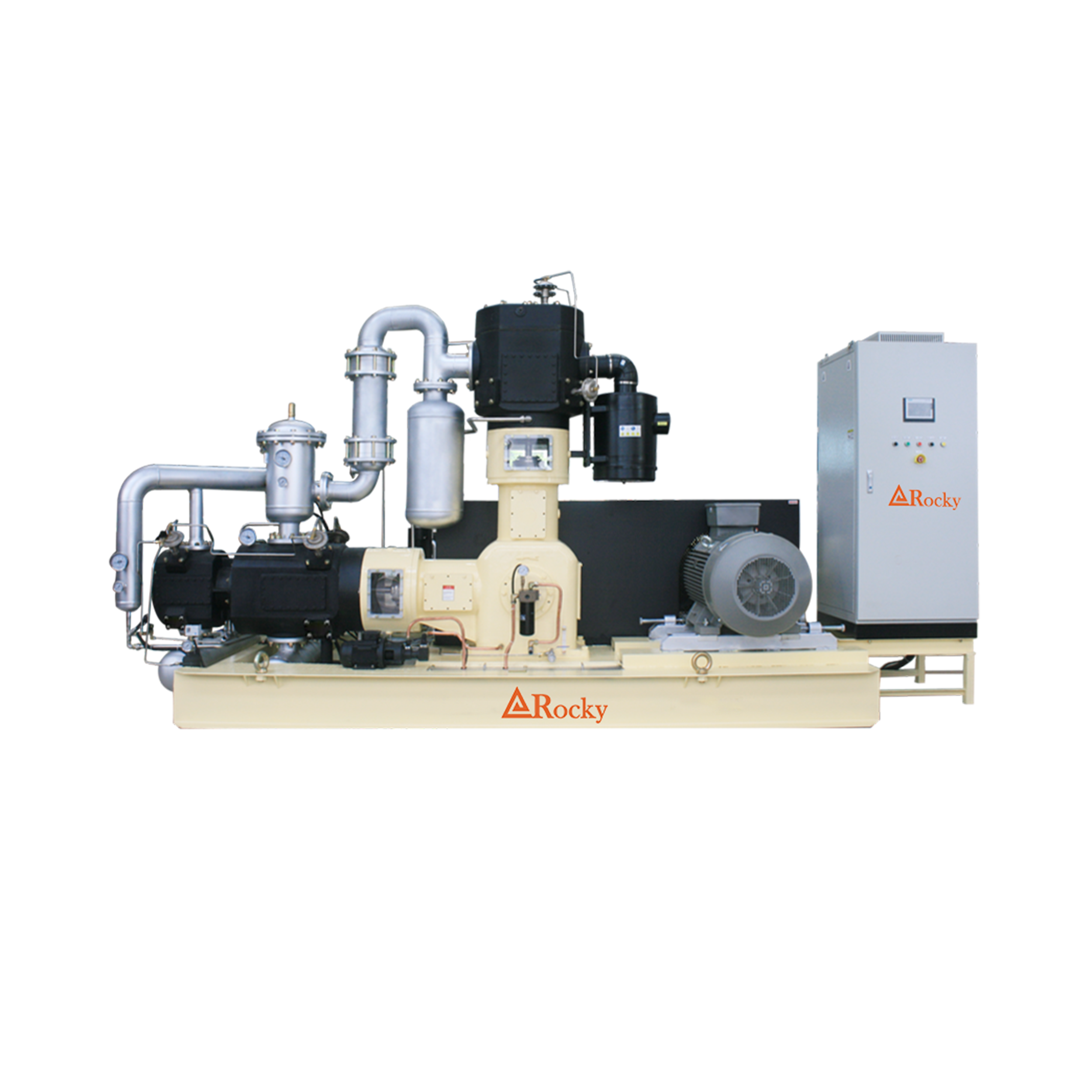

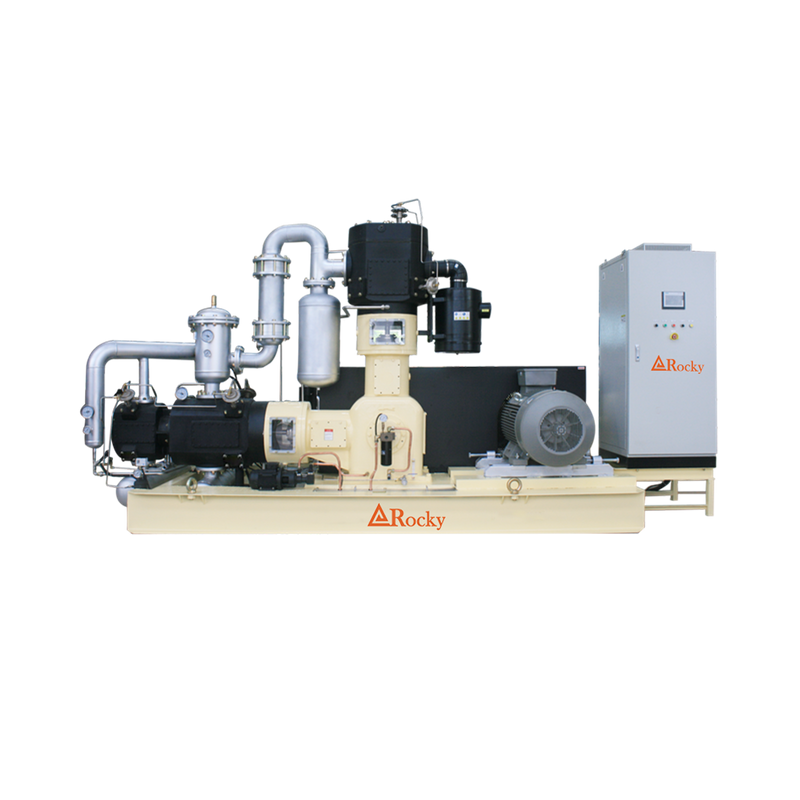

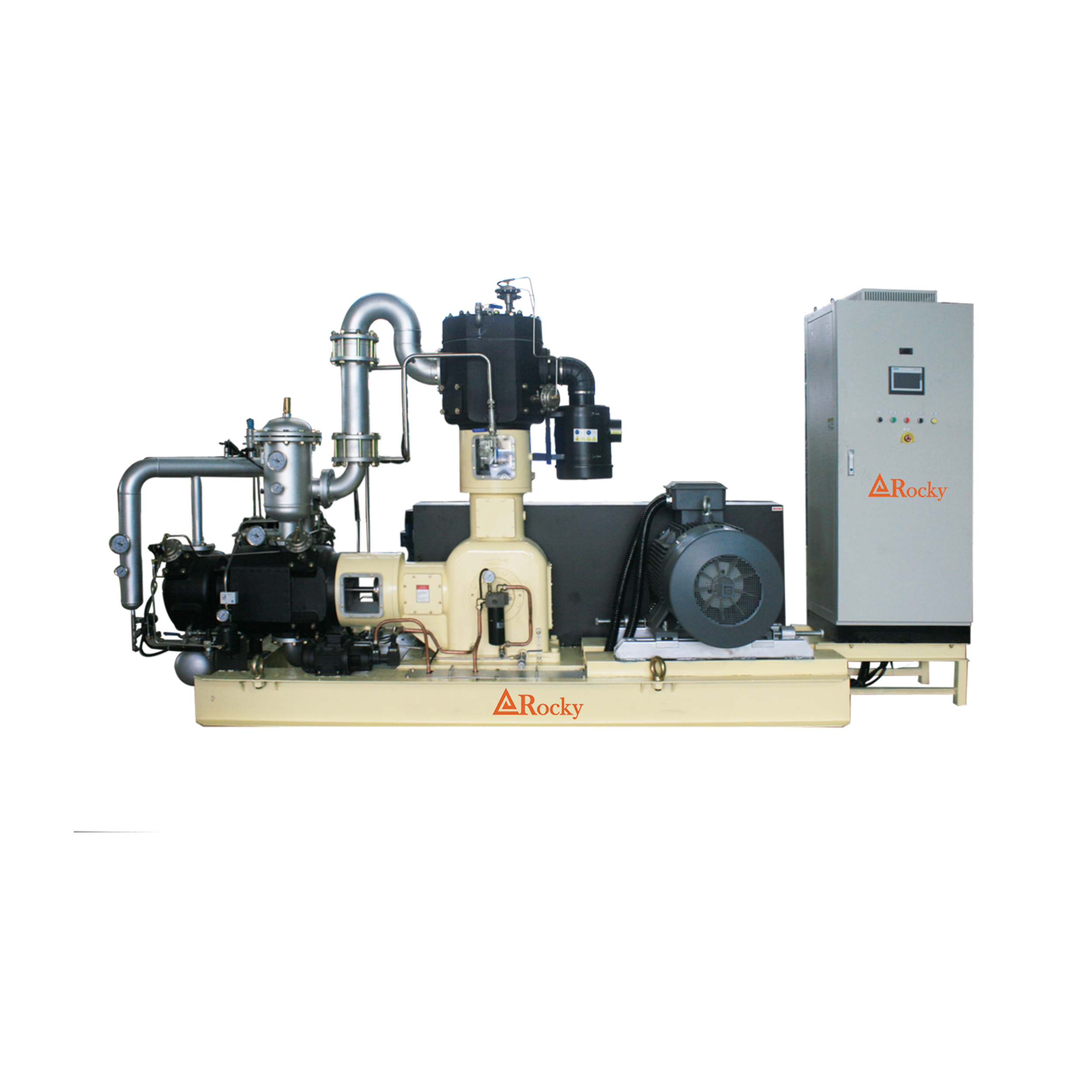

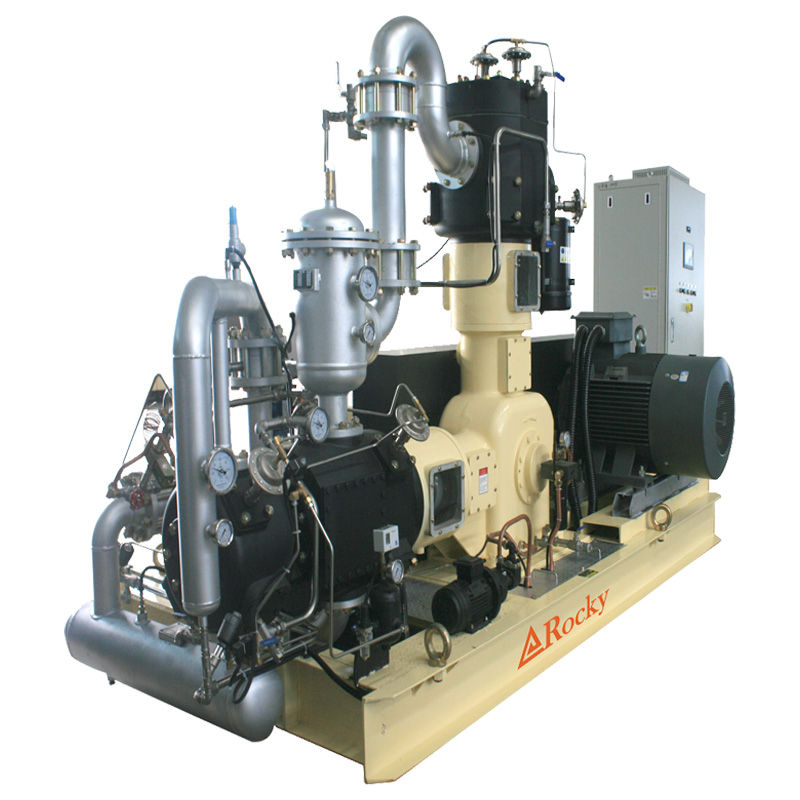

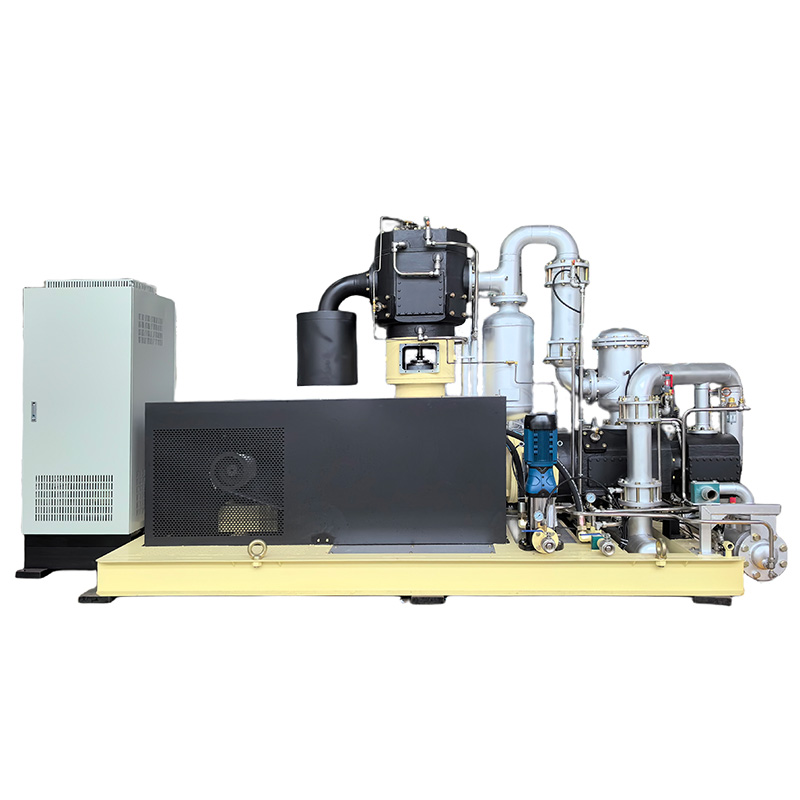

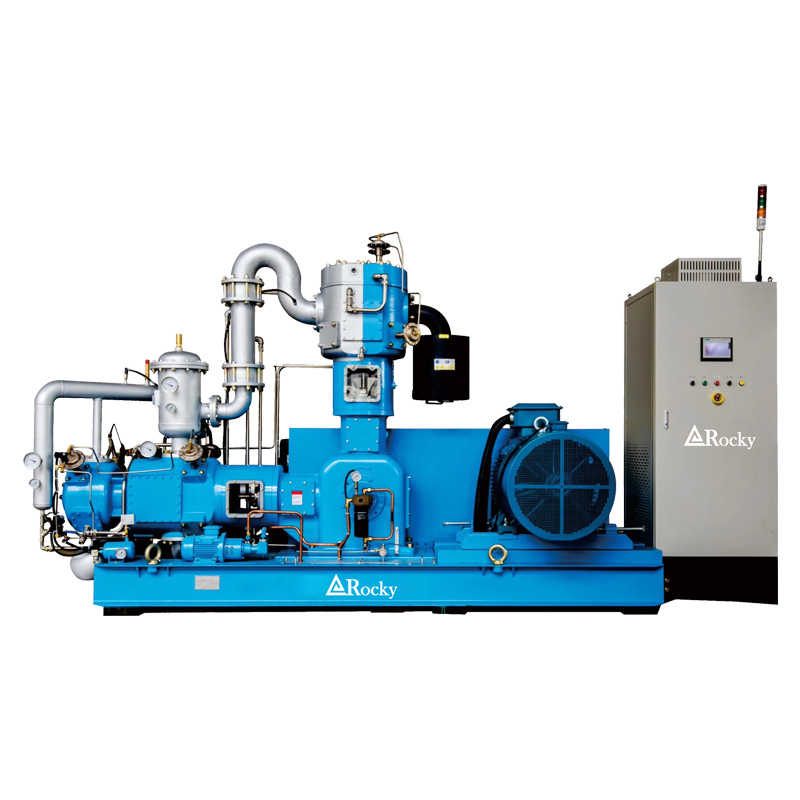

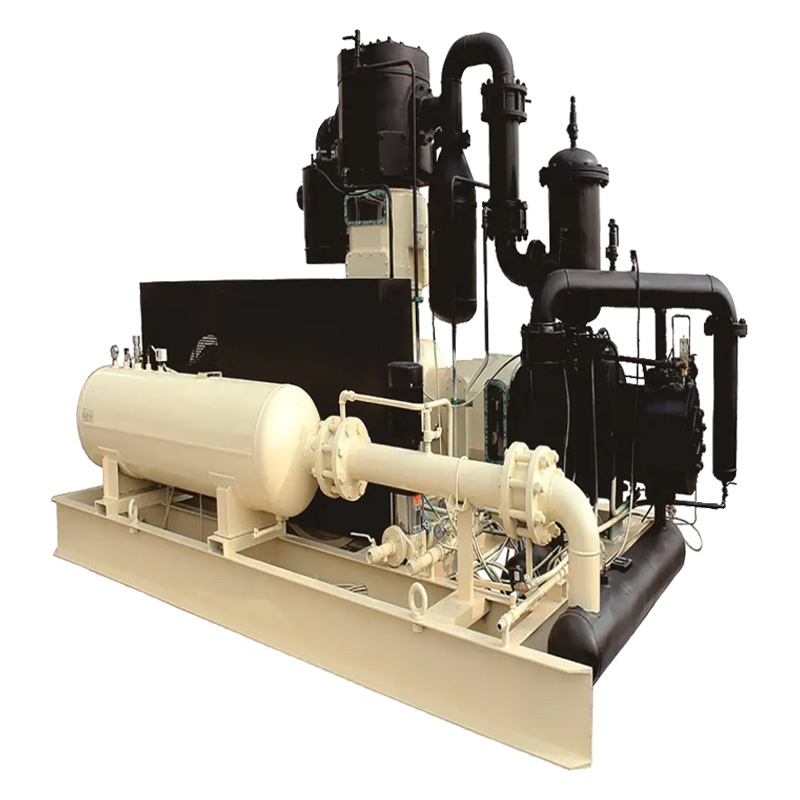

Medium and high pressure air compressors refer to equipment that can compress air to medium or high pressure. Usually, multi-stage compression is used to gradually increase the air pressure through multiple cylinders. The pressure range of 30-40 bar belongs to the medium and high pressure category. This type of compressor is usually used in industrial applications that require higher pressure, such as PET bottle production, blow molding, beverage packaging, etc.
Product features
1. High energy efficiencyLong component life, low wear and low speed: 340 rpm to 580 rpm, few wearing parts, easy accessto the machine for maintenance.
2.High reliability and easy maintenance.
3. Short maintenance time and good results.
4. Due to the use of anti-vibration devices, there is no need to lay a special foundation, and theinstallation is simple and fast, it can reduce the investment cost of installation.
Product Parameters
| Model | Air delivery (m³/min) | Working Pressure (Bar) | Motor Power (kW) | Speed (RPM) | Dimension (mm) | Weight （kg） | ||||||||||||||||||||||||
| RKL-8.5/40 | 8.5 | 40 | 90 | 450 | 4050*1750*2380 | 5500 | ||||||||||||||||||||||||
| RKL-10/40 | 10 | 40 | 110 | 500 | 4050*1750*2380 | 5800 | ||||||||||||||||||||||||
| RKL-12/40 | 12 | 40 | 132 | 580 | 4050*1750*2380 | 6000 | ||||||||||||||||||||||||
| RKL-16/40 | 16 | 40 | 160 | 390 | 4650*2200*2780 | 7400 | ||||||||||||||||||||||||
| RKL-18/40 | 18 | 40 | 185 | 440 | 4650*2200*2780 | 7600 | ||||||||||||||||||||||||
| RKL-20/40 | 20 | 40 | 200 | 470 | 4650*2200*2780 | 7800 | ||||||||||||||||||||||||
| RKL-22/40 | 22 | 40 | 220 | 500 | 4650×2200*2780 | 8000 | ||||||||||||||||||||||||
| RKL-25/40 | 25 | 40 | 250 | 390 | 4950*2690*2980 | 8500 | ||||||||||||||||||||||||
| RKL-28/40 | 28 | 40 | 280 | 440 | 4950*2690*2980 | 8800 | ||||||||||||||||||||||||
| RKL-30/40 | 30 | 40 | 315 | 470 | 4950*2690*2980 | 9000 | ||||||||||||||||||||||||
Application Industry
Widely used in biology, chemical industry, pressure testing, ships, especially in hydropower stations, PET bottle blowing and blow molding machines, leak detection gas sources, military supporting and other fields.
FAQ
Q1. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q2. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q3. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Q4. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q5. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q6. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.
Medium and high pressure air compressors refer to equipment that can compress air to medium or high pressure. Usually, multi-stage compression is used to gradually increase the air pressure through multiple cylinders. The pressure range of 30-40 bar belongs to the medium and high pressure category. This type of compressor is usually used in industrial applications that require higher pressure, such as PET bottle production, blow molding, beverage packaging, etc.
Product features
1. High energy efficiencyLong component life, low wear and low speed: 340 rpm to 580 rpm, few wearing parts, easy accessto the machine for maintenance.
2.High reliability and easy maintenance.
3. Short maintenance time and good results.
4. Due to the use of anti-vibration devices, there is no need to lay a special foundation, and theinstallation is simple and fast, it can reduce the investment cost of installation.
Product Parameters
| Model | Air delivery (m³/min) | Working Pressure (Bar) | Motor Power (kW) | Speed (RPM) | Dimension (mm) | Weight （kg） | ||||||||||||||||||||||||
| RKL-8.5/40 | 8.5 | 40 | 90 | 450 | 4050*1750*2380 | 5500 | ||||||||||||||||||||||||
| RKL-10/40 | 10 | 40 | 110 | 500 | 4050*1750*2380 | 5800 | ||||||||||||||||||||||||
| RKL-12/40 | 12 | 40 | 132 | 580 | 4050*1750*2380 | 6000 | ||||||||||||||||||||||||
| RKL-16/40 | 16 | 40 | 160 | 390 | 4650*2200*2780 | 7400 | ||||||||||||||||||||||||
| RKL-18/40 | 18 | 40 | 185 | 440 | 4650*2200*2780 | 7600 | ||||||||||||||||||||||||
| RKL-20/40 | 20 | 40 | 200 | 470 | 4650*2200*2780 | 7800 | ||||||||||||||||||||||||
| RKL-22/40 | 22 | 40 | 220 | 500 | 4650×2200*2780 | 8000 | ||||||||||||||||||||||||
| RKL-25/40 | 25 | 40 | 250 | 390 | 4950*2690*2980 | 8500 | ||||||||||||||||||||||||
| RKL-28/40 | 28 | 40 | 280 | 440 | 4950*2690*2980 | 8800 | ||||||||||||||||||||||||
| RKL-30/40 | 30 | 40 | 315 | 470 | 4950*2690*2980 | 9000 | ||||||||||||||||||||||||
Application Industry
Widely used in biology, chemical industry, pressure testing, ships, especially in hydropower stations, PET bottle blowing and blow molding machines, leak detection gas sources, military supporting and other fields.
FAQ
Q1. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q2. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q3. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Q4. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q5. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q6. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.
