Class 0 Certified 40 Bar Oil-Free High Pressure Piston Pet Bottle Blowing Compressor

Class 0 Certified 40 Bar Oil-Free High Pressure Piston Pet Bottle Blowing Compressor

A Class 0 Certified 40 Bar Oil-Free High Pressure Piston PET Bottle Blowing Compressor is a purpose‑built, reciprocating piston‑type air compressor engineered specifically to deliver 100% oil‑free compressed air at 40 bar (580 psi) – the precise pressure required for PET bottle stretch‑blow moulding. Unlike oil‑lubricated alternatives, this compressor utilises oil‑free lubrication technology (such as self‑lubricating piston rings or water‑injected systems) to eliminate any risk of oil contamination in the compressed air stream.

The unit is certified to ISO 8573‑1 Class 0 – the most stringent international standard for compressed air purity. Class 0 certification guarantees that the compressor discharges compressed air free of oil aerosols, oil vapours, and oil liquids originating from the compression process. This is a critical requirement for industries where even trace amounts of oil can compromise product safety, trigger costly recalls, or violate regulatory standards.

Designed for continuous 24/7 operation, this high‑pressure piston compressor typically features multi‑stage compression with intercooling to achieve the required 40 bar output efficiently. The reciprocating piston mechanism is the industry‑proven technology of choice for PET blow‑moulding applications, offering reliable performance, stable pressure output, and extended service life under demanding production conditions. Many modern designs incorporate Variable Frequency Drive (VFD) technology to optimise energy consumption by matching air supply to real‑time plant demand.

Product Features

• ISO 8573‑1 Class 0 Certification
  Delivers 100% oil‑free compressed air – free of oil aerosol, vapor, and liquid. Meets the strict zero‑contamination requirements for food, beverage, and pharmaceutical packaging.

• Precise 40 bar (580 psi) Output
  Specifically engineered for PET stretch‑blow moulding. Provides stable, consistent pressure that ensures uniform wall thickness and exceptionally low reject rates.

• Oil‑Free Piston Technology
  Utilises self‑lubricating piston rings (PTFE‑based) or water‑injected lubrication, completely eliminating oil from the compression chamber. No oil‑water separators or special wastewater treatment required.

• Multi‑Stage Compression with Intercooling
  Delivers high energy efficiency with lower power consumption than single‑stage designs. Optional Variable Frequency Drive (VFD) further reduces energy use by 25%–40%.

• Heavy‑Duty 24/7 Continuous Operation
  Robust low‑speed cast‑iron construction ensures long‑term reliability. Major overhaul intervals extend to 4,000–6,000 operating hours, significantly reducing maintenance costs.

• Compact Skid‑Mounted Design
  Small footprint, no special foundation required, quick installation, and low noise and vibration levels.

Primary applications include

• PET bottle blowing for beverage, food, and pharmaceutical packaging-

• Blow moulding of PET preforms into finished containers

• Food‑grade and pharmaceutical‑grade packaging requiring contamination‑free air-

• Pressure testing, leak detection, and industrial gas boosting

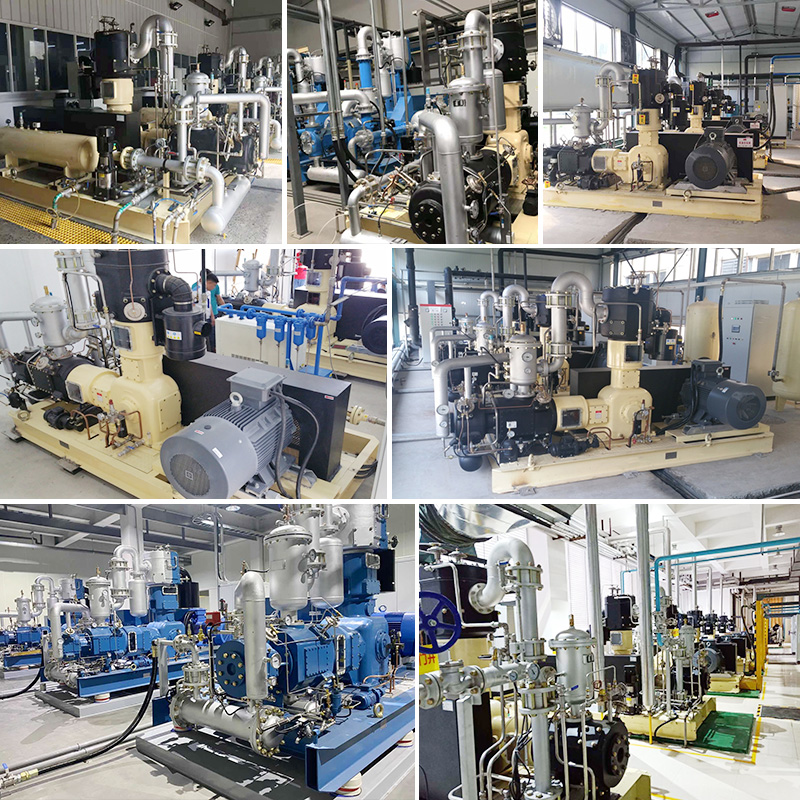

Customer Case Study

ERC – a landmark beverage producer in Dubai – operates a high‑volume PET bottling line for its Jeema mineral water brand. To meet stringent food‑safety standards, ERC required 100% oil‑free compressed air at 40 bar for bottle blowing, as any oil contamination would compromise product taste and consumer safety. The plant also needed a solution that could reduce energy costs and noise levels compared to its aging 3‑stage piston compressors.

ERC installed a Class 0 certified 40 bar oil‑free high pressure piston compressor delivering ISO 8573‑1 Class 0 air – guaranteeing zero oil aerosol, vapor, or liquid in the air stream. The system provides stable 40 bar output for PET blow‑moulding while operating with significantly lower noise and vibration than conventional units. The 4‑stage compression design also delivers a direct 7% reduction in energy consumption compared to standard alternatives.

Results: ERC achieved reliable, contamination‑free production, improved operator working conditions, and measurable energy savings – all while maintaining full compliance with food‑grade packaging standards

FAQS

Q1: What is the difference between Class 0 and Class 1?
A: Class 0 requires zero oil addition from the compressor and is stricter than Class 1 (<0.01 mg/m³). It is mandatory for zero‑tolerance industries.

Q2: Is this compressor suitable for food and beverage packaging?
A: Yes. Class 0 certification guarantees 100% oil‑free air, compliant with FDA and food safety regulations. Widely used for bottled water, drinks, and pharmaceuticals.

Q3: How much energy can VFD save?
A: VFD reduces energy consumption by 25–40% by matching motor speed to real‑time demand, eliminating wasteful unloaded operation.

Q4: What is the maintenance interval?
A: Routine service every 4,000–6,000 hours – no oil changes, no oil filters, and no air/oil separators to manage.

Q5: How do I select the right model?
A: Provide your required flow rate (m³/min or cfm), number of blow‑moulding machines, and bottle sizes to our engineering team for a customised recommendation.
