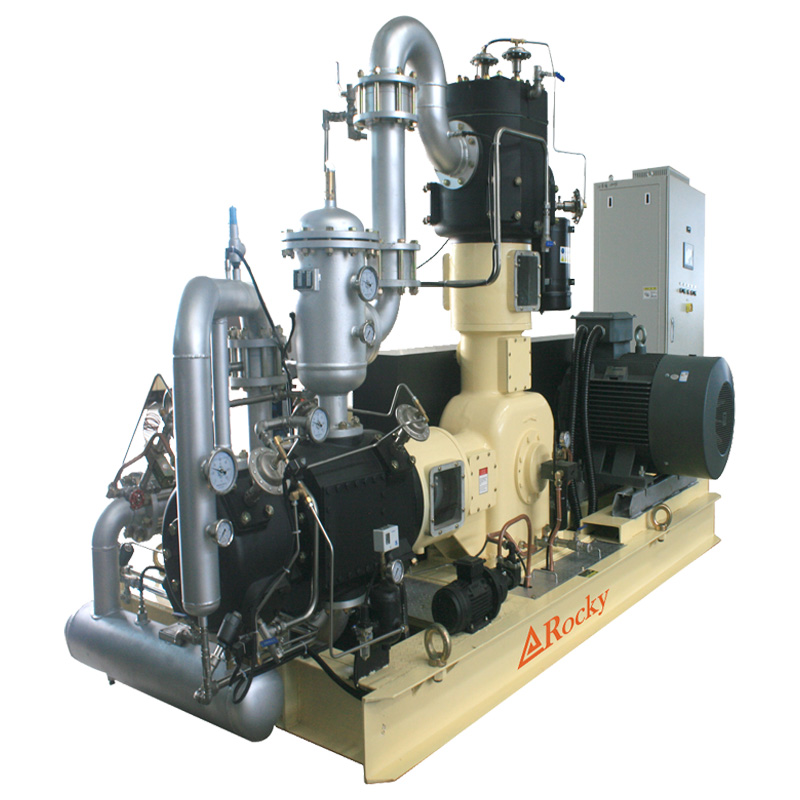

40 Bar 580 Psi Medium Pressure Industrial Piston Compressor for PET Bottle Manufacturing
This medium‑pressure industrial piston compressor is a rugged, high‑reliability boosting unit engineered specifically for PET bottle blow‑moulding lines. It takes standard low‑pressure shop air (typically 0.7–1.0 MPa / 100–145 psi) and boosts it to a stable 40 bar (580 psi) – the precise pressure required for stretch‑blow moulding of PET preforms. The compressor is available in both oil‑lubricated and oil‑free configurations, with the latter utilising self‑lubricating piston rings to deliver ISO 8573‑1 Class 0 certified air for food‑grade and pharmaceutical applications.
Designed for continuous 24/7 operation, this booster is the workhorse of modern PET packaging facilities, ensuring consistent bottle wall thickness, dimensional accuracy, and minimal reject rates.
Competitive Edge Over AF Units
1. Equivalent Operational Reliability
Rocky machines maintain consistent performance that matches AF standards, enabling seamless operation during intensive, continuous production schedules.
2. Lower Servicing Overheads
A streamlined mechanical layout significantly cuts expenditure on routine spare parts and replacement components, reducing the overall maintenance burden.
3. Superior Power Efficiency
Equipped with intelligent speed‑control technology, Rocky systems use 25‑40% less electrical power than traditional fixed‑speed alternatives, translating directly into reduced utility bills.
4. Outstanding Lifecycle Value
Shorter production lead‑times, adaptable OEM collaboration, and a lower total lifetime cost make Rocky a highly cost‑effective alternative to AF, without compromising on performance or durability.
Application Industries for 40 Bar Oil-Free PET Blowing Air Compressors
Beverage Industry
Production of PET bottles for carbonated soft drinks, water, juices, teas, and sports drinks.
Food Industry
Manufacturing of food-grade PET containers for edible oils, sauces, condiments, and dry foods.
Cosmetics & Personal Care
Blowing of PET bottles and jars for shampoos, lotions, creams, perfumes, and other beauty products.
Pharmaceutical Industry
Production of sterile, high-purity PET containers for medicines, syrups, and health supplements.
Household Chemicals
Manufacturing of PET packaging for detergents, cleaning agents, and liquid soaps.
Automotive Care Products
PET bottles for car wash liquids, waxes, and automotive cleaning agents.
Industrial & Technical Parts
Blow molding of technical hollow components made from PET or similar polymers.
Recycled PET (rPET) Bottle Manufacturing
Eco-friendly bottle production using recycled PET materials.
Q1: What is the primary function of this compressor in a PET plant?
A: It boosts standard low‑pressure workshop air (0.7–1.0 MPa) to a stable 40 bar (580 psi) – the exact pressure needed for the stretch‑blow moulding process. This ensures consistent bottle quality and high production efficiency.
Q2: Is the compressor oil‑free or oil‑lubricated?
A: Both options are available. For food‑grade, pharmaceutical, or other purity‑sensitive applications, we recommend the oil‑free version (self‑lubricating piston rings, Class 0 certified). For general industrial uses, the oil‑lubricated model provides reliable performance at a lower initial cost.
Q3: How does this booster improve energy efficiency compared to a standalone high‑pressure compressor?
A: By boosting existing air, it avoids the energy‑intensive work of compressing from atmospheric pressure. Additionally, the low‑speed heavy‑duty design reduces friction, and optional VFD adjusts motor speed to match real‑time demand – typically saving 25–40% of electrical energy relative to fixed‑speed units.
Q4: What maintenance schedule is recommended?
A: Routine inspections include checking piston rings, valves, and cylinder lubrication (for oil‑lubricated versions), plus replacing air intake filters and cleaning intercoolers. With the low‑speed design, major overhauls are typically required every 4,000‑6,000 operating hours, depending on duty cycle.
Q5: How do I correctly size the booster for my production line?
A: Sizing depends on your required flow rate (Nm³/min or cfm) , the number of blow‑moulding machines, and the specific bottle sizes. We recommend providing your current air consumption and peak demand data to our engineering team, who will perform a customised sizing calculation and system layout recommendation.
Q6: Can this compressor handle recycled PET (rPET) materials?
A: Yes. The stable pressure and oil‑free option ensure that even rPET preforms are formed consistently, supporting sustainable packaging initiatives without compromising quality.
