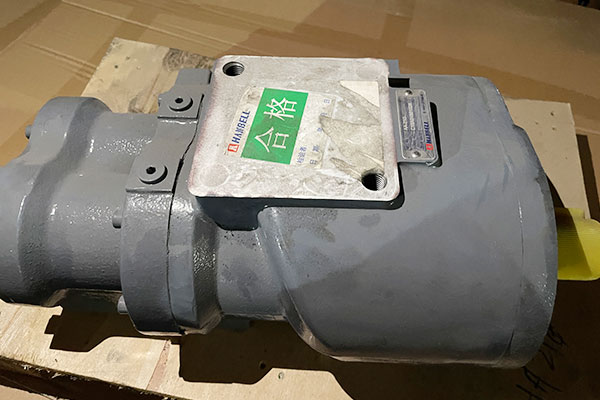

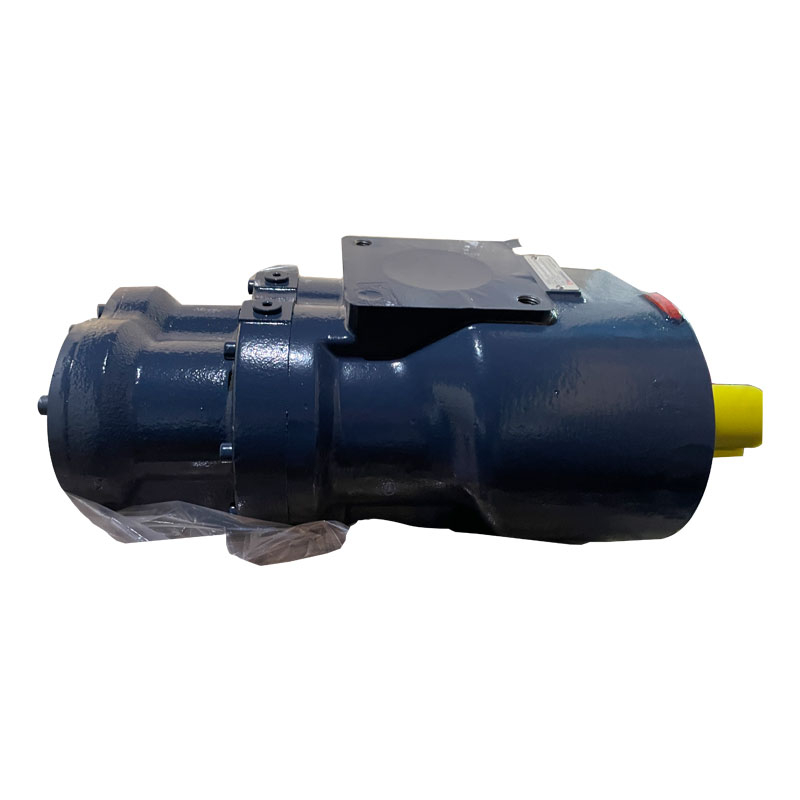

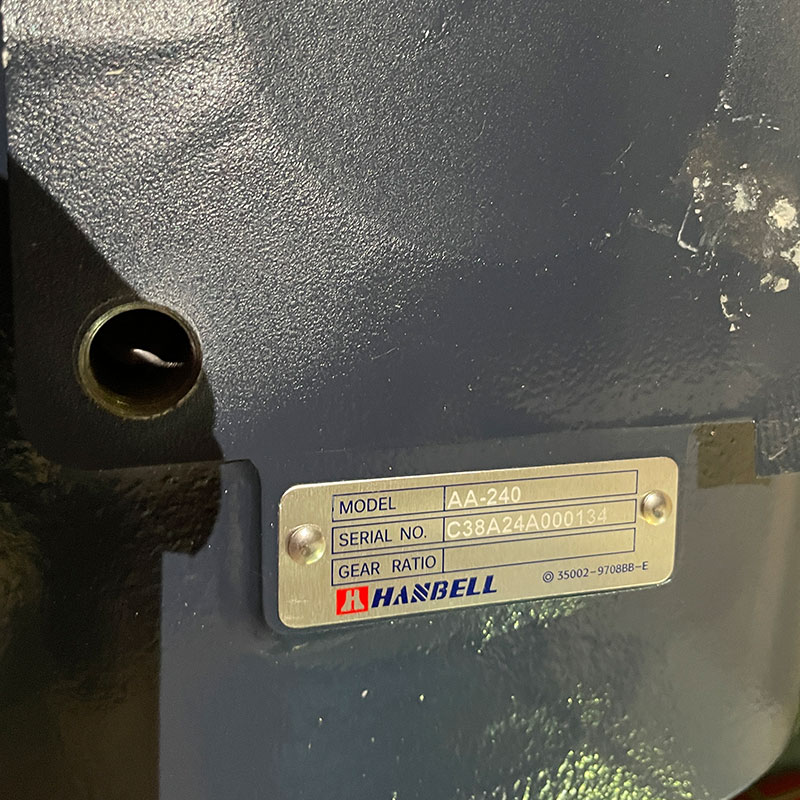

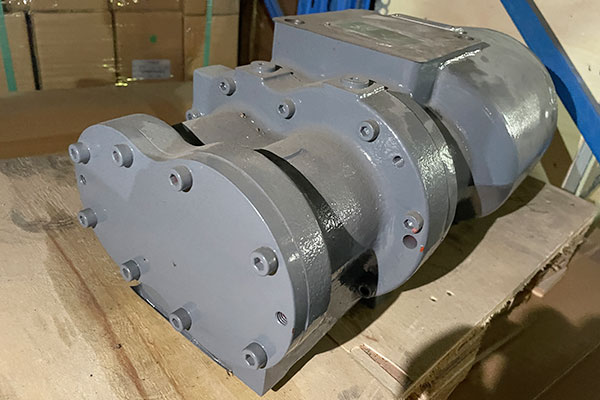

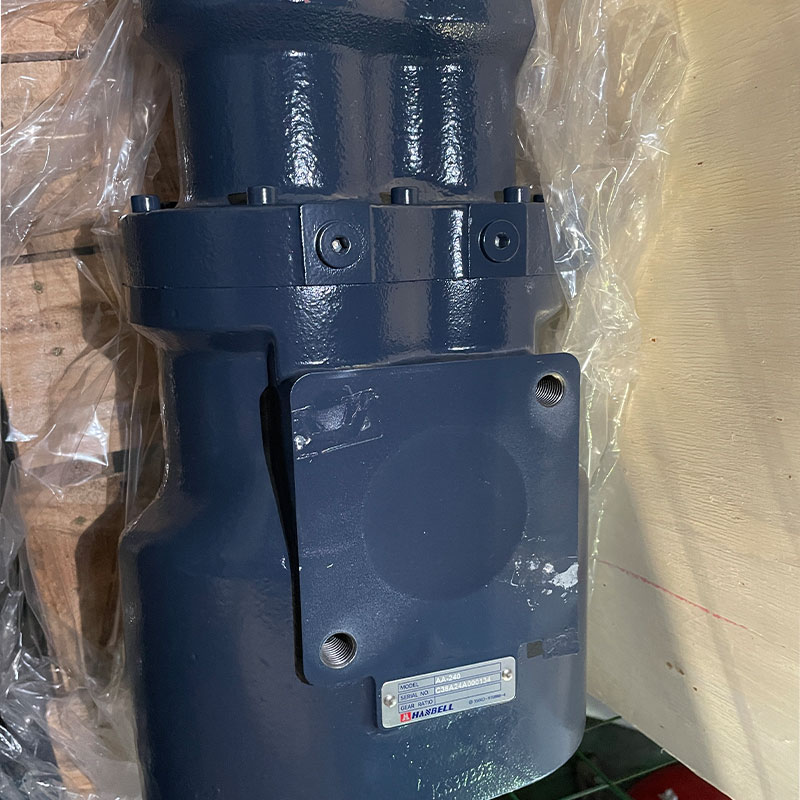

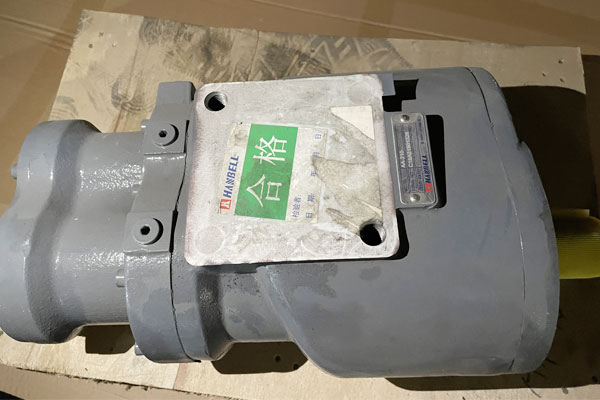

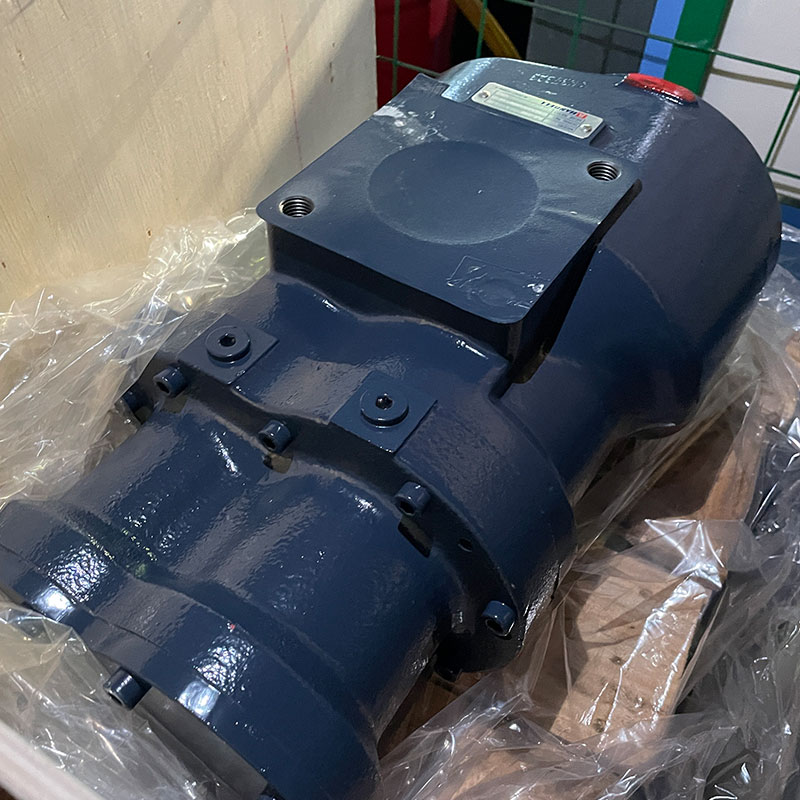

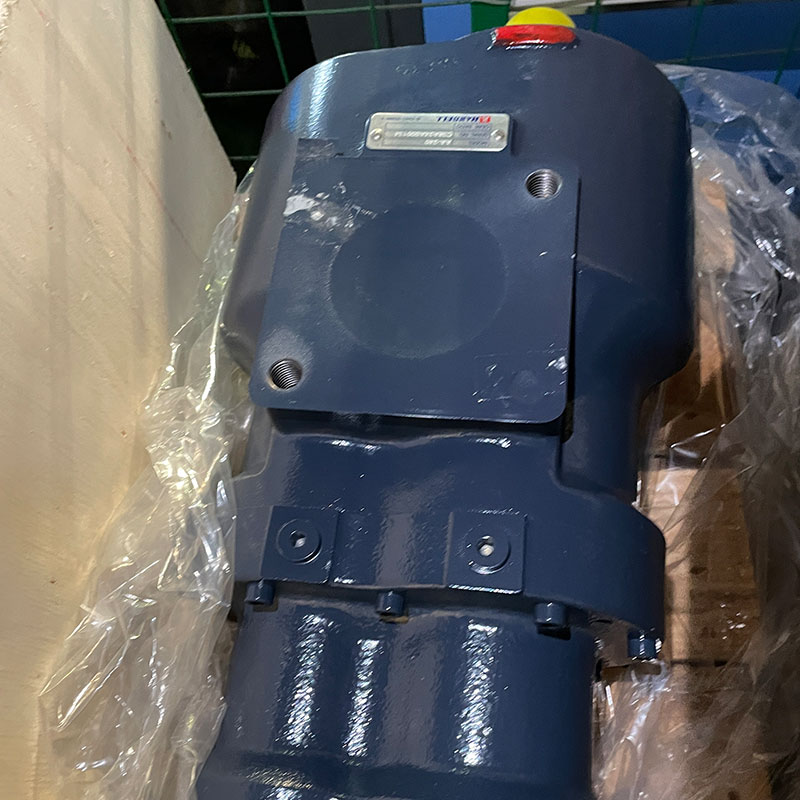

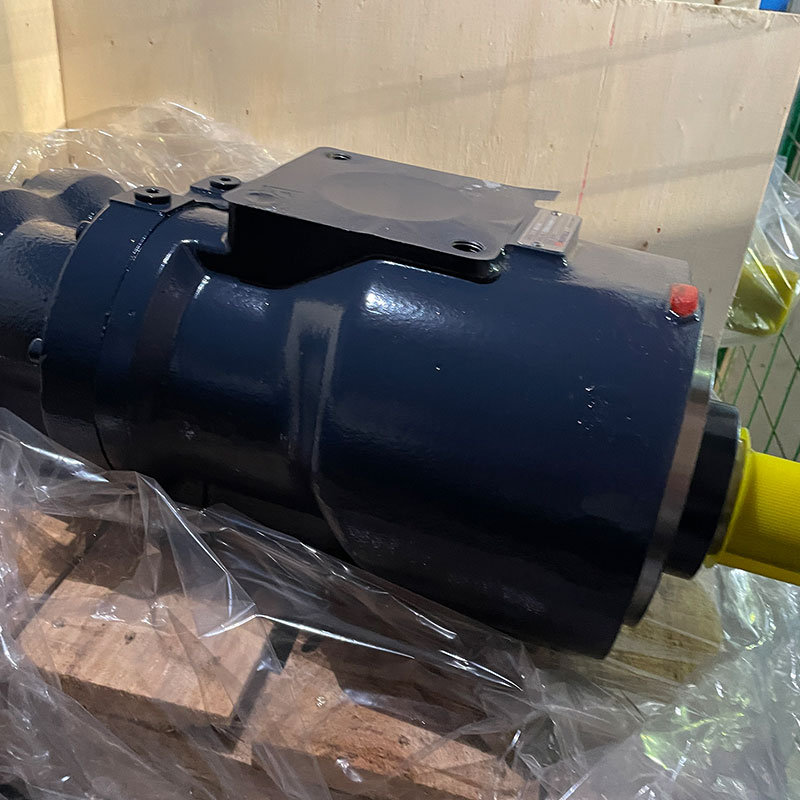

The Hanbell AA-240 is a single-stage, oil-injected screw air end designed for industrial air compressors. With a rated power of 22 kW, it delivers a free air delivery of 3.5 m³/min at 2950 rpm, operating within a pressure range of approximately 6–16 bar . It serves as the core compression component for general industrial compressed air systems.
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | S.F. | Dimension(mm) | Weight(kg) |
| AA-240 | 22 | 2950 | 3.5 | 22.7 | 6.4 | 1.03 | 512*261*207 | 73 |
✅ 8-Bearing Design – Ensures long life, stability, and low maintenance under continuous heavy-duty operation.
✅ High Pressure Capability – Reliable up to 16 bar, ideal for demanding industrial applications.
✅ 15+ Years Proven Market Leadership – Trusted globally; benchmarks against top international brands.
✅ Advanced Rotor Profile – 3rd-gen 5:6 asymmetrical design boosts efficiency and reduces vibration & noise.
✅ High Efficiency, Low Power – 6.4 kW/m³/min @ 8 bar for lower operating costs.
✅ ISO 9001 Certified Quality – Precision-tested with Zeiss 3D measuring for guaranteed accuracy.
The Hanbell AA-240 is a single-stage, oil-injected screw air end designed for industrial air compressors. With a rated power of 22 kW, it delivers a free air delivery of 3.5 m³/min at 2950 rpm, operating within a pressure range of approximately 6–16 bar . It serves as the core compression component for general industrial compressed air systems.
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | S.F. | Dimension(mm) | Weight(kg) |
| AA-240 | 22 | 2950 | 3.5 | 22.7 | 6.4 | 1.03 | 512*261*207 | 73 |
✅ 8-Bearing Design – Ensures long life, stability, and low maintenance under continuous heavy-duty operation.
✅ High Pressure Capability – Reliable up to 16 bar, ideal for demanding industrial applications.
✅ 15+ Years Proven Market Leadership – Trusted globally; benchmarks against top international brands.
✅ Advanced Rotor Profile – 3rd-gen 5:6 asymmetrical design boosts efficiency and reduces vibration & noise.
✅ High Efficiency, Low Power – 6.4 kW/m³/min @ 8 bar for lower operating costs.
✅ ISO 9001 Certified Quality – Precision-tested with Zeiss 3D measuring for guaranteed accuracy.
