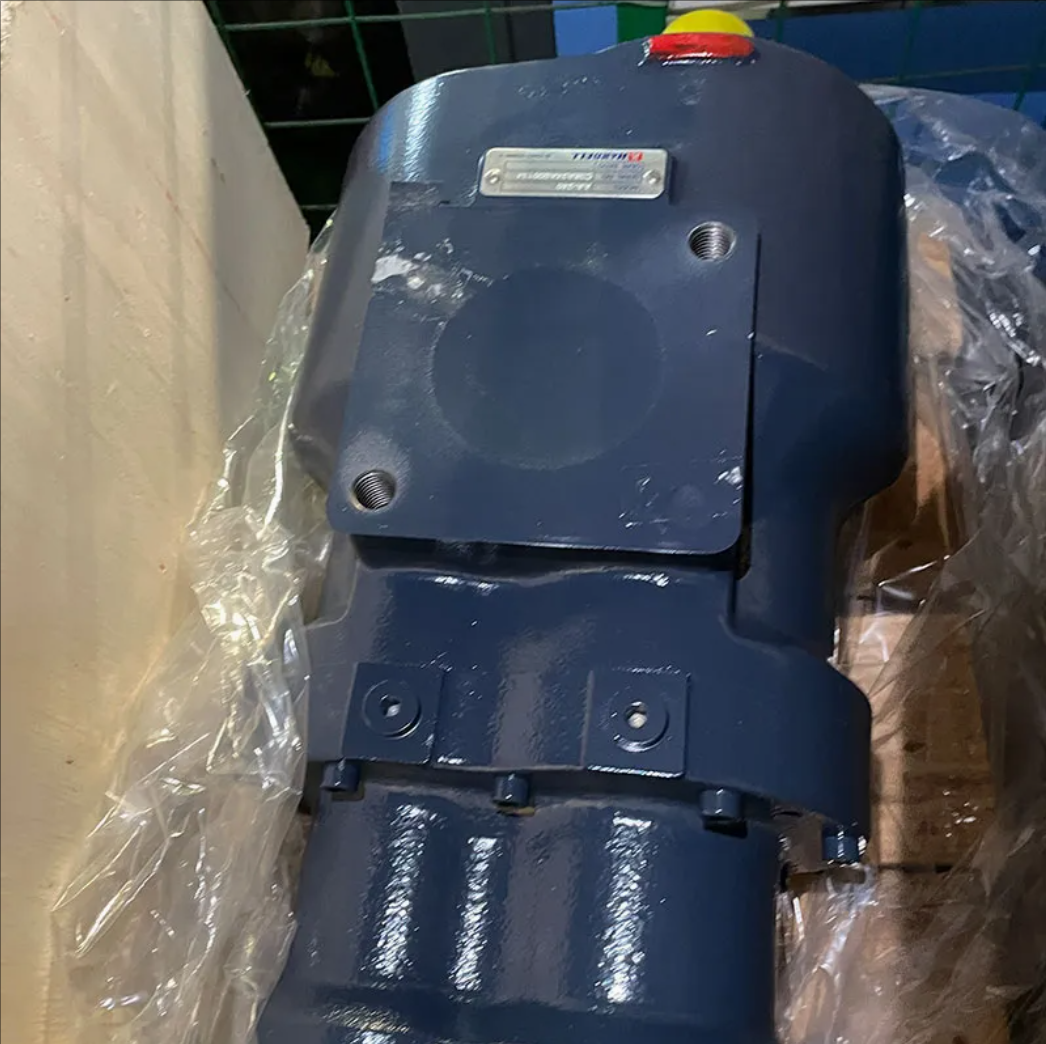

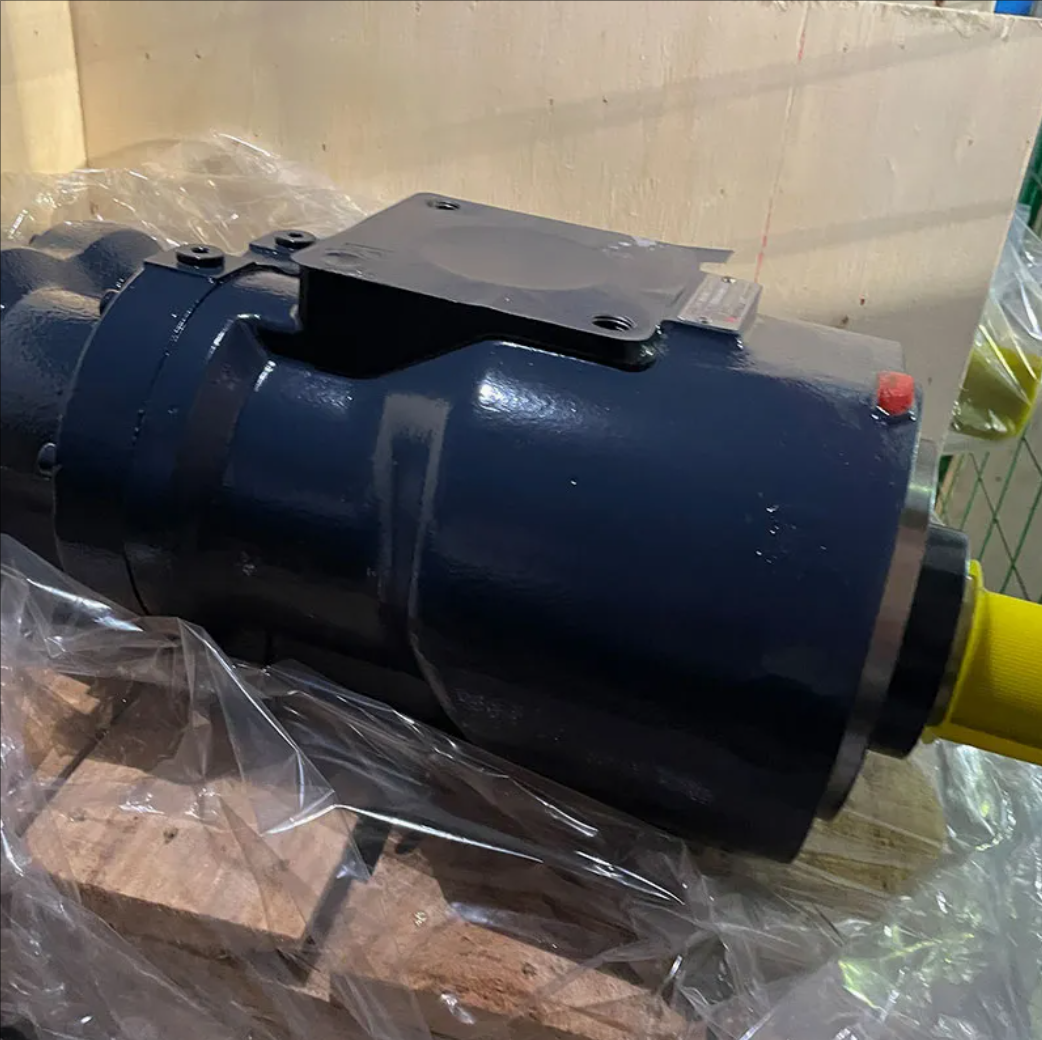

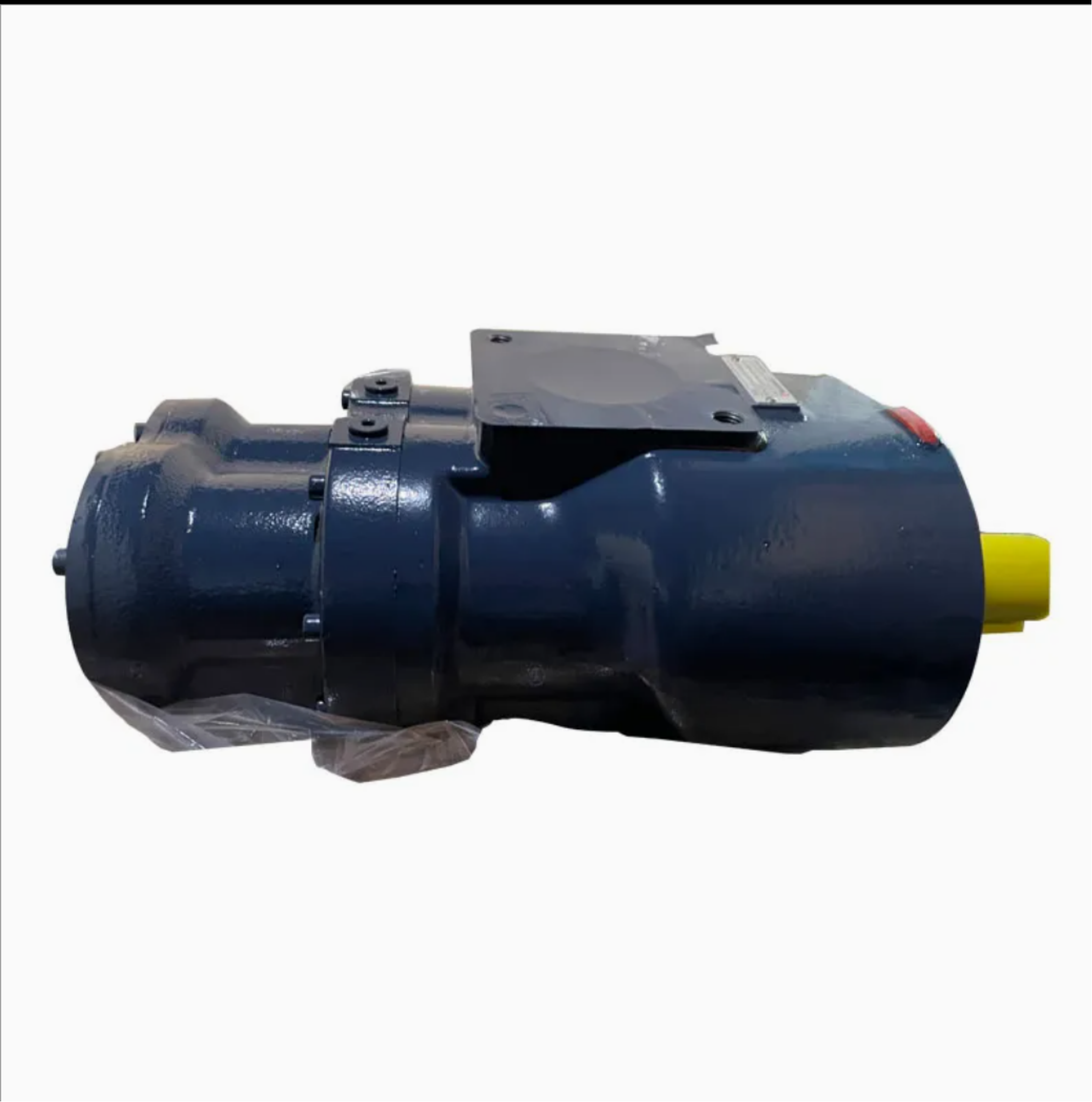

The Hanbell AA-480R is a single-stage, oil-injected screw air end designed for industrial air compressors. It is part of Hanbell's reputable AA series, known for high efficiency and durability in continuous-duty applications . With a rated power of 45kW, it delivers a free air delivery of 7.1 m³/min at 2950 rpm, operating within a pressure range of 5 to 15 bar.g
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | S.F. | Dimension(mm) | Weight(kg) |
| AA-480R | 45 | 2950 | 7.1 | 47.5 | 6.7 | 1.05 | 476*373*299 | 160 |
✅ Robust & Reliable Design
Engineered for long service life and operational stability, the AA-480R is built to withstand demanding industrial environments. Its robust construction ensures reliable performance even under continuous heavy-duty operation .
✅ Optimized Performance & Efficiency
The AA-480R features a precision-engineered rotor profile that delivers high volumetric efficiency with a specific power consumption of 6.7 kW/m³/min at 8 bar.g . This translates to more compressed air per kilowatt of energy consumed, reducing operating costs.
✅ Wide Application Pressure Range
With a flexible operating pressure range of 5 to 15 bar.g, this air end is suitable for a diverse range of industrial applications, providing versatility for different system requirements .
✅ Proven Bearing Configuration
The AA-480R utilizes a well-engineered bearing system to effectively support the rotors, minimizing vibration and wear. This contributes to extended equipment life and lower maintenance requirements .
✅ Trusted "Hanbell" Quality
As part of Hanbell's AA series, the AA-480R benefits from over 15 years of market presence and a strong reputation for excellence. It is recognized as a product that consistently benchmarks against top international brands, offering world-class reliability .
