| Quantity: | |
|---|---|

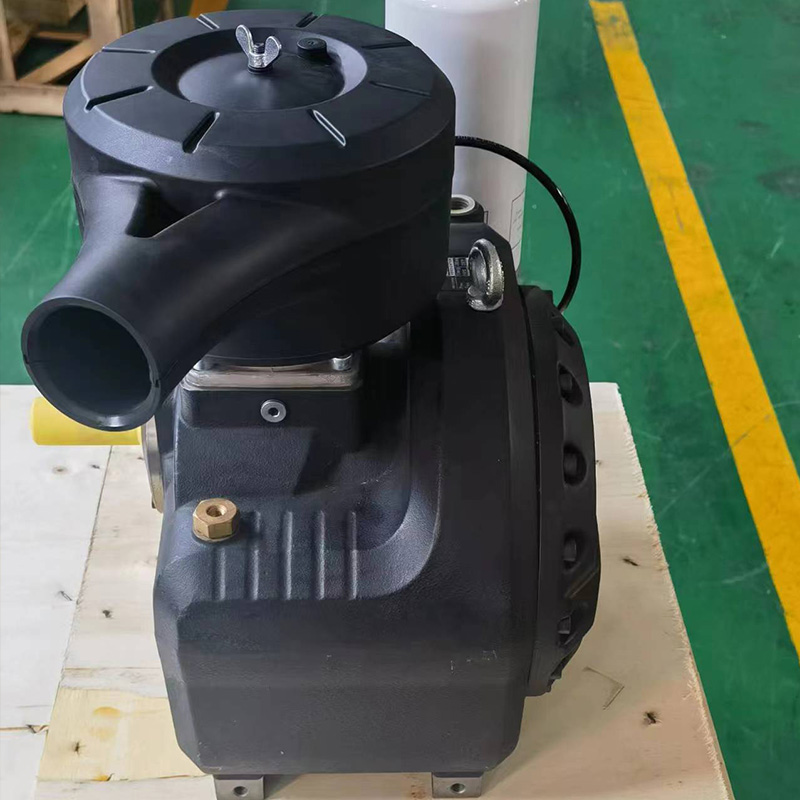

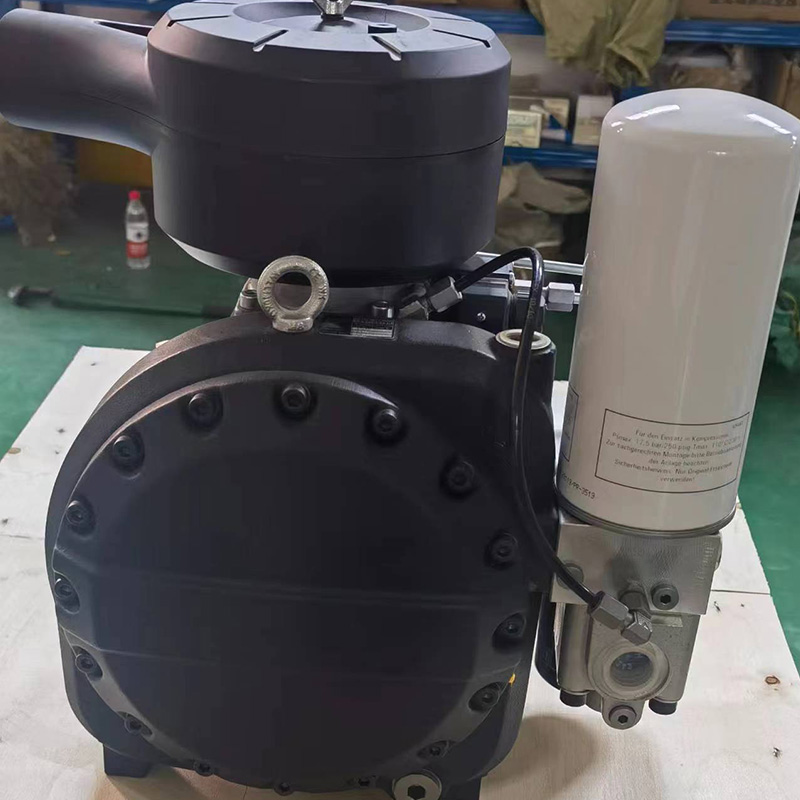

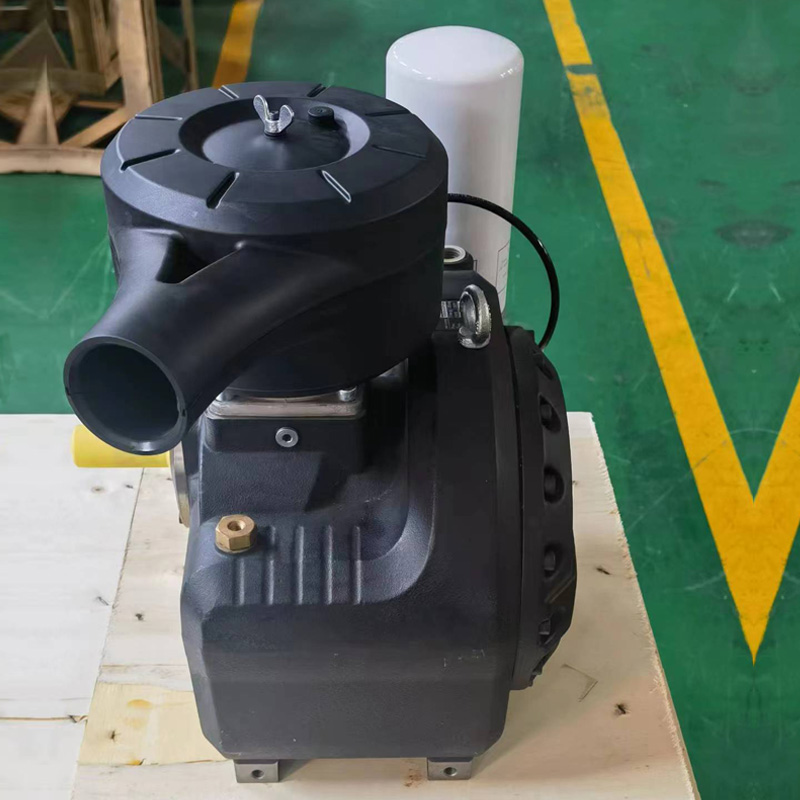

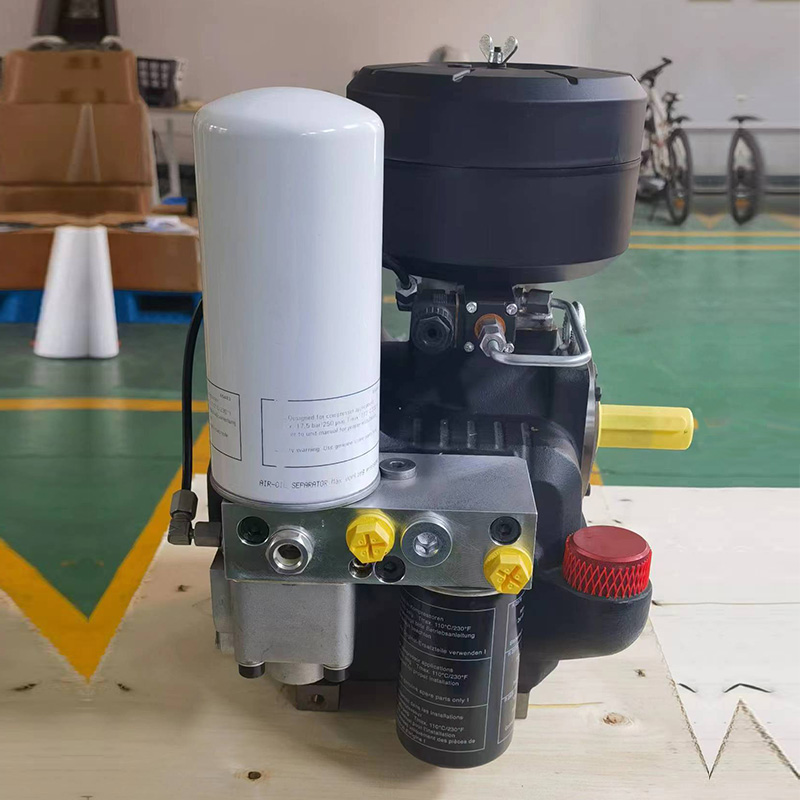

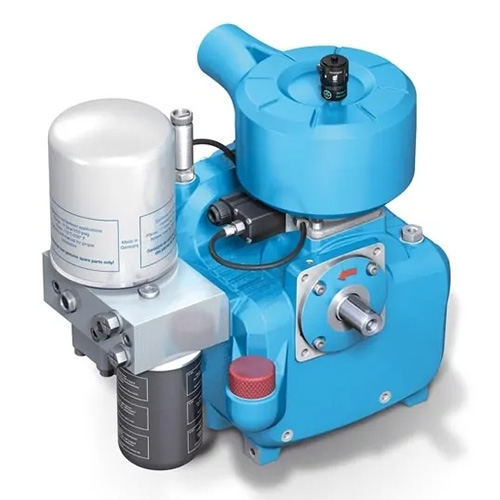

The unique series of EVO®-NK compact units are oil-injected screw compressor modules that integrate the main parts of a compressor system. This solution is the best possible way to build a reliable, compact and cost efficient complete compressor package with ultimate efficiency, low noise and the highest quality standards.
Technical Parameters
Model | Motor Power(min~max) | Max Flow rate | Pressure Range | Weight | |||
kW | HP | m3/min | cfm | bar | psi | kg | |
EVO3-NK | 5.5~18.5 | 7~25 | 2.9 | 102 | 5~15 | 70~220 | 54 |
› High operation reliability – designed for industrial applications and continuous operation
› Includes all advantages of our built-in EVO® technology
› Each compact unit is tested as a complete system before leaving our factory
› No leakages due to reduced piping and connections as well as sealing with O-rings (Viton®)
› Optimized compact design with very low space requirements
› Simplified service and maintenance as all components are easily accessible from one side without special tools
› Reduced engineering, manufacturing and logistic costs for your compressor package compared to conventional compressor systems with an air end and separate components
› New ROLLING PROFILE® – ultimate efficiency with reduced noise
› Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®
› Wide operating pressure range from 5 to 15 barg
› High quality manufacturing and assembling – “Made in Germany”
› Quality assurance – bench test of every air end before leaving our factory
› Easy application selection with our new ROTORCOMP SIZING AIR software
› Highest flexibility for your package design
• Suitable for all types of drive motors
•Drive options: Belt drive, direct drive, internal gear drive
• Base and face-flange mounting
› High operation reliability – designed for industrial applications and continuous operation
› Includes all advantages of our built-in EVO® technology
› Each compact unit is tested as a complete system before leaving our factory
› No leakages due to reduced piping and connections as well as sealing with O-rings (Viton®)
› Optimized compact design with very low space requirements
› Simplified service and maintenance as all components are easily accessible from one side without special tools
› Reduced engineering, manufacturing and logistic costs for your compressor package compared to conventional compressor systems with an air end and separate components
