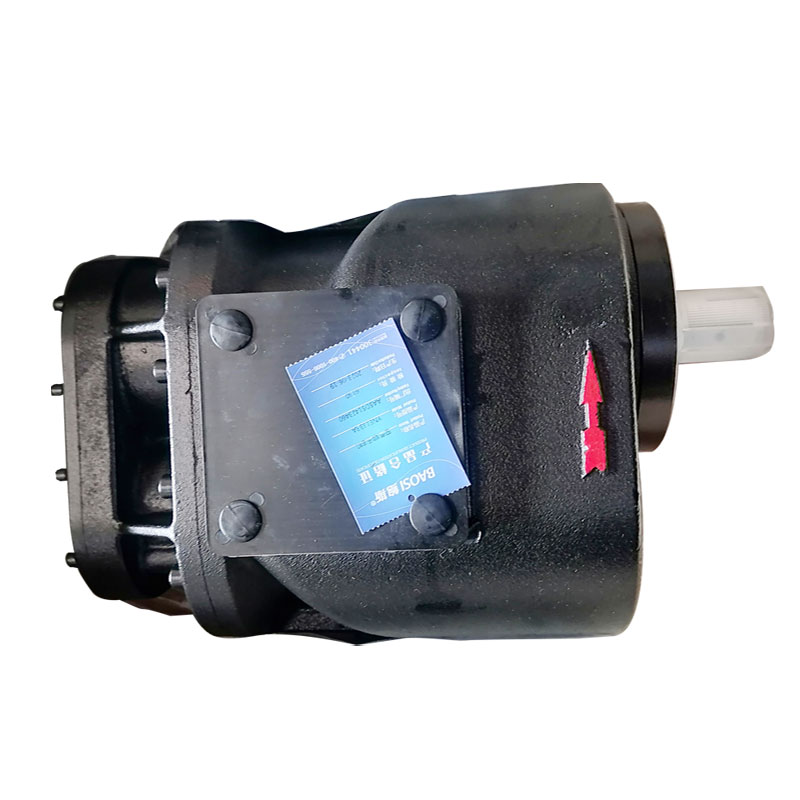

The Powertech YNE133RA is a single-stage oil-injected screw compressor unit (compressor set) manufactured by Powertech Energy. Designed as the core compression component of industrial rotary screw air compressors, it features a direct-drive connection and is suitable for both electric motors and diesel engines. The YNE133RA operates at speeds from 1480 to 2200 rpm and is typically used with a 30kW (40HP) electric motor.
Technical Parameters
| Model | Power(kW) | Connection method | Dimension（mm） | Weight（kg) |
| YNE133RA | 30KW | direct drive | 473*302*242 | 81 |
⚙️ Diesel Engine Compatible
The unit is designed for direct connection with a 4-pole motor, making it suitable for diesel engine drive applications at speeds between 1480 and 2200 r/min . This provides excellent flexibility for off-grid or mobile applications.
⚡ Energy Efficient Design
The YNE133RA features an optimized exhaust port design, making it especially efficient for low-pressure applications (2–5 kg). The reasonable linear speed design enhances overall performance and reduces power consumption .
High-Precision Rotors
The rotors are processed using German KAPP grinding machines, ensuring high accuracy and reliability . This precision manufacturing results in better meshing efficiency and extended service life.
Low Noise Operation
The combination of a large rotor design and low operating speeds ensures stable performance with minimal vibration, resulting in low noise levels suitable for noise-sensitive environments
The Baosi YNE133RA air end is designed for integration into stationary industrial air compressors and is suitable for a wide range of industries requiring reliable compressed air . Common applications include:
General Manufacturing: Powering assembly lines and pneumatic tools
Automotive Industry: Used in workshops and manufacturing facilities
Food & Beverage: For general plant air and packaging operations
Chemical & Pharmaceutical: For process air and material conveying
Diesel-Driven Compressor Packages: Ideal for mobile or remote site applications requiring engine drive compatibility
Compressor Repair & Maintenance: Suitable as a replacement unit for existing 30kW compressor systems
