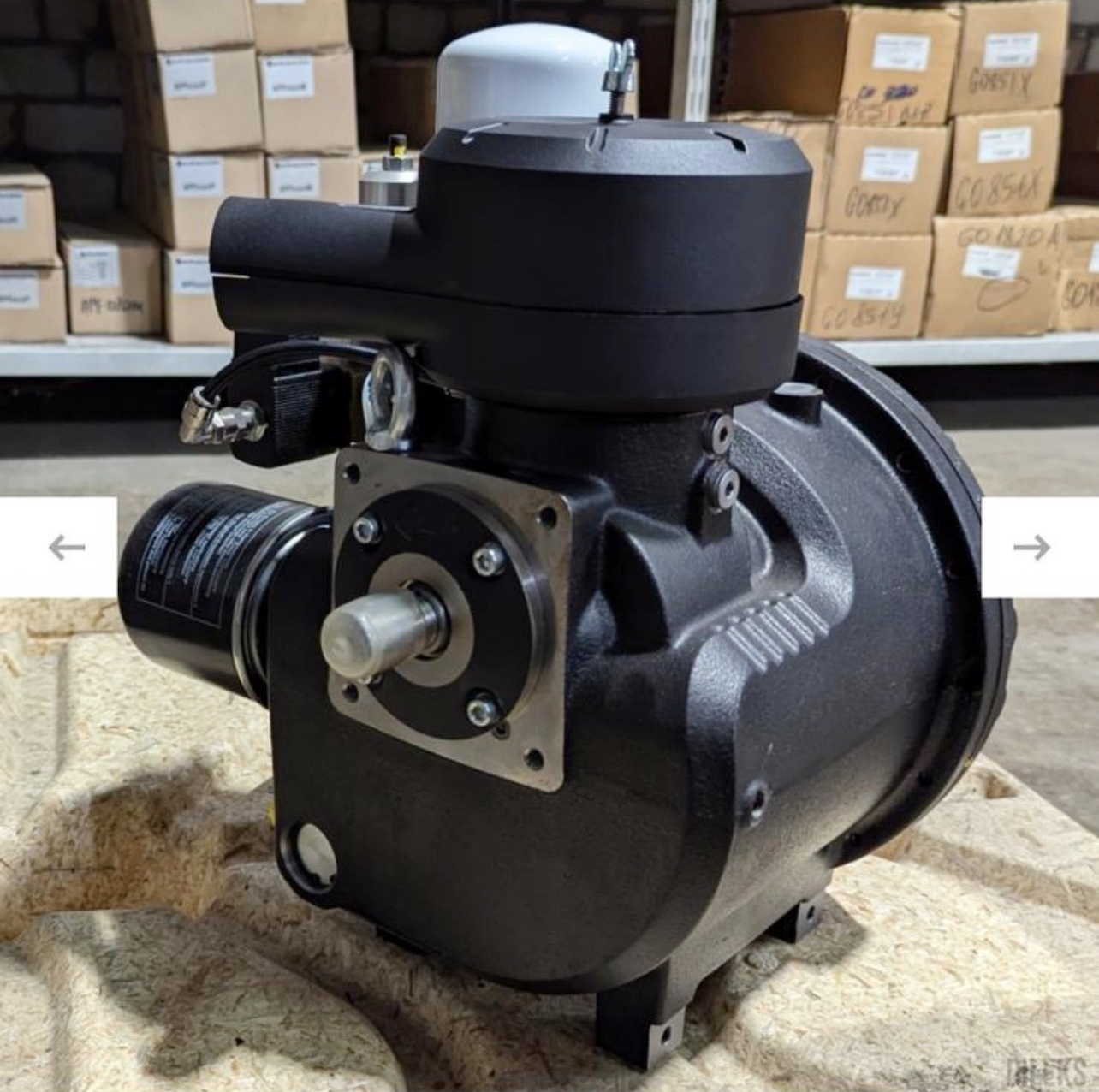

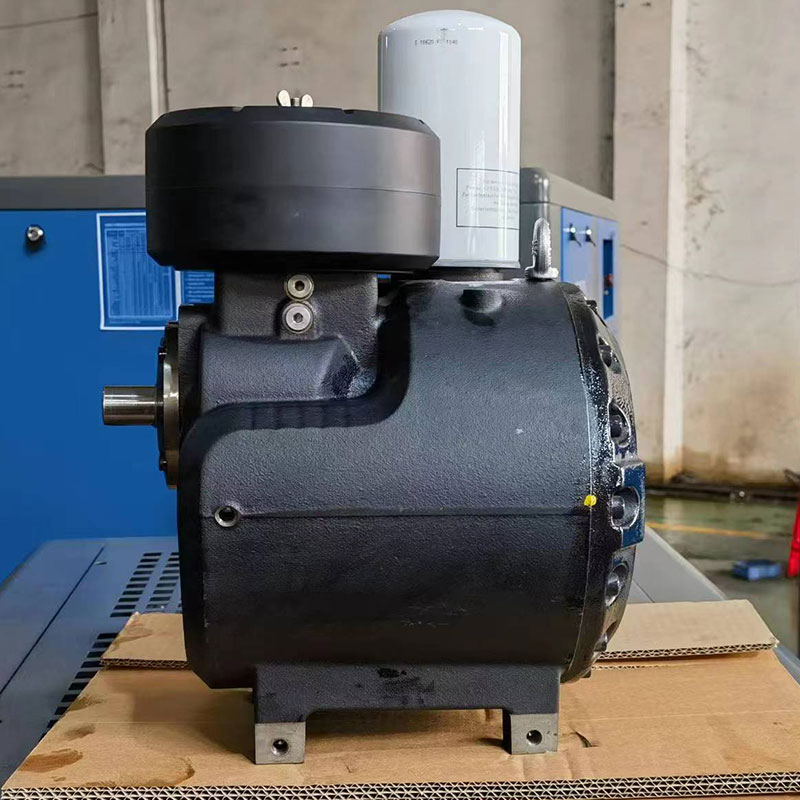

The ROTORCAMP EVO®-NK compact units are oil-injected screw compressor modules that integrate the main parts of a compressor system. This solution is the best possible way to build a reliable, compact and cost efficient complete compressor package with ultimate efficiency, low noise and the highest quality standards.
Technical Parameters
Model | Motor Power(min~max) | Max Flow rate | Pressure Range | Weight | |||
kW | HP | m3/min | cfm | bar | psi | kg | |
EVO1-NK | 5.5 | 7.5 | 0.8 | 30 | 5~15 | 70~220 | 31 |
Product features
1. German Engineering & Quality – "Made in Germany" with high-quality assembly; every unit is bench-tested before leaving the factory to ensure reliability .
2. High Efficiency & Low Noise – Features the patented ROLLING PROFILE® rotor profile, which reduces internal friction and leakage, delivering ultimate efficiency with significantly reduced noise and vibration .

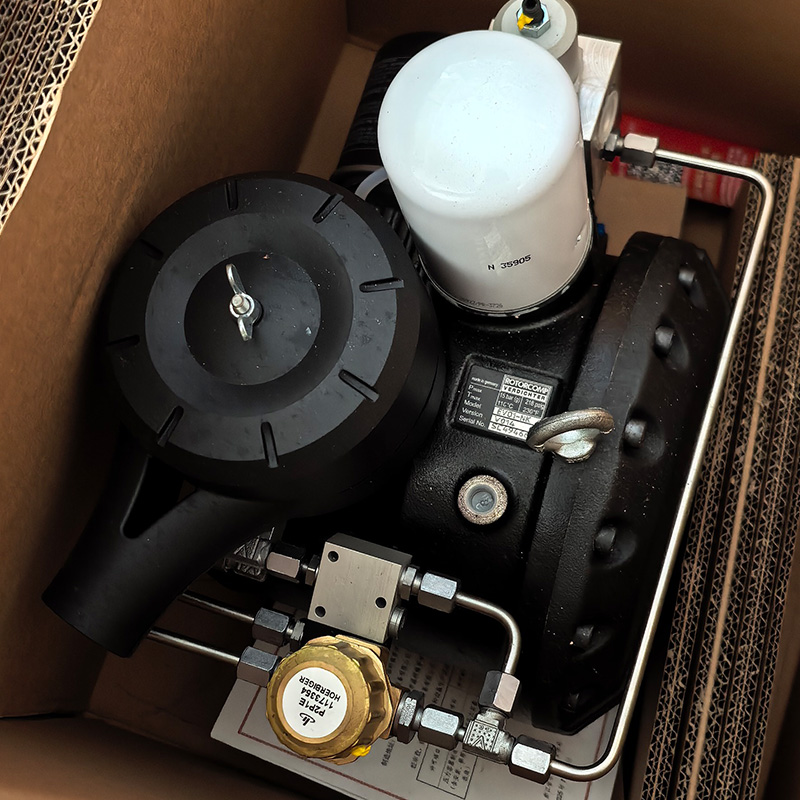

3. Integrated Compact Design – Combines the air end, intake valve, air filter, oil reservoir, oil separation system, oil filter, and minimum pressure valve into one compact unit. This minimizes piping, reduces potential leakages, and saves space .
4. Proven Durability – Equipped with oversized bearings and a wear-free rotor profile for a long life cycle and reliable 24/7 continuous operation in industrial applications .
5. Easy Maintenance – All components are accessible from one side without special tools, simplifying service and reducing downtime .
6. Wide Application Range – Operates within a pressure range of 5 to 15 barg. Compatible with various drive types (belt, direct, gear) and motor types, offering high flexibility for system design .
7. Low Power Consumption – Achieved through optimized torque characteristics, reduced internal friction, and an improved outlet port design .
8. Complete System Testing – Each compact unit is tested as a complete system before shipment, ensuring optimal operation reliability
Application industries
The EVO1-NK can serve a wide range of industrial sectors, including: energy, packaging, paper and printing, aerospace, electrical and electronics, and other integrated industrial manufacturing.
