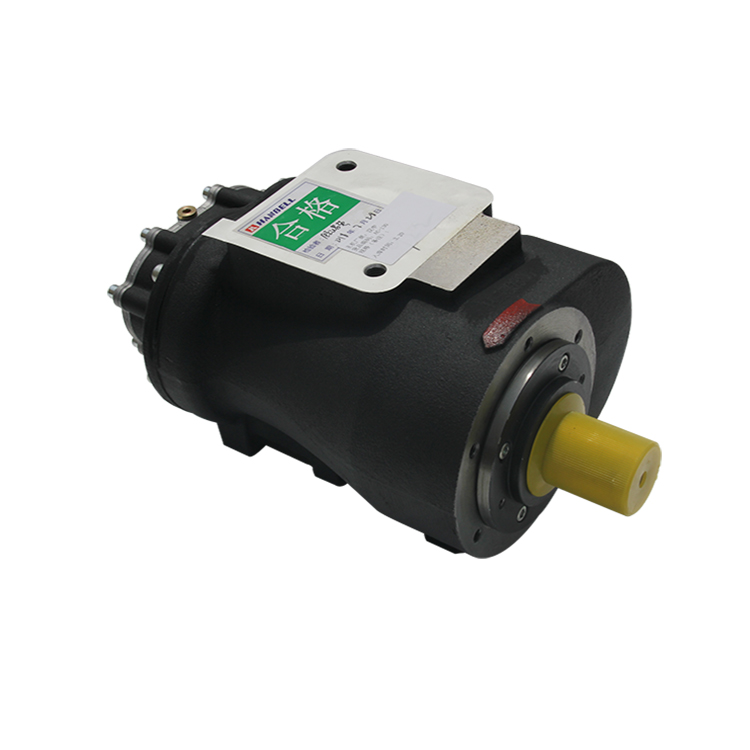

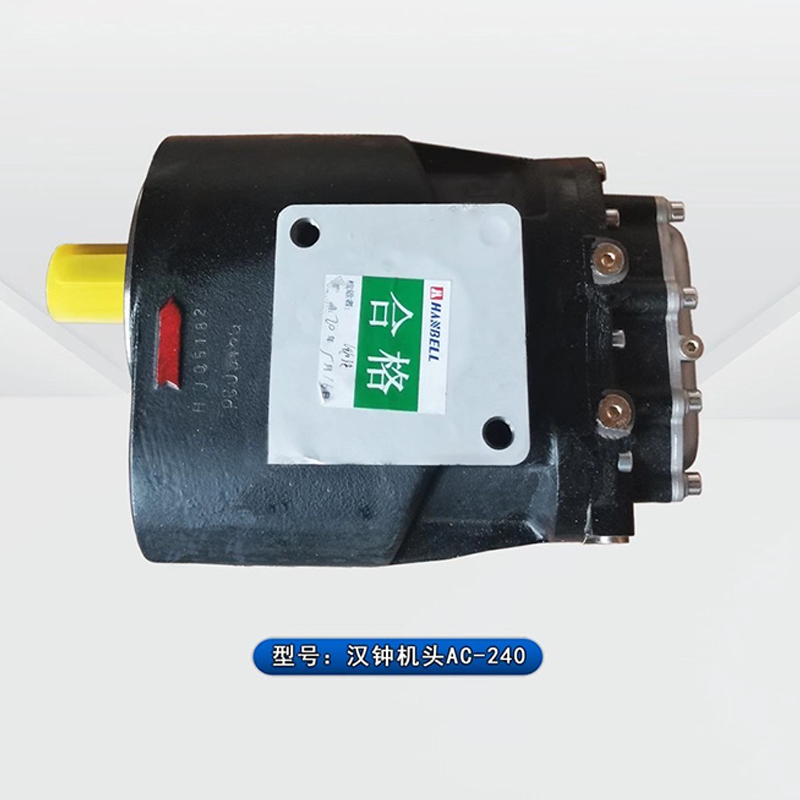

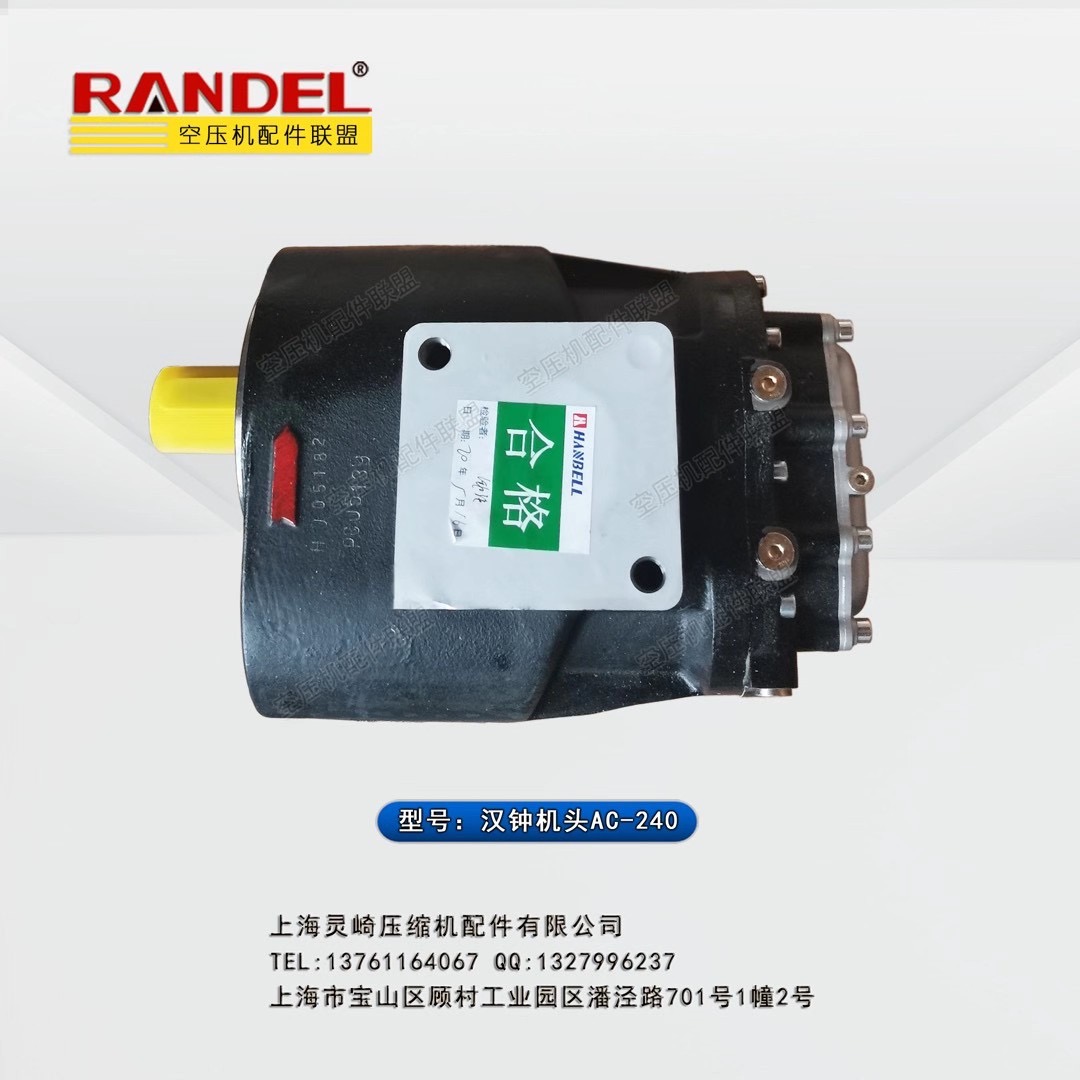

The Hanbell AC-240 is a high-capacity, industrial-grade oil-flooded rotary screw air compressor designed for heavy-duty continuous operation in demanding industrial environments. It represents an optimal combination of substantial air delivery, advanced engineering, and energy efficiency, serving as a reliable primary air source for medium to large-scale facilities.
Technical Parameters
| Model | Power (kW) | Rotating speed (rpm) | Air Delivety (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | Dimension(mm) | Weight(kg) |
| AC-240 | 22 | 3000 | 3.59 | 23 | 6.41 | 405*260*207 | 55 |
High Air Flow Capacity
The "240" model designation indicates a substantial Free Air Delivery (FAD) of approximately 40 - 43 m³/min (around 1410 - 1520 CFM).
It is configured to deliver compressed air at standard industrial pressures, typically 7 bar (102 psi), 8 bar (116 psi), 10 bar (145 psi), and 13 bar (189 psi), providing versatile power for extensive industrial applications.
Advanced Hanbell Air End Design
Features Hanbell's latest generation asymmetric profile rotor design with optimized rotor profile and precise manufacturing tolerances.
The large-diameter air end operates at lower speeds for improved efficiency and extended service life.
Enhanced oil injection system ensures optimal cooling and sealing during compression.
High-Efficiency Drive System
Utilizes a direct-drive configuration with a high-efficiency permanent magnet motor (IE4 super premium efficiency or higher).
The direct coupling eliminates transmission losses associated with belt drives, improving overall efficiency by 5-8%.
Variable speed drive (VSD) option available for applications with fluctuating air demand.
Intelligent Control System
Equipped with Hanbell's advanced SMART control system featuring a large color touchscreen interface.
Provides real-time monitoring of all operational parameters including pressure, temperature, energy consumption, and maintenance status.
Features remote monitoring capabilities via Ethernet, MODBUS, or IoT connectivity for integration into plant management systems.
Enhanced Cooling System
Large capacity cooling system with optimized airflow design and temperature-controlled fans.
Independent oil and air cooling circuits ensure stable operating temperatures even in high ambient conditions (up to 46°C/115°F).
Stainless steel oil cooler provides corrosion resistance and long-term reliability.
Exceptional Energy Efficiency
The combination of permanent magnet motor technology, optimized air end design, and intelligent control system achieves industry-leading specific power consumption.
Energy savings of up to 15-20% compared to conventional compressors in the same class.
Variable speed drive option available for additional energy savings in applications with fluctuating demand.
Superior Reliability and Durability
Industrial-grade components and robust construction designed for 24/7 continuous operation.
Advanced rotor profile reduces mechanical stress and extends maintenance intervals.
Protection systems including thermal overload protection, phase sequence protection, and high-temperature shutdown.
Low Maintenance Requirements
Extended service intervals (up to 8,000 hours for oil changes).
Easy-access service points and quick-change components reduce maintenance downtime.
Predictive maintenance capabilities through the intelligent control system.
Excellent Air Quality
Multi-stage filtration system including high-efficiency intake filter, oil separation system with <3 ppm oil carry-over, and optional integrated refrigeration dryer.
Stable pressure output with ±0.1 bar pressure band control.
Environmentally Friendly
Uses environmentally friendly lubricants and refrigerants.
Low noise operation (typically 70-75 dBA) with acoustic enclosure option available.
Reduced carbon footprint due to high energy efficiency.
Heavy Manufacturing
Automotive manufacturing plants, steel fabrication facilities, and heavy equipment production lines.
Mining and Minerals Processing
Underground mining operations, mineral processing plants, and quarry operations.
Chemical and Petrochemical
Refineries, chemical processing plants, and fertilizer production facilities.
Power Generation
Thermal power plants, hydroelectric facilities, and energy infrastructure projects.
Large-Scale Food and Beverage
Major processing plants, bottling facilities, and packaging operations.
Pharmaceutical Manufacturing
Large-scale production facilities and research centers.
Electronics Manufacturing
Semiconductor fabrication plants and electronic component production.
Textile Industry
Large weaving mills, dyeing plants, and synthetic fiber production.
