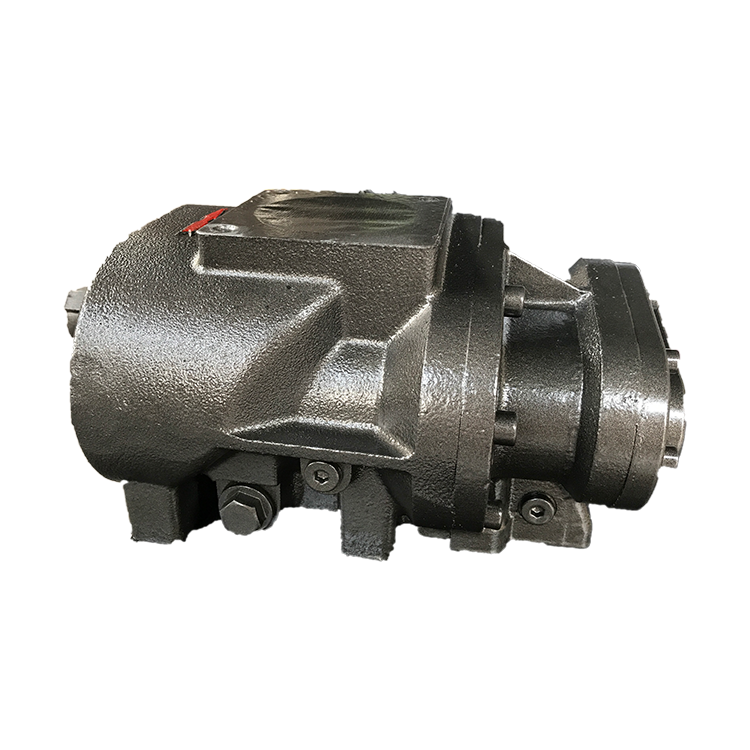

The Baosi YNT70A is a single-stage, oil-injected screw air end (compressor unit) manufactured by Baosi Energy. It is the core compression component designed for integration into industrial rotary screw air compressors . The YNT70A operates within a performance range of 0.92 to 2.94 m³/min (32.5 to 103.8 CFM) and can deliver pressures from 0.7 to 1.5 Mpa (7 to 15 bar), typically matched with motors ranging from 12.4 kW to 19.5 kW (approx. 15-25 HP).
| Model | Power(kW) | Connection method | Dimension（mm） | Weight（kg) |
| YNT70A | 11KW | direct drive | 348*209*170 | 30 |
⚙️ High-Precision Rotors
The rotors are ground using high-precision machinery (e.g., German KAPP grinders), ensuring high efficiency, reliable accuracy, and optimal performance .
⚡ Energy Efficient
The asymmetrical rotor profile design reduces power consumption, leading to lower operating costs and higher overall energy efficiency .
Flexible Drive Options
The YNT70A is designed to accommodate both direct drive and belt drive systems. This provides compressor manufacturers and maintenance teams with flexible installation and application options .
️ Robust and Durable Construction
It features a corrosion-resistant cast iron body, ensuring long-lasting performance and stability even in demanding industrial environments .
Easy Maintenance and Integration
The unit is designed with a standardized mounting flange for easy integration into systems and requires minimal maintenance, reducing downtime and repair costs.
The Baosi YNT70A air end is designed for use in stationary industrial air compressors and is suitable for a vast array of industries requiring reliable compressed air . Common applications include, but are not limited to:
General Manufacturing: Powering assembly lines, pneumatic tools, and automation equipment.
Automotive Industry: Used in painting, forging, and钣金 workshops .
Food & Beverage: For bottling, packaging, and general plant air .
Chemical & Pharmaceutical: For process air, material conveying, and mixing operations .
Construction & Mining: Powering drills, hammers, and other pneumatic construction tools .
Textile Industry: Used in air-jet looms and other textile machinery
