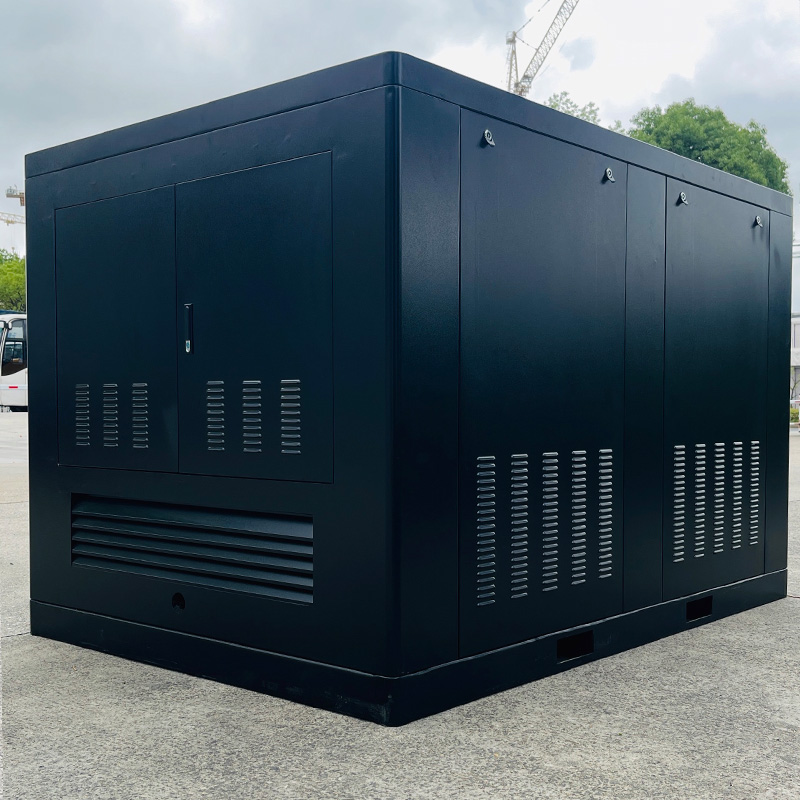

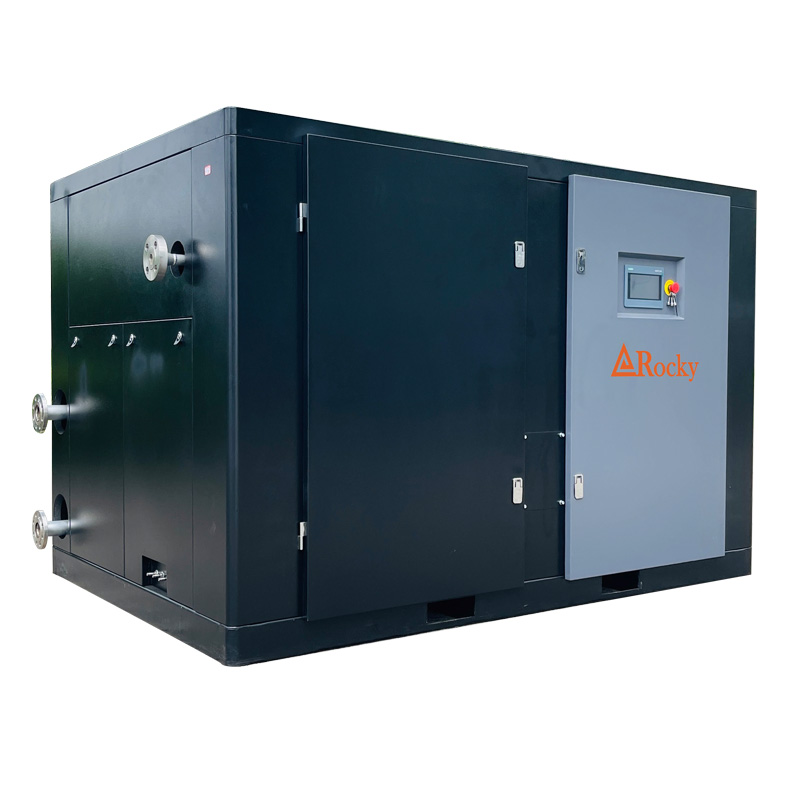

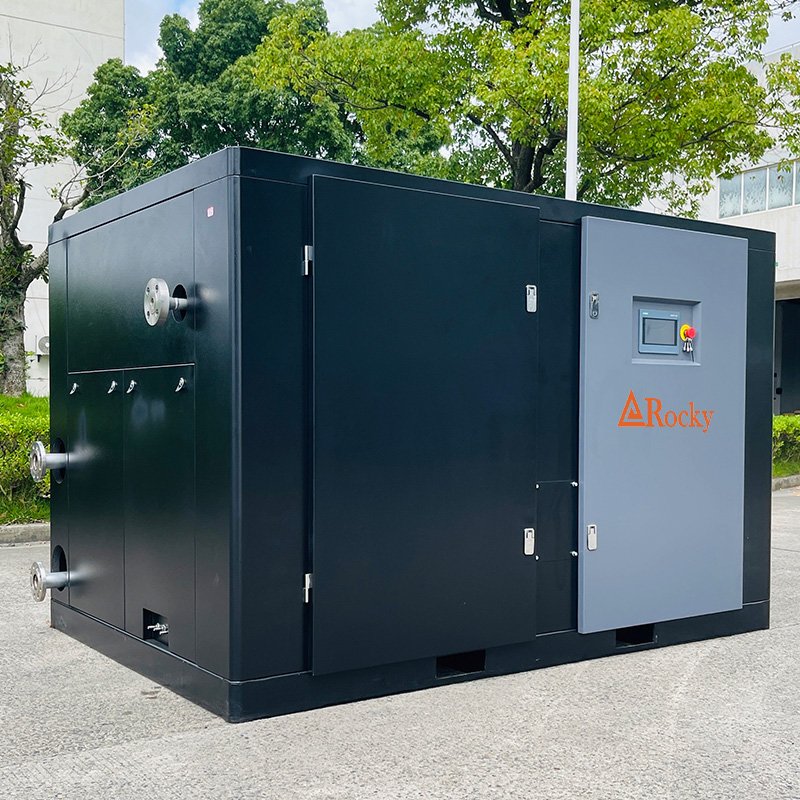

A 40 bar 5 m³/min oil-free water-lubricated screw air compressor is a high-pressure, oil-free compressed air system specifically engineered for PET bottle blow molding applications. Unlike traditional oil-lubricated compressors, this unit uses treated water as the lubricating, sealing, and cooling medium in the compression chamber, delivering 100% oil-free compressed air at 40 bar (4.0 MPa) with a continuous flow rate of 5 m³/min.

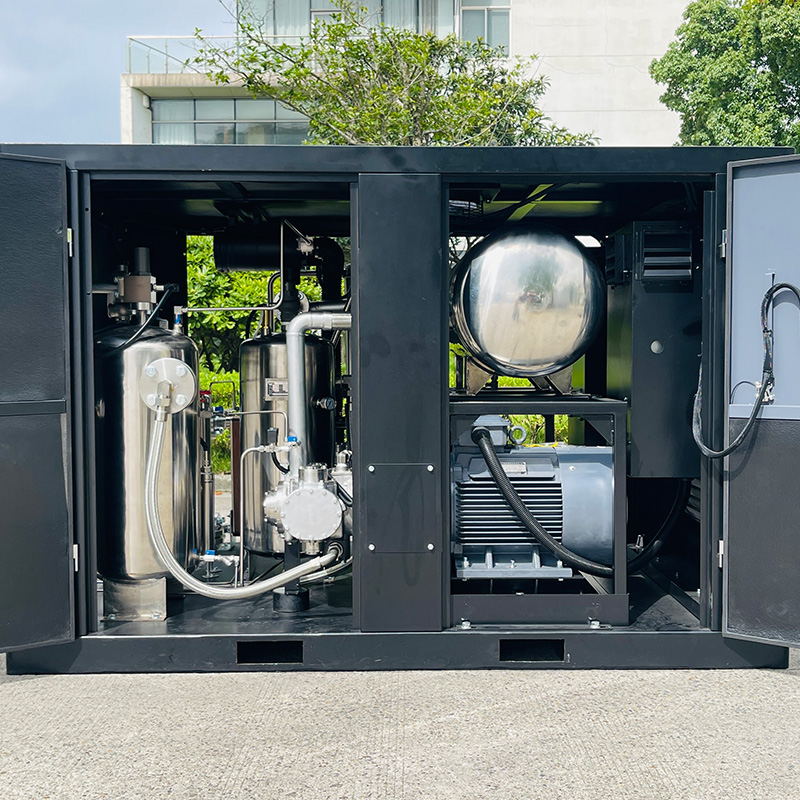

The compressor typically features a two-stage screw design, where the first stage compresses air to an intermediate pressure, and the second stage boosts it to the final 40 bar discharge pressure-. This configuration ensures stable, pulsation-free high-pressure air supply, meeting the rigorous demands of modern PET production lines.
1. 100% Oil-Free – ISO 8573-1 Class 0 Certified
Water replaces oil entirely in the compression chamber, eliminating any risk of oil contamination. The compressor delivers air that meets ISO 8573-1 Class 0 standards, the highest level of oil-free certification. Oil content is below 0.01 mg/m³ – making it ideal for food-grade PET bottle production, beverage packaging, and pharmaceutical applications.
2. High-Pressure Stability at 40 Bar
Delivers a consistent 40 bar output with minimal pressure fluctuation, ensuring uniform preform expansion and consistent bottle wall thickness. No additional booster is required – the unit directly supplies high-pressure air for demanding blow molding applications.
3. Superior Energy Efficiency
Water injection provides near-isothermal compression, significantly reducing energy consumption compared to adiabatic compression in traditional systems. It delivers 15–25% less energy use compared to single-stage equivalents, with up to 20% additional airflow at the same motor rating. Permanent Magnet Variable Frequency Drive (PM VFD) technology saves an additional 15–25% energy at partial loads.
4. Low Operating Temperatures – Extended Component Life
Water has superior cooling properties compared to oil, absorbing heat more effectively and keeping the compressor running at low temperatures. This increases machine reliability and prolongs service life.
5. Low Maintenance & Simplified Service
No oil filters, no oil separators, no oil changes – and no waste oil disposal. Maintenance is limited to periodic replacement of water filters and standard inspections. No carbon deposits or sludge build-up, extending air end life. Few consumables are required, and parts are easy to replace.
6. Quiet & Low Vibration Operation
Water absorbs vibration and noise, making the unit significantly quieter than dry oil-free or piston compressors. Smooth, pulsation-free operation improves the working environment and reduces wear on downstream equipment.
7. 24/7 Continuous Operation Capability
Built for round-the-clock operation with food-grade stainless steel components and imported bearings. The fully automatic water changing device allows maintenance without stopping operation.
8. Intelligent Control & Remote Monitoring

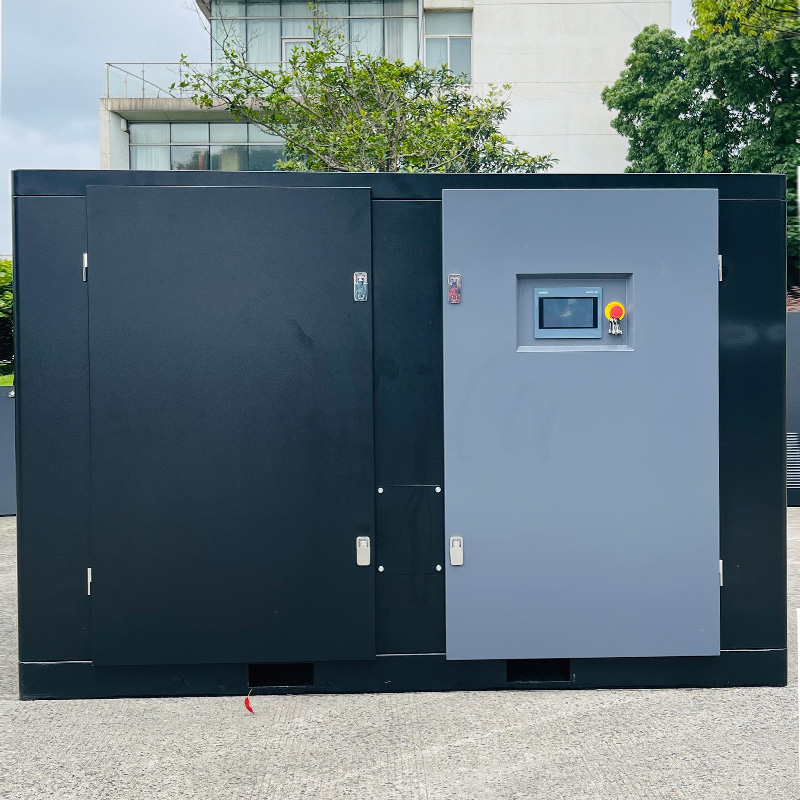

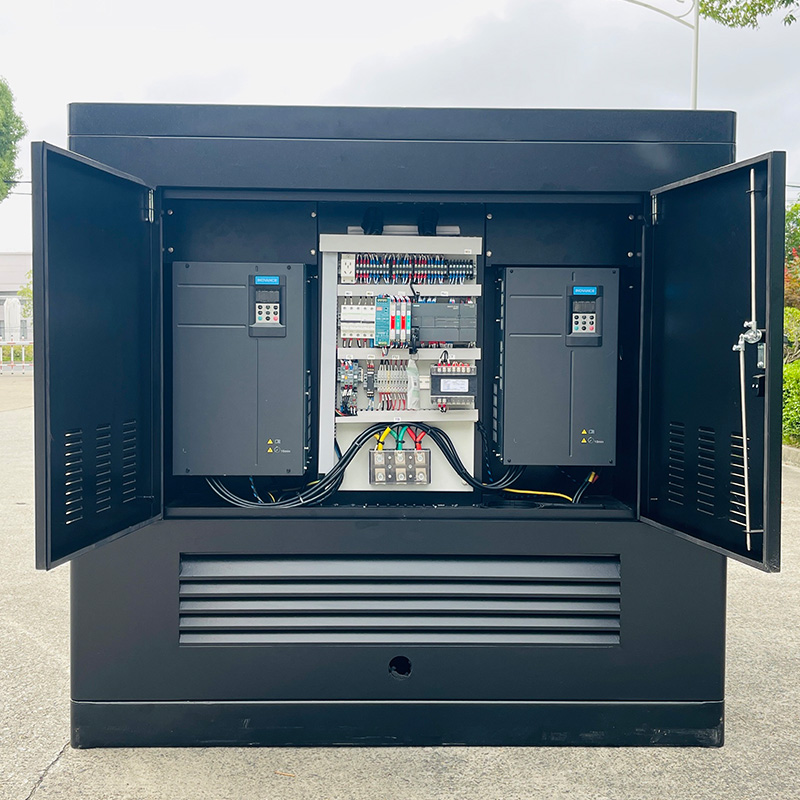

Advanced PLC with HMI touchscreen ensures 100% digital control and automation. Cloud monitoring and predictive maintenance capabilities minimize unexpected downtime. IoT-enabled remote monitoring supports Industry 4.0 integration
| Comparison: Water-Lubricated Screw vs. Piston Compressors | ||
| Feature | Water-Lubricated Screw | Oil-Free Piston |
| Air Quality | 100% oil-free, ISO Class 0 | Oil-free (cylinder), oil in crankcase |
| Compression Method | 2-stage screw | 3–4 stage piston |
| Lubricating Medium | Pure water | None (crankcase has oil) |
| Energy Efficiency | 10–35% less energy | Higher energy consumption |
| Energy Savings | 25–35% vs. piston machines | Baseline (less efficient) |
| Noise Level | Low – water absorbs vibration | High – reciprocating impact |
| Vibration | Minimal – smooth rotary motion | High – reciprocating motion |
| Operating Temperature | Low – water cooling | High – hot air discharge |
| Maintenance | Low – no oil system parts | High – valves, piston rings, oil changes |
| Cooling System | Single cooler for lubricating water- | Multiple interstage coolers |
| Consumables | Water filters (<$500/year) | Oil, filters, piston rings, valves |
| Continuous Operation | 24/7 | Limited by heat and wear |
Primary Application: PET Bottle Blowing
PET bottle blow molding typically requires compressed air at pressures between 20 and 40 bar. This compressor is specifically designed to meet these requirements, delivering clean, high-pressure air essential for shaping bottles. It ensures consistent preform expansion and eliminates oil contamination risks that can cause bottle defects and rejects.
Other Applications:
Food & Beverage Industry – Direct contact with products requiring 100% oil-free air
Pharmaceutical Manufacturing – Fermentation, tablet coating, packaging lines
Electronics & Semiconductor – Cleanroom manufacturing, contaminant-free air
Medical Industry – Oil-free high-pressure air for medical applications
High-Pressure Nitrogen Boosting – Combined with nitrogen generators
Laboratory & Research – Quiet, stable, oil-free high-pressure air supply
Q1: Water-lubricated vs. dry oil-free screw compressors?
For 30–40 bar PET blowing, water-lubricated is the preferred choice. It offers 10%+ higher energy efficiency (isothermal compression), lower operating temperatures, and reduced maintenance vs. dry oil-free designs.
Q2: Typical motor power for a 5 m³/min 40 bar unit?
Typically 55–132 kW, depending on configuration and efficiency.
Q3: How does water lubrication ensure air purity?
Water replaces oil entirely in the compression chamber. No oil contacts the compressed air – output meets ISO 8573-1 Class 0. Water is circulated in a closed loop with automatic changing available.
Q4: What maintenance is required?
Much simpler than oil-lubricated systems – no oil changes, no oil filters, no separators. Only periodic water filter and seal checks. Annual consumable cost: typically under $500.
Q5: What certifications does it have?
ISO 8573-1 Class 0 (highest oil-free level) and CE certified. Suitable for food and pharmaceutical applications.
Q6: Energy savings vs. piston compressors?
Saves 25–35% overall. Water lubrication enables near‑isothermal compression – reducing specific energy by 10%+ over adiabatic multi‑stage piston processes.
Q7: Can it run 24/7 continuously?
Yes – designed for continuous operation with low component temperatures for extended reliability.
Q8: Is it noisy?
No – water absorbs vibration and noise, making it much quieter than dry or piston units. Smooth rotary motion eliminates reciprocating impact noise.
