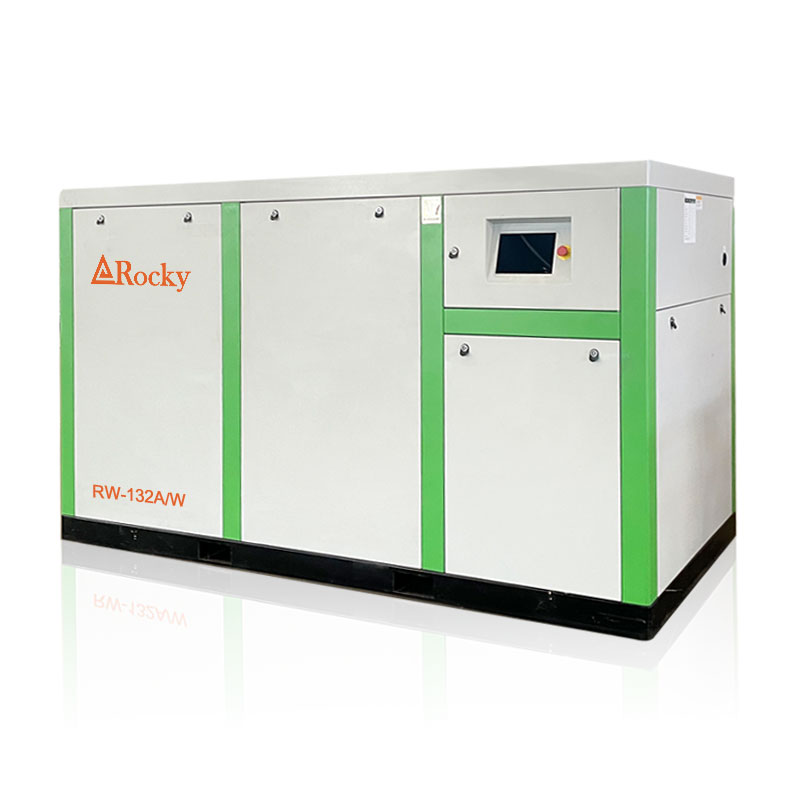

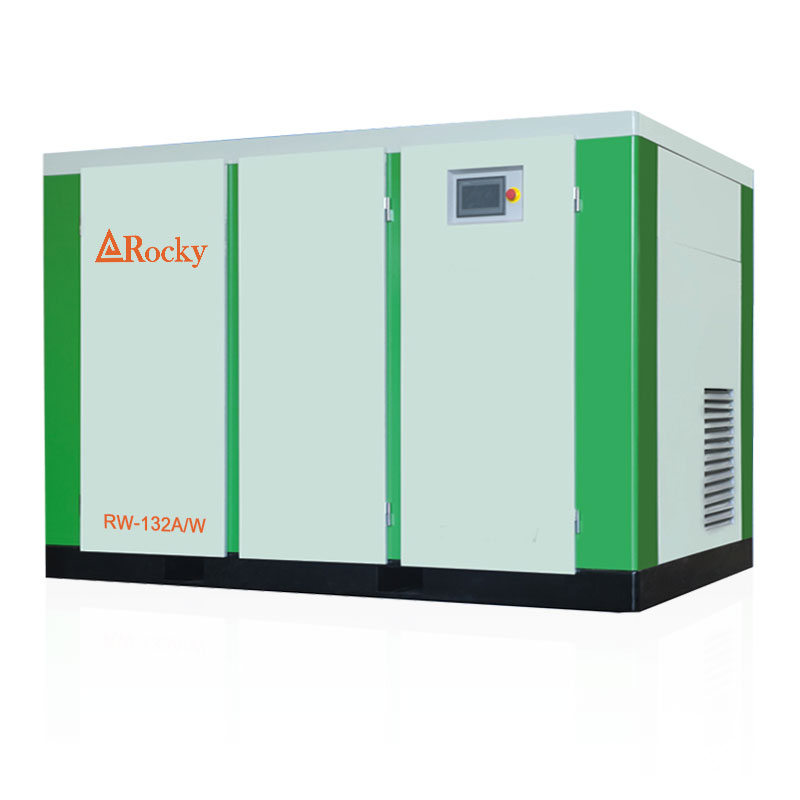

Oil-free water-lubricated screw air compressor adopts high-performance permanent magnet synchronous motor and variable frequency speed regulation technology. The compression chamber is completely oil-free and uses treated pure water as lubrication, cooling and sealing medium to replace the lubricating oil in traditional air compressors.
Technical Parameters
| Oil-free Water Lubricated Screw Air Compressor RW Series | |||||||||||
| Model | Air Delivery (m3/min) | Power (kW) | Lubricating water amount (Liters) | Cooling water amount T/Hour | Cooling water inlet/outlet diameter | Noise dB(A) | Outlet diameter | Dimension (mm) | Weight (Kg) | ||
| 8 bar | 10 Bar | 12.5 bar | L*W*H | ||||||||
| RW-110A/W | 19.85 | 16.66 | 15.56 | 110 | 180 | 24.0 | 2" | 78 | 2 1/2" | 3000*1700*2250(A) 2200*1500*1800(W) | 3150(A) 2460(W) |
| RW-132A/W | 23.10 | 19.97 | 16.90 | 132 | 240 | 30.0 | 2" | 78 | 2 1/2" | 3000*1700*2250(A) 2200*1500*1800(W) | 3500(A) 2500(W) |
Features
Oil-free and environmentally friendly
Water lubrication and pure compressed air (Class 0) eliminate the risk of oil contamination.
Energy-efficient
Permanent magnet motor + variable frequency technology saves 30%-50% more energy than standard frequency motors.
Low maintenance
The water circulation system reduces mechanical wear and extends life.
Low noise
The water medium reduces noise for quieter operation.
Primarily used in medium-to-large-scale industries with stringent requirements for compressed air quality.
Pharmaceutical Industry
API production, sterile preparations, fermentation aeration, laboratories, etc. (GMP compliance is mandatory).
Food & Beverage
Processing, packaging, filling, fermentation, and other direct contact processes on large-scale production lines.
Electronics & Semiconductors
Chip manufacturing, flat panel displays, PCB precision cleaning, photovoltaic material production, etc.
Chemical & Materials
Chemical synthesis, inert gas protection, precision spray coating, textile and chemical fiber production, and other processes requiring protection from oil and contamination.
Medical & Central Air Supply
Providing a reliable air source for breathing air, equipment power, and other needs throughout a hospital or medical center.
