Features
This device processes condensate from air compressors – a contaminated mixture of water, oil, and solid particles.
Highly efficient oil‑water separation – Employs multiple stages: gravitational settling, coalescing filter media, and activated carbon adsorption. It can handle oil in both emulsified and dissolved forms, resulting in minimal oil content in the discharge.
Large handling capacity – Built for air compressors with a flow rate of 30 m³/min, it can process the entire condensate volume from medium‑sized industrial compressor stations without becoming overloaded.
Automated operation – A float‑operated valve or electronic liquid level sensor automatically releases the separated oil and water once predetermined levels are reached. Requires no manual action.
Design meets regulations and safety standards – The separated oil and water are gathered into distinct containers for correct disposal. The unit is completely sealed to avoid leakage or emission of hazardous vapors, thereby guaranteeing a safe work environment.
Technical Parameters

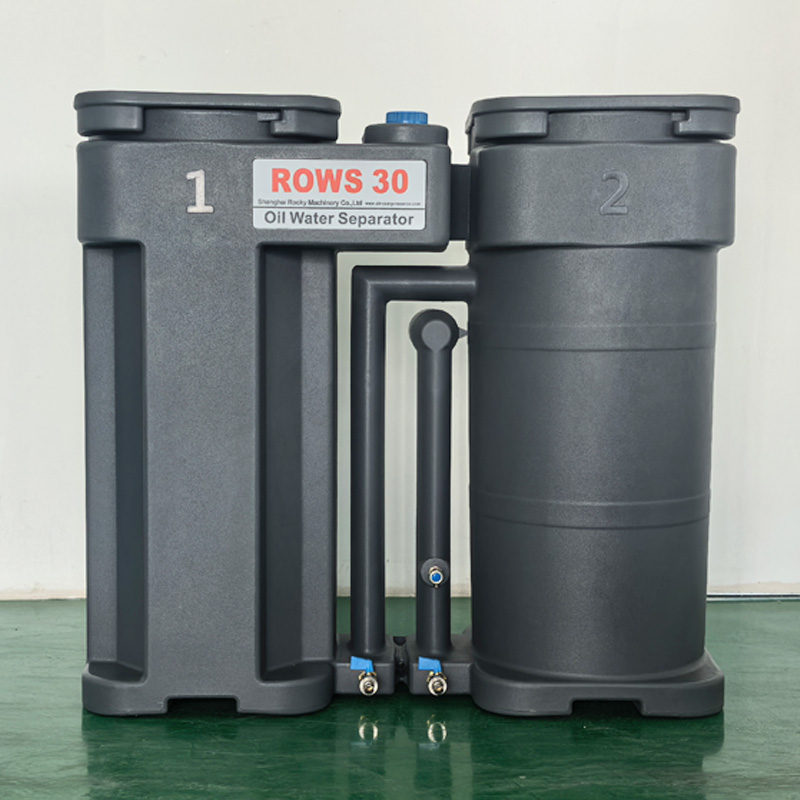

| Model | ROWS30 |
| Max. compressor air flow rate (m³/min) (Based on a 8 hour shift) | 30 |
| Max. oil absorption(L) | 24.6 |
| Inlet connection size | 2 * G1/2" |
| Outlet connection size | G 1" |
| Test valve | Yes |
| Sample bottle | Yes |
| Service drain valves | Yes |
| Element indicator | Yes |
| Overflow indicator | Yes |
| Outlet oil concentration (ppm) | <10 |
| Material of housing | PE |
| Dimensions(mm) | 975*385*900 |
| Weight(kg) | 47 |
Applications
Manufacturing (core application) – Auto, electronics, metalworking, F&B, pharma, textiles.
Process & chemical – Chemicals, petrochemicals, pharma, cosmetics, power, energy.
Infrastructure & services – Hospitals, large construction projects, logistics, warehousing.
