Overview

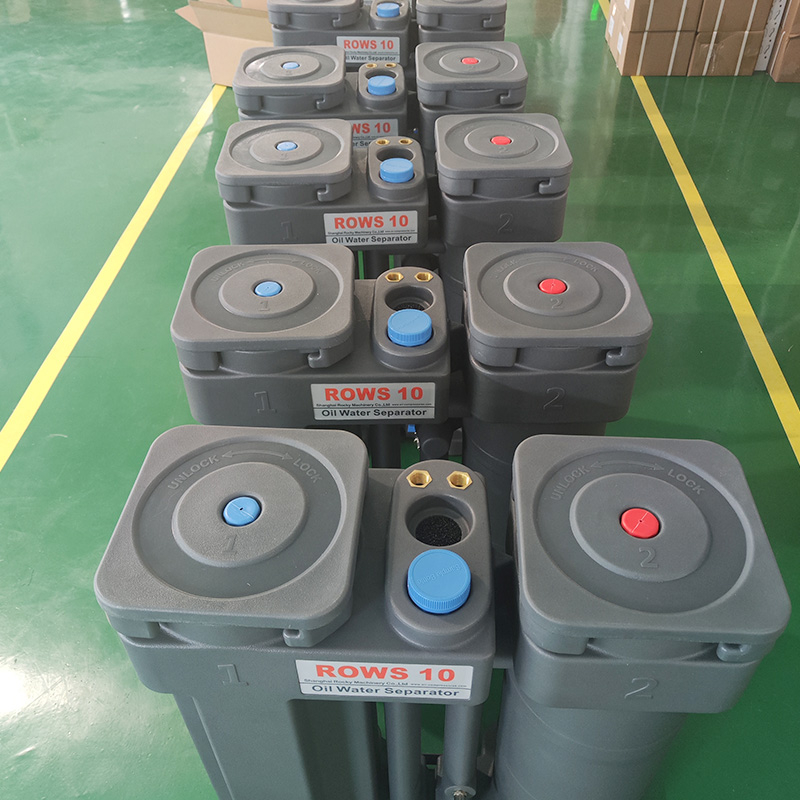

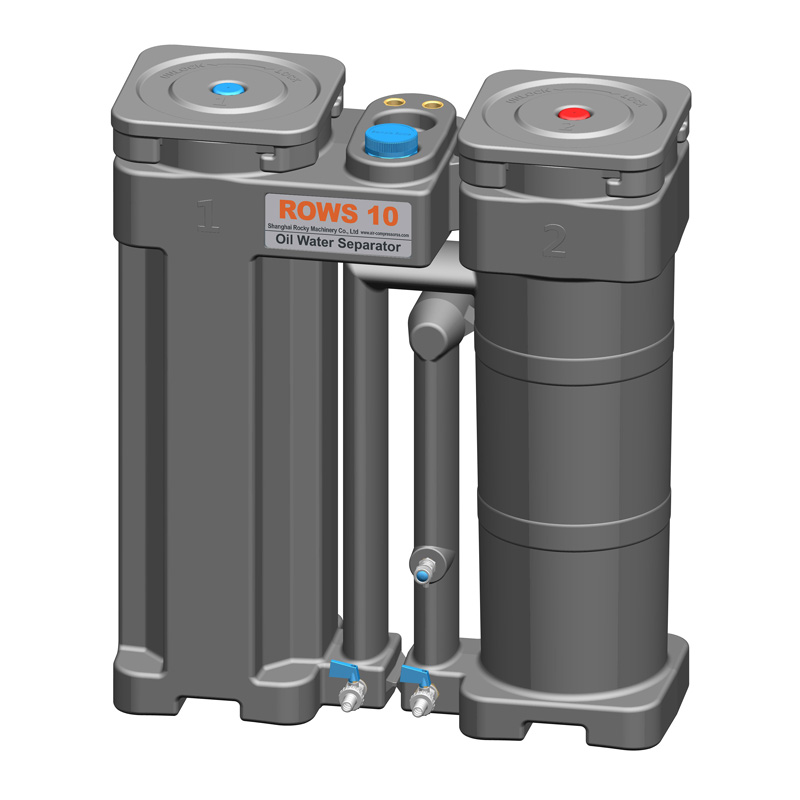

This 10 m³/min oil-water separator is designed for air compressors of the same capacity. It treats condensate (mineral, synthetic, or emulsified oil) from compressed air systems using purely physical separation. Effluent oil content is below 10 ppm, meeting environmental standards and ensuring compliance.
Key Benefits
High removal, compliant – Multi-stage filtration (oleophilic filter + activated carbon) cuts residual oil to <10 ppm. High-precision versions reach ≤5 mg/L or even 0.5 mg/L.
3-stage advanced process – Stage 1: oil adsorption; Stage 2: deep oil removal; Stage 3: activated carbon polishing. Some models use 4 steps (coalescing → sedimentation → separation).
Plug-and-play, compact – No settling tanks or extra equipment. Connects directly to the compressor drain. Small footprint.
Low operating cost – No chemicals, minimal/no power. Long filter life, low maintenance.
Smart monitoring (optional) – Filter life indicator, sampling valve, and alarm for real‑time status.
Durable build – PE, stainless steel, or carbon steel housing resists corrosion for industrial environments.
Wide oil compatibility – Works with mineral, synthetic, vegetable, animal oils, and emulsions.
Technical Parameters
| Model | Capacity | Service kit model | Filter element quantity | Dimensions (mm) | Weight (kg) |
| ROWS 10 | 10 m3/min | E10 | 3pcs | 550 * 245 * 750 | 20 |
Main Applications
Machining & manufacturing (machine shops, parts cleaning)
Automotive & repair (plants, repair shops, car washes)
Petrochemical (refineries, chemical plants)
Power & energy (thermal power plants)
Marine & ports (vessels, shipbreaking, port depots)
Steel & metallurgy (cold/hot rolling mills)
Air compressor stations (all oil‑injected screw compressors) – most common
Food service & processing (vegetable/animal oil wastewater)
