An air compressor condensate oil-water separator is an environmentally friendly device used to treat oil-containing condensate produced by oil-injected air compressors. Its core function is to separate oil and water from the condensate, ensuring the separated water meets environmental discharge standards and can be directly discharged into the sewer system, while the concentrated oil is collected for compliant disposal.
Working Principle
Oil-water separators typically achieve separation through a multi-stage physical process. Taking a common adsorption separator as an example, its working process is as follows:
Collection and Pressure Reduction
Oily condensate first enters the separator inlet and passes through a pressure-reducing chamber, releasing the pressure to atmospheric pressure.
Pre-filtration and Oil Adsorption
The depressurized condensate passes through a pre-filtration medium (usually made of polypropylene). This medium absorbs and captures oil droplets while allowing water to pass through.
Deep Purification
The pre-filtered water then enters a post-filtration stage, typically composed of advanced filter media such as activated carbon, to adsorb and remove trace amounts of residual oil in the water.
Safe Discharge
After multi-stage purification, the condensate flowing from the outlet has an extremely low oil content (typically below 15 ppm or even 5 ppm), and can be directly discharged into the sewage system. The adsorbed oil remains inside the filter element and needs to be replaced periodically.
Technical Parameters
| Model | Capacity | Service kit model | Filter element quantity | Dimensions (mm) | Weight (kg) |

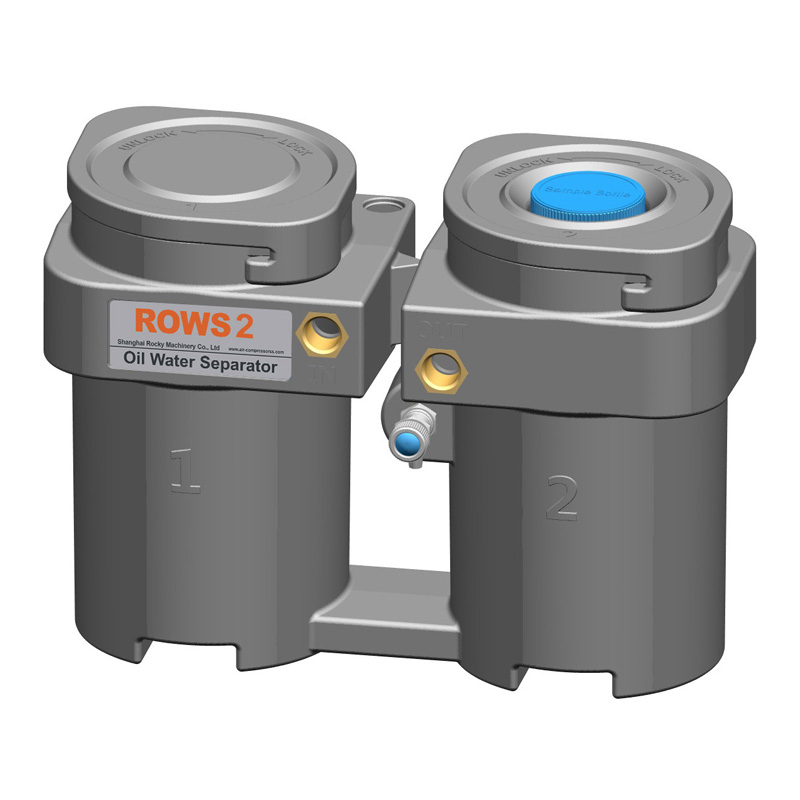

| ROWS 2 | 2 m3/min | E2 | 3pcs | 375*155*265 | 3.5 |
Applications
Oil-water separators for air compressor condensate have a wide range of applications, primarily in industries using oil-injected air compressors that require the treatment of oil-containing condensate to comply with environmental regulations. Their applications span from high-end manufacturing to basic industries.
Examples include: Manufacturing (automobile manufacturing, machinery processing, electronics, textiles); Food and pharmaceuticals (food and beverage, pharmaceuticals); Energy and chemicals (oil and gas, chemicals, power generation/electricity, new energy); Heavy industry and infrastructure (steel, shipbuilding/marine engineering, mining, construction); and other specialized fields.
FAQ
Q1: Can emulsified oil be completely separated?
• Gravity-type separation systems cannot: They only process free oil (floating oil layers).
• Solution:
◦ Add a demulsifier to break the emulsion.
Use a coalescing separator (specialized coalescing filter elements absorb tiny oil droplets).
Q2: What causes outlet water quality to exceed standards (oil content > 15 ppm)?
Uncontrolled oil-water interface: A malfunctioning automatic oil drain valve causes oil to mix into the outlet water.
• Excessive flow rate: Exceeding the designed flow rate, insufficient separation time.
• Chemical contamination: Surfactants such as detergents cause re-emulsification of oil and water.
Q3: What should be done if oil solidifies in low winter temperatures?
• Heating and insulation: Install steam coils or electric heating cables in the separation area.
• Chemical conditioning: Add an anti-coagulant to lower the freezing point of the oil.
Q4: Can it replace biological treatment?
• No! It is only used as a pretreatment device to remove floating oil and solids. Advanced treatment requires a combination with a biological tank/membrane filtration.
