ROWS5
Rocky
Clean Condensate, Pure Performance: Meet the Rocky ROWS Series Oil-Water Separator
Tired of messy compressor condensate that’s hard to dispose of and even harder on the environment?
Whether you’re running a small workshop or a 24/7 industrial plant, the Rocky ROWS Series delivers professional-grade oil-water separation that meets strict national environmental standards — with oil content at the outlet <10 PPM.
Just like the trusted German Beko systems that set the global benchmark, Rocky’s ROWS units use a proven multi-stage process:
• Depressurization chamber with pressure-reducing cotton
• Primary & secondary oil-absorbing cartridges
• Three-stage activated carbon final polish
The result? Crystal-clear condensate you can discharge safely and legally.
All models feature:
✅ Visual filter-life indicator rod (white rod sinks = time to change)
✅ Overflow indicator
✅ Sample bottle for easy testing
✅ Robust PE shell (ROWS 5 and above)
✅ Easy-drain valves and water-detection valves
Technical Parameters
| Model | Capacity（m3/min） | Service kit model | Filter element quantity | Dimensions (mm) | Weight (kg) |
| ROWS2 | 2 | E02 | 3pcs | 375 * 155 * 265 | 3.5 |
| ROWS 5 | 5 | E05 | 3pcs | 555 * 195 * 610 | 11 |
| ROWS 10 | 10 | E10 | 3pcs | 55 * 245 * 750 | 20 |
| ROWS 20 | 20 | E20 | 3pcs | 785 * 310 * 900 | 30 |
| ROWS 30 | 30 | E30 | 3pcs | 975 * 385 * 900 | 47 |
| ROWS 60 | 60 | E60 | 4pcs | 1155 * 475 * 1045 | 85 |
Real-world proof from our customers:
• ROWS 20 fresh out of the box and ready to protect your compressed air system

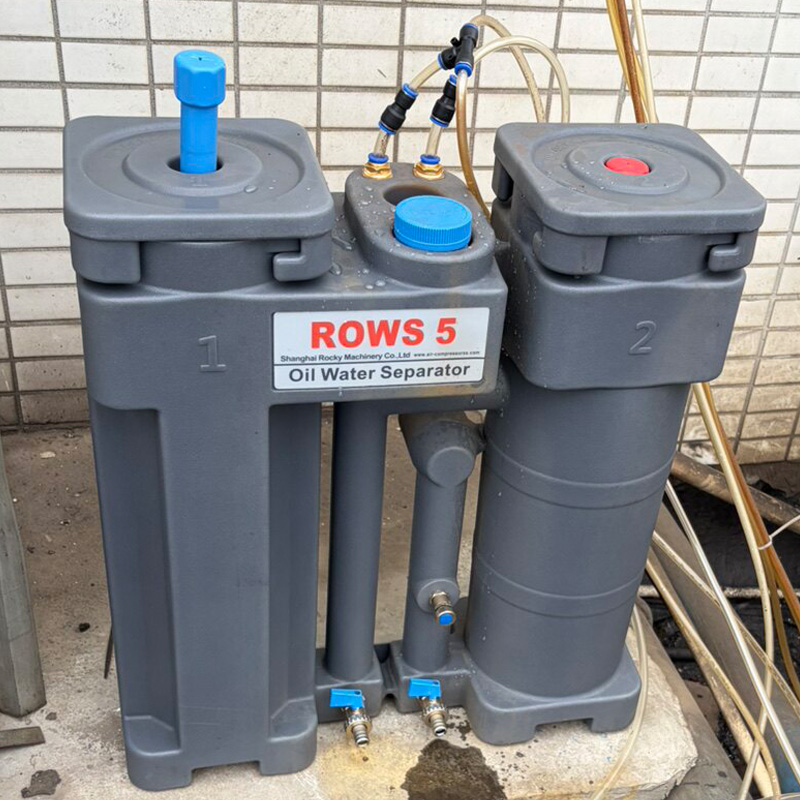

• ROWS 5 installed and running smoothly outdoors (even with all the pipes and fittings perfectly connected)
• ROWS 10 close-up showing the clear filter-life indicator rod, overflow indicator, and sample bottle — maintenance made simple
Choose the right model for your operation:
• ROWS 5 → perfect for 5 m³/min compressors (8-hour shift)
• ROWS 10 & ROWS 20 → built for higher capacity or longer running hours
• Up to ROWS 60 for heavy-duty plants
