Core Features

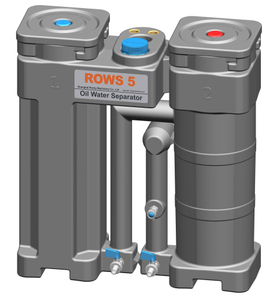

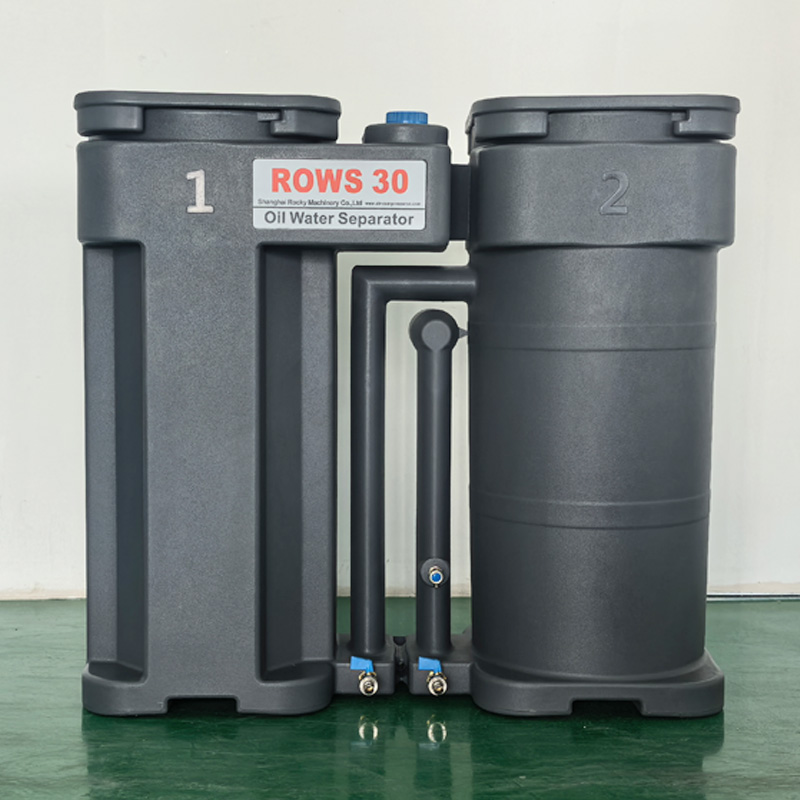

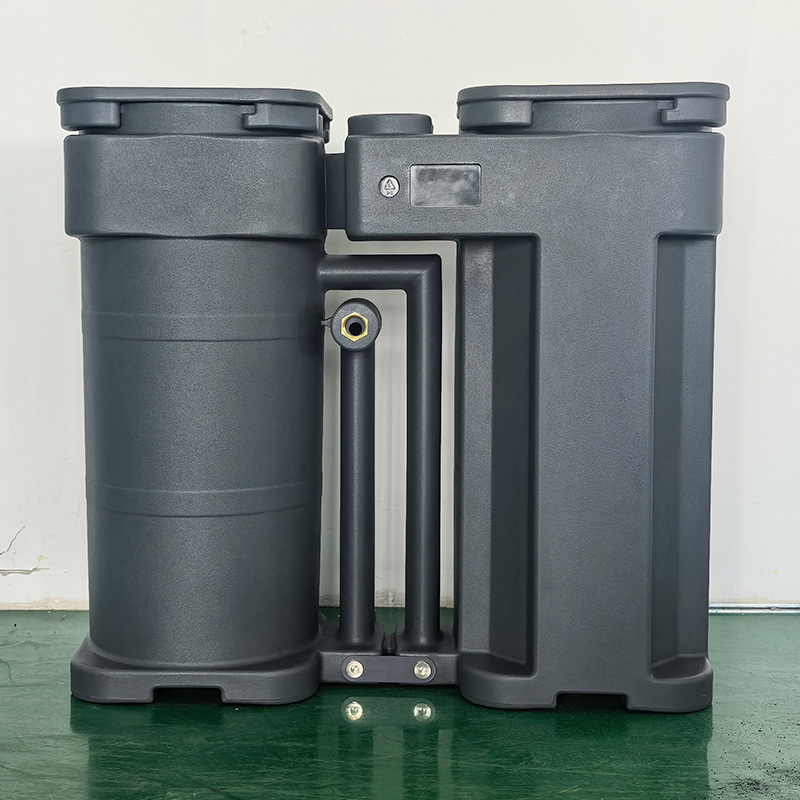

This equipment treats compressed air condensate from air compressors – a polluted mix of water, oil, and solid particles.
High-efficiency oil-water separation – Uses multi-stage processes: gravity settling, coalescing filtration, and activated carbon adsorption. Handles emulsified and dissolved oils, with very low oil content in the outlet.
High capacity – Designed for 30 m³/min air compressors, handling all condensate from medium-sized industrial compressor stations without overload.
Automatic operation – Float valve or electronic level sensor automatically discharges separated oil and water when preset levels are reached. No manual intervention needed.
Compliant & safe design – Separated oil and water are collected in separate tanks for proper disposal. Fully enclosed to prevent leaks or harmful vapor release, ensuring a safe work environment.
Technical Parameters
| Model | ROWS2 | ROWS5 | ROWS10 | ROWS20 | ROWS30 | ROWS60 |
| Max. compressor air flow rate (m³/min) (Based on a 8 hour shift) | 2 | 5 | 10 | 20 | 30 | 60 |
| Max. oil absorption(L) | 1.96 | 4.9 | 9.8 | 14.6 | 24.6 | 49.2 |
| Inlet connection size | 1 * G1/2" | 2 * G1/2" | 2 * G1/2" | 2 * G1/2" | 2 * G1/2" | 2 * G1/2" |
| Outlet connection size | G1/2" | G 1" | G 1" | G 1" | G 1" | G 1" |
| Test valve | Yes | Yes | Yes | Yes | Yes | Yes |
| Sample bottle | Yes | Yes | Yes | Yes | Yes | Yes |

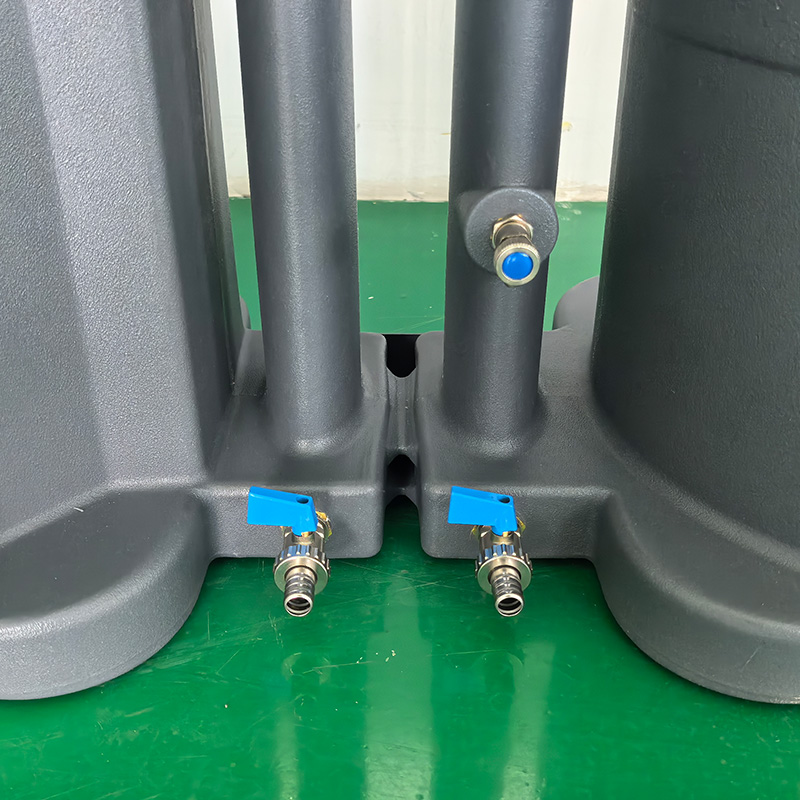

| Service drain valves | No | Yes | Yes | Yes | Yes | Yes |
| Element indicator | No | Yes | Yes | Yes | Yes | Yes |
| Overflow indicator | No | Yes | Yes | Yes | Yes | Yes |
| Outlet oil concentration (ppm) | <10 | <10 | <10 | <10 | <10 | <10 |
| Material of housing | PE | PE | PE | PE | PE | PE |
| Dimensions(mm) | 375*155*265 | 555*195*610 | 655*245*750 | 785*310*900 | 975*385*900 | 1155*475*1045 |
| Weight(kg) | 3.5 | 11 | 20 | 30 | 47 | 85 |
Applications
Manufacturing (main market) – Automotive, electronics, metalworking, food & beverage, pharmaceuticals, textiles.
Process & chemical industries – Chemicals, petrochemicals, pharmaceuticals, cosmetics, power, energy.
Infrastructure & services – Hospitals, large construction sites, logistics, warehousing.
