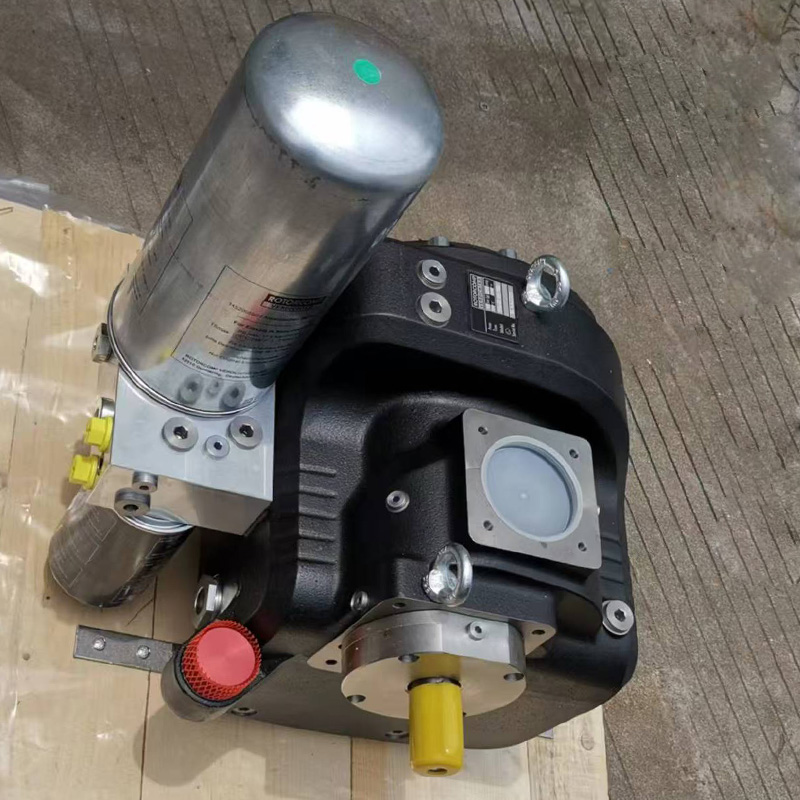

The 15~37kW Original Rotorcomp Screw Airend EVO6-NK-Gas V002 is a genuine, high-efficiency gas compressor block engineered to serve as the core compression component for industrial gas systems within the 15 to 37 kW power range.
| Product Model | EVO6-NK-Gas V002 |
| Product Type | Gas-specific Screw Compressor Airend (Original Rotorcomp) |
| Max. Shaft Power | 37 kW (50 HP) |
| Recommended Motor Power | 15 – 37 kW (20 – 50 HP) |
| Nominal Capacity (at 7 barg) | Approx. 330 m³/h (5.5 m³/min / 200 cfm) |
| Operating Pressure Range | 6 – 15 bar (87 – 217 psig) |
| Speed Range | 1,500 – 7,000 rpm |
| Built-in Volume Ratio (Vi) | 4.1 |
| Net Weight | Approx. 100 – 125 kg (220 – 276 lbs) |
| Dimensions (L × W × H) | Approx. 483 × 440 × 564 mm |
| Drive Type | Belt-driven or Direct-coupled (Flexible options) |
Product feature
100% Genuine & Reliable
Direct from the original manufacturer. Guarantees unmatched reliability, precise engineering, and a long service life, eliminating the risks of aftermarket parts.
Dedicated for Gas Applications
Specifically engineered with specialized materials, seals, and tight tolerances for industrial gas compression, ensuring safe and leak-free operation.
High-Efficiency EVO Rotor Profile
Features the advanced EVO series rotor geometry, delivering superior volumetric efficiency, lower energy consumption, and optimal performance under demanding conditions.
Robust & Compact Design
High-precision manufacturing ensures minimal vibration and noise, providing a stable and solid foundation for your compressor system.
Perfect Drop-in Replacement
Exact dimensional match with the original OEM specs. Easy to install, significantly reducing maintenance downtime and labor costs.
Industries & Applications
Rotorcomp EVO6-NK-Gas V002
The Original Rotorcomp EVO6-NK-Gas V002 is a gas-specific screw airend designed for the compression, boosting, and recovery of industrial gases.
1. Oil & Gas Industry (Core)
Natural Gas Transmission: Pipeline transmission and fuel gas boosting for power generation.
Wellhead Boosting: Enhances extraction pressure and recovery rates.
CBM Compression: Gathering and boosting of Coalbed Methane (sweet gas).
2. Renewable Energy & Environmental Protection
Biogas & Landfill Gas: Boosting for power generation, upgrading, or grid injection.
Vapor Recovery (VRU): Compresses VOCs in refineries/chemical plants to reduce emissions.
3. Gas Turbine Fuel Boosting
Fuel Gas Supply: Provides stable, pressurized fuel gas for gas turbines and distributed energy stations.
4. Chemical & Specialty Gases
Process Gases: Compression of nitrogen and hydrocarbon mixtures.
Sour Gas Treatment: Handles corrosive H₂S and CO₂ (requires optional mechanical seal).
Casing Gas Recovery: Oilfield casing gas recovery and boosting.
