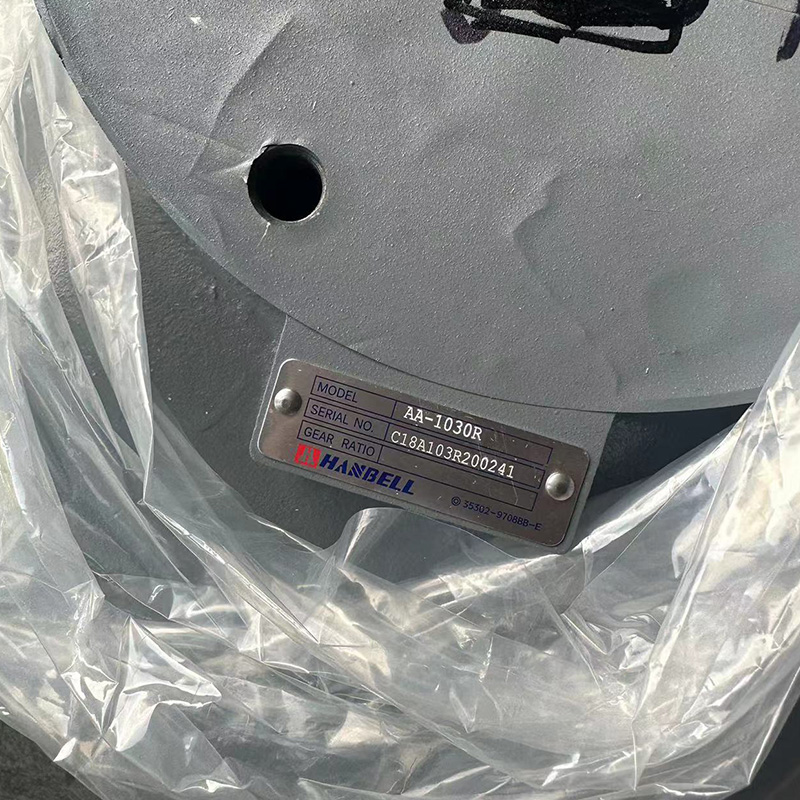

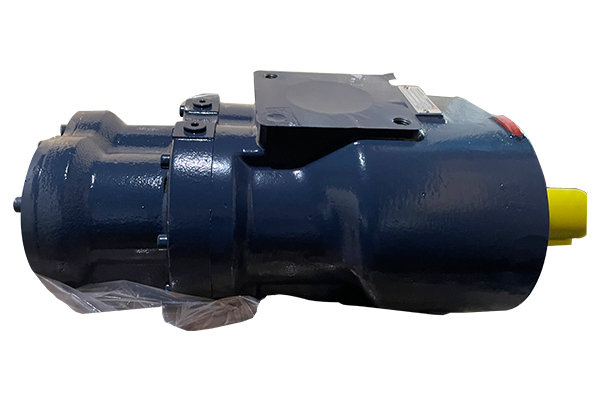

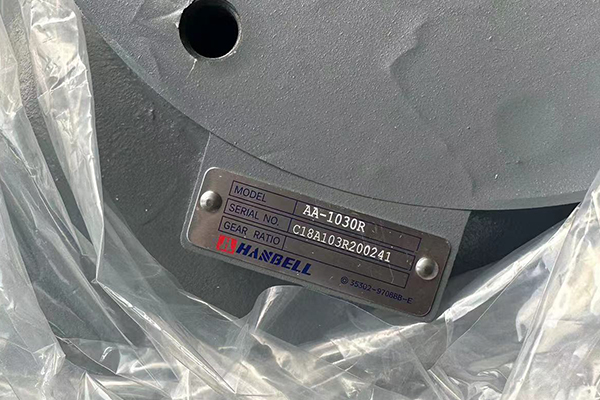

The Hanbell AA-1030R is a high-performance twin-screw air end designed specifically for industrial rotary screw air compressors. It serves as the "heart" of the compressor, responsible for the actual compression of air.
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | S.F. | Dimension(mm) | Weight(kg) |
| AA-1030R | 90 | 2950 | 15.7 | 104.5 | 6.6 | 1.08 | 717*402*350 | 275 |
High Efficiency: Features a patented asymmetrical rotor profile that ensures a tight seal and minimizes internal leakage, leading to higher CFM (Cubic Feet per Minute) per kilowatt.
Robust Durability: Equipped with heavy-duty bearings and a high-precision machining finish to ensure a long service life and 24/7 continuous operation.
Low Noise & Vibration: Optimized internal geometry and balanced rotors significantly reduce operational noise and mechanical stress.
Easy Integration: Designed with a compact footprint and standard mounting interfaces, making it a preferred choice for compressor manufacturers (OEMs).
Industrial Manufacturing: Powering pneumatic tools and assembly lines in automotive, electronics, and textile plants.
Construction & Mining: Integrated into portable or stationary compressors for heavy-duty site work.
Food & Beverage: Used in packaging and processing where reliable, continuous compressed air is critical.
Energy & Power: Providing control air for valves and instrumentation in power plants
