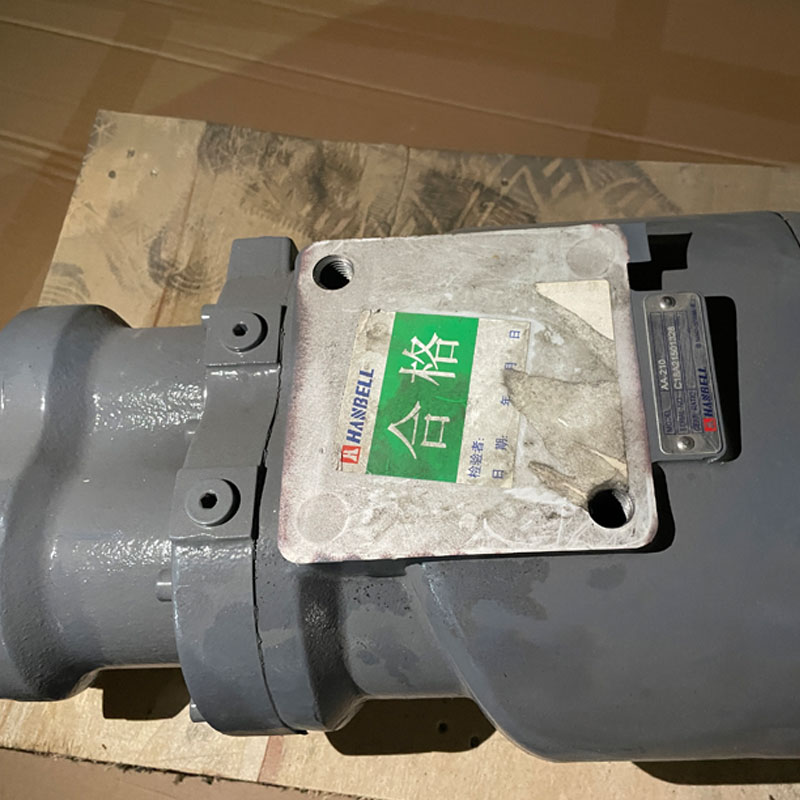

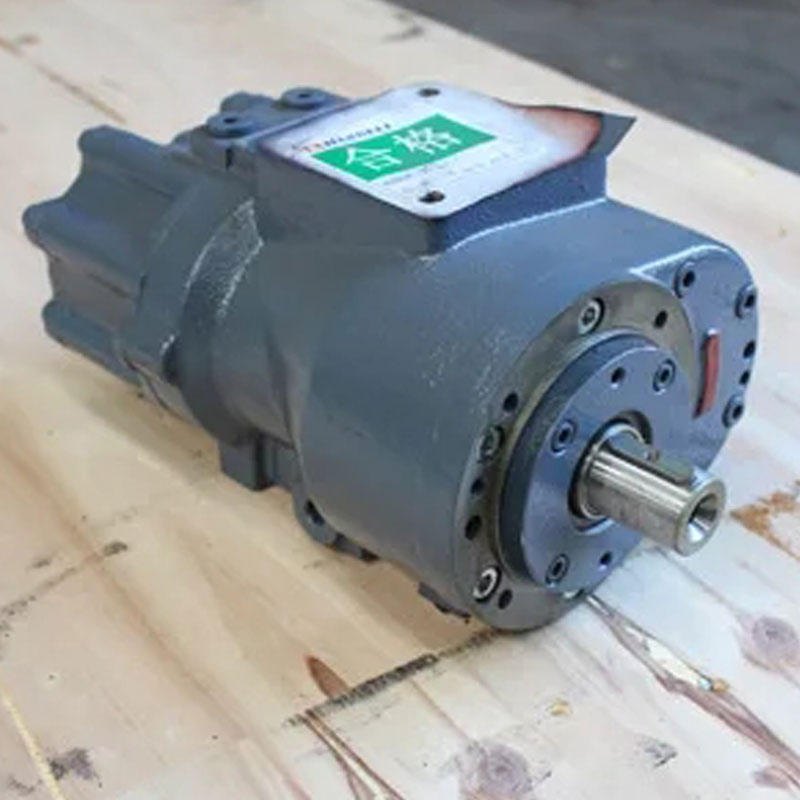

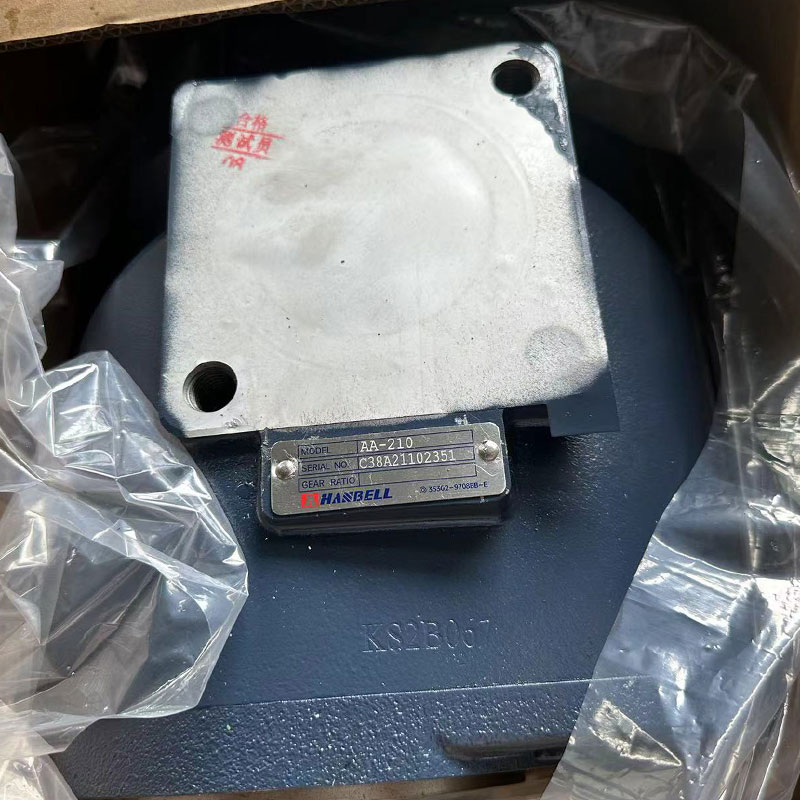

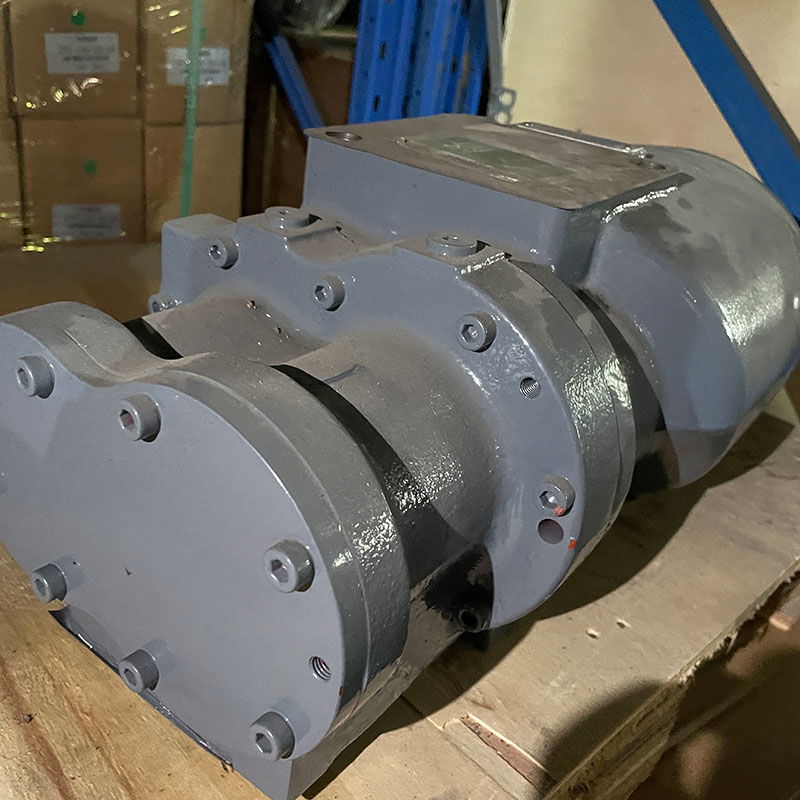

The Hanbell AA-210 is an 18.5kW single-stage, oil-injected screw air end from Hanbell's AA series, designed for industrial air compressors. At 2950 rpm, it delivers a free air delivery of 2.9 m³/min with shaft power of 19.4 kW and specific power consumption of 6.7 kW/m³/min at 8 bar.g . It supports a wide pressure range of 5–15 bar.g (max 16 bar.g).
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | S.F. | Dimension(mm) | Weight(kg) |
| AA-210 | 18.5 | 2950 | 2.9 | 19.4 | 6.7 | 1.05 | 410*261*207 | 70 |
✅ 8-Bearing Design – Heavy-duty 8-bearing configuration ensures long life, stability, and low maintenance.
✅ Advanced Rotor Profile – 3rd-gen 5:6 asymmetrical rotor boosts efficiency, reduces vibration & noise.
✅ High Pressure Capability – Handles up to 16 bar – ideal for demanding high-pressure applications.
✅ 15+ Years Proven Leadership – Over 15 years of global success; benchmarks top brands.
✅ Compact & Easy to Integrate – Easy to integrate into 18.5kW packages or as a replacement unit.
The Hanbell AA-210 is suitable for general industrial compressed air systems powering assembly lines, pneumatic tools, and automation equipment in industries such as -8-9:
Manufacturing & processing
Mining & construction
Shipbuilding & transportation
Energy & utilities
Infrastructure projects
