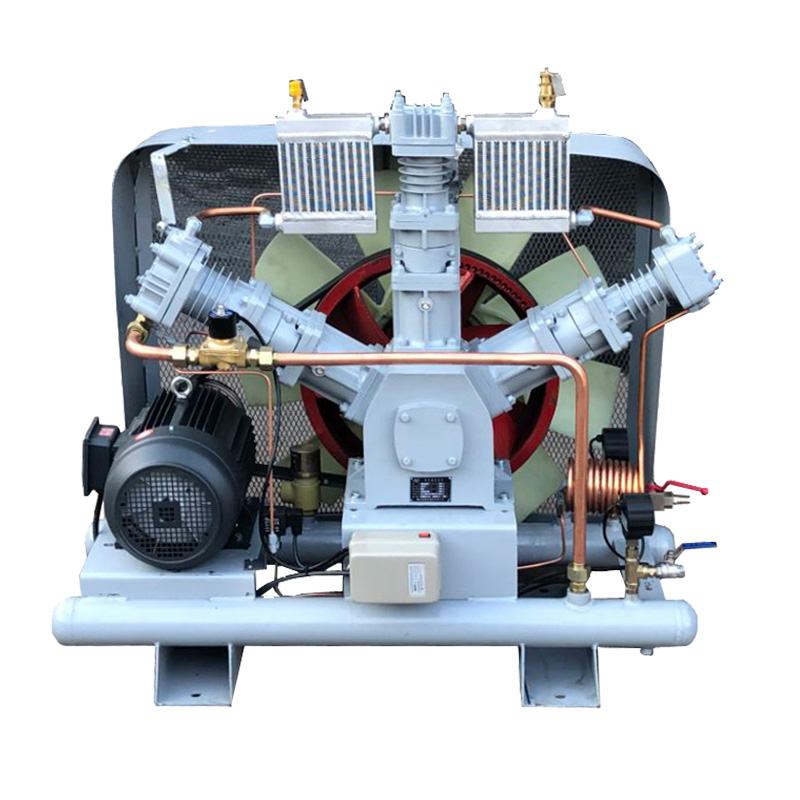

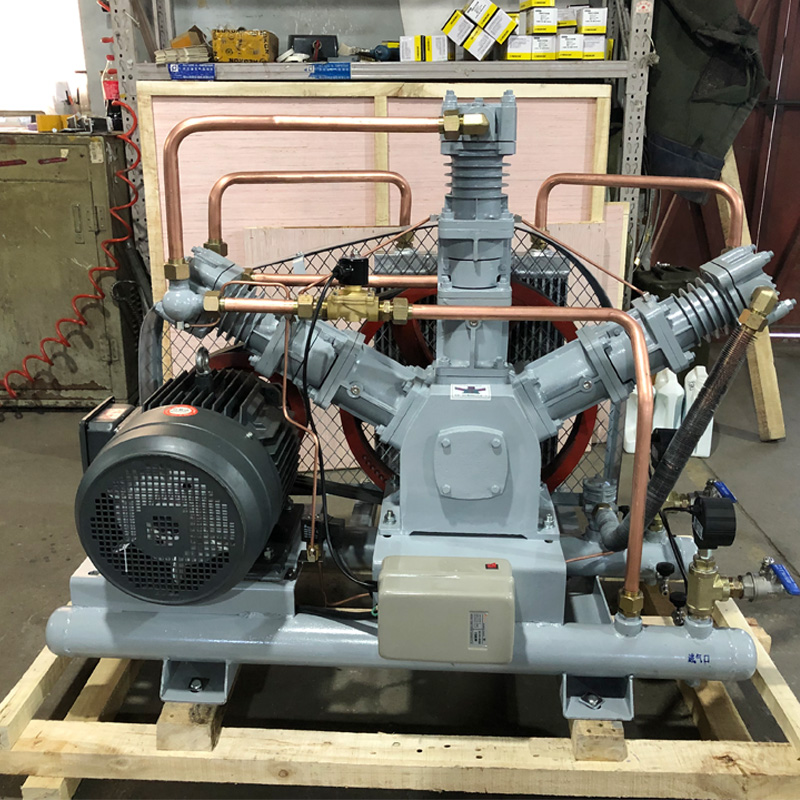

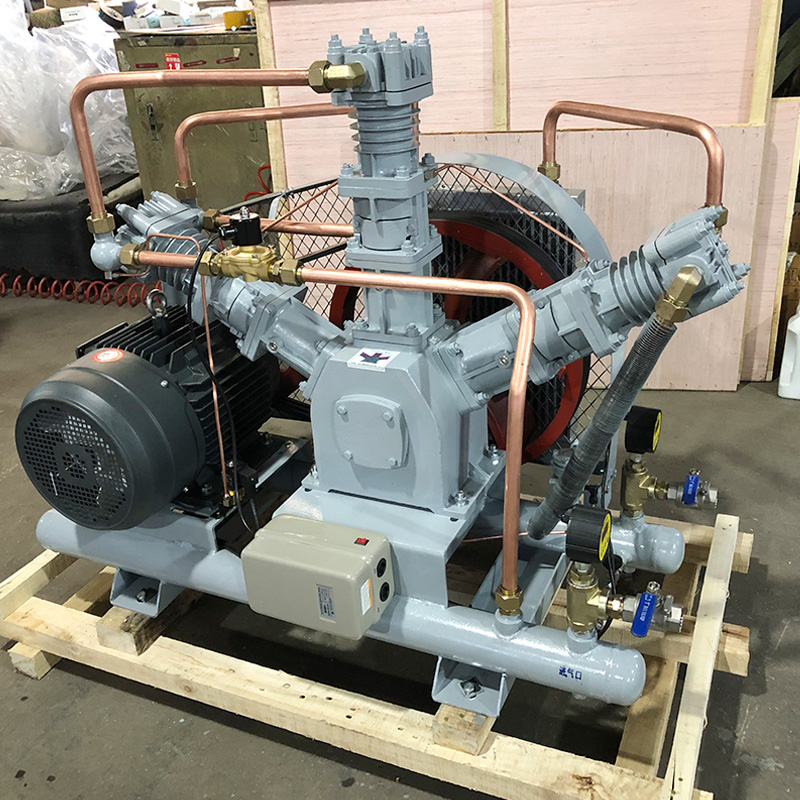

Oil-free nitrogen booster compressors are high-capacity industrial devices designed to increase nitrogen pressure while avoiding the introduction of any oil contaminants into the gas flow. These compressors have flow rates ranging from 80 to 160 cubic meters per minute and are typically used in applications requiring ultrapure, oil-free nitrogen at high pressures. The compressors employ oil-free compression technology (such as water lubrication or dry screw/reciprocating designs) to ensure that the nitrogen is 100% hydrocarbon-free, meeting the most stringent purity standards for critical industrial processes.
1. 100% Oil-Free Operation
Delivers completely oil-free nitrogen with zero risk of contamination.
Ideal for industries where product purity is non-negotiable (e.g., pharmaceutical, food and beverage, electronics).
2. High Flow Capacity (80–160 m³/min)
Designed for large-scale industrial applications requiring substantial nitrogen volumes.
Capable of continuous 24/7 operation with stable performance.
3. Superior Energy Efficiency
Advanced compression technology minimizes power consumption per unit of output.
Integrated variable frequency drive (VFD) options allow for demand-based operation, reducing energy waste.
4. Reliable & Low Maintenance
Oil-free design eliminates the need for oil changes, oil filters, and condensate treatment.
Fewer moving parts and robust construction ensure long service intervals and reduced downtime.
5. Compact Footprint
Space-saving design suitable for integration into existing gas generation systems or skid-mounted packages.
6. Advanced Control & Monitoring
Equipped with intelligent PLC controllers for real-time pressure, temperature, and flow monitoring.
Remote monitoring capabilities and alarm systems ensure safe and efficient operation.
| Model | Capacity(m3/h) | Inlet P (Barg) | Outlet P (Barg) | Motor Power (Kw) | Compression | Dimension L*W*H(mm) | Inlet Size | Outlet Size | Weight (kg) |
| RWWN-80/5-30 | 80 | 5 | 30 | 11 | 2 | 1350x700x1200 | RC1" | RC1" | 380 |
| RWWN-100/5-30 | 100 | 5 | 30 | 11 | 2 | 1350x700x1200 | RC1" | RC1" | 380 |
| RWWN-120/5-30 | 120 | 5 | 30 | 15 | 2 | 1350x700x1200 | RC1" | RC1" | 410 |
| RSWN-140/5-30 | 140 | 5 | 30 | 18.5 | 2 | 1500x800x1200 | RC1" | RC1" | 490 |
| RSWN-160/5-30 | 160 | 5 | 30 | 18.5 | 2 | 1500x800x1200 | RC1" | RC1" | 490 |
Nitrogen Generation Systems: Boosts nitrogen produced from PSA (Pressure Swing Adsorption) or membrane generators to required pressure levels.
Pharmaceutical Industry: Provides high-purity nitrogen for inerting, blanketing, and material transfer.
Food & Beverage: Used for modified atmosphere packaging (MAP), nitrogen flushing, and beverage carbonation.
Electronics Manufacturing: Supplies ultra-pure nitrogen for soldering, wave soldering, and component protection.
Chemical & Petrochemical: Supports inerting, purging, and pressure transfer in sensitive processes.
Oil & Gas: Used for nitrogen injection, well stimulation, and pipeline purging.
Marine & Offshore: Provides reliable oil-free nitrogen for shipboard inert gas systems and offshore platform applications.
