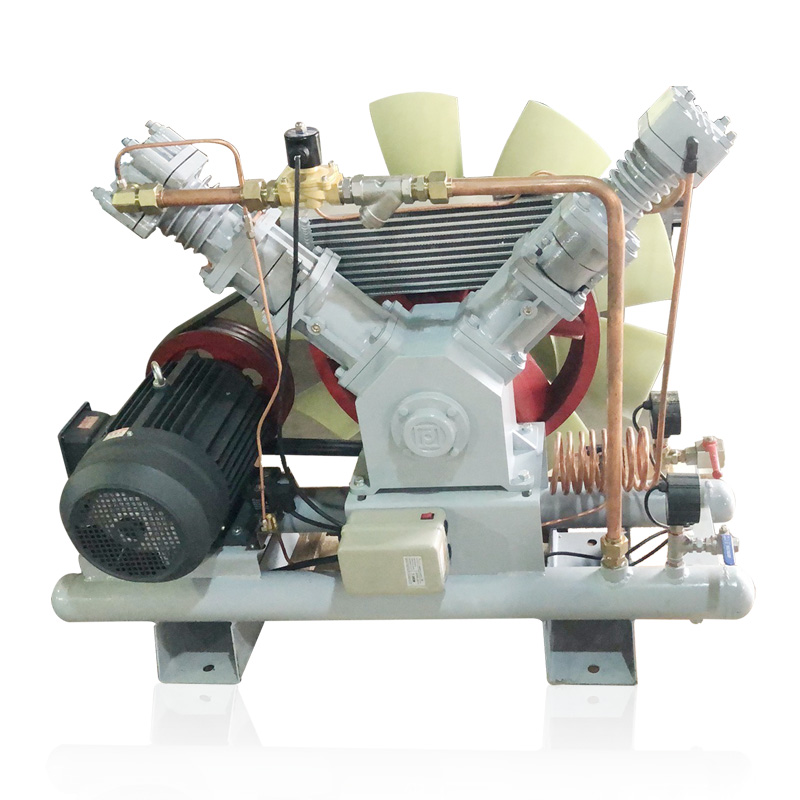

A heavy‑duty oxygen booster system designed to take low‑pressure oxygen (5 bar) and compress it to a high‑pressure output of 30 bar at flow rates ranging from 20 to 80 cubic meters per hour. It typically employs a non‑lubricated piston or specialized gas booster design to maintain oxygen purity and ensure absolute safety during compression.
Technical Parameters
| Model | Capacity (m3/h) | Inlet P (Barg) | Outlet P (Barg) | Motor Power (Kw) | Compression | Dimensions L*W*H(mm) | Inlet Size | Outlet Size | Weight (kg) |
| RVWN-20/5-25 | 20 | 5 | 25 | 3 | 2 | 1250x500x900 | RC1/2" | RC1/2" | 210 |
| RVWN-30/5-25 | 30 | 5 | 25 | 4 | 2 | 1250x550x900 | RC1" | RC1" | 230 |
| RVWN-40/5-25 | 40 | 5 | 25 | 5.5 | 2 | 1250x600x900 | RC1" | RC1" | 250 |
| RVWN-50/5-25 | 50 | 5 | 25 | 7.5 | 2 | 1250x600x900 | RC1" | RC1" | 270 |
| RVWN-60/5-25 | 60 | 5 | 25 | 7.5 | 2 | 1250x600x900 | RC1" | RC1" | 270 |
| RVWN-70/5-25 | 70 | 5 | 25 | 7.5 | 2 | 1250x600x900 | RC1" | RC1" | 270 |
| RVWN-80/5-25 | 80 | 5 | 25 | 11 | 2 | 1250x700x900 | RC1" | RC1" | 300 |
Safe Oxygen Compression
Built with oxygen‑compatible materials, advanced sealing, and strict adiabatic temperature control to eliminate combustion risks—essential for handling pure oxygen.
High Purity Preservation
Oil‑free compression chamber and dedicated oxygen‑grade components prevent contamination, maintaining oxygen purity for sensitive applications.
Efficient Pressure Boosting
Delivers stable 30 bar output from a 5 bar inlet with minimal energy consumption per cubic meter; ideal for upgrading existing low‑pressure oxygen supplies.
On‑Demand, Cylinder‑Free Supply
Eliminates reliance on high‑pressure gas cylinders and associated handling costs, safety risks, and logistics—oxygen is boosted directly from a liquid tank or plant pipeline.
Reliable Continuous Operation
Designed for industrial duty with automatic start/stop or variable frequency control, ensuring consistent flow (20–80 m³/h) to match production demands.
Compact & Skid‑Mounted
Fully packaged with all controls, safety valves, and instrumentation; easy to install, integrate, and maintain.
Laser Cutting – Provides high‑pressure oxygen for ferrous metal cutting, improving edge quality and cutting speed.
Medical & Healthcare – Supplies oxygen at required pressures for hospital pipelines or cylinder filling stations.
Water & Wastewater Treatment – Boosts oxygen for ozone generation or aerobic digestion processes.
Chemical & Petrochemical – Feeds oxidation reactors or enhances combustion in industrial burners.
Glass & Metallurgy – Supplies oxygen for furnaces, enriching combustion to increase efficiency and reduce emissions.
Cylinder Filling Stations – Boosts low‑pressure oxygen from a tank to fill high‑pressure storage cylinders.
