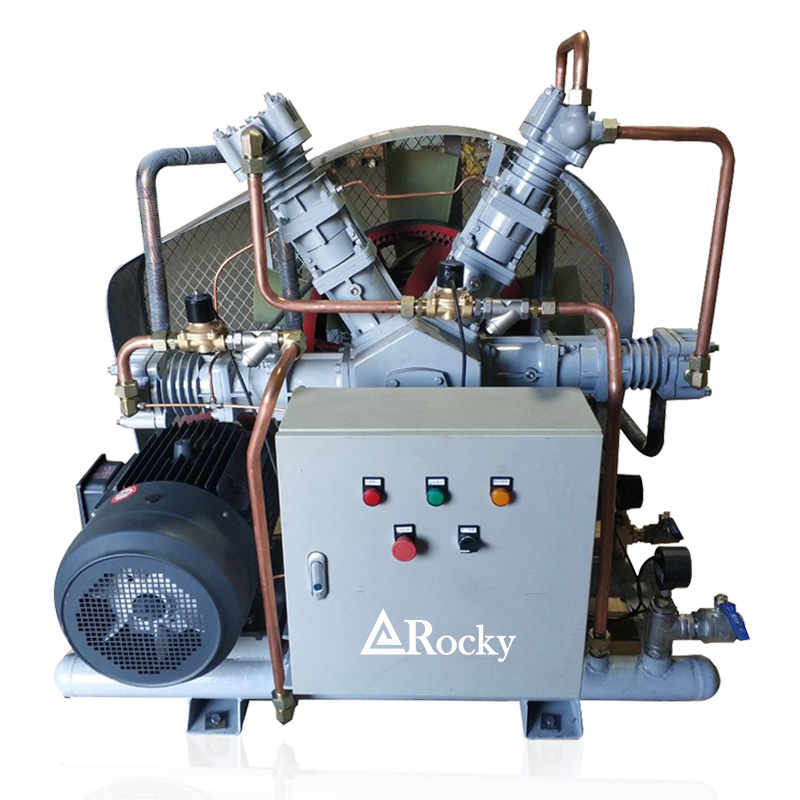

Featuring an oil-free compression design and high-pressure sealing structure, it ensures nitrogen purity and prevents contamination; an efficient cooling system guarantees stable continuous operation.
Product Features
High Efficiency and Energy Saving: Optimized flow channels for nitrogen characteristics result in lower energy consumption compared to general-purpose models.
Safe and Reliable: Equipped with overpressure protection and leak detection, suitable for high-pressure conditions.
Flexible Adaptation: Can be connected to existing nitrogen sources (such as nitrogen generator outlets) to quickly increase pressure.
Technical Parameters
| Model | Inlet P (Mpa) | Outlet P (Mpa) | Capacity (m3/h) | Motor Power (Kw) | Dimension L*W*H(mm) | Compression | Inlet size | Outlet Size | Weight (kg) |
| RWWN-100/5-25 | 0.5 | 2.5 | 100 | 11 | 1350x700x1200 | 2 | Rc1 | Rc1 | 380 |
| RWWN-120/5-25 | 0.5 | 2.5 | 120 | 15 | 1350x700x1200 | 2 | Rc1 | Rc1 | 410 |
| RWWN-140/5-25 | 0.5 | 2.5 | 140 | 15 | 1350x700x1200 | 2 | Rc1 | Rc1 | 410 |
| RSWN-160/5-25 | 0.5 | 2.5 | 160 | 18.5 | 1500x800x1200 | 2 | Rc1 | Rc1 | 490 |
| RWWN-200/5-25-‖ | 0.5 | 2.5 | 200 | 11x2 | 1600x1600x1200 | 2 | Rc11/2 | Rc1 | 940 |
| RWWN-240/5-25-‖ | 0.5 | 2.5 | 240 | 15x2 | 1600x1600x1200 | 2 | Rc11/2 | Rc1 | 1000 |
Application Industries
1. Industrial Manufacturing and Testing
Laser Cutting: Provides stable, high-pressure auxiliary gas for high-power laser equipment, ensuring clean cutting surfaces.
Automotive and Parts Testing: Used for tire nitrogen inflation, fuel system airtightness testing, and airbag testing.
Piping and Vessel Inspection: Used for pressure sealing tests and system pressure maintenance.
2. Chemical and Energy
Chemical Production: Provides inert protection and pressurized gas source for reactors and conveying systems.
Energy Storage Systems: Used for compressed air energy storage (CAES) or nitrogen gas tank filling and pressure maintenance.
Natural Gas Extraction: Provides nitrogen pressurization support for gas lift and transportation processes.
3. High-Tech and Precision Fields
Semiconductors and Electronics: Used for inert protection and pressure environment creation in processes such as chip packaging and SMT reflow soldering.
New Materials Research and Development: Provides a high-pressure nitrogen environment in processes such as powder metallurgy and high-temperature sintering.
Laboratories: Provides a stable gas source for analytical instruments and high-pressure reaction devices.
4. Food and Pharmaceuticals
Food Packaging: Rapidly fills high-pressure nitrogen gas in modified atmosphere packaging (MAP) to extend shelf life.
Pharmaceutical Production: Used for sterile production line purging, tank pressurization, and raw material inert protection.
Q: Can this booster only be used for nitrogen?
A: Designed specifically for nitrogen. It is not recommended for flammable, explosive, or highly corrosive gases (e.g., oxygen, hydrogen) to avoid safety risks or equipment damage.
Q:Does the equipment require regular lubricant replacement?
A: It adopts oil-free compression technology. No lubricant is needed in the compression chamber. Only periodic checks of drive components (e.g., motor bearings) are required, resulting in low maintenance costs.
Q. Can it operate normally if the inlet pressure is below 5 bar?
A: Insufficient inlet pressure may cause unstable output or failure to reach 25 bar. It is recommended to equip a pressure monitoring device and ensure the gas source remains stable above 5 bar.
Q. Is it suitable for continuous operation?
A. Yes. With an efficient cooling system and wear-resistant design, it supports 24/7 continuous operation, making it suitable for production lines and test benches.
Q.How does it ensure safety under high-pressure conditions?
A.Multiple safety features include automatic over-pressure shutdown, pressure relief valves, and gas leakage monitoring. The housing uses pressure-resistant materials and explosion-proof design, complying with industrial safety standards.
