| Quantity: | |
|---|---|

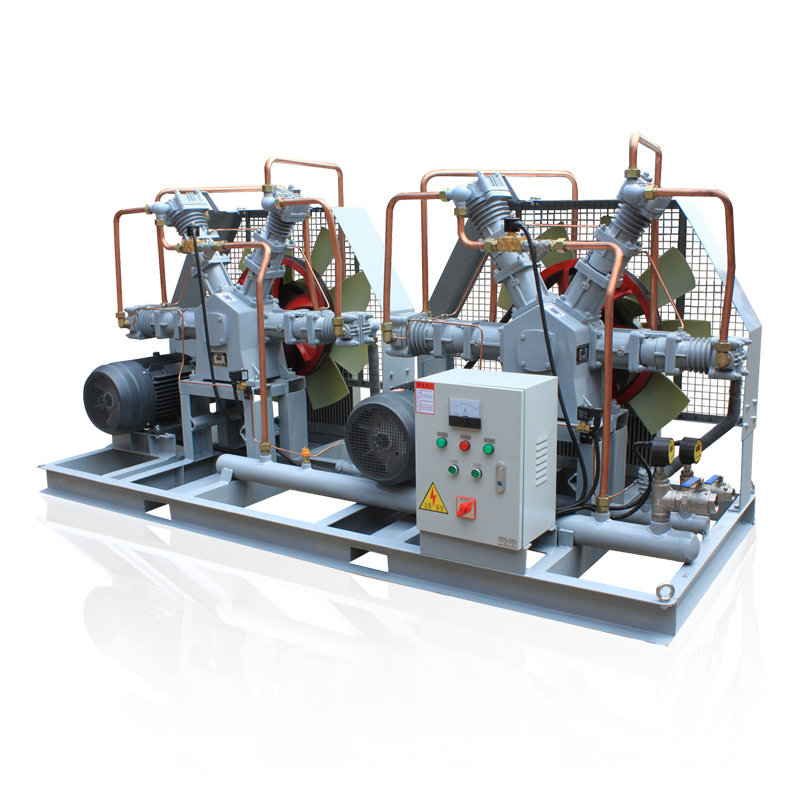

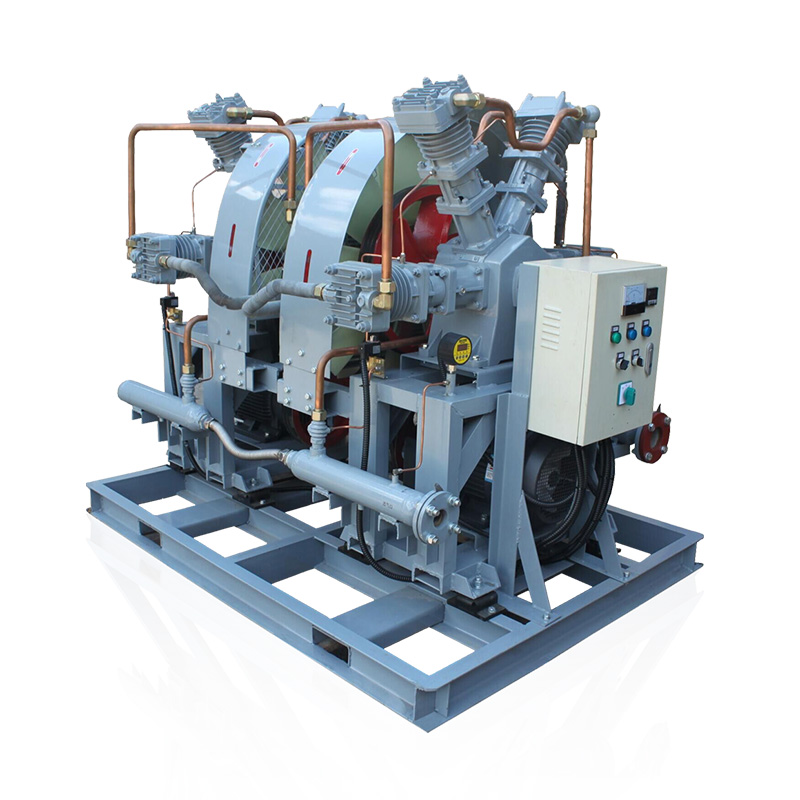

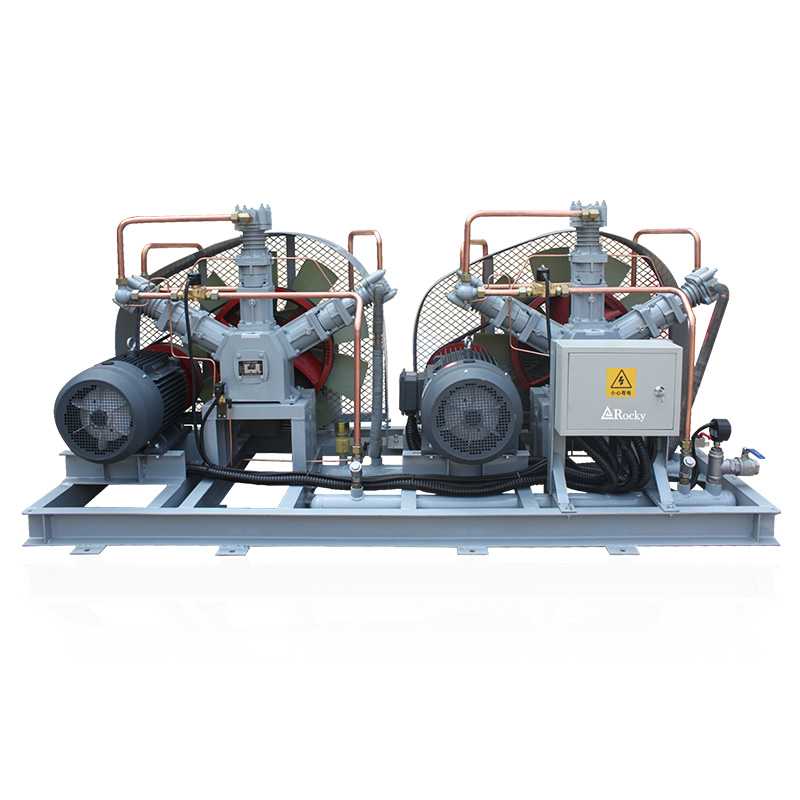

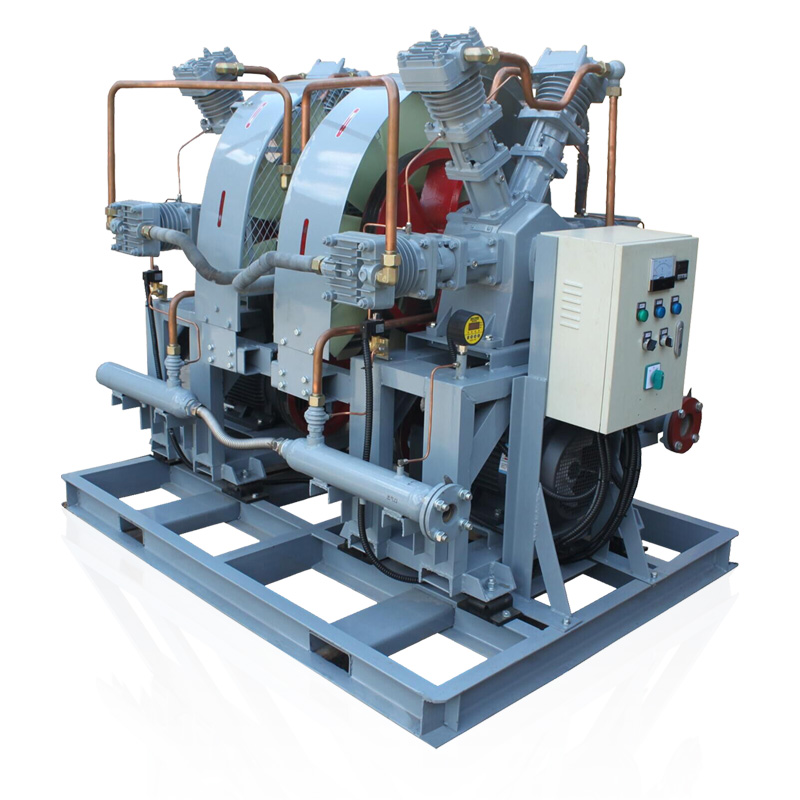

Oil-free oxygen booster, the compressed oxygen has no secondary pollution, suitable for medicine,chemical industry, food, scientific research and other fields. t can also be used for pressurization of gases in the air separation industry.
Core Advantages
Stable high pressure: Output pressure can reach 500 bar, with fluctuation ≤±1%
Pure and oil-free: Meets ISO 8573-1 Class 0 standards (purity 99.9% to 99.999%)
Energy-efficient and efficient: Saves over 30% energy compared to traditional liquid nitrogen boosters
Intelligent control: PLC automatic adjustment, supports remote monitoring
Safe and reliable: Multiple protections including overpressure protection and leak alarm
Technical Parameters
| NO. | Model | Capacity(m3/h) | Inlet P (Barg) | Outlet P (Barg) | Motor Power(Kw) | Rotating speed | Inlet Size | Outlet Size | Dimension L*W*H(mm) | Weight (kg) |
| 1 | RWWY-75/4-150-II | 75 | 4 | 150 | 15*2 | 580 | RC1" | G5/8 | 2800*1250*1200 | 1060 |
| 2 | RWWY-80/4-150-II | 80 | 4 | 150 | 15*2 | 580 | RC1" | G5/8 | 2800*1250*1200 | 1060 |
| 3 | RWWY-85/4-150-II | 85 | 4 | 150 | 15*2 | 580 | RC1" | G5/8 | 2800*1250*1200 | 1060 |
| 4 | RSWY-90/4-150-II | 90 | 4 | 150 | 18.5*2 | 580 | RC1" | G5/8 | 2900*1320*1300 | 1260 |
| 5 | RSWY-95/4-150-II | 95 | 4 | 150 | 18.5*2 | 580 | RC1" | G5/8 | 2900*1320*1300 | 1260 |
| 6 | RSWY-100/4-150-II | 100 | 4 | 150 | 18.5*2 | 580 | RC1" | G5/8 | 2900*1320*1300 | 1260 |
| 7 | RSWY-105/4-150-II | 105 | 4 | 150 | 18.5*2 | 580 | RC1" | G5/8 | 2900*1320*1300 | 1260 |
| 8 | RSWY-110/4-150-II | 110 | 4 | 150 | 18.5*2 | 580 | RC1" | G5/8 | 2900*1320*1300 | 1260 |
| 9 | RSWY-115/4-150-II | 115 | 4 | 150 | 22*2 | 640 | RC1" | G5/8 | 2900*1320*1300 | 1350 |
| 10 | RSWY-120/4-150-II | 120 | 4 | 150 | 22*2 | 640 | RC1" | G5/8 | 2900*1320*1300 | 1350 |
| 11 | RSWY-125/4-150-II | 125 | 4 | 150 | 22*2 | 640 | RC1" | G5/8 | 2900*1320*1300 | 1350 |
| 12 | RSWY-130/4-150-II | 130 | 4 | 150 | 22*2 | 720 | RC1" | G5/8 | 2900*1320*1300 | 1350 |
| 13 | RSWY-135/4-150-II | 135 | 4 | 150 | 22*2 | 720 | RC1" | G5/8 | 2900*1320*1300 | 1350 |
| 14 | RSWY-140/4-150-II | 140 | 4 | 150 | 22*2 | 720 | RC1" | G5/8 | 2900*1320*1300 | 1350 |
Product Features
·PLC touch screen control, remote control optional.
· Inlet and outlet pressure overload, temperature overheating, cooling water failure, System will alarm and shutdown automaticly.
· Runningtime display, maintenance reminder.
·Self-contained water tank and circulation pump, no need for extermal piping. Use antifreeze, no fear of low temperature.
·Small vibration, low noise, long life of wearing parts.
Q&A Collection
Q1: Is a nitrogen source required?
A: Requires connection to a nitrogen generator or nitrogen cylinder (inlet pressure ≥ 5 bar).
Q2: Maximum output pressure?
A: Standard model 100 bar, customizable to 500 bar.
Q3: How is oil-free operation guaranteed?
A: Self-lubricating material + precision filtration (optional 0.01 μm filter element).
Q4: Maintenance cycle?
A: Seals are replaced every 2000 hours, and filters are replaced as needed.
Q5: Can flow rates be customized?
A: 0.5-50 Nm³/h (supports parallel expansion of multiple units).
