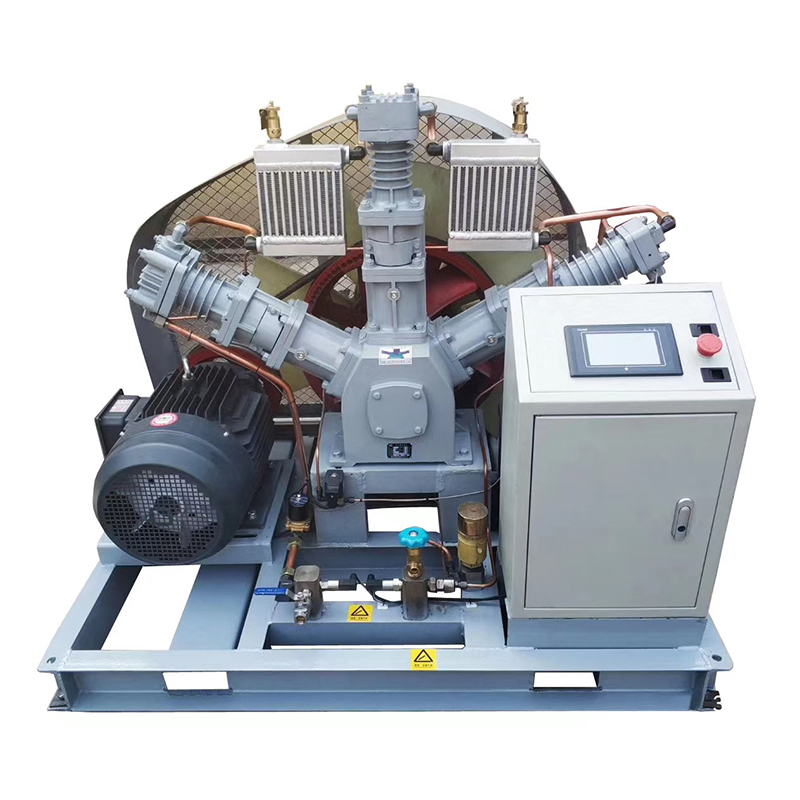

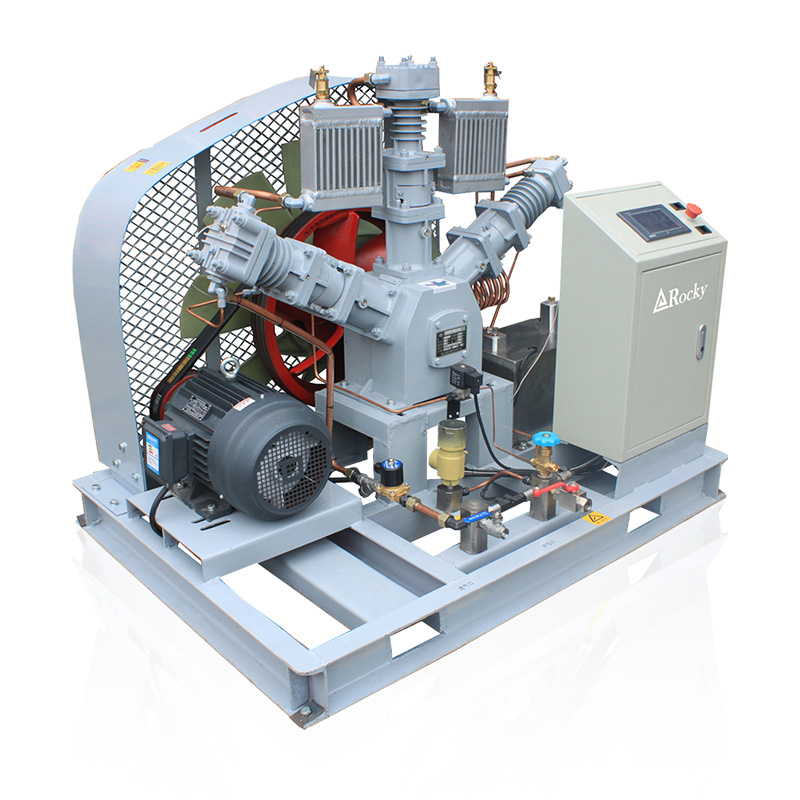

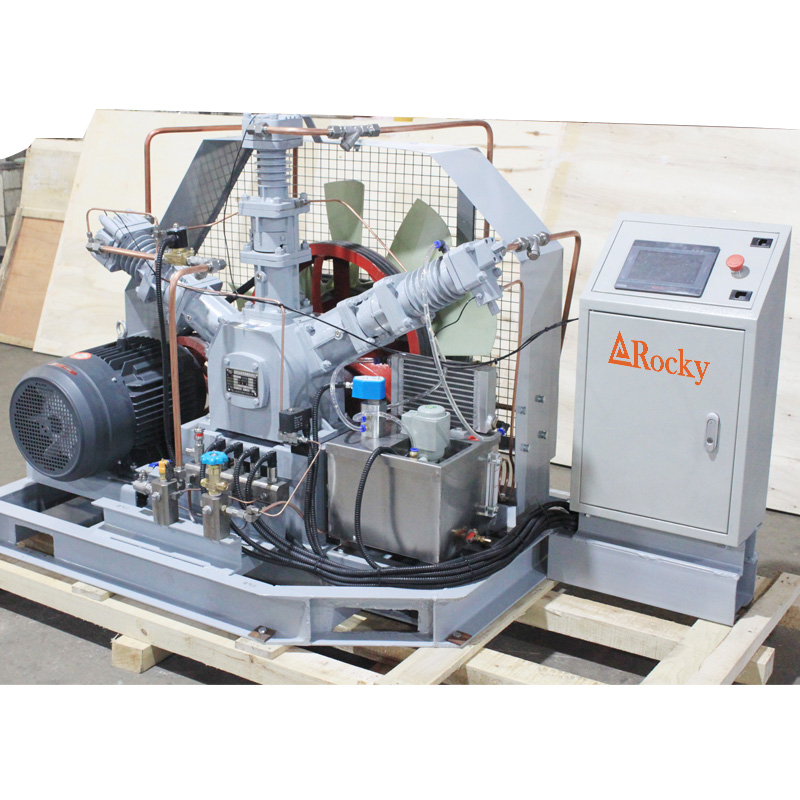

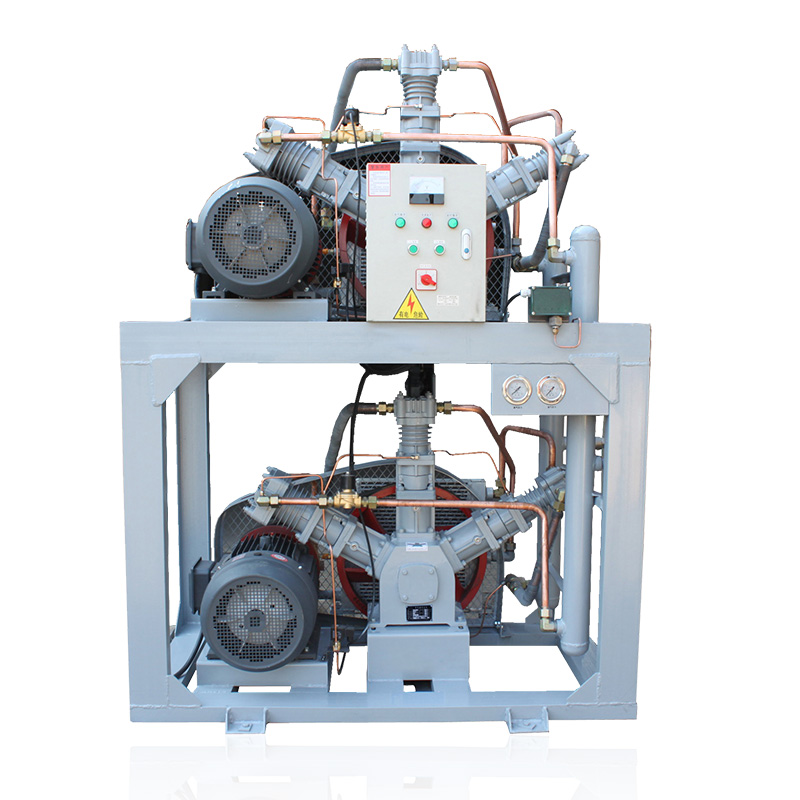

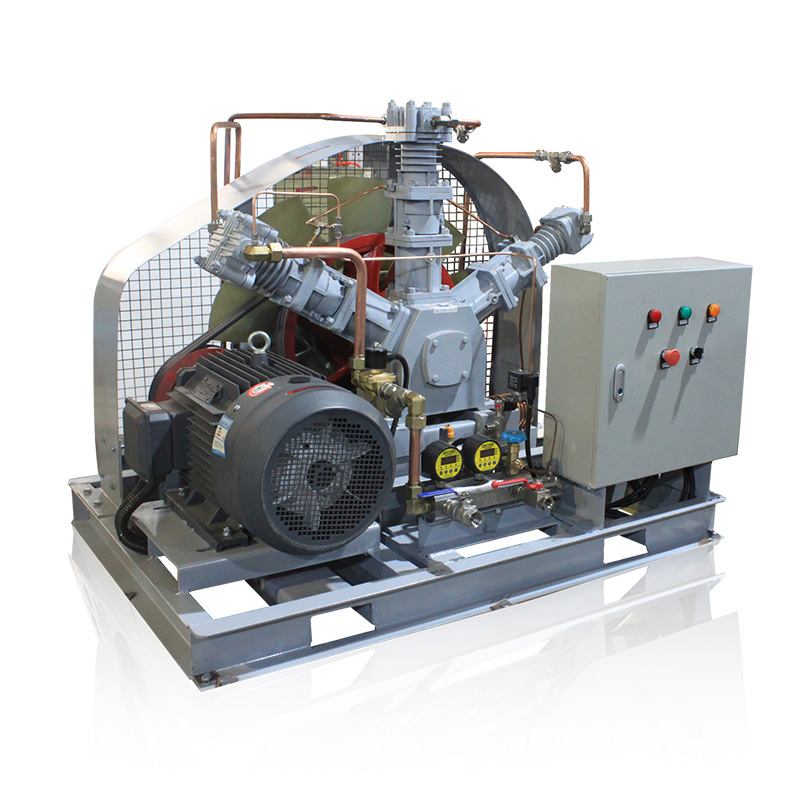

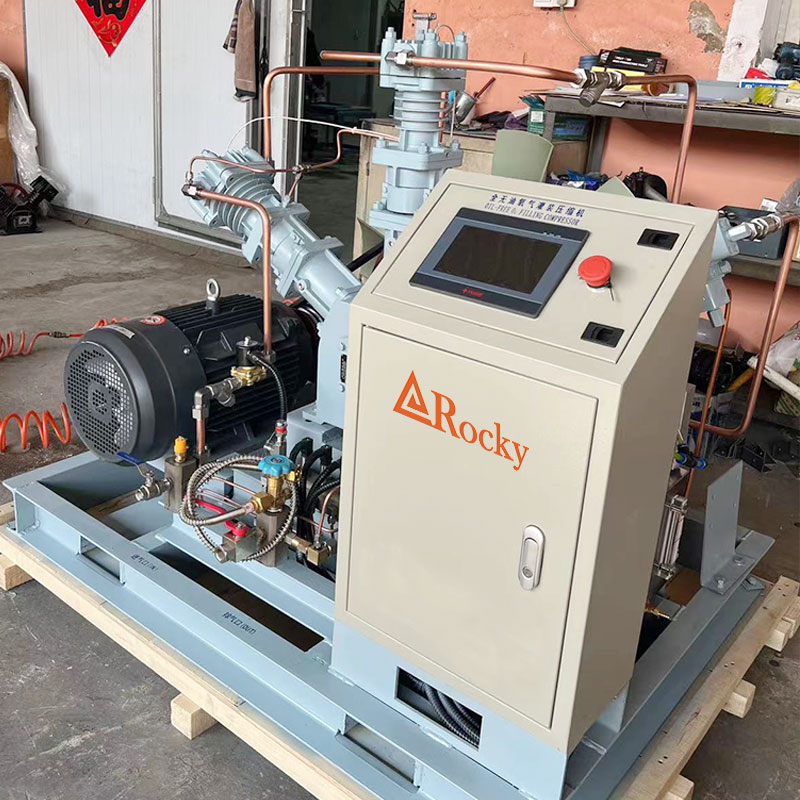

Oil-free oxygen booster, the compressed oxygen has no secondary pollution, suitable for medicine,chemical industry, food, scientific research and other fields. t can also be used for pressurization of gases in the air separation industry.
Advantages
Stable high pressure: Output pressure can reach 500 bar, with fluctuation ≤±1%
Pure and oil-free: Meets ISO 8573-1 Class 0 standards (purity 99.9% to 99.999%)
Energy-efficient and efficient: Saves over 30% energy compared to traditional liquid nitrogen boosters
Intelligent control: PLC automatic adjustment, supports remote monitoring
Safe and reliable: Multiple protections including overpressure protection and leak alarm
Technical Parameters
| NO. | Model | Capacity(m3/h) | Inlet P (Barg) | Outlet P (Barg) | Motor Power(Kw) | Rotating speed | Inlet Size | Outlet Size | Dimension L*W*H(mm) | Weight (kg) |
| 1 | RSWY-45/4-150 | 45 | 4 | 150 | 18.5 | 580 | RC1" | G5/8 | 1450*1100*1250 | 520 |
| 2 | RSWY-50/4-150 | 50 | 4 | 150 | 18.5 | 580 | RC1" | G5/8 | 1450*1100*1250 | 520 |
| 3 | RSWY-55/4-150 | 55 | 4 | 150 | 18.5 | 580 | RC1" | G5/8 | 1450*1100*1250 | 520 |
| 4 | RSWY-60/4-150 | 60 | 4 | 150 | 22 | 640 | RC1" | G5/8 | 1450*1100*1250 | 540 |
| 5 | RSWY-65/4-150 | 65 | 4 | 150 | 22 | 720 | RC1" | G5/8 | 1450*1100*1250 | 540 |
| 6 | RSWY-70/4-150 | 70 | 4 | 150 | 22 | 720 | RC1" | G5/8 | 1450*1100*1250 | 540 |
Product Features
·PLC touch screen control, remote control optional.
· Inlet and outlet pressure overload, temperature overheating, cooling water failure, System will alarm and shutdown automaticly.
· Runningtime display, maintenance reminder.
·Self-contained water tank and circulation pump, no need for extermal piping. Use antifreeze, no fear of low temperature.
·Small vibration, low noise, long life of wearing parts.
Common Q&A Collection
Q1: Is a nitrogen source required?
A: Requires connection to a nitrogen generator or nitrogen cylinder (inlet pressure ≥ 5 bar).
Q2: Maximum output pressure?
A: Standard model 100 bar, customizable to 500 bar.
Q3: How is oil-free operation guaranteed?
A: Self-lubricating material + precision filtration (optional 0.01 μm filter element).
Q4: Maintenance cycle?
A: Seals are replaced every 2000 hours, and filters are replaced as needed.
Q5: Can flow rates be customized?
A: 0.5-50 Nm³/h (supports parallel expansion of multiple units).
