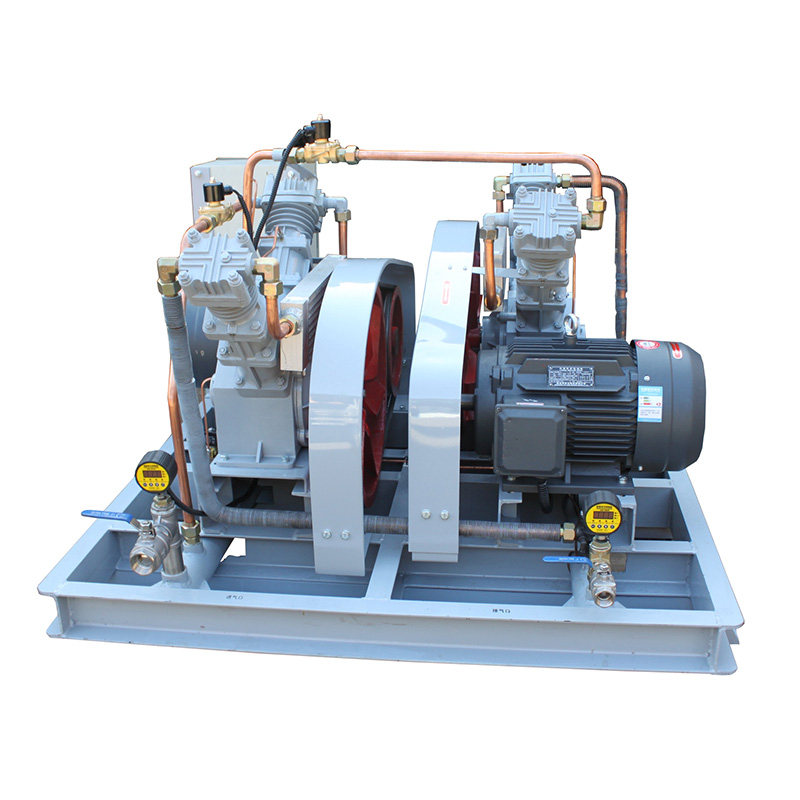

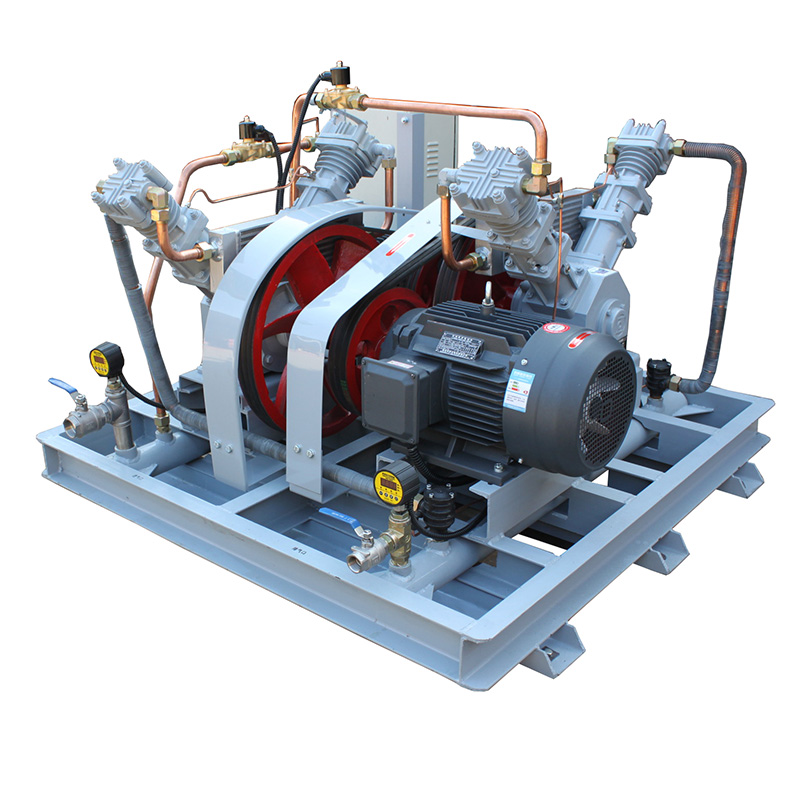

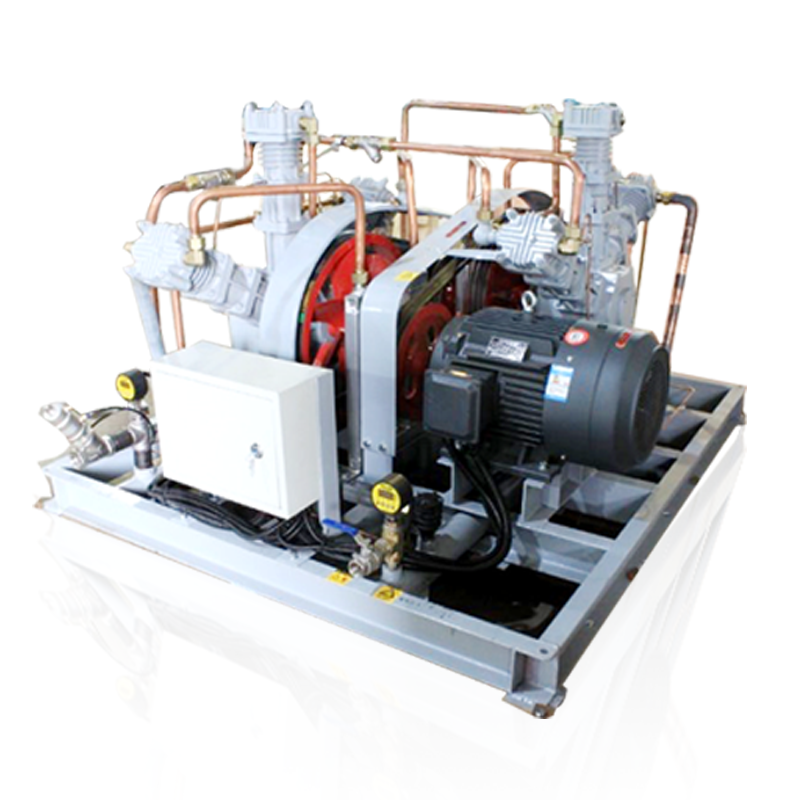

Oil-free oxygen booster, the compressed oxygen has no secondary pollution, suitable for medicine,chemical industry, food, scientific research and other fields. t can also be used for pressurization of gases in the air separation industry.
Advantages
Stable high pressure: Output pressure can reach 500 bar, with fluctuation ≤±1%
Pure and oil-free: Meets ISO 8573-1 Class 0 standards (purity 99.9% to 99.999%)
Energy-efficient and efficient: Saves over 30% energy compared to traditional liquid nitrogen boosters
Intelligent control: PLC automatic adjustment, supports remote monitoring
Safe and reliable: Multiple protections including overpressure protection and leak alarm
Technical Parameters
| NO. | Model | Capacity(m3/h) | Inlet P (Barg) | Outlet P (Barg) | Motor Power(Kw) | Compression | Dimension L*W*H(mm) | Inlet Size | Outlet Size | Weight (kg) |
| 1 | RWWN-200/5-30-II | 200 | 5 | 30 | 22（11*2） | 2 | 1600x1600x1200 | RC1 1/2" | RC1" | 940 |
| 2 | RWWN-240/5-30-II | 240 | 5 | 30 | 30（15*2） | 2 | 1600x1600x1200 | RC1 1/2" | RC1" | 1000 |
System Features
·PLC touch screen control, remote control optional.
· Inlet and outlet pressure overload, temperature overheating, cooling water failure, System will alarm and shutdown automaticly.
· Runningtime display, maintenance reminder.
·Self-contained water tank and circulation pump, no need for extermal piping. Use antifreeze, no fear of low temperature.
·Small vibration, low noise, long life of wearing parts.
Common Q&A Collection
Q1: Is a nitrogen source required?
A: Requires connection to a nitrogen generator or nitrogen cylinder (inlet pressure ≥ 5 bar).
Q2: Maximum output pressure?
A: Standard model 100 bar, customizable to 500 bar.
Q3: How is oil-free operation guaranteed?
A: Self-lubricating material + precision filtration (optional 0.01 μm filter element).
Q4: Maintenance cycle?
A: Seals are replaced every 2000 hours, and filters are replaced as needed.
Q5: Can flow rates be customized?
A: 0.5-50 Nm³/h (supports parallel expansion of multiple units).
