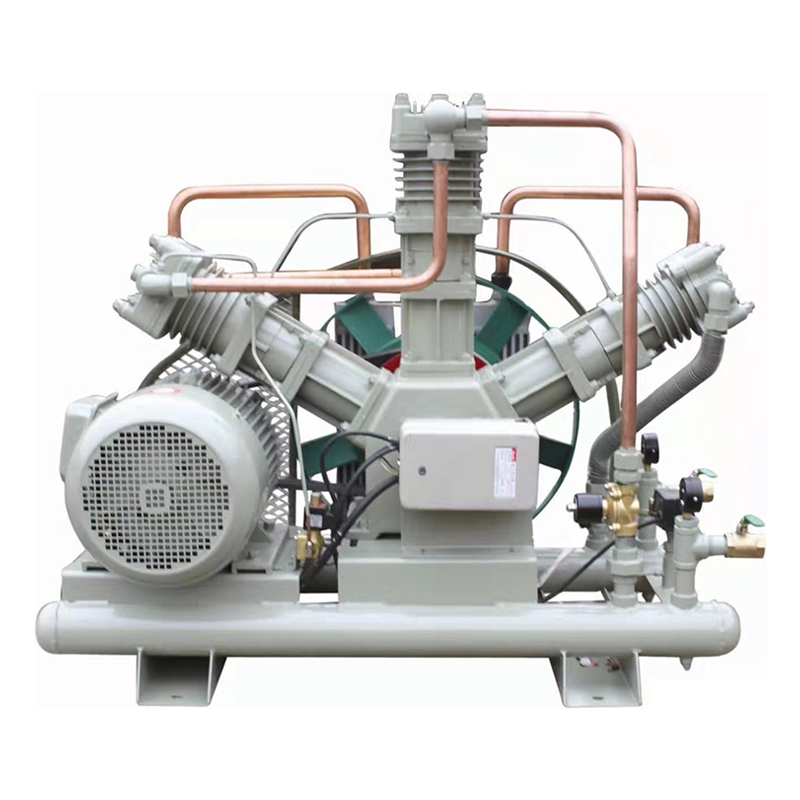

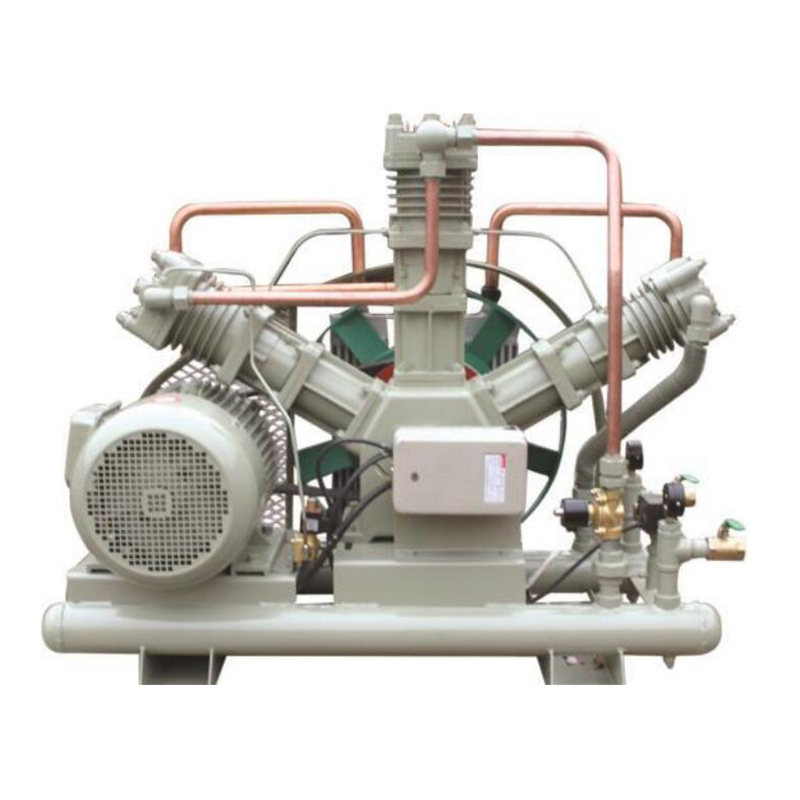

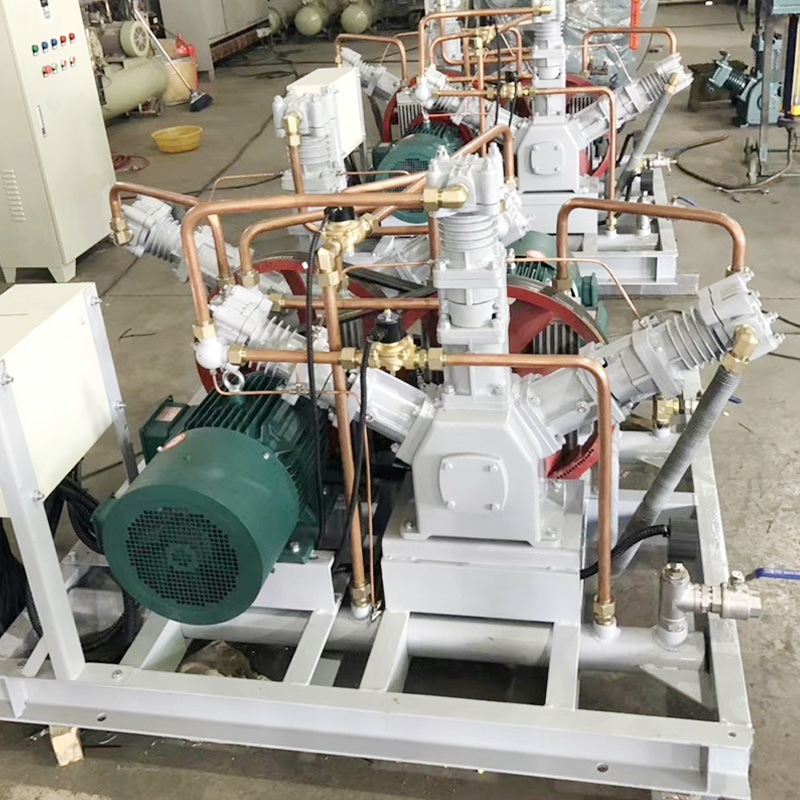

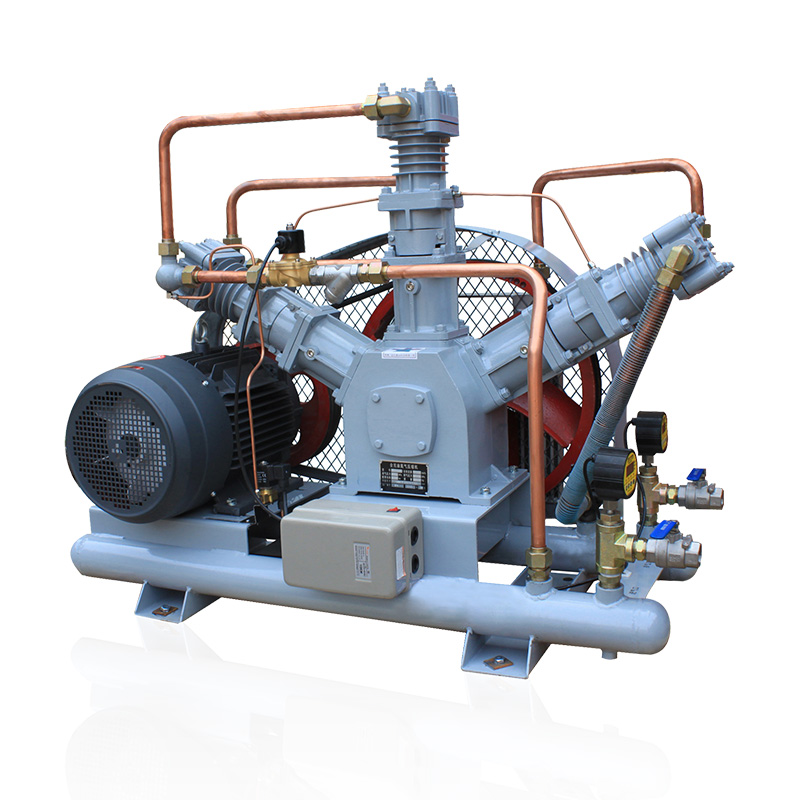

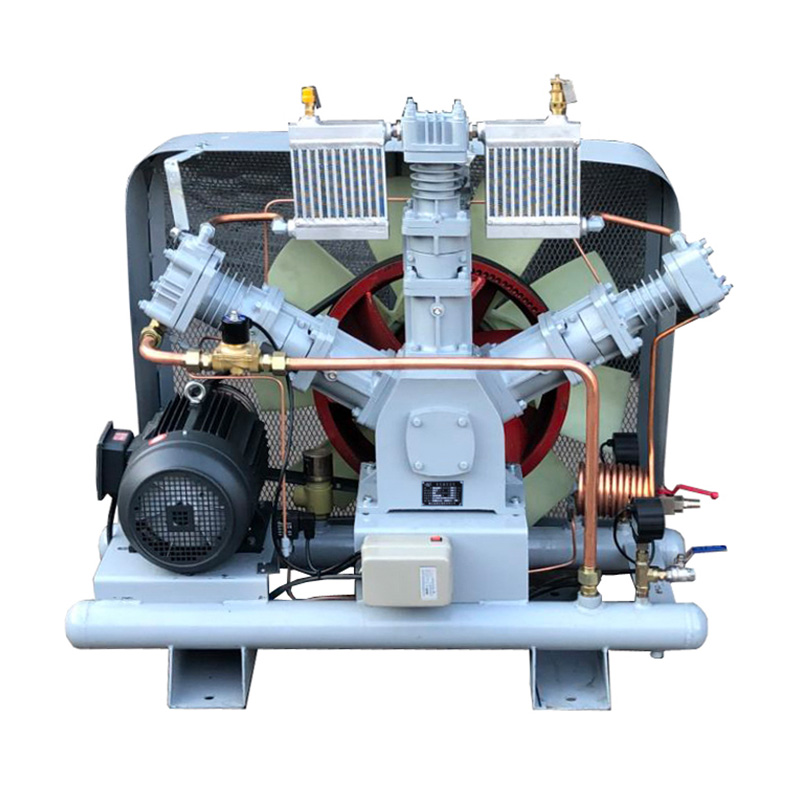

A nitrogen booster compressor is a device specifically used to increase the pressure of nitrogen (N₂). It can boost low-pressure nitrogen (such as 5-10 Bar) to medium-high pressure (25-300 Bar or higher), and is suitable for high-pressure nitrogen needs in industries such as industry, energy, and scientific research.
Core Advantages
Stable high pressure: Output pressure can reach 500 bar, with fluctuation ≤±1%
Pure and oil-free: Meets ISO 8573-1 Class 0 standards (purity 99.9% to 99.999%)
Energy-efficient and efficient: Saves over 30% energy compared to traditional liquid nitrogen boosters
Intelligent control: PLC automatic adjustment, supports remote monitoring
Safe and reliable: Multiple protections including overpressure protection and leak alarm
Technical Parameters
| NO. | Model | Capacity(m3/h) | Inlet P (Barg) | Outlet P (Barg) | Motor Power(Kw) | Compression | Dimension L*W*H(mm) | Inlet Size | Outlet Size | Weight (kg) |
| 1 | VWN-20/5-50 | 20 | 5 | 50 | 4 | 2 | 1250x550x900 | RC1/2" | RC1/2" | 230 |
| 2 | VWN-30/5-50 | 30 | 5 | 50 | 4 | 2 | 1350x600x1200 | RC1" | RC1/2" | 320 |
| 3 | VWN-40/5-50 | 40 | 5 | 50 | 5.5 | 2 | 1350x600x1200 | RC1" | RC1/2" | 350 |
| 4 | VWN-50/5-50 | 50 | 5 | 50 | 7.5 | 2 | 1350x700x1200 | RC1" | RC1/2" | 380 |
| 5 | VWN-60/5-50 | 60 | 5 | 50 | 7.5 | 2 | 1350x700x1200 | RC1" | RC1/2" | 380 |
| 6 | VWN-70/5-50 | 70 | 5 | 50 | 11 | 2 | 1350x700x1200 | RC1" | RC1/2" | 380 |
| 7 | VWN-80/5-50 | 80 | 5 | 50 | 11 | 2 | 1350x700x1200 | RC1" | RC1/2" | 410 |
| 8 | VWN-100/5-50 | 100 | 5 | 50 | 15 | 2 | 1500x800x1200 | RC1" | RC1/2" | 480 |
| 9 | VWN-120/5-50 | 120 | 5 | 50 | 15 | 2 | 1500x800x1200 | RC1" | RC1/2" | 510 |
Industry application
Industrial: Laser cutting, metal heat treatment shielding gas
⚡ Energy: Transformer nitrogen sealing, energy storage systems
Scientific research: Chromatography carrier gas, materials testing
️ Petrochemical: Pipeline pressure testing, reactor protection
Aerospace: Fuel system testing
FQA
Q1: Is a nitrogen source required?
A: Requires connection to a nitrogen generator or nitrogen cylinder (inlet pressure ≥ 5 bar).
Q2: Maximum output pressure?
A: Standard model 300 bar, customizable to 500 bar.
Q3: How is oil-free operation guaranteed?
A: Self-lubricating material + precision filtration (optional 0.01 μm filter element).
Q4: Maintenance cycle?
A: Seals are replaced every 2000 hours, and filters are replaced as needed.
Q5: Can flow rates be customized?
A: 0.5-50 Nm³/h (supports parallel expansion of multiple units).
