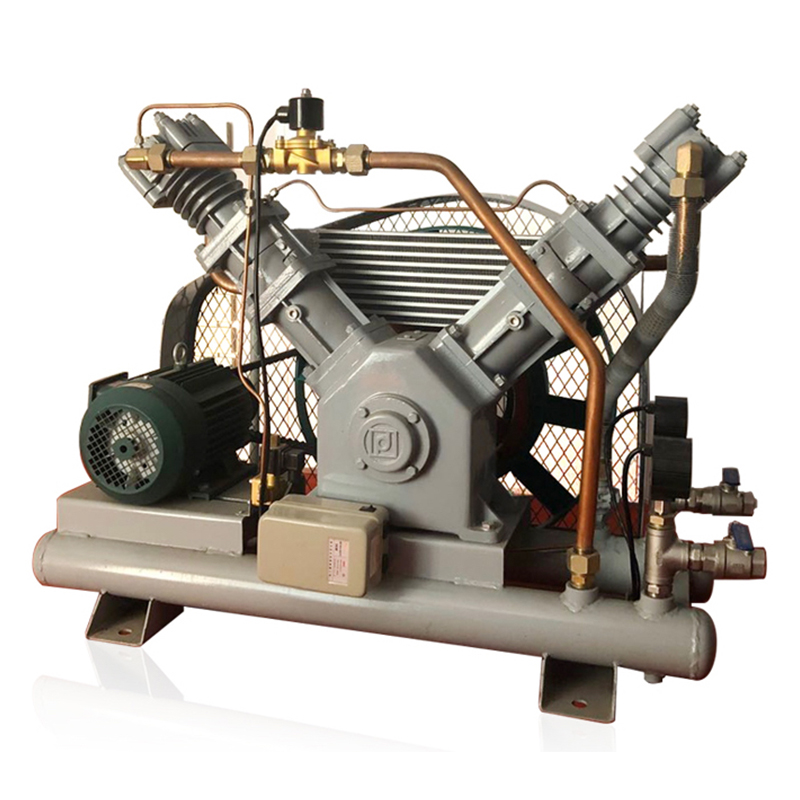

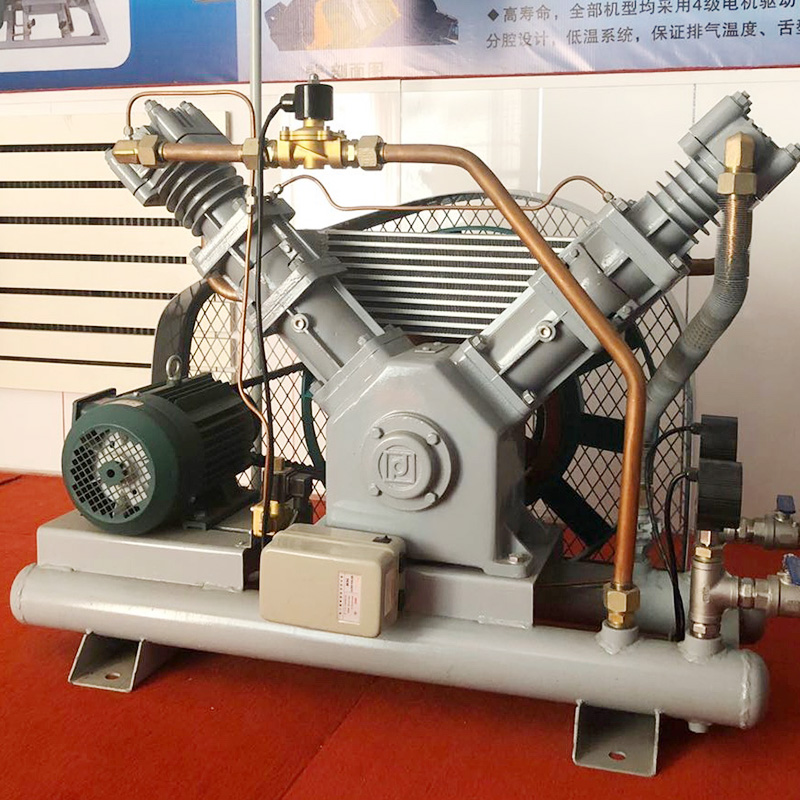

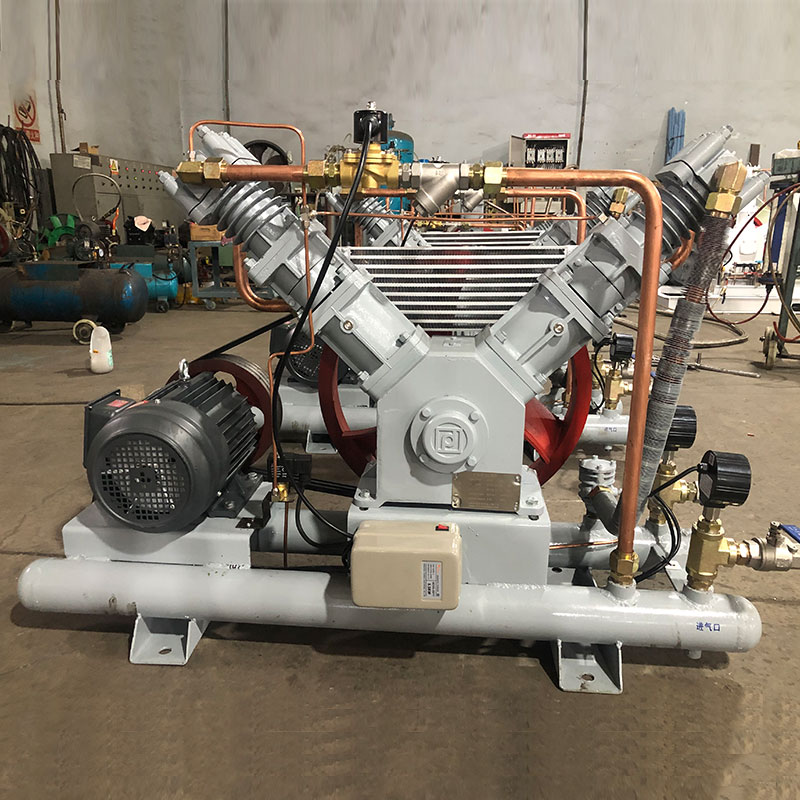

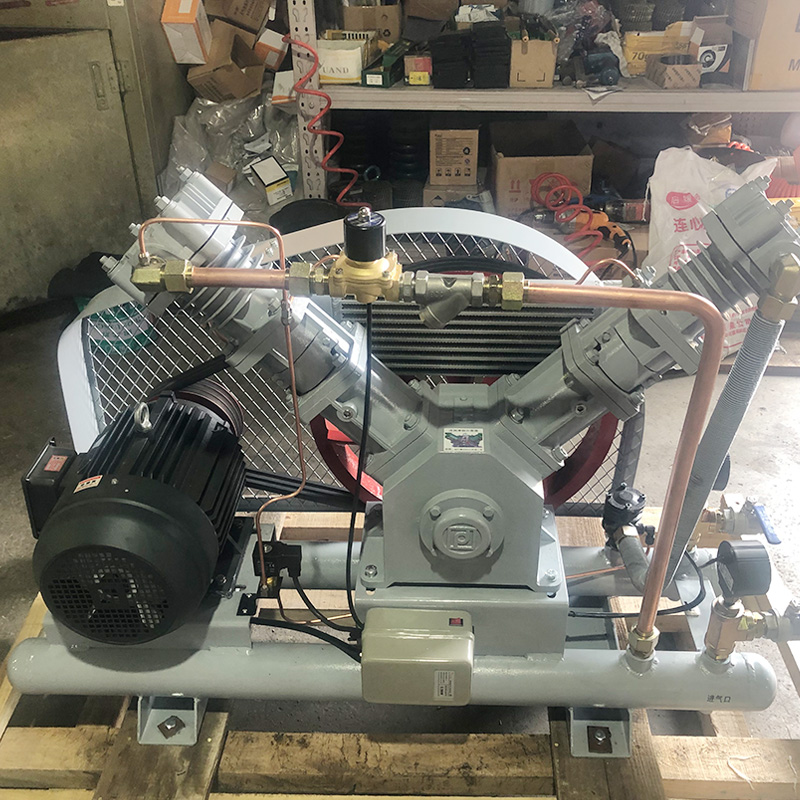

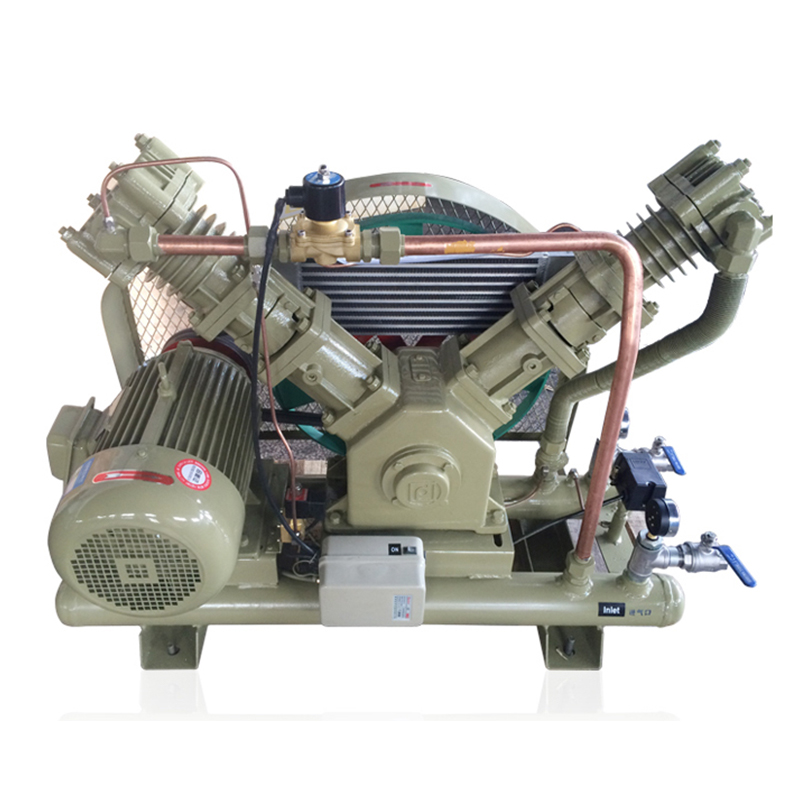

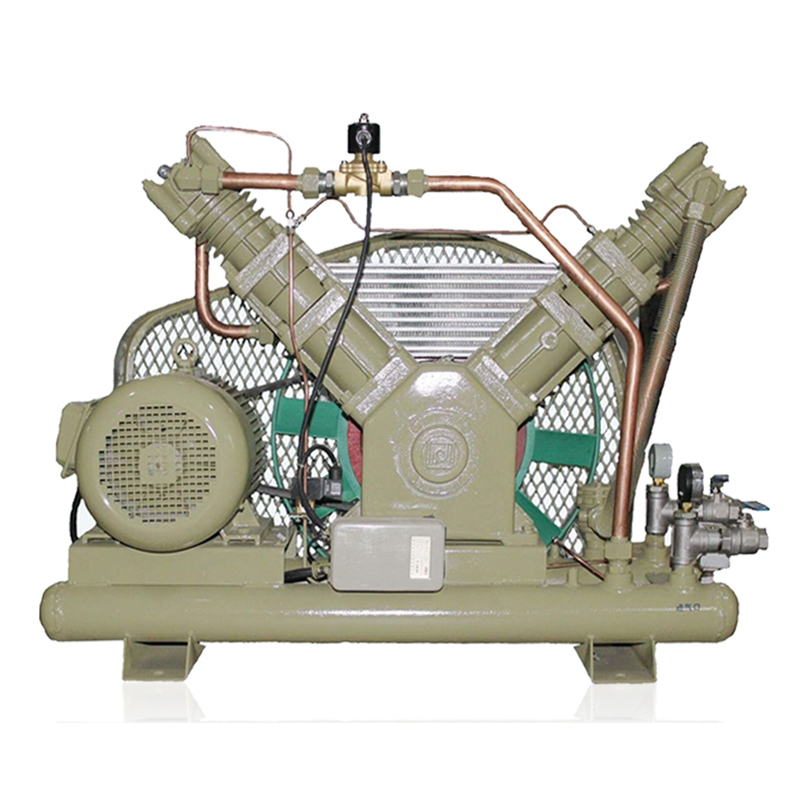

Nitrogen booster is a device specifically designed to increase the pressure of nitrogen (N₂). It can boost low-pressure nitrogen (e.g., 5-10 Bar) to high pressure (up to 300 Bar or more), meeting the high-pressure nitrogen needs of industry, scientific research and other fields.
Core Advantages
✅ High-Pressure Output: Stable pressure boost to 100-300 bar to meet diverse pressure requirements
✅ Oil-Free and Clean: Completely oil-free design ensures nitrogen purity (99.9%-99.999%)
✅ Energy-Efficient: 30%-50% energy savings compared to traditional liquid nitrogen vaporization solutions
✅ Intelligent Control: PLC/touchscreen pressure adjustment and automatic voltage stabilization
✅ Safe and Reliable: Multiple safety protections (overpressure, overload, and leak alarms)
Technical Parameters
| Model | Capacity (m3/h) | Inlet P (Barg) | Outlet P (Barg) | Motor Power(Kw) | Compression | Dimension L*W*H(mm) | Inlet Size | Outlet Size | Weight (kg) |
| RVWN-20/5-25 | 20 | 5 | 25 | 3 | 2 | 1250x500x900 | RC1/2" | RC1/2" | 210 |
| RVWN-30/5-25 | 30 | 5 | 25 | 4 | 2 | 1250x550x900 | RC1" | RC1" | 230 |
| RVWN-40/5-25 | 40 | 5 | 25 | 5.5 | 2 | 1250x600x900 | RC1" | RC1" | 250 |
| RVWN-50/5-25 | 50 | 5 | 25 | 7.5 | 2 | 1250x600x900 | RC1" | RC1" | 270 |
| RVWN-60/5-25 | 60 | 5 | 25 | 7.5 | 2 | 1250x600x900 | RC1" | RC1" | 270 |
| RVWN-70/5-25 | 70 | 5 | 25 | 7.5 | 2 | 1250x600x900 | RC1" | RC1" | 270 |
| RVWN-80/5-25 | 80 | 5 | 25 | 11 | 2 | 1250x700x900 | RC1" | RC1" | 300 |
| RWWN-100/5-25 | 100 | 5 | 25 | 11 | 2 | 1350x700x1200 | RC1" | RC1" | 380 |
| RWWN-120/5-25 | 120 | 5 | 25 | 15 | 2 | 1350x700x1200 | RC1" | RC1" | 410 |
| RWWN-140/5-25 | 140 | 5 | 25 | 15 | 2 | 1350x700x1200 | RC1" | RC1" | 410 |
| RSWN-160/5-25 | 160 | 5 | 25 | 18.5 | 2 | 1500x800x1200 | RC1" | RC1" | 490 |
| RWWN-200/5-25-II | 200 | 5 | 25 | 22（11*2） | 2 | 1600x1600x1200 | RC1 1/2" | RC1" | 940 |
| RWWN-240/5-25-II | 240 | 5 | 25 | 30（15*2） | 2 | 1600x1600x1200 | RC1 1/2" | RC1" | 1000 |
Application Industries
Industrial Manufacturing: Laser Cutting, Tire Nitrogen Filling, Metal Heat Treatment Shielding Gas
⚡ Energy and Power: Transformer Nitrogen Seal, Energy Storage System Pressurization
Laboratory: Chromatography Carrier Gas, Material Testing Environmental Control
Aerospace: Fuel System Testing, Airborne Equipment Nitrogen Supply
️ Petrochemical: Pipeline Pressure Testing, Reactor Inert Gas Protection
FAQ
Q1: What is the boost pressure?
A: Standard models are 100-300 bar, and custom models can reach over 500 bar.
Q2: Does it require an external gas source?
A: It requires connection to a nitrogen cylinder/generator (inlet pressure ≥ 5 bar).
Q3: How is nitrogen purity guaranteed?
A: It uses stainless steel piping and precision filtration, with an optional purity analyzer.
Q4: What is the flow rate range?
A: 0.5-20 Nm³/h (multiple units can be connected in parallel to increase flow).
Q5: Is maintenance complex?
A: Routine inspection for leaks and replacement of consumables every 2,000 hours are all that's required.
