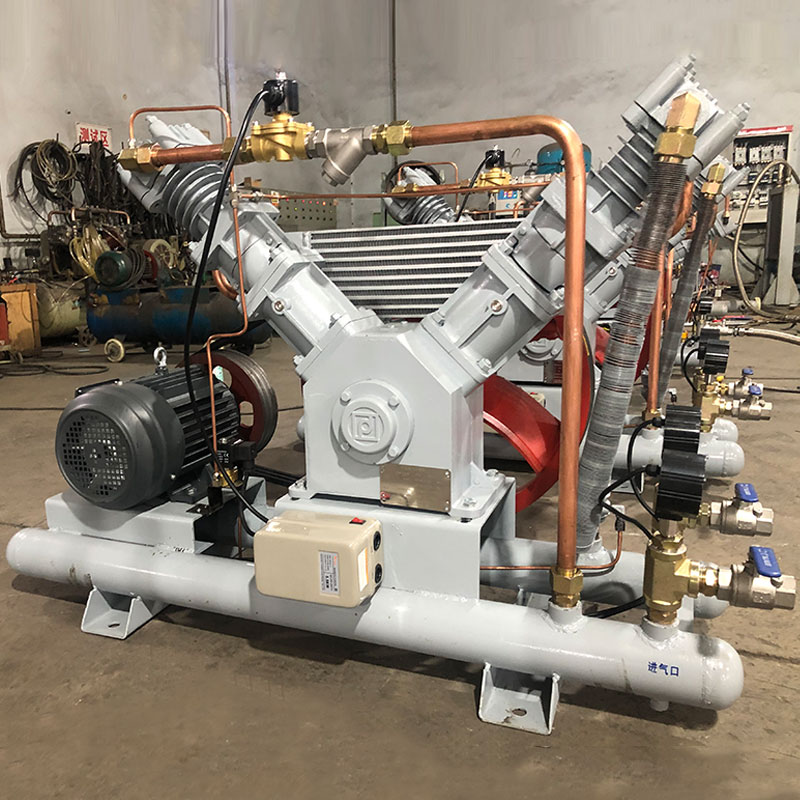

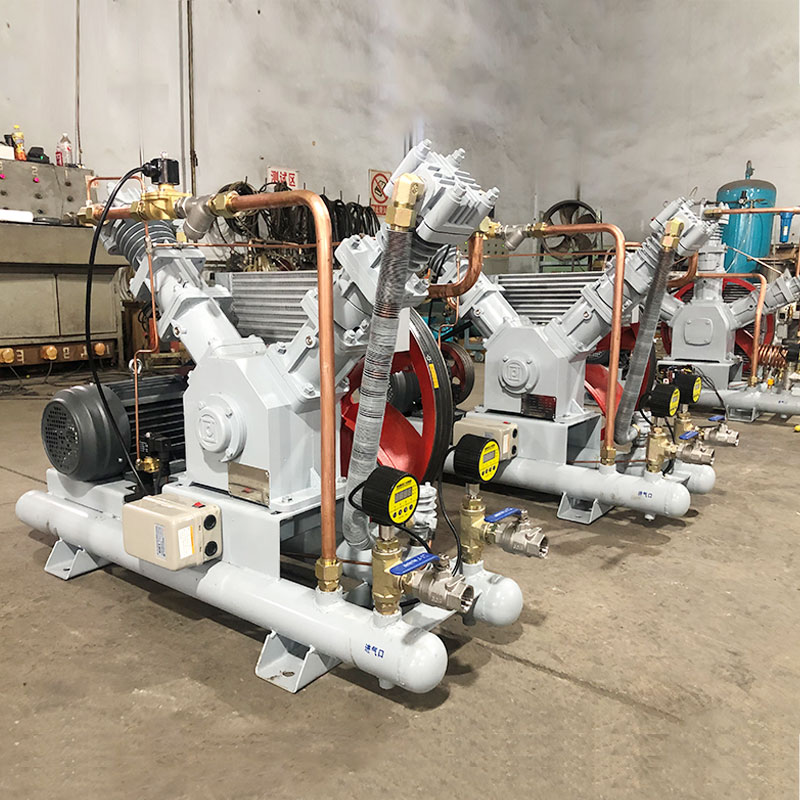

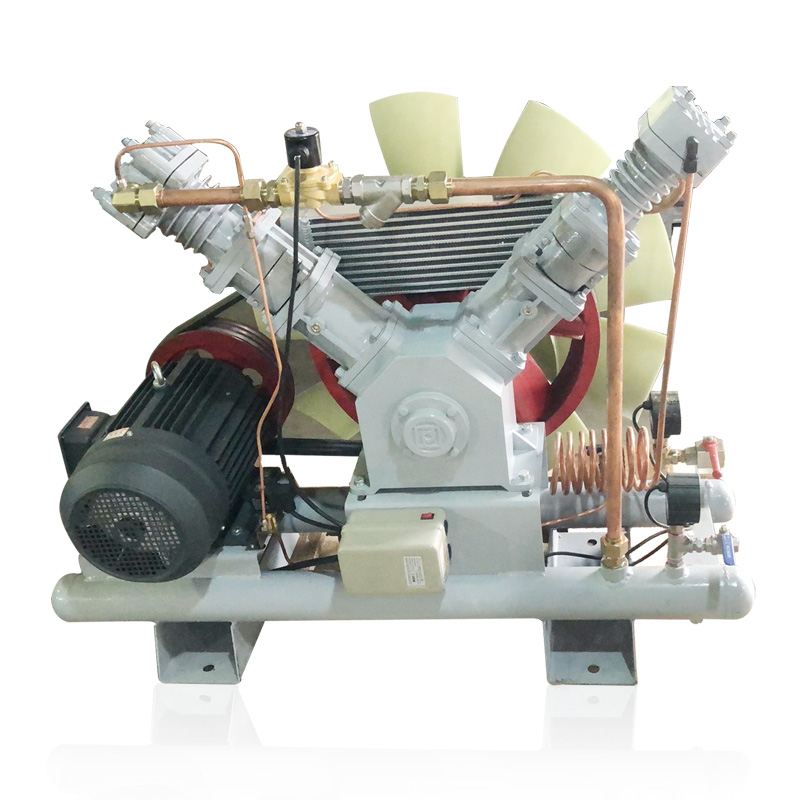

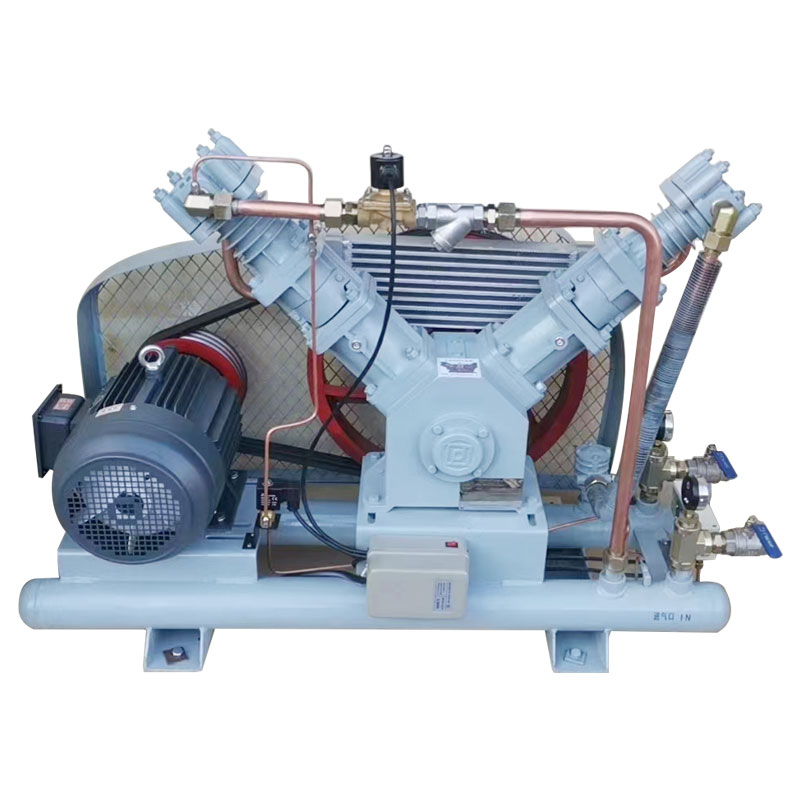

A nitrogen booster compressor is a specialized gas compression system designed to increase the pressure of nitrogen gas from a lower inlet pressure to a higher outlet pressure.
For this configuration, the unit takes in nitrogen at 5 bar and compresses it up to 25 bar, ensuring a stable and high-pressure nitrogen supply for various industrial applications.
Features & Advantages
High Efficiency: Optimized compression stages deliver reliable performance with minimal energy loss.
Oil-Free Options Available: Prevents nitrogen contamination, essential for sensitive applications.
Compact Design: Suitable for integration into existing systems with limited space.
Stable Output: Maintains consistent discharge pressure even when inlet pressure fluctuates.
Durable Construction: Built with high-quality materials to handle continuous operation and demanding environments.
Low Maintenance: Simplified design reduces downtime and servicing costs.
Customizable: Can be configured for electric or diesel drive, and various control systems.
Technical Parameters
| Model | Capacity (m3/h) | Inlet P (Barg) | Outlet P (Barg) | Motor Power (Kw) | Compression | Dimension L*W*H(mm) | Inlet Size | Outlet Size | Weight (kg) |
| RVWN-20/5-25 | 20 | 5 | 25 | 3 | 2 | 1250x500x900 | RC1/2" | RC1/2" | 210 |
| RVWN-30/5-25 | 30 | 5 | 25 | 4 | 2 | 1250x550x900 | RC1" | RC1" | 230 |
| RVWN-40/5-25 | 40 | 5 | 25 | 5.5 | 2 | 1250x600x900 | RC1" | RC1" | 250 |
| RVWN-50/5-25 | 50 | 5 | 25 | 7.5 | 2 | 1250x600x900 | RC1" | RC1" | 270 |
| RVWN-60/5-25 | 60 | 5 | 25 | 7.5 | 2 | 1250x600x900 | RC1" | RC1" | 270 |
| RVWN-70/5-25 | 70 | 5 | 25 | 7.5 | 2 | 1250x600x900 | RC1" | RC1" | 270 |
| RVWN-80/5-25 | 80 | 5 | 25 | 11 | 2 | 1250x700x900 | RC1" | RC1" | 300 |
| RWWN-100/5-25 | 100 | 5 | 25 | 11 | 2 | 1350x700x1200 | RC1" | RC1" | 380 |
| RWWN-120/5-25 | 120 | 5 | 25 | 15 | 2 | 1350x700x1200 | RC1" | RC1" | 410 |
| RWWN-140/5-25 | 140 | 5 | 25 | 15 | 2 | 1350x700x1200 | RC1" | RC1" | 410 |
| RSWN-160/5-25 | 160 | 5 | 25 | 18.5 | 2 | 1500x800x1200 | RC1" | RC1" | 490 |
| RWWN-200/5-25-II | 200 | 5 | 25 | 22（11*2） | 2 | 1600x1600x1200 | RC1 1/2" | RC1" | 940 |
| RWWN-240/5-25-II | 240 | 5 | 25 | 30（15*2） | 2 | 1600x1600x1200 | RC1 1/2" | RC1" | 1000 |
Application Industries
Petrochemical & Oil & Gas: Used for nitrogen blanketing, pipeline purging, and pressure testing.
Food & Beverage: Provides high-purity nitrogen for packaging, preservation, and inerting.
Electronics Manufacturing: Supplies clean, high-pressure nitrogen for soldering, wave soldering, and component protection.
Laser Cutting: Delivers nitrogen at consistent high pressure to improve cut quality and speed.
Pharmaceuticals: Supports inert atmospheres for sensitive production processes.
Mining & Fire Prevention: Used for nitrogen injection to prevent coal spontaneous combustion.
Tire Inflation & Automotive: Provides high-pressure nitrogen for tire filling and industrial tool operation.
FAQ
Q1: Is a nitrogen source required?
A: Requires connection to a nitrogen generator or nitrogen cylinder (inlet pressure ≥ 5 bar).
Q2: Maximum output pressure?
A: Standard model 300 bar, customizable to 500 bar.
Q3: How is oil-free operation guaranteed?
A: Self-lubricating material + precision filtration (optional 0.01 μm filter element).
Q4: Maintenance cycle?
A: Seals are replaced every 2000 hours, and filters are replaced as needed.
Q5: Can flow rates be customized?
A: 0.5-50 Nm³/h (supports parallel expansion of multiple units).
