| Quantity: | |
|---|---|

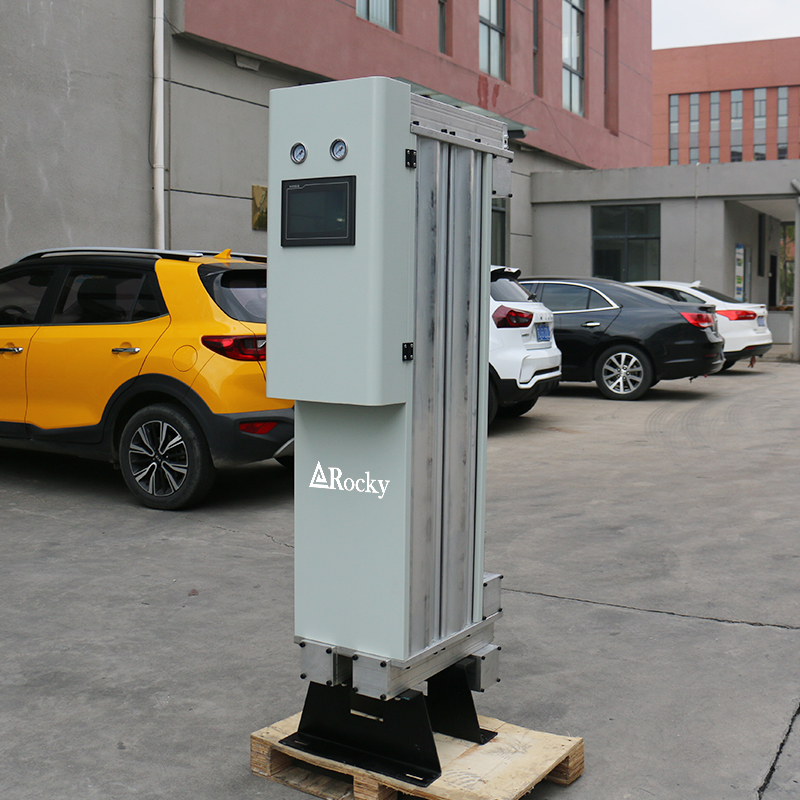

Modular dryer, also known as modular adsorption dryer, is an innovative compressed air drying device. Its core concept is "breaking down the whole into parts"—disassembling the traditional large, single adsorption tower into multiple independent, standardized adsorption modules that can work in parallel.
Key Features and Advantages
1. High Efficiency and Energy Saving
◦ Only the necessary modules are activated for on-demand regeneration, achieving energy savings of up to 20%-50% compared to traditional equipment, significantly reducing energy costs.
2. Uninterrupted Operation
◦ Featuring an N+1 redundancy design, the system automatically isolates and continues full-load operation in the event of a single module failure, ensuring production continuity.
3. Flexible and Convenient
◦ Supports online hot-swappable maintenance without downtime.
◦ Can be easily expanded like building blocks, flexibly adapting to future capacity increases.
Technical Parameters
| Model | Max air delivery（m3/min） | Voltage (V/HZ) | Power (kW) | Outlet diameter | Dimensions (mm) | Weight (kg) |
| SPD-06 | 7 | 220V/50HZ | 0.2 | RC1-1/2" | 695*445*1600 | 155 |
| SPD-10 | 10.5 | 220V/50HZ | 0.2 | RC2" | 857*445*1600 | 212 |
| SPD-13 | 14 | 220V/50HZ | 0.2 | RC2" | 1020*445*1600 | 270 |
Main Application Industries
Designed specifically for industries with extremely high requirements for air quality and system stability: electronics and semiconductors, medical and pharmaceutical, food and beverage, high-end manufacturing, etc.
