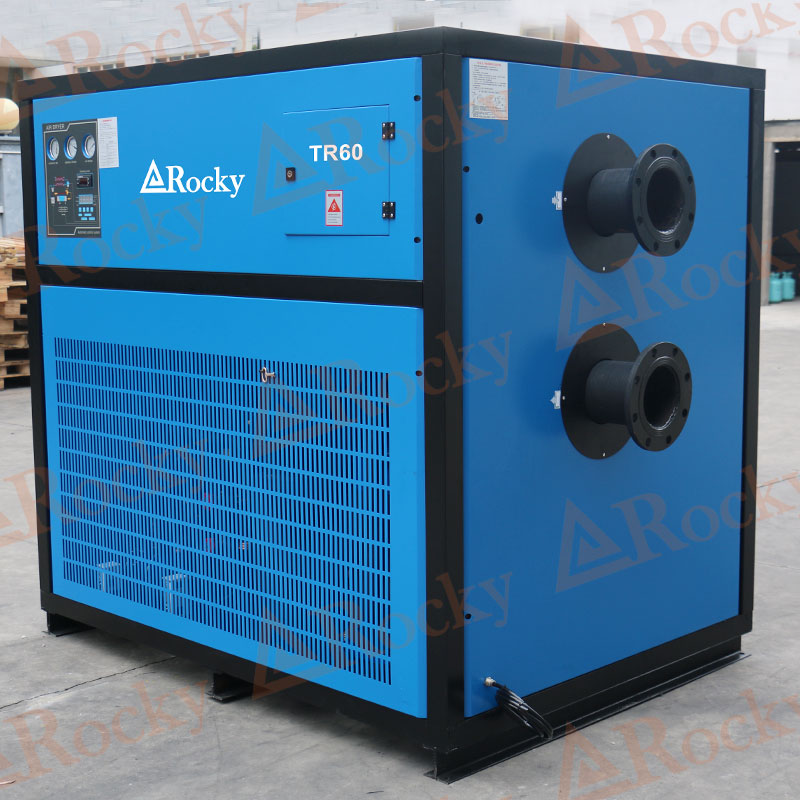

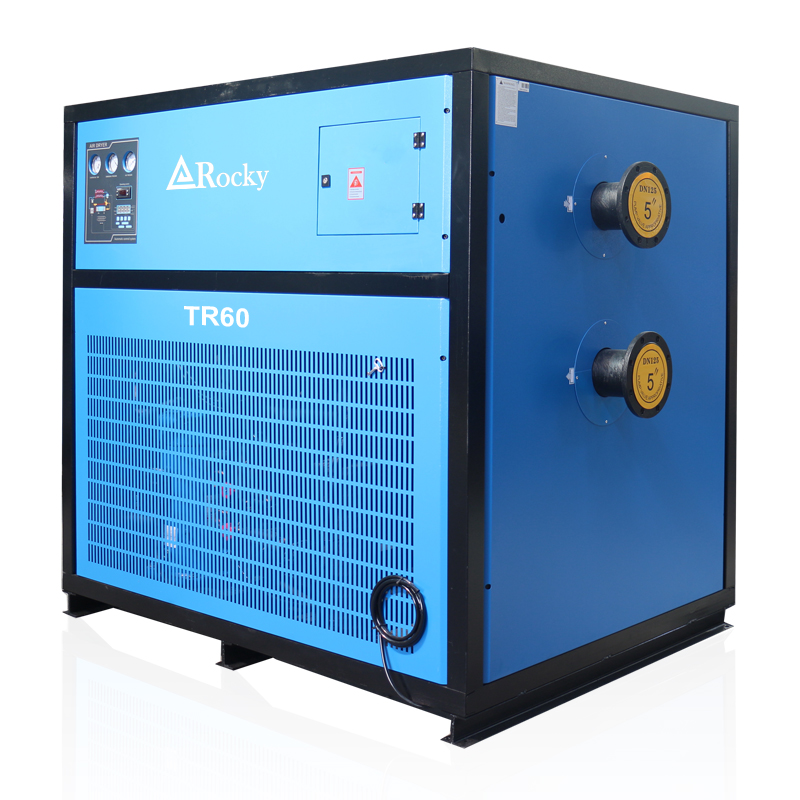

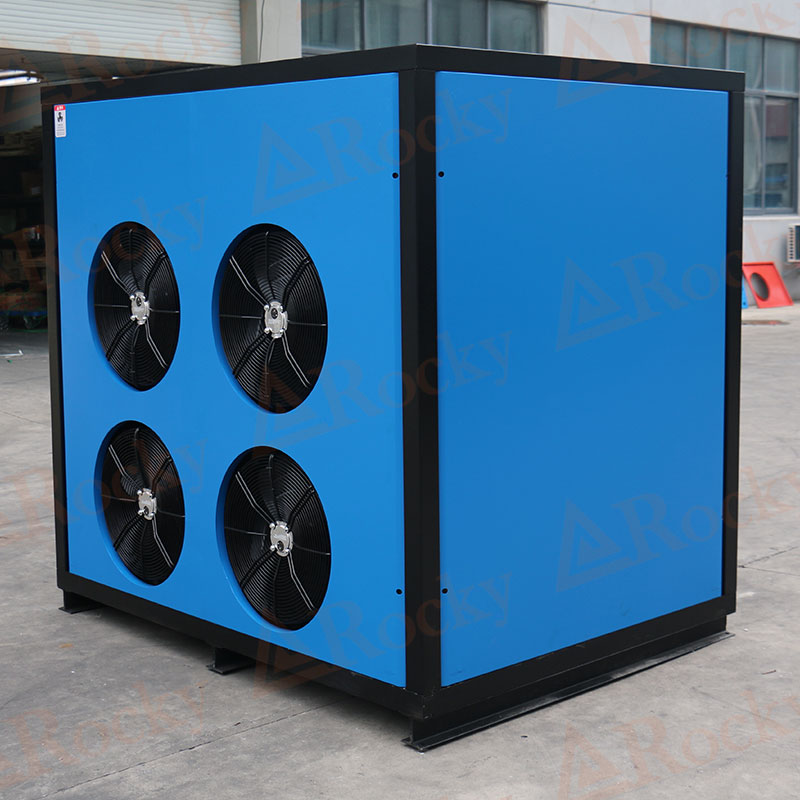

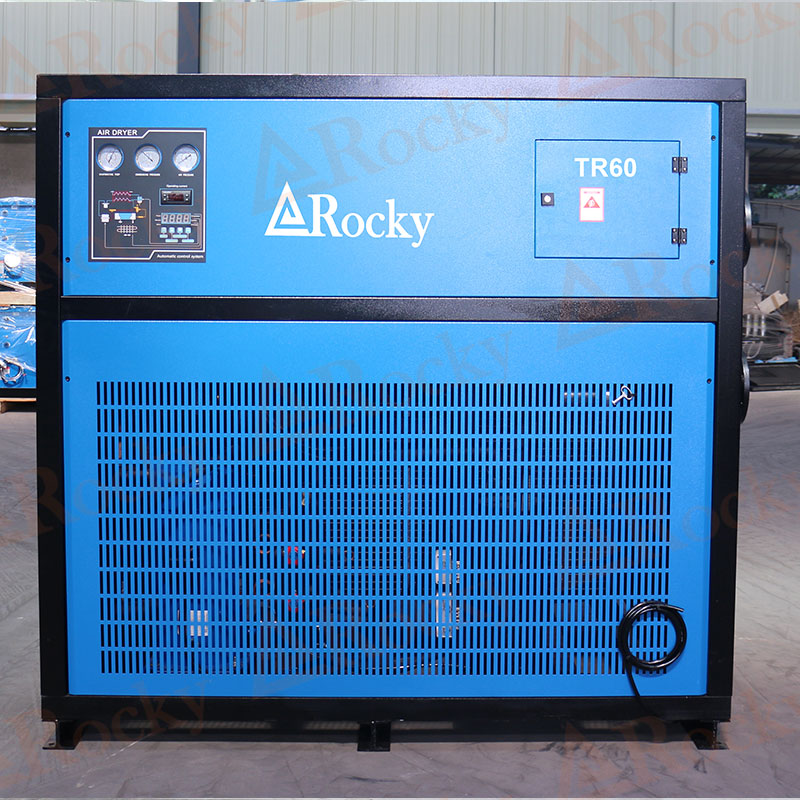

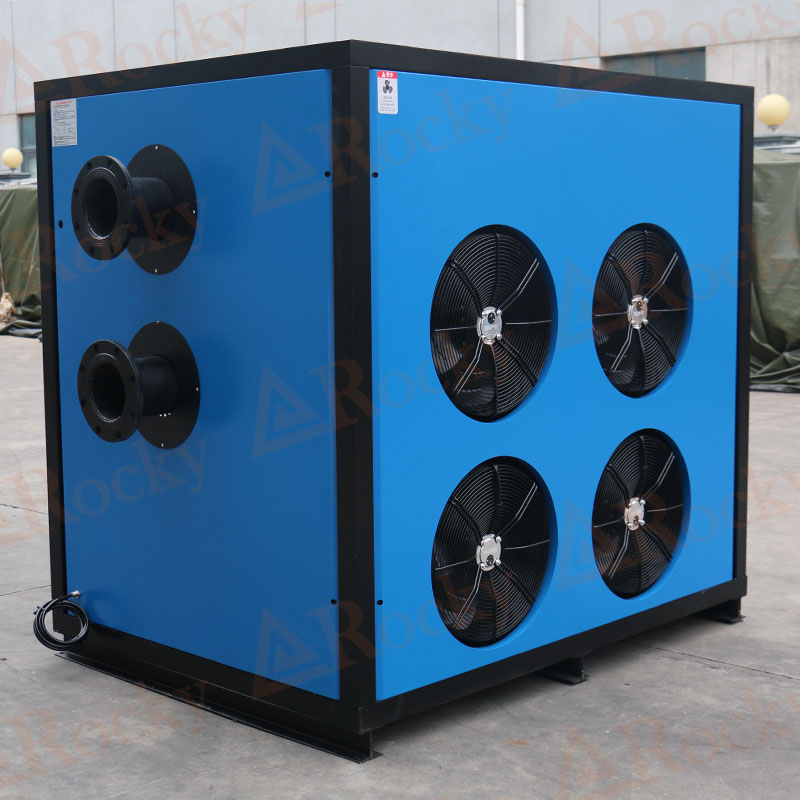

The 65m3/min refrigerated air dryer is a device that utilizes refrigeration technology to process medium-flow compressed air. It cools the air, condensing water vapor and oil vapor into liquid and discharging them, thus outputting dry, clean compressed air.
Product Features
1. Medium Flow Rate Handling
Designed for medium-sized production lines or systems consisting of multiple air compressors, it can stably handle air flow rates of up to 65 m³/min.
2. High Efficiency and Energy Saving
◦ Typically employs an intelligent control system that automatically adjusts the cooling capacity based on actual air volume, avoiding energy waste.
◦ Built-in high-efficiency precooler recovers cooling energy, reducing operating energy consumption.
3. Stable and Reliable
◦ Core components use industrial-grade products, featuring a robust design that supports long-term continuous operation with a low failure rate.
4. Low Maintenance Costs
◦ Modular design allows for easy access to routine maintenance points (such as filters and drainers).
◦ No adsorbent consumption; primary maintenance is limited to condenser cleaning, resulting in low long-term operating costs.
Technical Parameters
| Model | TR60 | |
| Capacity | m3/min | 65 |
| power supply | 220~660V 3PH 50HZ/60HZ | |
| Input power | kW | 13.1 |
| Air pipe connection | DN125 | |
| Evaporator type | Aluminum alloy plate | |
| Refrigerant | R407C / Optional R513A | |
| Display | Smart PLC, LED dew point display, LED alarm code display, operation status indication | |
| Anti-freezing protection | Constant pressure expansion valve & compressor automatic start/stop | |
| Temperature control | Automatic control of condensing temperature/dew point temperature | |
| High voltage protection | Temperature sensor&Inductive intelligent protection | |
| Low voltage protection | Temperature sensor&Inductive intelligent protection | |
| Weight | kg | 780 |
| Dimensions(mm) | L | 1980 |
| W | 1450 | |
| H | 1743 |
Typical Application Industries
This model is ideal for medium-sized manufacturing enterprises and is widely used in:
• Automotive parts manufacturing: painting, welding, and assembly lines.
• Plastics and rubber products: injection molding machines, blow molding machines, and extruders.
• Food and beverage packaging: packaging machinery and filling equipment.
• Electronic equipment manufacturing: SMT placement, chip testing, and assembly workshops.
• General machinery: providing a clean air supply and protecting pneumatic components.
