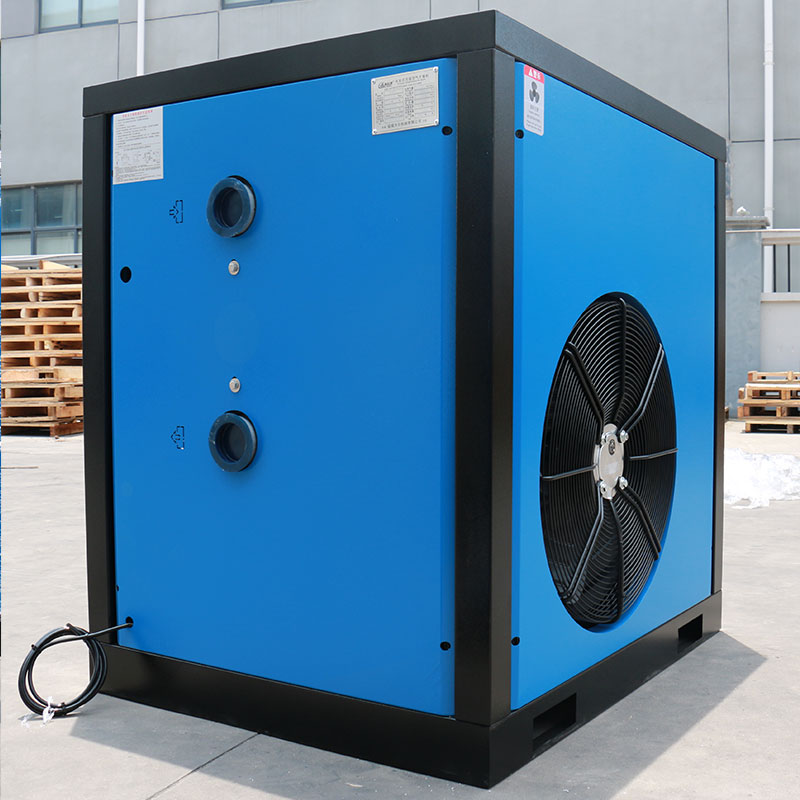

A refrigerated air dryer (Refrigerated Air Dryer) is a robust and efficient refrigerated air dryer designed for small to medium-duty industrial applications. It effectively removes moisture from compressed air by cooling it, ensuring a reliable supply of dry air that protects pneumatic tools, equipment, and processes from corrosion and contamination.
Key features
1. Energy saving. Aluminum alloy three-in-one heat exchanger design, under the same processing capacity, the total input power is reduced by 15-50%.
2. High efficiency. Guide fins are added to the integrated heat exchanger to make the compressed air uniform inside
3. Intelligent. Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, self-diagnosis function, automatic protection of equipment.
4. Environmental protection. This series of models all use R134a and R410a environmentally friendly refrigerants, and the degree of damage to the atmosphere is zero.
5. Stable. Standard constant pressure expansion valve, intelligent temperature control, stable operation even when the intake air temperature reaches 65°C and the ambient temperature reaches 42°C.
Technical Parameters
| TR series Environmental Protection Refrigerant Air Dryer | ||
| Model | TR15 | |
| Capacity | m3/min | 17 |
| Power supply | 380V 3PH 50HZ/60HZ | |
| Input power | kW | 3.7 |
| Air pipe connection | DN50 | |
| Evaporator type | Aluminum alloy plate | |
| Refrigerant model | R407C | |
| Display Anti-freezing protection | LED dew point display, LED alarm code display, operation status indication Constant pressure expansion valve & compressor | |
| automatic start /stop | ||
| Temperature control | Automatic control of condensing temperature / dew point temperature | |
| High voltage protection | Temperature sensor&lnductive intelligent protection | |
| Low voltage protection | Temperature sensor&lnductive intelligent protection | |
| Weight | Kg | 180 |
| Dimension | L | 1000 |
| W | 610 | |
| H | 1030 | |
Compressor system
The use of a fully-enclosed compression refrigeration system reduces the temperature of the low-pressure gas and cools it, causing a large amount of saturated water vapor and oil mist contained therein to condense into droplets, which are discharged by an automatic drain after air-water separation.
Professional Air Cooling Refrigerated Air Dryer for Air Compressor
The water condenser is a high-quality, low-wing copper tube with slow water flow and multiple strokes. It has high heat exchange efficiency and is not suitable for scaling in long-term use.The automatic drainer is set on demand, with the addition of water and energy saving.
Professional Air Cooling Refrigerated Air Dryer for Air Compressor
The equipment structure is reasonable in design, easy to maintain and maintain; the surface is hot-sprayed, with beautiful appearance, no rust; no basic installation, stable operation and no vibration, low maintenance rate, no consumables, low operating cost, no need for special personnel to wait for continuous operation.
Professional Air Cooling Refrigerated Air Dryer for Air Compressor
The cooling control element has excellent performance, with the function of throttling and pressure reduction of the thermal expansion valve, energy regulation function of the hot gas bypass valve, over current, overload, and high and low voltage protection of the refrigerant.
FAQS
Q1: What is the TianEr TR15 Cold Dryer, and what is its primary function?
A: The TianEr TR15 is an industrial Refrigerated Air Dryer. Its primary function is to remove moisture from compressed air by cooling it down, causing water vapor to condense into liquid water, which is then separated and drained away. This process delivers dry, clean compressed air, protecting your pneumatic equipment and processes.
Q2: What are the key technical specifications for the TR15 model?
A: The key specifications typically include:
Flow Rate: [e.g., 1.2 - 1.5 m³/min] (Please confirm the exact value from the product manual)
Working Pressure: [e.g., 0.6 - 1.0 MPa / 8 - 10 bar]
Inlet Temperature: ≤ [e.g., 45°C]
Pressure Dew Point: [+2°C to +10°C] (This is a critical performance indicator)
Power Supply: [e.g., 220V/50Hz or 110V/60Hz]
Refrigerant: [e.g., R134a]
Q3: Where should the TR15 Cold Dryer be installed in the compressed air system?
A: For optimal performance, it should be installed after the air receiver tank and pre-filter, but before any point-of-use filters.
Correct Installation Order: Air Compressor → Air Receiver Tank → TR15 Cold Dryer → Line Filter → Pneumatic Tools/Equipment.
Q4: Why is there a lot of water draining from the auto-drain? Is this normal?
A: Yes, this is normal and indicates the dryer is working correctly. The TR15 is designed to remove moisture from your compressed air system. The automatic drain valve periodically expels the accumulated condensate (a mixture of water and trace oil). If the amount of water suddenly increases, check if the air compressor's intake air has higher humidity or if the compressor is working under heavier loads.
Q5: The TR15 unit is not starting. What should I check?
A: Please perform these basic checks:
Power Supply: Ensure the unit is properly plugged in and the power switch is on.
Circuit Breaker/Fuse: Check if the circuit breaker has tripped or a fuse has blown.
Safety Protections: Modern dryers have built-in protections. Confirm that the inlet air temperature and pressure are within the specified operating range. The unit may have a high-pressure or high-temperature safety cut-off.
Q6: How do I maintain the TianEr TR15 Cold Dryer to ensure its longevity?
A: Regular maintenance is crucial:
Clean the Condenser: Regularly clean the front condenser coil with compressed air to prevent dust buildup, which can cause overheating.
Check the Auto-Drain: Ensure the automatic drain valve is not clogged and is functioning properly.
Monitor Performance: Periodically check the outlet air pressure dew point.
Professional Service: Schedule periodic professional maintenance as recommended in the user manual.
Q7: What is the meaning of "Pressure Dew Point" (PDP)?
A: Pressure Dew Point is the temperature at which water vapor begins to condense in compressed air under pressure. A lower PDP means drier air. The TR15 is designed to achieve a stable PDP, typically in the range of +2°C to +10°C, which is suitable for most general industrial applications.
