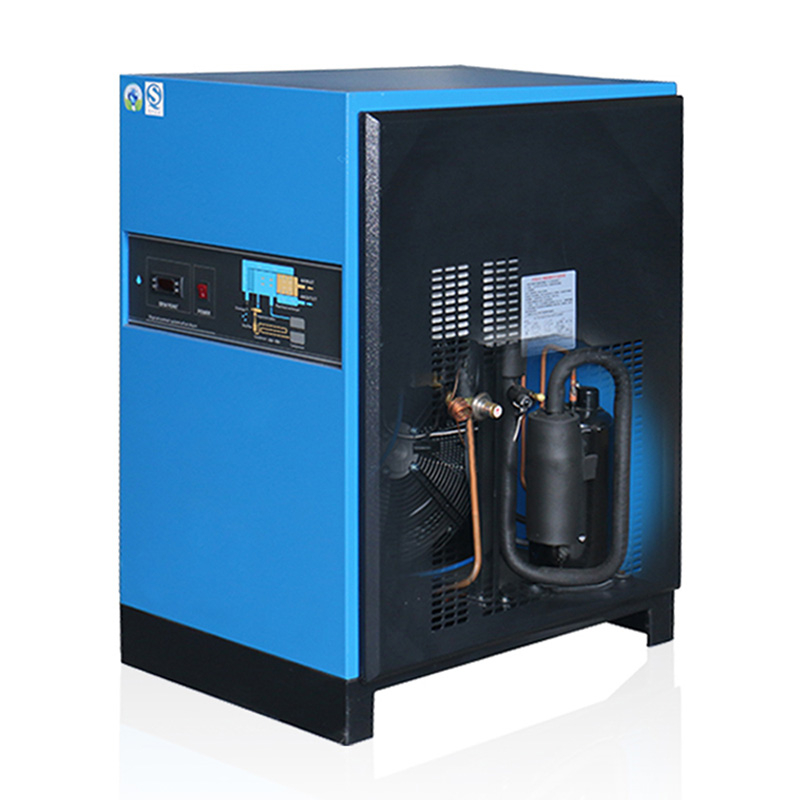

A refrigerated air dryer (Refrigerated Air Dryer) is a robust and efficient refrigerated air dryer designed for small to medium-duty industrial applications. It effectively removes moisture from compressed air by cooling it, ensuring a reliable supply of dry air that protects pneumatic tools, equipment, and processes from corrosion and contamination.
Product features
Enhanced Equipment Protection: Drastically reduces water vapor in air lines, preventing rust and corrosion in pneumatic tools, cylinders, valves, and air-operated equipment, thereby reducing downtime and repair costs.
Improved Product Quality: Ensures that moisture does not contaminate end products in critical processes such as spray painting, sandblasting, or packaging, leading to higher quality outcomes.
Energy Efficient Operation: The innovative air-to-air heat exchanger reduces the workload on the refrigeration compressor, leading to significant energy savings and lower operating costs.
Low Maintenance & Reliable: With no consumable filters to replace regularly (aside from standard pre-filters) and an automatic drain, the TR08 requires minimal maintenance, offering reliable, "set-and-forget" operation.
Prevents Costly Freeze-ups: By removing moisture, it eliminates the risk of frozen air lines in cold environments, ensuring uninterrupted production.
Cost-Effective Solution: Provides an excellent balance of performance, reliability, and price, making it a highly cost-effective choice for safeguarding compressed air systems.
Technical Parameters
| TR series Environmental Protection Refrigerant Air Dryer | ||
| Model | TR08 | |
| Capacity | m3/min | 8.5 |
| Power supply | 220V 1PH 50HZ/60HZ | |
| Input power | kW | 1.87 |
| Air pipe connection | RC2" | |
| Evaporator type | Aluminum alloy plate | |
| Refrigerant model | R410a | |
| Display Anti-freezing protection | LED dew point display, LED alarm code display, operation status indication Constant pressure expansion valve & compressor | |
| automatic start /stop | ||
| Temperature control | Automatic control of condensing temperature / dew point temperature | |
| High voltage protection | Temperature sensor&lnductive intelligent protection | |
| Low voltage protection | Temperature sensor&lnductive intelligent protection | |
| Weight | Kg | 73 |
| Dimension | L | 770 |
| W | 590 | |
| H | 990 | |
High-Efficiency Refrigeration System: Equipped with a reliable rotary compressor (or other high-quality type) and an optimized air-to-refrigerant heat exchanger for consistent cooling performance and low energy consumption.
Intelligent Air-to-Air Heat Exchanger: This system precools the incoming warm, moist air with the outgoing cold, dry air. This significantly reduces the thermal load on the refrigeration unit, enhancing energy efficiency and preventing pipe sweating.
Zero-Air-Loss Automatic Condensate Drain: Features an electronic drain valve that automatically expels accumulated condensate without wasting valuable compressed air, ensuring hands-free operation and maximum efficiency.
User-Friendly Control & Protection System: Simple controls with clear power and operation indicators. Built-in protection mechanisms typically include high-pressure and phase-sequence protection (for three-phase models) to safeguard the compressor and electrical components.
Durable Construction: Built with a heavy-gauge steel cabinet and corrosion-resistant components to withstand demanding industrial environments, ensuring long service life.
Compact and Integrated Design: The TR08 is engineered for a small footprint, making it easy to install directly into compressed air lines, even in space-constrained workshops.
Stable Pressure Dew Point: Capable of delivering a stable pressure dew point of +3°C to +10°C (37°F to 50°F), which is ideal for protecting tools and machinery in most manufacturing and automation settings.
FAQ
Q1: What is the flow capacity of the TR08 model?
A: The TianEr TR08 is typically rated for a nominal flow capacity of 1.2 m³/min (42 CFM) at a standard inlet condition of 35°C and 7 bar. Always verify the specific model's datasheet for precise specifications.
Q2: What are the standard operating conditions?
A:
Operating Pressure: Usually 0.6 - 1.0 MPa (6 - 10 bar).
Maximum Inlet Air Temperature: 45°C (113°F).
Ambient Temperature: Typically 2°C ~ 38°C (35°F ~ 100°F).
Operating outside these ranges can affect performance and warranty.
Q3: What maintenance does the TR08 require?
A: Maintenance is simple but essential for longevity:
Daily: Visual inspection for leaks or unusual noises.
Monthly: Clean the front air cooler to remove dust and ensure optimal heat dissipation. Check the auto-drain valve for proper function.
Annually: Recommended to have a qualified technician check the refrigerant charge and overall system.
Q4: Where is the best location to install the TR08 in my air system?
A: The ideal installation sequence is: Air Compressor -> Air Receiver Tank -> Pre-Filter -> TR08 Air Dryer -> Line Filter -> Point of Use. This placement protects the dryer from bulk liquid water and large contaminants.
Q5: The unit is not starting. What could be wrong?
A: Common reasons include:
No power supply or the main switch is off.
The emergency stop button is pressed (if equipped).
A phase sequence error (for three-phase models). Check and correct the wiring.
The unit is in a fault mode (e.g., high-pressure alarm). Check the indicators and allow time to reset.
Q6: Can this dryer be used for a breathing air system?
A: No. Standard refrigerated air dryers like the TR08 are designed for general industrial applications. Air for human respiration requires specialized purification systems, including high-efficiency coalescing filters and specific, medically approved desiccant dryers to remove oil vapors and gases to meet breathing air standards.
