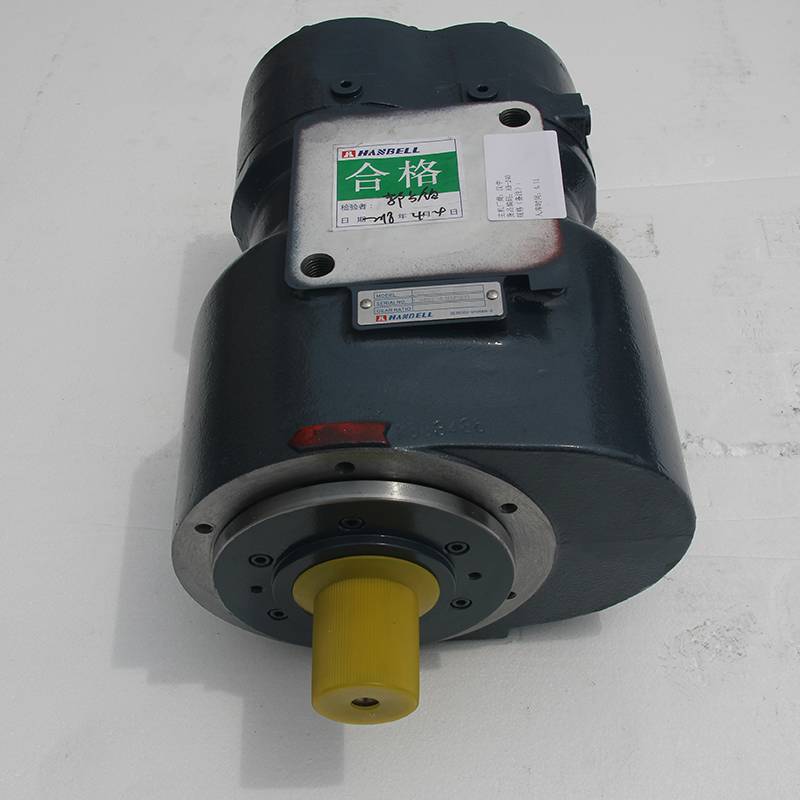

The Hanbell AB series is a renowned line of air-cooled scroll chiller and heat pump units designed for small to medium-scale applications. A 22kW (approximately 5 HP) model is a common and versatile capacity within this series.
Technical Parameters
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | S.F. | Dimension(mm) | Weight(kg) |
| AB-240 | 22 | 2950 | 3.5 | 22.7 | 6.4 | 1.03 | 445*261*207 | 64 |
High-Efficiency Scroll Compressor: The heart of the unit is Hanbell's self-developed scroll compressor, known for its reliability, smooth operation, low noise, and high energy efficiency compared to traditional piston compressors.
Excellent Part-Load Performance: The 15kW model often features a twin-compressor or dual-scroll design. This allows the unit to operate on a single compressor during partial load conditions (e.g., mild weather), significantly reducing cycling losses, enhancing energy efficiency, and providing more stable temperature control.
Optimized Heat Exchanger: The air-cooled condenser is constructed with enhanced inner-grooved copper tubes and hydrophilic aluminum fins. Its often V-type or tilted arrangement ensures compact size, even airflow distribution, improved heat transfer efficiency, and reduced fan noise.
High Energy Efficiency Ratings: Thanks to the scroll compressor and optimized system design, the unit achieves high Coefficients of Performance (COP) and especially impressive Integrated Part Load Value (IPLV), leading to lower operational costs.
High Efficiency: Delivered by its scroll compressor and optimized system design.
Superior Part-Load Economy: Enabled by its twin-compressor design.
Intelligent Control: Featuring a user-friendly interface and robust protection features.
Quiet & Reliable Operation: Built with quality components for durability.
Flexible Application: A perfect solution for modern SOHO (Small Office/Home Office) and commercial spaces requiring year-round comfort.
Residential and light commercial central air conditioning (e.g., villas, large apartments, small offices, retail shops, restaurants).
Providing both cooling (via fan coil units) and heating (via fan coils or underfloor heating systems) in one integrated solution.
