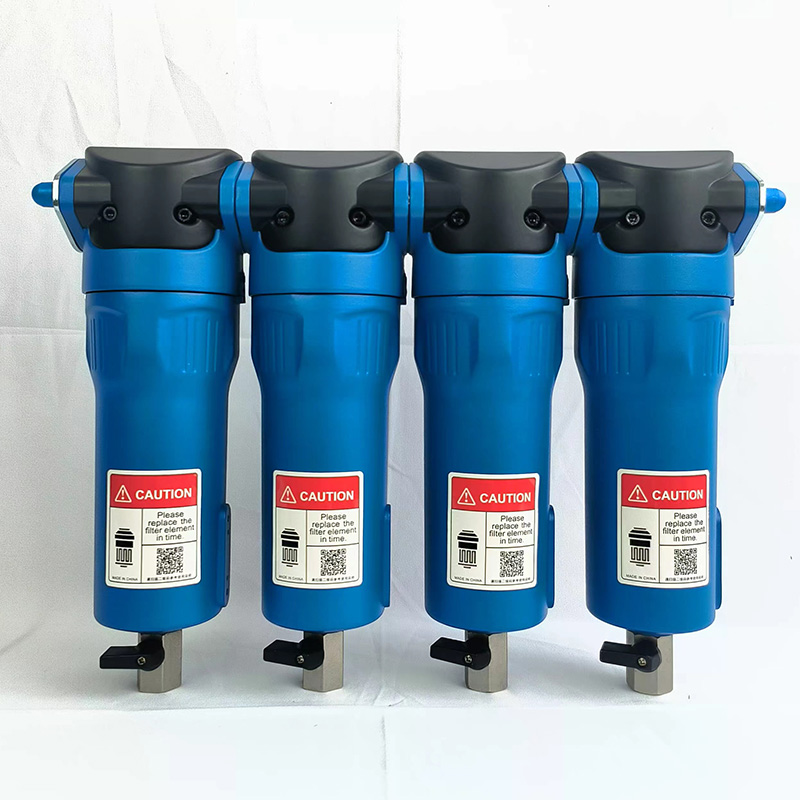

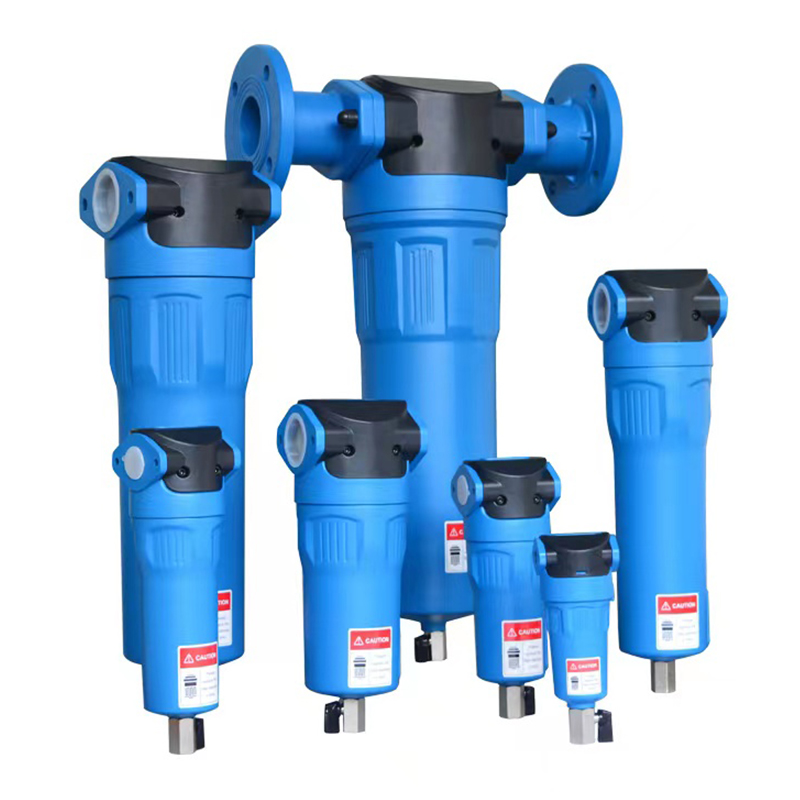

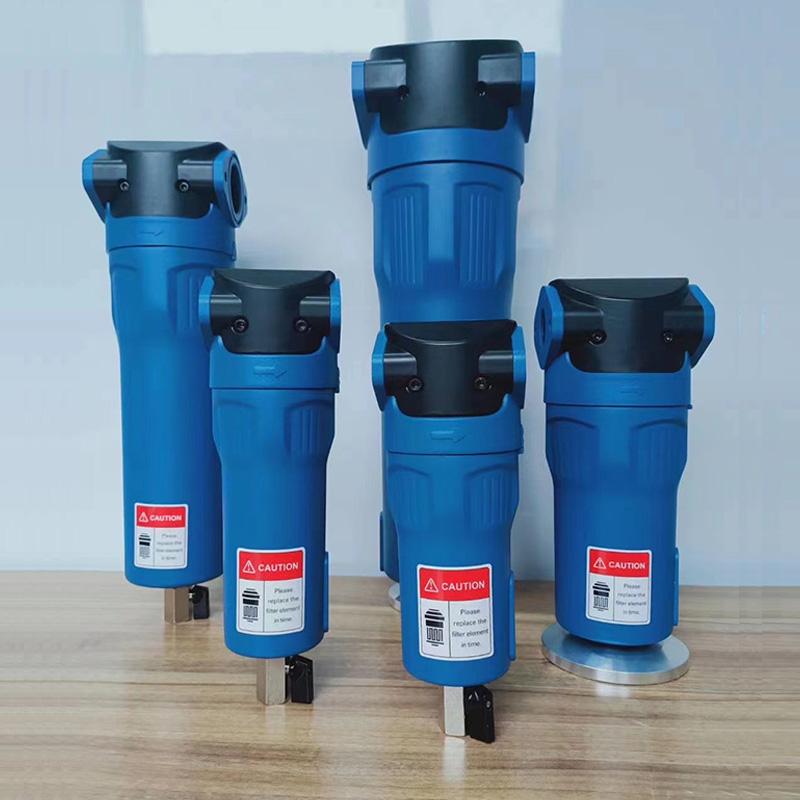

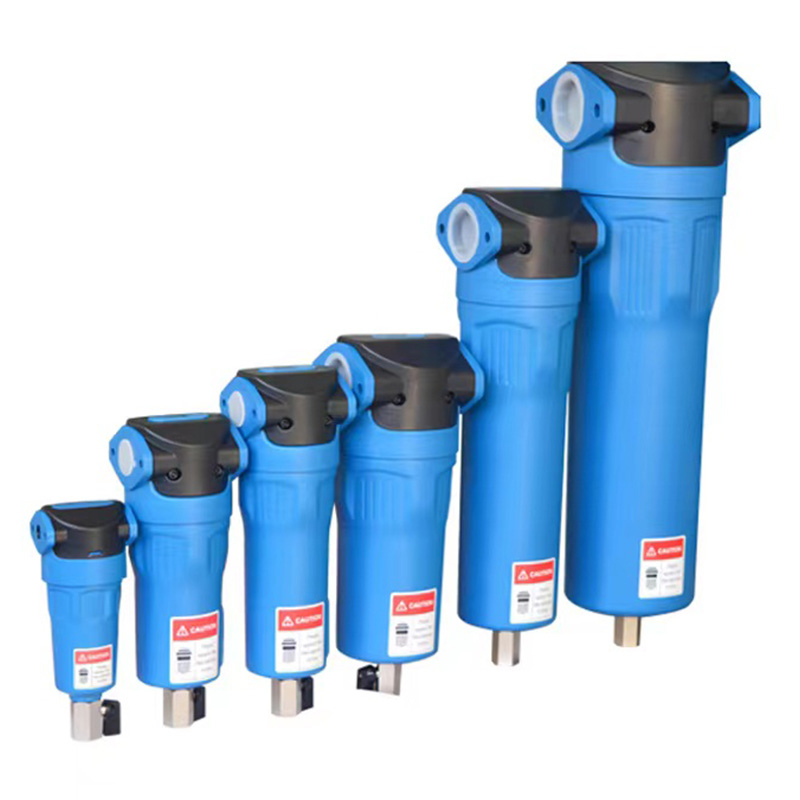

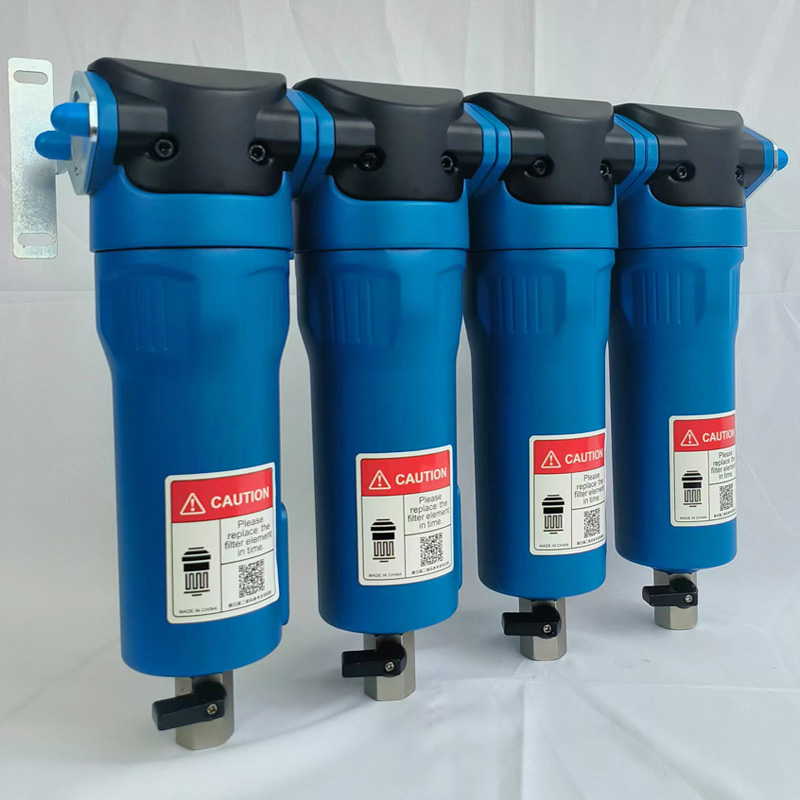

RJ series ultra-clean precision filters provide users with high-quality compressed air filtration, specifically for laser cutting, bottle blowing, advanced spraying, food, electronics, petrochemical and other industries. By installing RJ series ultra-clean precision filters, compressor air pollutants (such as oil, water, dust, etc.) can be effectively removed.
Product features
✅ Lightweight & High-Strength: The aluminum alloy housing is pressure-resistant and rust-resistant, 50% lighter than carbon steel.
✅ Corrosion-Resistant: Strongly resistant to oxidation, suitable for humid, acidic, and alkaline environments.
✅ High-Efficiency Filtration: Optional multi-stage filter elements (1μm to 0.01μm) remove oil, dust, and microorganisms.
✅ Energy-Efficient: Low pressure drop (≤0.2 bar) reduces energy consumption.
✅ Long Life: Long filter element replacement intervals and low maintenance costs.
Technical Parameters
Filter model | Flow (m3/min) | Interface C | Model of filter element |
| RJ-010* | 1.2 | 1/2"or 3/4" or 1" | FJ-010* |
| RJ-020* | 2.3 | 1/2"or 3/4" or 1" | FJ-020* |
| RJ-030* | 3.5 | 1" or 1-1/2" | FJ-030* |
| RJ-050* | 5.7 | 1-1/2" | FJ-050* |
| RJ-070* | 7.8 | 1-1/2" | FJ-070* |
| RJ-110* | 11.6 | 2" | FJ-110* |
| RJ-150* | 15.5 | 2" | FJ-150* |
| RJX-200* | 20 | 2-1/2" | FJX-200* |
| RJX-250* | 25 | 2-1/2" | FJX-250* |
| RJX-300* | 30.8 | 3" | FJX-300* |
| RJX-400* | 40.5 | 4" | FJX-400* |
| FRJX-200* | 20 | DN65 | FJX-200* |
| FRJX-250* | 25 | DN65 | FJX-250* |
| FRJX-300* | 30.8 | DN80 | FJX-300* |
| FRJX-400* | 40.5 | DN100 | FJX-400* |
Applications
• Food and Beverage: Aseptic filling and packaging
• Electronics Manufacturing: Chip packaging and precision instrument protection
• Medical Equipment: Air purification for ventilators and dental instruments
• Spray Painting: Preventing paint particle contamination
• Automated Production Lines: Protecting pneumatic components (cylinders, solenoid valves)
FAQ
Q1: Are aluminum alloy filters cheaper than stainless steel filters?
A: Yes, they cost 30%-50% less and are lighter, but their pressure resistance is slightly lower than stainless steel.
Q2: Can they filter oil vapor?
A: They require an activated carbon filter element. Ordinary filter elements can only filter liquid oil mist.
Q3: Are they suitable for high-temperature air?
A: Conventional models have a temperature resistance of ≤80°C. Special sealing materials are required for high-temperature applications.
Q4: How often should the filter element be replaced?
A: Typically, replace every 6-12 months (when the pressure differential is ≥0.5 bar or when the flow rate decreases).
Q5: Are there any specific installation orientation requirements?
A: They must be installed vertically to ensure smooth drainage of condensate.
