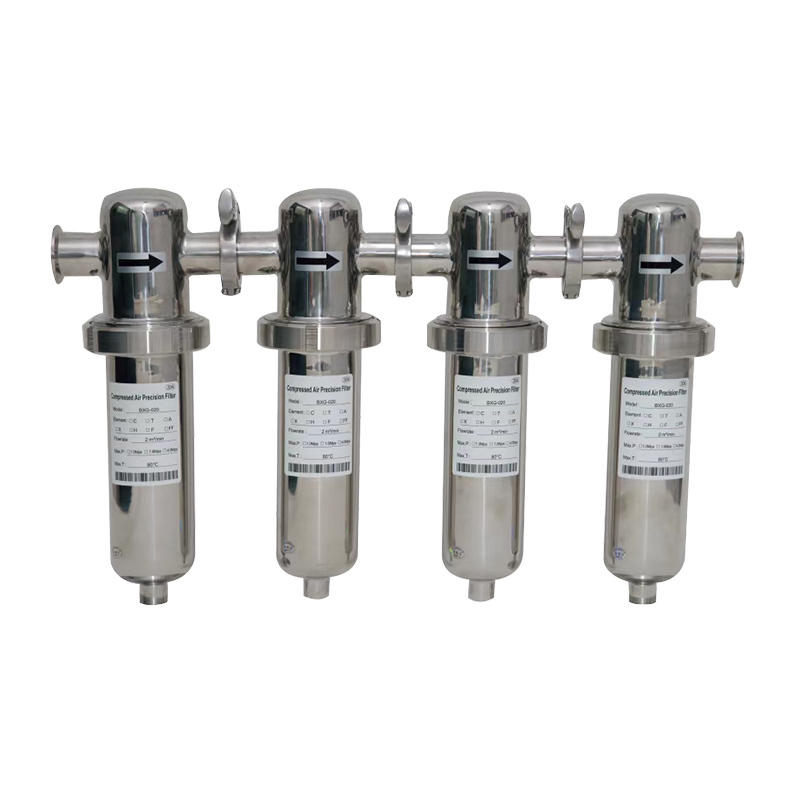

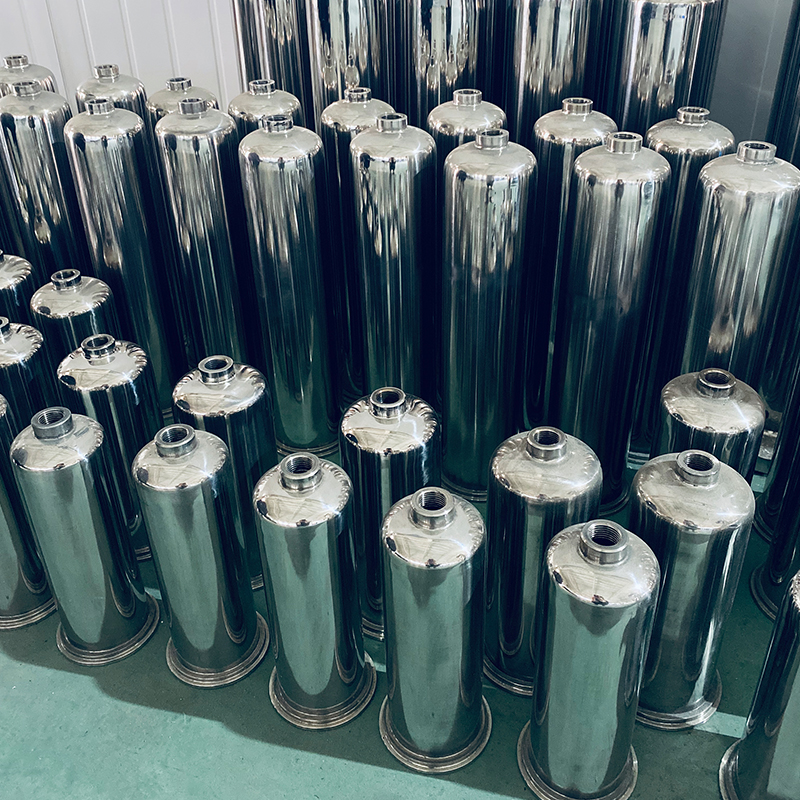

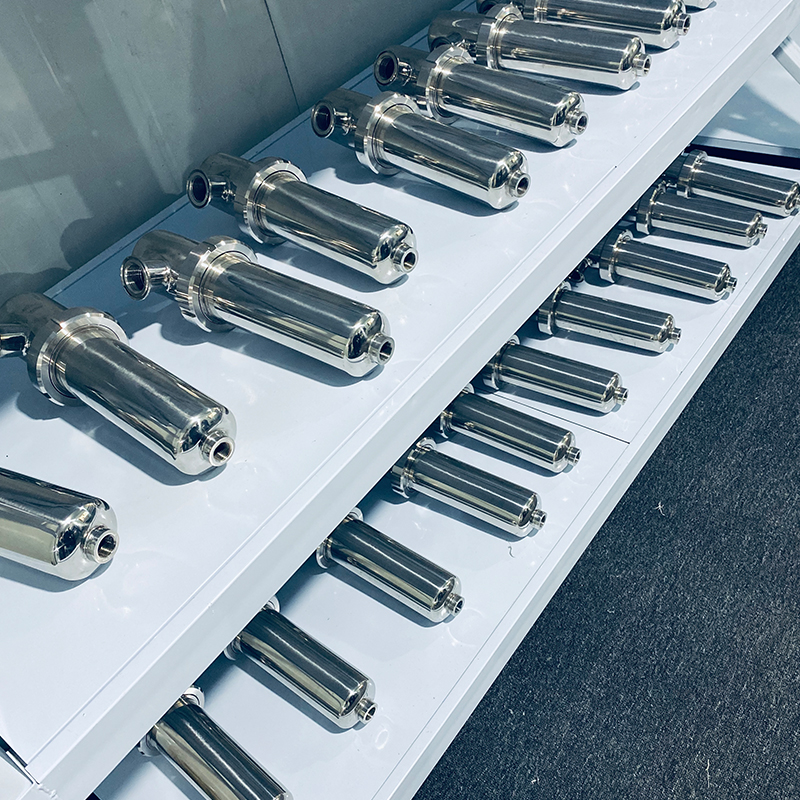

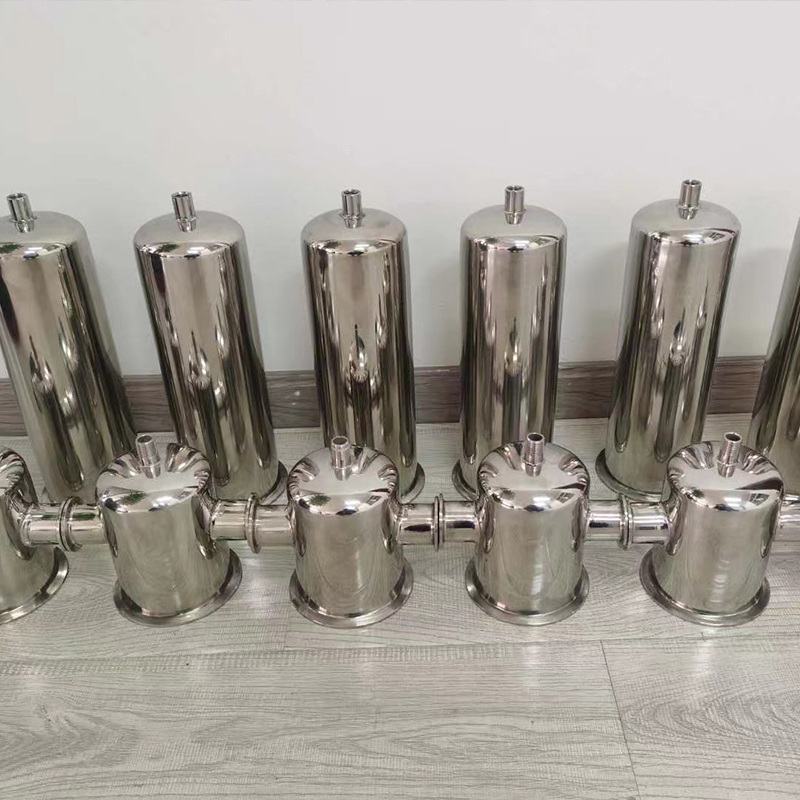

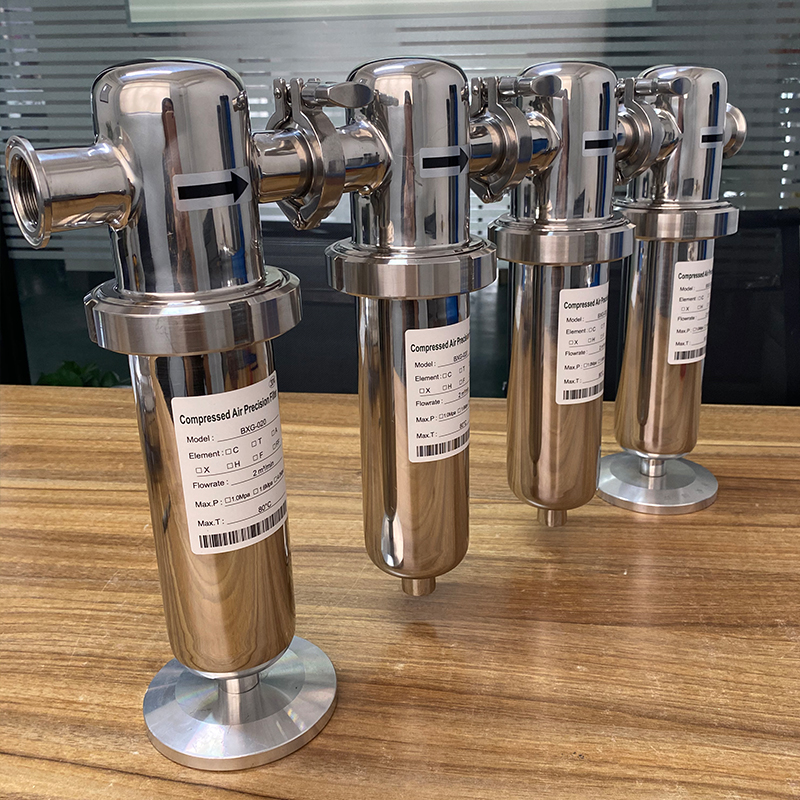

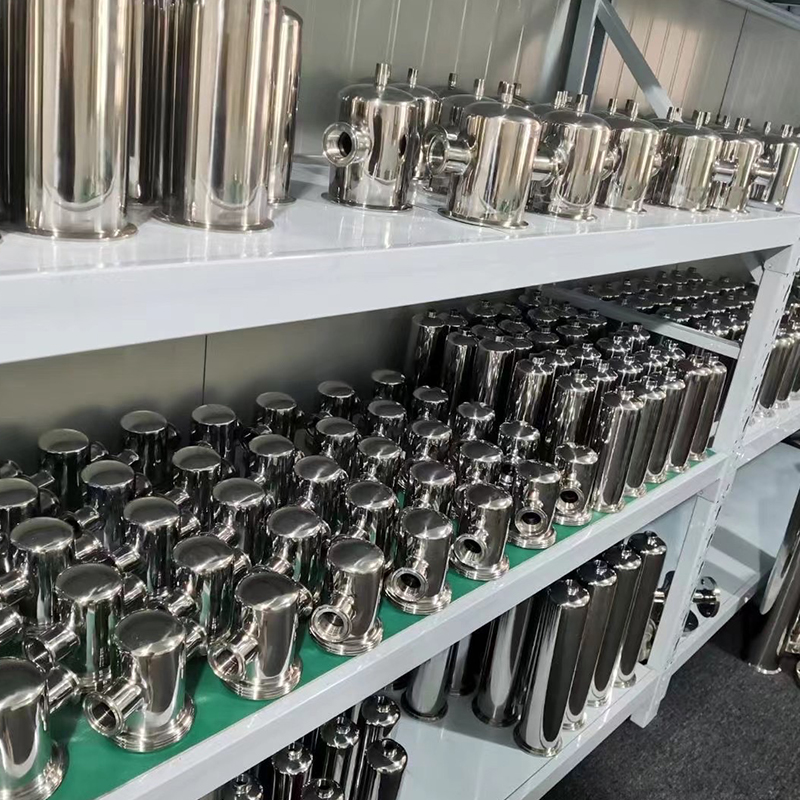

The sterilizing filter is mainly composed of a micro filter element with a large specific surface area and a filtration The shell is made of 304 stainless steel, and the inner and outer surfaces are mirror polished, with anti-corrosion and low resistance; it is widely used for filtering and sterilizing various industrial gases, such as semiconductor, metallurgy, medical, pharmaceutical and food chemical industries.
Product features
✅ High-efficiency filtration: Removes oil mist, dust, microorganisms, and other components, purifying compressed air.
✅ Multiple filter stages available: Covers diverse needs, including coarse filtration (1μm), fine filtration (0.01μm), and activated carbon adsorption.
✅ Low maintenance: Easy filter element replacement, minimal pressure drop, and energy savings.
✅ Extends equipment life: Protects downstream precision instruments and pneumatic components.
Technical Parameters
| Filter Model | Capacity (m3/min) | Number of filter elements | Filter element model | Import and Export (Threaded Flange) | H | A | Barrel diameter |
| BXG-010* | 1 | 1 | E-16 | 1" | 364 | 150 | 76 |
| BXG-020* | 2 | 1 | E-20 | 1" | 364 | 160 | 76 |
| BXG-030* | 3 | 1 | E-24 | 1.5" | 402 | 160 | 89 |
| BXG-050* | 5 | 1 | E-28 | 1.5" | 572 | 210 | 89 |
| BXG-070* | 7 | 1 | E-32 | 1.5" | 572 | 260 | 89 |
| BXG-110* | 11 | 1 | E-36 | 2" | 710 | 340 | 102 |
| BXG-140* | 15 | 1 | E-40 | DN65 | 710 | 380 | 133 |
| BXG-180* | 20 | 1 | E-44 | DN80 | 1000 | 380 | 133 |
| BXG-220* | 25 | 1 | K430 | DN80 | 950 | 380 | 159 |
| BXG-350* | 40 | 1 | K620 | DN100 | 1150 | 1150 | 159 |
Applications
• Food & Pharmaceuticals: Sterile compressed air (to prevent contamination)
• Electronics & Semiconductors: Chip manufacturing, precision assembly
• Spraying & Painting: Preventing particle contamination on paint surfaces
• Pneumatic Tools & Automation: Reducing equipment wear
• Laboratory & Testing Equipment: High-purity gas supply
FAQ
Q1: How do I choose a filtration accuracy?
A: Standard pneumatic tools (1μm), precision instruments (0.01μm), sterility requirements (with activated carbon layer).
Q2: How often should the filter element be replaced?
A: Typically 3-12 months (depending on the contaminant content, replacement is required when the pressure differential is ≥ 0.7 bar).
Q3: Can it remove oil and water?
A: It must be used in conjunction with a dryer. Precision filters primarily remove particles and oil mist, and some models can absorb trace amounts of oil.
Q4: Are there any installation location requirements?
A: Generally, it should be located downstream of the dryer, close to the gas point of use for best results.
Q5: Will it affect the air pressure?
A: A high-quality filter element has a pressure drop of ≤ 0.2 bar. If it becomes clogged, the pressure drop increases and needs to be replaced promptly.
