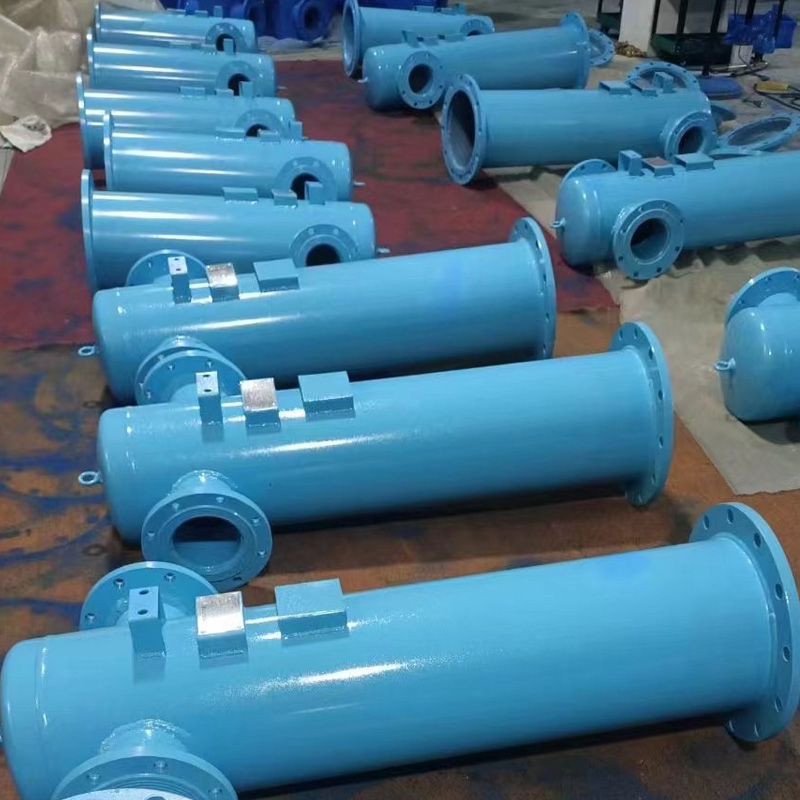

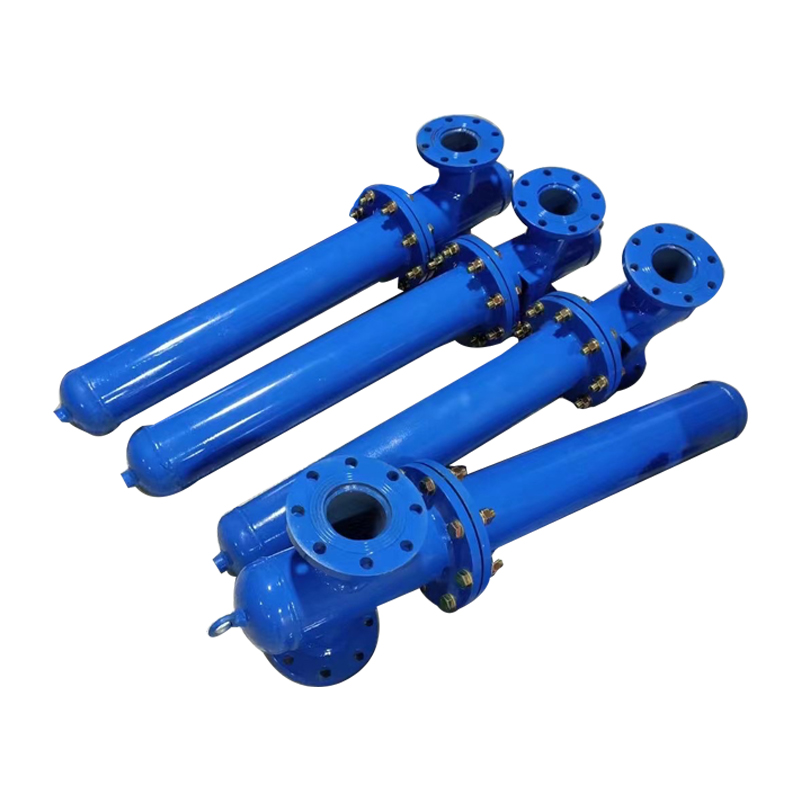

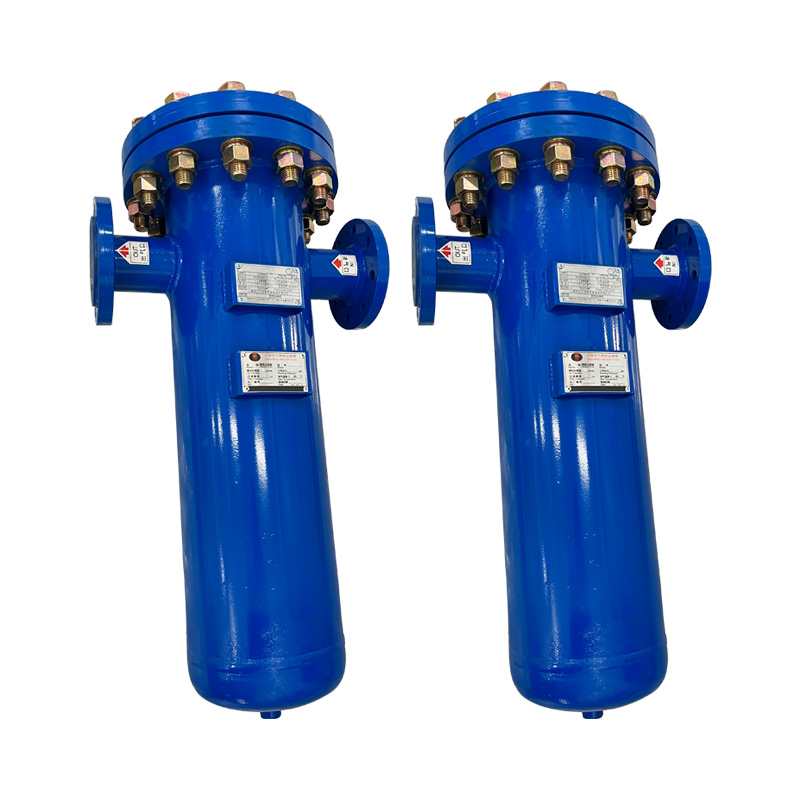

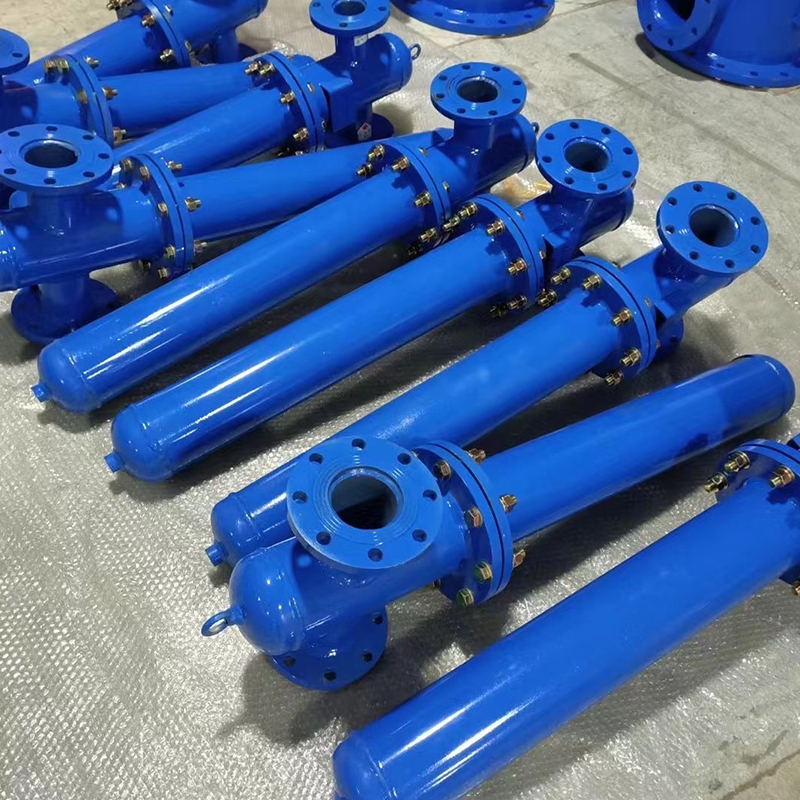

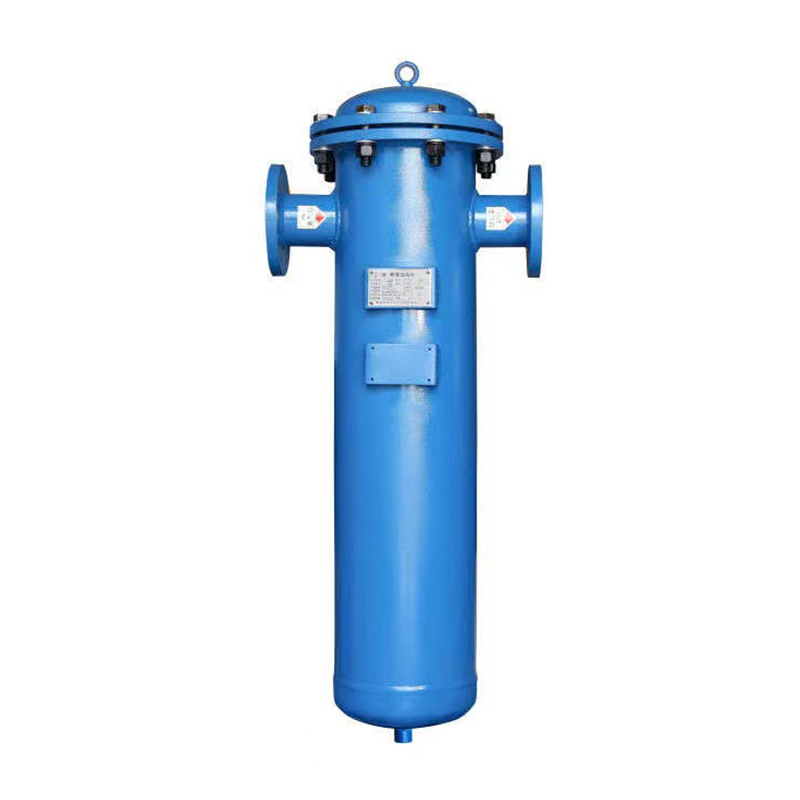

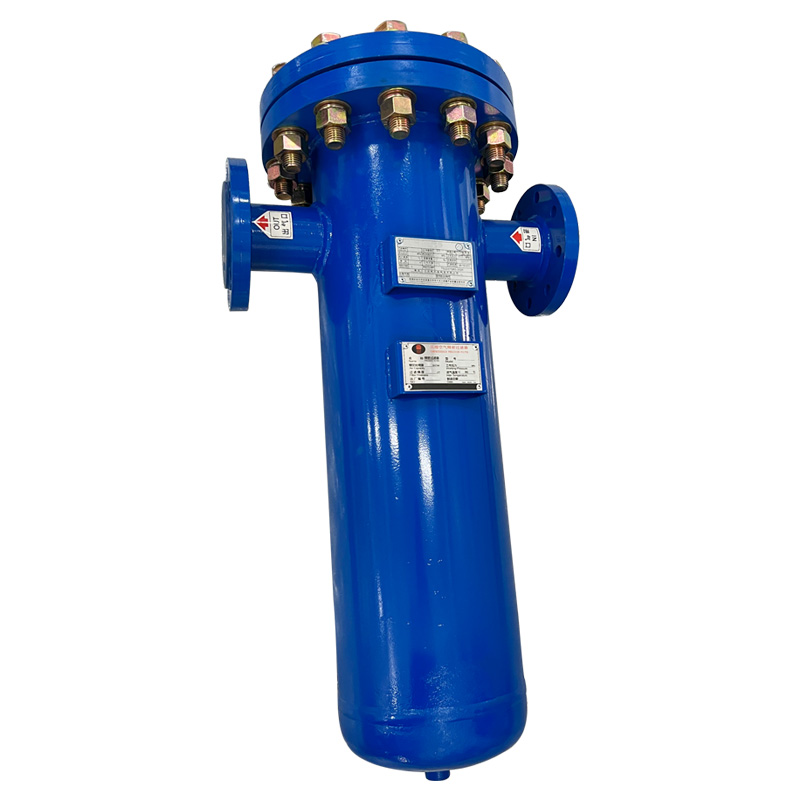

A precision filter is a highly efficient filtration device used to remove impurities such as tiny particles, oil mist, and moisture from compressed air or gas. It typically uses a multi-layer filter element structure with a filtration accuracy of up to 0.01μm, ensuring that the gas cleanliness meets industrial standards (such as ISO 8573-1).
Product features
✅ High-efficiency filtration: Removes oil mist, dust, microorganisms, and other components, purifying compressed air.
✅ Multiple filter stages available: Covers diverse needs, including coarse filtration (1μm), fine filtration (0.01μm), and activated carbon adsorption.
✅ Low maintenance: Easy filter element replacement, minimal pressure drop, and energy savings.
✅ Extends equipment life: Protects downstream precision instruments and pneumatic components.
Technical Parameters
Filter Model | Flow Rate (m3/min) | Interface | Width | Height | Type of filter element | Quantity | Barrel diameter |
| RFL*-20 | 15.0 | DN65 | 353 | 950 | E*-44 | 1 | 133 |
| RFL*-25 | 25.0 | DN80 | 353 | 1110 | E*-48 | 1 | 133 |
| RFL*-30 | 30.0 | DN80 | 465 | 1009 | 61040* | 2 | 245 |
| RFL*-40 | 40.0 | DN100 | 465 | 1159 | 61044* | 2 | 245 |
| RFL*-50 | 50.0 | DN100 | 500 | 1194 | 61044* | 3 | 273 |
| RFL*-60 | 60.0 | DN125 | 500 | 1194 | 61044* | 3 | 273 |
| RFL*-80 | 80.0 | DN125 | 565 | 1290 | 61044* | 4 | 325 |
| RFL*-100 | 100.0 | DN150 | 617 | 1305 | 61044* | 5 | 377 |
| RFL*-120 | 120.0 | DN150 | 726 | 1353 | 61044* | 6 | 426 |
| RFL*-140 | 140.0 | DN200 | 735 | 1360 | 61044* | 7 | 450 |
| RFL*-160 | 160.0 | DN200 | 780 | 1419 | 61044* | 8 | 500 |
| RFL*-180 | 180.0 | DN200 | 780 | 1419 | 61044* | 8 | 500 |
| RFL*-200 | 200.0 | DN200 | 800 | 1560 | 61048* | 9 | 500 |
| RFL*-260 | 260.0 | DN250 | 860 | 1570 | 61048* | 12 | 560 |
| RFL*-300 | 320.0 | DN250 | 950 | 1730 | 61048* | 14 | 560 |
Applications
• Food & Pharmaceuticals: Sterile compressed air (to prevent contamination)
• Electronics & Semiconductors: Chip manufacturing, precision assembly
• Spraying & Painting: Preventing particle contamination on paint surfaces
• Pneumatic Tools & Automation: Reducing equipment wear
• Laboratory & Testing Equipment: High-purity gas supply
FAQ
Q1: How do I choose a filtration accuracy?
A: Standard pneumatic tools (1μm), precision instruments (0.01μm), sterility requirements (with activated carbon layer).
Q2: How often should the filter element be replaced?
A: Typically 3-12 months (depending on the contaminant content, replacement is required when the pressure differential is ≥ 0.7 bar).
Q3: Can it remove oil and water?
A: It must be used in conjunction with a dryer. Precision filters primarily remove particles and oil mist, and some models can absorb trace amounts of oil.
Q4: Are there any installation location requirements?
A: Generally, it should be located downstream of the dryer, close to the gas point of use for best results.
Q5: Will it affect the air pressure?
A: A high-quality filter element has a pressure drop of ≤ 0.2 bar. If it becomes clogged, the pressure drop increases and needs to be replaced promptly.
