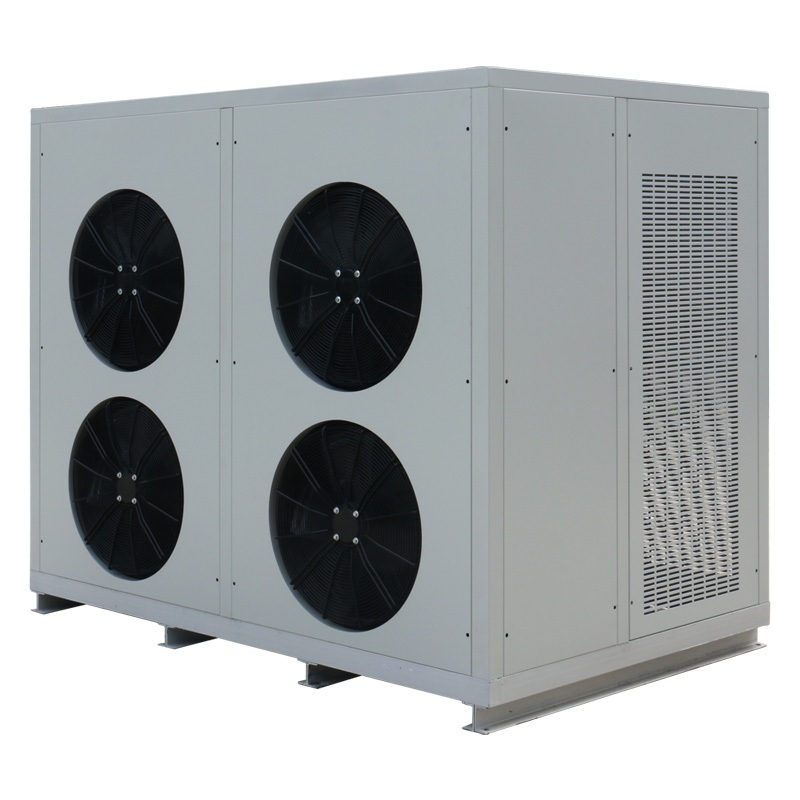

A refrigerated dryer is a device that purifies compressed air using refrigeration. It cools the air to a 2~10°C dew point, causing water and oil vapor to condense into liquid and be removed, resulting in dry, clean air.
Product Features
High Flow Rate
Designed specifically for central gas supply and large production lines, it can continuously and efficiently handle air flow rates of 110~165 m³/min.
High Efficiency and Energy Saving
Utilizes a multi-loop refrigeration system that automatically adjusts according to load, achieving even higher energy efficiency under partial load; a built-in high-efficiency pre-cooling heat exchanger recovers cooling energy, significantly reducing energy consumption.
Stable and Reliable
Core components are sourced from industrial-grade brands, with redundant design, supporting 24/7 continuous operation.
Easy Maintenance
Modular design, easy-to-operate maintenance points (such as filters and drainers); no adsorbents required, main
maintenance is only cleaning the condenser, resulting in low maintenance costs.
Technical Parameters

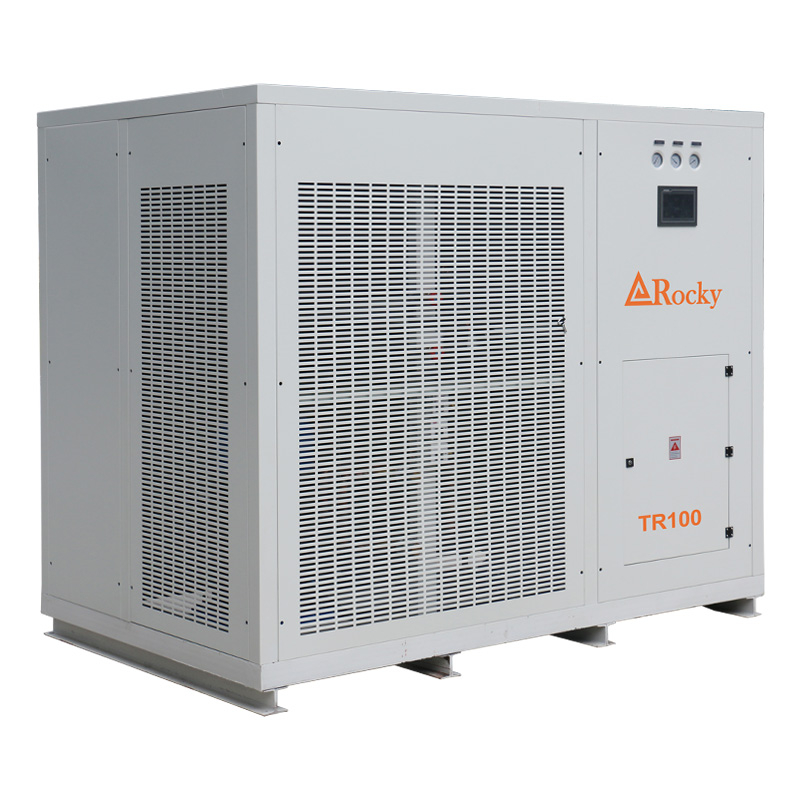

| Model | TR100 | TR120 | TR150 | |
| Capacity | m3/min | 110 | 130 | 165 |
| power supply | 220~660V 3PH 50HZ/60HZ | |||
| Input power | kW | 21.7 | 26.3 | 32.3 |
| Air pipe connection | DN150 | DN150 | DN150 | |
| Evaporator type | Aluminum alloy plate | |||
| Refrigerant | R407C / Optional R513A | |||
| Display | Smart PLC, LED dew point display, LED alarm code display, operation status indication | |||
| Anti-freezing protection | Constant pressure expansion valve & compressor automatic start/stop | |||
| Temperature control | Automatic control of condensing temperature/dew point temperature | |||
| High voltage protection | Temperature sensor&Inductive intelligent protection | |||
| Low voltage protection | Temperature sensor&Inductive intelligent protection | |||
| Weight | kg | 1150 | 1380 | 1725 |
| Dimensions(mm) | L | 2485 | 2100 | 3250 |
| W | 1500 | 2220 | 1900 | |
| H | 1960 | 2110 | 1860 | |
Application Industry
As a standard feature in heavy industry, high-flow refrigerated dryers are widely used in the painting and welding processes of automobile manufacturing, the steelmaking and rolling processes of the metallurgical industry, the instrumentation and conveying systems of chemical production, the clean air source for large-scale electronics and electrical appliance manufacturing bases, and the air-jet looms and bottle-making equipment of the textile and glass industries.
