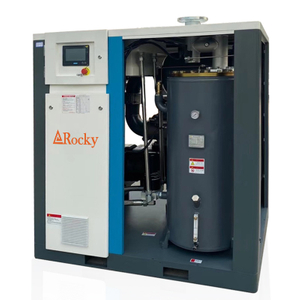

A screw vacuum pump is a vacuum acquisition device that uses a non-contact screw rotor to achieve dry gas compression.
Technical Parameter
| Model | Power (kW) | Max.Vacuum | Max.Capacity (m³/min) | Inlet Connection (mm) | Outlet Connection (mm) | Weight (kg) | Dimension (mm) |
| bar | |||||||

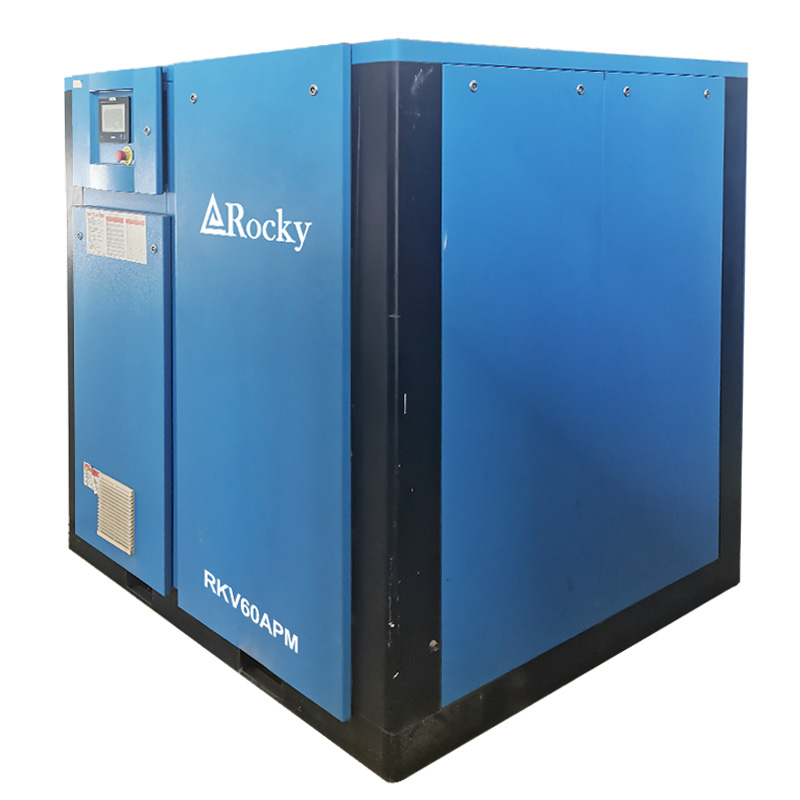

| RKV60APM | 45 | 0.7 | 43.3 | DN200 | DN150 | 1900 | 2860*1750*2050 |
| RKV75APM | 55 | 61.0 | DN200 | DN150 | 2000 | 2860*1750*2050 |
Features and Advantages
Clean and oil-free: Completely dry operation, eliminating oil contamination.
Compact structure: Modular design, small footprint.
Easy maintenance: No internal wear parts, long maintenance intervals.
Energy-saving and environmentally friendly: 30-50% more energy efficient than traditional vacuum pumps.
Highly adaptable: Can handle condensable gases and light dust.
Application industries
• Semiconductors: Wafer manufacturing, coating processes
• Pharmaceuticals: Freeze-drying, distillation, packaging
• Chemicals: Material handling, distillation
• New Energy: Lithium battery manufacturing, photovoltaic coating
• Food: Vacuum packaging, freeze-drying
• Scientific Research: Synchrotron radiation, electron microscopy equipment
