The 60 m³/min Industrial Oil Water Separator is engineered for high-capacity compressed air systems that generate large volumes of oil-contaminated condensate. It effectively separates oil, water, and solid contaminants
from compressor condensate, reducing residual oil content to ≤10 ppm—helping your facility meet local environmental discharge standards while lowering hazardous waste disposal costs.
Designed for continuous operation in demanding industrial environments, this separator combines gravity separation, coalescing filtration, and activated carbon adsorption to deliver reliable, low-maintenance performance without electricity.
| Model | Capacity | Service kit model | Filter element quantity | Dimensions (mm) | Weight (kg) |

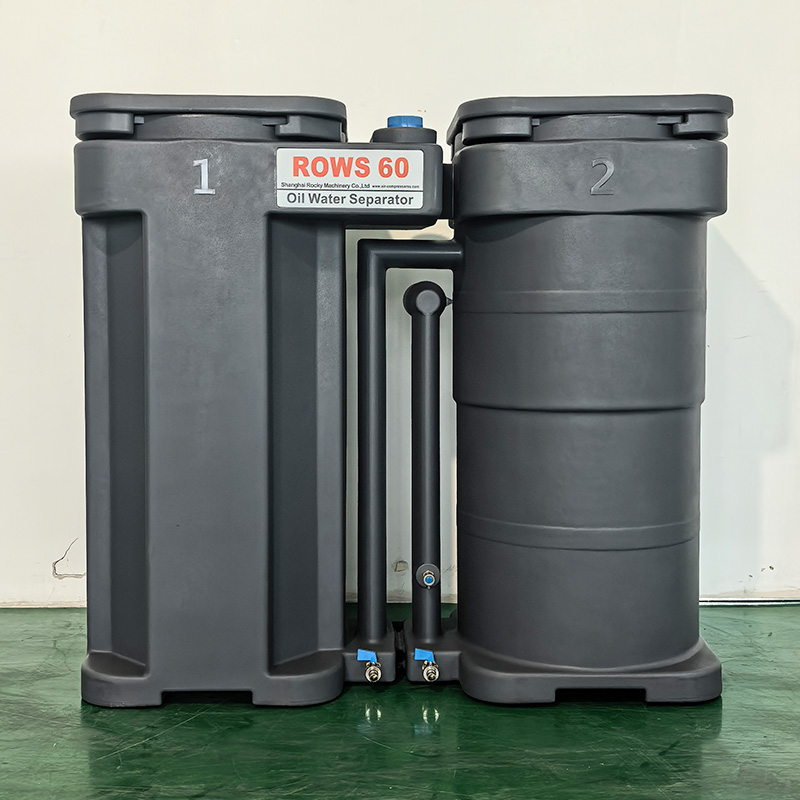

| ROWS 60 | 60 m3/min | E60 | 4pcs | 1155 * 475 * 1045 | 85 |
High Capacity – Suitable for compressed air systems up to 60 m³/min.
Superior Oil Removal – Multi-stage separation achieves residual oil content as low as ≤10 ppm.
Environmental Compliance – Helps meet municipal, EPA, EU, and local discharge regulations.
Zero Power Consumption – Passive gravity-flow design requires no electricity.
Low Maintenance – Easy-access filter cartridges and simple oil draining.
Durable Construction – Carbon steel with anti-corrosion coating; optional SS304/SS316.
Compact Footprint – Saves valuable compressor room space.
Cost Savings – Reduces hazardous waste disposal and hauling fees.
Customizable – Capacity, materials, connections, and filter media can be tailored to your application.
Condensate Inlet – Oil/water mixture from compressor drains enters the separator.
Gravity Separation – Free oil rises to the top and is collected.
Coalescing Filtration – Fine oil droplets are coalesced into larger droplets for efficient separation.
Activated Carbon Polishing – Residual dissolved oil and odor are adsorbed.
Clean Water Outlet – Treated water can be discharged to drain or reused, subject to local regulations.
Oil Collection – Separated oil is automatically or manually drained for proper disposal.
Automotive Manufacturing – Paint shops, assembly lines, pneumatic tools.
Food & Beverage – Packaging, bottling, processing.
Pharmaceutical & Biotechnology – Cleanrooms, production lines.
Electronics & Semiconductor – Precision manufacturing.
Chemical & Petrochemical – Process air, instrumentation.
Metalworking & Machining – CNC, compressed air tools.
Textile & Printing – Pneumatic systems, printing presses.
Power Plants & Utilities – Instrument air, control air.
Packaging & Logistics – Automated systems.
General Manufacturing – Any facility with oil-lubricated air compressors.
Proven Separation Technology – Multi-stage design ensures reliable oil removal.
Compliance Support – We help you meet discharge limits and avoid fines.
Customizable Solutions – Capacity, materials, connections, and filter media tailored to your needs.
Low Operating Cost – No power, minimal maintenance, long filter life.
Global Service – Technical support, spare parts, and installation guidance.
