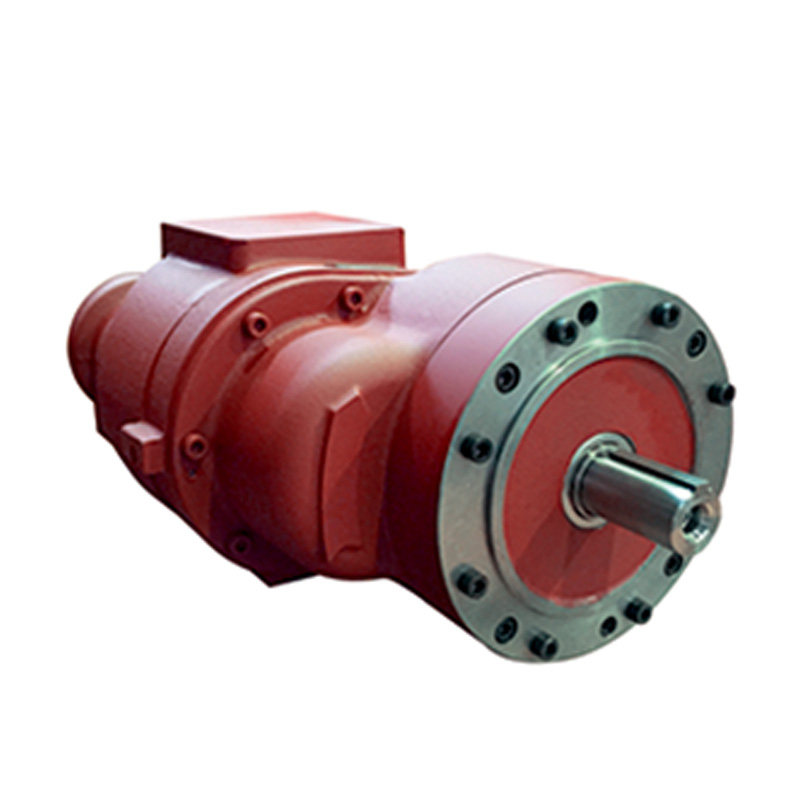

The GHH RAND CF90G5 is a fifth-generation (G5) high-capacity, high-efficiency, single-stage, oil-injected screw compressor airend from German company GHH RAND. As the latest model in the CF series, it represents the most advanced technology in this class of airend, specifically designed to meet the demands of modern industry for exceptional energy efficiency and reliability.
Features and Benefits
1. Top-notch Energy Efficiency (Core Advantage)
Optimized Profile: Equipped with the further optimized fifth-generation "Rand" rotor profile, this significantly reduces internal leakage and friction losses, improves volumetric efficiency and adiabatic efficiency, and achieves greater energy efficiency than previous generations.
Low-Speed Design: Low-speed design is often employed to reduce speed while maintaining the same exhaust volume, thereby reducing wear, extending life, and lowering operating noise.
2. Superior Reliability
Heavy-Duty Structure: Inheriting the robust GHH RAND bearing system and rigid airend structure, it can withstand harsh operating conditions and 24/7 continuous operation.
Thermodynamic Optimization: Optimized internal flow paths and cooling systems enable the airend to operate in optimal thermodynamic conditions, resulting in lower thermal load and greater stability.
3. Broader Operating Conditions
This design maintains high efficiency over a wide range of exhaust pressures and flows, providing compressor manufacturers with greater flexibility in overall unit design.
4. Environmental Protection and Low Noise
High efficiency means lower carbon emissions. The optimized acoustic design makes its operation quieter and meets strict environmental protection standards.
Application
Large air compressors like the CF90G5 are primarily used in heavy and process industries with high compressed air consumption, such as:
Large-scale metallurgy and mining operations: Powering blast furnaces, ore dressing, forging, and other processes.
Large-scale chemical and petrochemical complexes: Used as core process air compressors.
Large-scale shipbuilding and automotive manufacturing: Providing air to centralized air supply stations throughout the plant.
Glass, cement, and other building materials industries: Used for various pneumatic equipment on production lines.
Energy industries: For example, instrument air systems in large power plants.
Frequently Asked Questions (FAQ)
Q1: What are the main differences between the CF90G5 and the previously mentioned CF75G?
A1: The main differences lie in size, exhaust volume, and technology generation.
CF90G5: This is a larger airend with a wider exhaust volume range (typically reaching over 40 m³/min). It also utilizes the latest fifth-generation (G5) technology, theoretically resulting in better energy efficiency and reliability.
CF75G: This slightly smaller airend is a classic, mature model with stable performance.
Q2: What supporting requirements should be considered when choosing such a large airend?
A2: A comprehensive range of factors must be considered:
Power supply: A transformer and distribution system of sufficient capacity are required.
Installation space: The large airend requires a spacious machine room with good ventilation.
Infrastructure: A solid foundation is required to support the load and provide vibration damping.
Post-processing system: A large air receiver, dryer, and filter with matching processing capacity are required.
Q3: What specific improvements does the "G5" (fifth generation) offer?
A3: While specific technical details are confidential, "G5" generally refers to comprehensive upgrades in the following areas:
Rotor profile: Improved aerodynamic efficiency.
Bearing technology: Longer life and reduced friction.
Internal clearance control: More precise, reducing leakage.
Cooling system: Improved heat dissipation efficiency.
Q4: Will its maintenance costs be high?
A4: Initial spare parts costs (such as main bearings and shaft seals) are indeed higher. However, due to its extremely long design life and excellent reliability, the maintenance costs spread over the entire lifecycle may be more favorable. Adhering to a strict preventive maintenance plan is key to controlling costs and avoiding unplanned downtime.
