| Quantity: | |
|---|---|
Dry: refers to the injecting of any lubricating oil or other liquid into the compression chamber to cool, seal and lubricate during the compression process. The compression chamber is absolutely dry.
Oil-free: This means that the air compressed by CDA96 is 100% oil-free, reaching the highest oil-free standard of ISO 8573-1 Class 0.

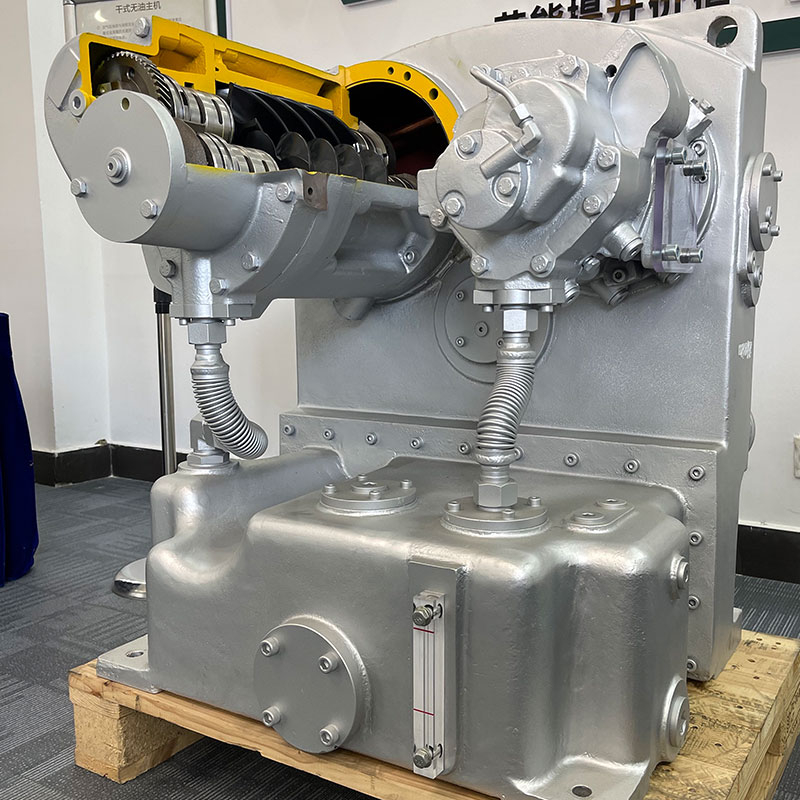

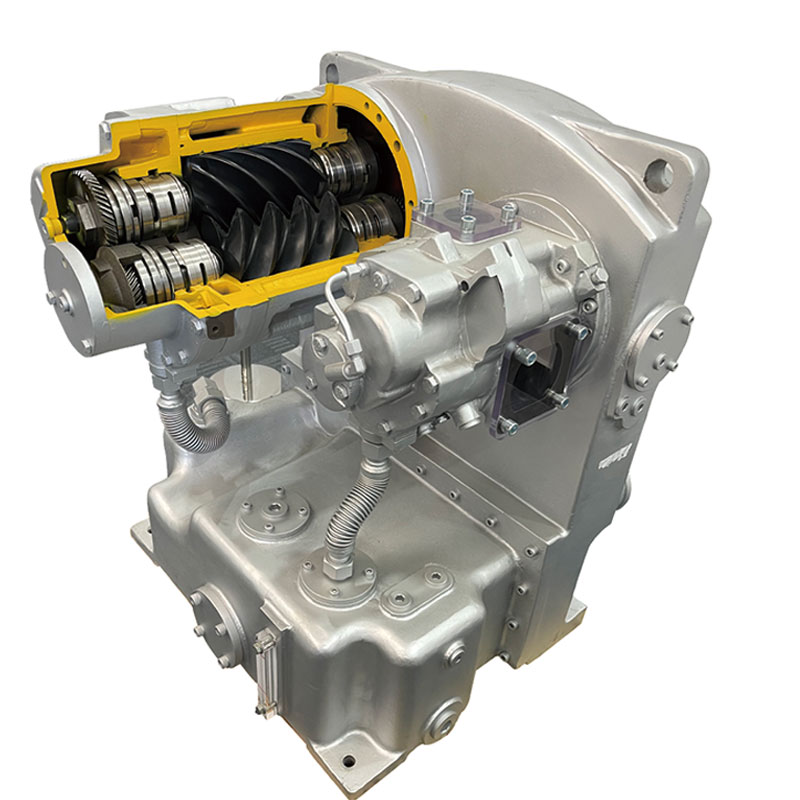

Air end: It is the core component of the compressor, usually consisting of a pair of precision-processed male and female rotors. Air is sucked in, compressed and exhausted through the high-speed rotation of the rotor.
Therefore, the CDA96 is a screw main unit designed specifically for producing absolutely pure oil-free compressed air.
Product features
The CDA96 air end's fame stems from a series of sophisticated design and manufacturing processes:
1. 100% Oil-Free Technology
This core advantage ensures absolutely clean output air, meeting the most stringent air quality requirements in the industry.
2. Advanced Rotor Profile
Ingersoll Rand boasts a proprietary rotor tooth design. This optimized profile improves compression efficiency and reduces internal leakage, maintaining high efficiency and energy savings over a wide range of operating conditions.
3. High-Precision Gear Transmission
Because the compression chamber is dry, the male and female rotors cannot directly contact (otherwise, wear and seizure would occur). Instead, they rotate in opposite directions with minimal clearance maintained by a pair of high-precision synchronous gears. This gear system ensures long-term, stable rotor operation.
4. Reliable Sealing System
Advanced sealing technology is employed at both ends of the rotor to prevent oil and impurities from entering the compression chamber while also preventing air leakage within the compression chamber, ensuring oil-free, clean, and efficient operation.
5. Efficient Cooling System
Dry compression generates significant heat, so the CDA96 is typically integrated with an efficient aftercooler to ensure the discharge compressed air meets the required temperature.
6. Durability and Low Maintenance
High-quality bearings and a robust design ensure an extremely long service life. With proper maintenance, it can typically operate for hundreds of thousands of hours before requiring a major overhaul.
Technical Parameters
| Model | CDA96 |
| Power (kW) | 90~160 |
Flow (m3/min) | 12.5~30 |
| Pressure (bar ) | 4.5~11.5 |
| Dimensions(mm) | 540*453*296 |
| Weight(kg) | 130 |
Application
Because it provides the highest quality oil-free air, the CDA96 air end is primarily used in critical industries where oil contamination can have serious consequences
1. Food and Beverage Industry
Used for air that comes into direct contact with products, such as during mixing, fermentation, packaging, and filling. Any oil content can lead to product contamination, spoilage, and even food safety incidents.
2. Pharmaceutical and Biotechnology
Used in drug production, fermentation processes, powder conveying, and laboratory equipment. Air purity must meet GMP (Good Manufacturing Practice) requirements.
3. Electronics and Semiconductor Industry
Used in chip manufacturing, precision circuit board cleaning, and wafer dicing. Even tiny oil droplets can render expensive electronic components useless.
4. Medical and Healthcare Industry
Used in hospital central air supply systems, ventilators, dental equipment, surgical tools, and more. Compressed air is directly related to patient safety.
5. Chemical and Petrochemical Industry
Used to control processes involving flammable, explosive, or toxic chemicals to prevent dangerous reactions between oil and chemicals.
6. Other key processes
such as air supply for automotive spray guns (to ensure paint quality), textile spinning (to prevent fabric contamination), and precision instruments.
