1. Introduction – Addressing Core Customer Pain Points
When it comes to compressing oxygen, conventional lubricated compressors present serious risks. Oil mixed with high‑pressure pure oxygen can lead to combustion or even explosion. Furthermore, oil contamination reduces oxygen purity, negatively impacting downstream processes such as medical gas supply, laser cutting, or cylinder filling.
If your PSA oxygen generator delivers low pressure and you need to fill high‑pressure cylinders – or if you require a reliable, safe, and oil‑free oxygen booster – then you need a solution specifically designed for oxygen service.
Our 100% oil‑free oxygen booster compressor eliminates these risks entirely. It delivers high‑pressure, high‑purity oxygen safely and efficiently.
2. Core Technology – What Makes an Oxygen Booster Safe and Reliable
A proper oxygen booster goes beyond simple compression. Here is the technology behind our units:
2.1 100% Oil‑Free Compression – Absolute Purity
No lubricating oil in the compression chamber.
Piston rings and guide rings are made of self‑lubricating, high‑performance materials (e.g., PTFE compounds).
No oil carry‑over, no contamination, no risk of oil‑oxygen reaction.
2.2 Oxygen‑Safe “Anti‑Explosion” Design
All wetted parts (valves, cylinders, piping) use oxygen‑compatible materials such as brass, stainless steel, or PTFE.
Strict degreasing and cleaning procedures before assembly, meeting international oxygen service standards.
Sealed isolation between the crankcase and the cylinder – grease from bearings never contacts the oxygen path.
2.3 High Pressure & High Flow – Ready for Cylinder Filling
Multi‑stage compression design boosts low‑pressure feed gas (from PSA or mains) up to 150 bar (2175 psi) or higher.
Suitable for industrial and medical gas filling stations.
Low‑speed, heavy‑duty design reduces wear, lowers noise, and extends service life.
2.4 Intelligent PLC Control System
Touchscreen HMI for easy operation.
Automatic start/stop, remote monitoring capability.
Comprehensive protection: over‑pressure, over‑temperature, motor overload, and emergency shutdown.
3. Industry Applications – Who Needs an Oxygen Booster
We have helped customers across many industries achieve safe, high‑pressure oxygen:
Industry | Application | Key Benefit |

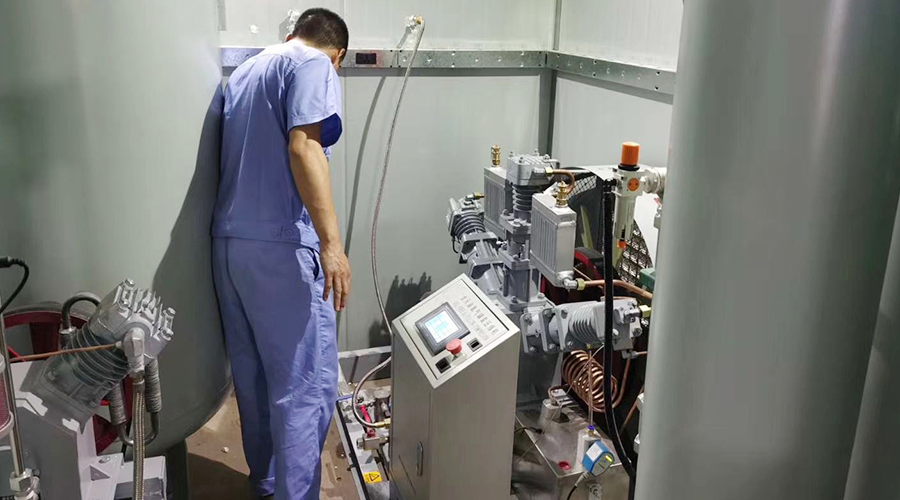

Medical & Pharmaceutical | Hospital central oxygen supply, PSA/VPSA oxygen generator boosting, cylinder filling for medical oxygen | Hospital central oxygen supply, PSA/VPSA oxygen generator boosting, cylinder filling for medical oxygen |
Aerospace & Defense | Pilot breathing oxygen, onboard system replenishment, ground support | Meets strict military safety standards |
Steel & Metal Fabrication | Laser cutting assist gas, oxygen enrichment for blast furnaces | High pressure, continuous duty, energy saving |
Aquaculture & Environmental | Oxygen delivery for high‑density fish farming, activated sludge aeration in wastewater treatment | Portable skid‑mounted design, rugged for outdoor use |
4. After‑Sales Support – Your Partner Beyond Delivery
We understand that cross‑border equipment purchases raise questions about service. Here is our commitment:
Remote commissioning: Detailed manuals and live video guidance by our engineers.
Global service network: Trained technicians available for on‑site support in many regions.
Customization: Voltage (380V/60Hz, etc.), special connections, or specific pressure ranges – we can tailor the unit to your site conditions.
5. Call to Action – Request Your Quotation Today
Choosing our oxygen booster means choosing safety, purity, and reliability.

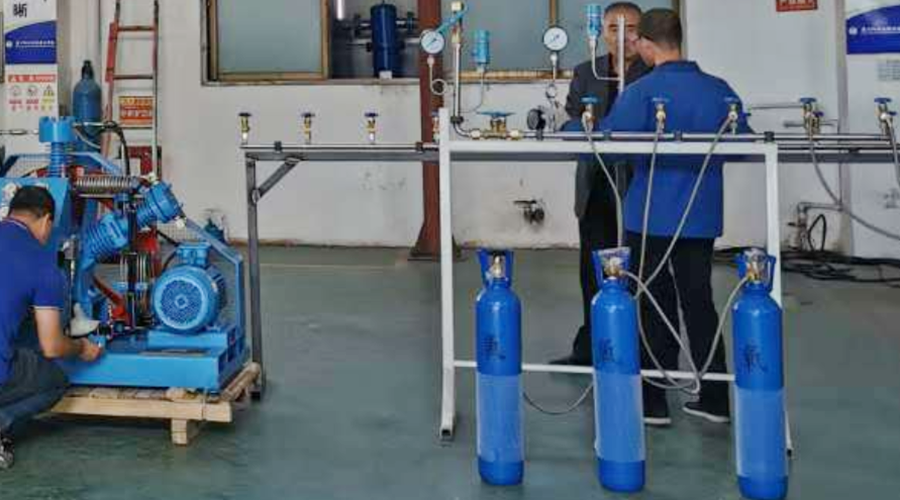

If you are planning an oxygen filling station, upgrading your current system, or need a booster for a specific application, please:
Submit your technical data – flow rate (Nm³/min or SCFM), inlet pressure, and required discharge pressure.
Our application engineer will respond within 24 hours with a detailed selection proposal and an accurate price.
Contact us now or click “Get a Quote” to start your safe oxygen compression journey.
