Standard industrial pneumatics drive tools and machinery. Life-support air systems keep humans alive in hazardous environments. The distinction is absolute. Mechanical failure or contamination in a standard compressor ruins a paint job. The same failure in a life-support system kills the operator. Safety managers and procurement teams face a strict balancing act. You must meet high-pressure output requirements while maintaining uncompromising air purity standards. You must actively mitigate the risks of carbon monoxide (CO) ingestion, compressor-generated hydrocarbons, and moisture-induced equipment freezing.
This technical evaluation guide breaks down the internal mechanics, filtration architectures, and compliance frameworks necessary to select a reliable breathing air system. We examine how multi-stage compression manages extreme heat and detail the sequential filtration required to eliminate lethal toxins. You will understand how to align mechanical specifications with international safety standards to protect operators and ensure continuous compliance.
Multi-Stage Filtration is Non-Negotiable: Safe breathing air relies on a sequential high pressure breathing air filtration system to eliminate moisture, particulates, oil vapor, and toxic gases.
Compliance Drives Architecture: Meeting standards like EN 12021 requires specific mechanical configurations, including catalytic CO conversion and continuous electronic gas monitoring.
Pressure Dictates Design: Operating a 300 bar safe breathing air compressor requires specialized multi-stage compression blocks and rigorous inter-stage cooling to manage extreme heat and prevent oil degradation.
Intake and Environment Matter: The safest compressor will fail if installed improperly; intake placement, ambient ventilation, and strict physical safety protocols are critical to preventing the introduction of external toxins and protecting operators.
Standard air compressors generate excessive heat during operation. They also permit a certain degree of oil carryover into the air stream. These characteristics are unacceptable for life-support applications. A breathable air compressor requires a fundamentally different mechanical architecture to manage thermal dynamics and prevent internal contamination.
Compressing ambient air to extreme pressures generates massive thermal energy through adiabatic heating. If you attempt to compress air to 300 bar in a single stage, the resulting temperatures easily exceed 400°C. This heat melts internal components. It also causes lubricating oils to vaporize or spontaneously combust, introducing lethal hydrocarbons into the air supply.
To safely reach high pressures, systems utilize multi-stage compression blocks. Each stage compresses the air to a fraction of the final target pressure. This incremental approach controls heat generation. Between each compression stage, the air passes through inter-coolers. These coiled tubes, typically constructed from stainless steel or copper, dissipate heat into the surrounding environment. High-velocity cooling fans force ambient air across these coils. After the final stage, an after-cooler further reduces the air temperature before it enters the filtration system.
Cooling the air between stages serves a dual purpose. It prevents mechanical failure from overheating. It also forces moisture to condense. As the air cools, its capacity to hold water vapor drops. This liquid water is mechanically expelled through inter-stage condensate drains before the air enters the next compression cylinder.
 |  |
Engineers must choose between oil-lubricated and oil-free compression blocks. Each configuration presents specific operational trade-offs in the field.
Configuration | Mechanical Advantage | Operational Disadvantage |
|---|---|---|
Oil-Lubricated | Exceptional longevity, high-pressure stability, handles continuous duty cycles easily. | Requires aggressive downstream filtration to capture vaporized synthetic lubricants. |
Oil-Free | Zero risk of internal oil contamination. Simplifies downstream filtration requirements. | Lower pressure thresholds, shorter maintenance intervals, frequent piston ring rebuilds. |
Oil-lubricated designs dominate high-pressure applications. The oil provides a vital seal between the piston rings and the cylinder walls. This allows the compressor to efficiently reach 300 bar and run for extended duty cycles. Oil-free systems utilize specialized Teflon or carbon-based piston rings that require no liquid lubrication. The friction wear on unlubricated components necessitates more frequent rebuilds of the compression block, making them less ideal for heavy-duty filling stations.
Raw compressed air exiting the final stage is hot, wet, and potentially contaminated. It must pass through a sequential purification process. A high pressure breathing air filtration system transforms this raw output into life-support grade air.
Air purification is not a single event. It is a strict mechanical and chemical sequence. If air bypasses any of these stages, the final product is unsafe.
Mechanical Separation: The air enters a cylindrical chamber that forces it into a high-speed vortex. Centrifugal force throws heavy liquid water droplets and large oil particulates against the outer walls. The liquid slides down to the bottom and is expelled by an automated drain valve.
Desiccant Drying: The air flows through a molecular sieve desiccant bed. These highly porous beads adsorb moisture molecules, drastically lowering the pressure dew point. This ensures the air remains completely dry, preventing regulator freeze-up in sub-zero conditions.
Chemical Adsorption: The dry air passes through an activated carbon bed. Activated carbon acts as a sponge for oil vapors, odors, and volatile organic compounds (VOCs). This stage ensures trace amounts of vaporized synthetic lubricants never reach the user.
Catalytic Conversion: The air passes through a Hopcalite catalyst bed. This compound facilitates a chemical reaction that oxidizes lethal carbon monoxide (CO) into carbon dioxide (CO2).
Particulate Filtration: Finally, the air passes through a micro-glass particulate filter. This captures microscopic dust generated by the breakdown of desiccant and carbon granules under high pressure.
Carbon monoxide is a colorless, odorless, and highly toxic gas. It enters the compressor through the intake if placed near vehicle exhaust, or forms internally if lubricating oil overheats. Standard filtration media cannot capture CO.
The Hopcalite catalyst is the only defense against CO. However, this catalyst has one critical vulnerability: moisture instantly destroys it. This chemical dependency reinforces the absolute necessity of the preceding desiccant stage. If the desiccant fails and allows moisture to pass, the Hopcalite fails immediately. Lethal CO will then pass directly into the storage cylinders.
Procuring life-support equipment requires strict adherence to international regulatory standards. You must align compressor specifications with established safety benchmarks. An EN12021 breathing air compressor meets the rigorous requirements set by the European standard for compressed gas used in respiratory protective devices.
EN 12021 defines exact maximum allowable concentrations for various contaminants. These limits account for the physiological effects of breathing gases under elevated partial pressures. A contaminant level that is harmless at surface pressure becomes highly toxic at 30 meters underwater or deep inside a smoke-filled structure.
Contaminant / Parameter | EN 12021 Allowable Limit | Primary Risk of Non-Compliance |
|---|---|---|
Oxygen (O2) | 21% ± 1% | Hypoxia or Oxygen Toxicity |
Carbon Monoxide (CO) | < 5 ppm | Lethal Asphyxiation |
Carbon Dioxide (CO2) | < 500 ppm | Hypercapnia, Panic, Hyperventilation |
Oil (Droplets and Vapor) | < 0.5 mg/m³ | Lipid Pneumonia, Respiratory Irritation |
Water Vapor (40 to 200 bar) | < 50 mg/m³ | Regulator Freezing, Cylinder Corrosion |
Water Vapor (> 200 bar) | < 35 mg/m³ | Regulator Freezing, Catalyst Destruction |
Relying solely on scheduled filter changes is a dangerous gamble. Environmental variables constantly shift. A sudden spike in ambient humidity saturates a desiccant bed weeks ahead of schedule. To guarantee continuous compliance, modern systems integrate electronic air quality monitors.
These sensors analyze the air stream in real-time as it exits the final filtration stage. They continuously measure moisture levels, CO concentrations, and sometimes O2 and CO2. Electrochemical sensors detect trace amounts of CO, while non-dispersive infrared (NDIR) sensors monitor CO2. If a sensor detects a contaminant approaching the EN 12021 threshold, it triggers a fail-safe mechanism. The system automatically shuts down the compressor or actuates a pneumatic valve to vent the contaminated air to the atmosphere. This automated intervention prevents toxic air from ever reaching the storage cylinders.
Selecting the right equipment requires matching system capacity to your specific operational demands. You must calculate flow rates accurately and prepare the installation environment to handle extreme mechanical forces. A 300 bar safe breathing air compressor demands rigorous site preparation.
Compressor capacity is measured in Free Air Delivery (FAD), typically expressed in liters per minute (L/min) or cubic feet per minute (CFM). To determine your required FAD, you must analyze your peak demand. Calculate the total volume of the cylinders you need to fill and the acceptable turnaround time.
To calculate FAD accurately, use the formula: Volume (Liters) x Pressure (Bar) = Free Air Required. For example, filling ten 12-liter cylinders to 300 bar requires 36,000 liters of free air (10 x 12 x 300). If your operational requirement dictates filling these cylinders within 60 minutes, you need a compressor with a minimum FAD of 600 L/min (36,000 / 60). Sizing the compressor too small results in continuous running, which overheats the block and degrades the synthetic oil prematurely.
For high-volume operations, relying solely on the compressor to fill individual cylinders is inefficient. The solution is a cascade storage system. A cascade system typically utilizes three to four 50-liter storage cylinders rated to 350 bar. Operators fill SCBA tanks from the cascade bank with the lowest pressure first, sequentially moving to higher-pressure banks to top off the tank. This method allows rapid turnaround times—often under two minutes per SCBA cylinder—without waiting for the compressor to generate the air in real-time. The compressor then runs in the background to top off the storage banks.
The safest internal mechanics fail if the external installation environment is compromised. High-pressure systems require strict adherence to environmental protocols.
Ventilation and Heat Dissipation: High-pressure compression generates immense heat. The installation room must feature robust ambient cooling and cross-ventilation. If the ambient room temperature exceeds the manufacturer's specifications, the inter-coolers lose efficiency. The compressor overheats, leading to mechanical failure and oil degradation.
Intake Placement: The air intake must draw from a clean, cool, and uncontaminated source. Never place an intake near vehicle traffic, loading docks, exhaust vents, or areas with industrial off-gassing. A slight shift in wind direction pulls lethal CO directly into the system. Extend intake pipes to the roof if necessary.

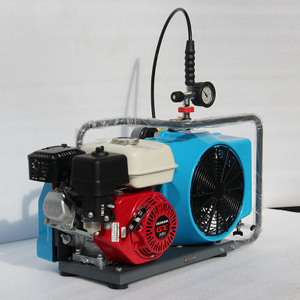

Power Source Hazards: Gas or diesel-powered compressors provide mobility for field operations. However, their internal combustion engines generate toxic CO exhaust. You must never operate a fuel-powered compressor indoors or in poorly ventilated spaces. The risk of the intake ingesting the engine's own exhaust is exceptionally high.
Electrical and Fire Safety: Electric compressors require dedicated, heavy-duty circuits. Ensure the installation area is free from flammable materials. The compressor chassis must be properly grounded to prevent electrical hazards and static discharge.
Purchasing compliant equipment is only the first step. Operating a high-pressure system introduces severe physical hazards. You must implement strict safety protocols and rigorous maintenance schedules to protect your team and ensure long-term reliability.
Handling air at 300 bar (approximately 4,350 PSI) requires extreme caution. This level of pressure stores massive kinetic energy. If a hose ruptures or a fitting fails, the sudden release of air causes catastrophic physical injury.
Unchecked pressure leaks easily rupture human skin. High-pressure air injection injuries occur when a pinpoint leak forces air directly into the bloodstream or soft tissue. This is a severe medical emergency requiring immediate surgical intervention. Furthermore, a ruptured hose whips violently, and failed valve components become high-speed projectiles.
To mitigate these risks, mandate strict Personal Protective Equipment (PPE) protocols. Operators must wear impact-resistant safety goggles and heavy-duty leather gloves during all cylinder filling and routine maintenance procedures. Hearing protection is also required, as the automated venting of condensate drains generates sudden, high-decibel noise.
Filter cartridges do not have a fixed calendar lifespan. Their longevity is entirely dependent on operating hours, ambient temperature, and ambient humidity. This dynamic is known as the "temperature penalty."
As ambient temperature rises, the air holds exponentially more water vapor. A compressor operating at 35°C (95°F) forces the filtration system to process significantly more moisture than the same compressor operating at 20°C (68°F). This increased moisture load saturates the desiccant bed much faster, drastically reducing the lifespan of the entire filter cartridge.
Ambient Temperature | Moisture Load Factor | Estimated Filter Lifespan Impact |
|---|---|---|
20°C (68°F) | Baseline (1x) | 100% of rated hours |
30°C (86°F) | High (Approx. 2x) | Reduced to 50% of rated hours |
40°C (104°F) | Extreme (Approx. 4x) | Reduced to 25% of rated hours |
Relying on generic time-based replacement schedules is dangerous. If you operate in a hot, humid environment, the filter saturates in weeks. Evaluate systems that utilize proprietary filter saturation indicators. These visual or electronic sensors monitor the exact moisture load in the desiccant bed, ensuring you replace the cartridge based on actual chemical exhaustion.
Maintaining a life-support system requires disciplined execution of routine maintenance tasks. You cannot ignore the mechanical components that keep the system safe.
Daily Checks: Inspect the oil level in the compression block sight glass. Verify that the automated condensate drains discharge properly during operation. Listen for unusual mechanical vibrations.
Weekly Checks: Inspect all high-pressure filling hoses for abrasions, bulges, or compromised fittings. Test the inter-stage safety valves to ensure they open at the correct set points.
Monthly Checks: Inspect the air intake filter element and replace it if clogged with dust or debris. Verify the calibration of electronic gas monitors using certified test gases.
Internal sensors and automated shutdowns provide excellent daily protection. However, they do not replace the need for independent verification. Establish a protocol for third-party quarterly air quality testing. Collect an air sample from the final output and send it to an accredited laboratory. The lab provides a certified analysis confirming that your system meets all EN 12021 parameters. This documentation proves continuous compliance and provides critical liability protection for your organization.
A breathable air compressor is a critical life-support system. Safety is the direct result of robust mechanical design, rigorous sequential filtration, and strict adherence to operator safety protocols. You must manage extreme heat, eliminate lethal toxins, and respect the physical dangers of high-pressure pneumatics. When evaluating systems, prioritize those with certified EN 12021 compliance and integrated continuous gas monitoring. Ensure the mechanical architecture is appropriately sized for your specific pressure requirements and ambient environmental conditions.
Take the following actions to secure your air supply:
Audit your facility to identify a clean, temperature-controlled location for the compressor intake.
Calculate your peak Free Air Delivery (FAD) requirements to size the compression block accurately.
Install a cascade storage system to reduce compressor cycling and buffer peak filling demands.
Implement a mandatory PPE policy for all personnel operating the filling station.
Contract an accredited laboratory for quarterly EN 12021 air quality testing.
A: A standard compressor focuses on pneumatic power, permitting oil carryover and high moisture levels. A breathable air compressor is a life-support system. It utilizes multi-stage compression to manage heat, sequential filtration to remove moisture and hydrocarbons, and catalytic conversion to eliminate lethal carbon monoxide, ensuring strict adherence to human breathing standards.
A: Filter lifespan depends entirely on operating hours, ambient temperature, and ambient humidity. High heat and humidity drastically increase the moisture load, saturating the desiccant much faster. You should replace filters based on electronic saturation indicators or strict manufacturer calculations for your specific environmental conditions, rather than fixed calendar dates.
A: No. This is extremely dangerous. Standard industrial compressors use incompatible, toxic lubricants that vaporize into the air stream. They lack the necessary inter-stage cooling required to prevent oil flashing. Furthermore, they do not feature the continuous carbon monoxide monitoring and automated shutdown mechanisms required for life-support applications.
A: It certifies that the system produces air meeting the European standard for respiratory protective devices. This mandates strict limits: Oxygen at 21% (± 1%), Carbon Monoxide below 5 ppm, Carbon Dioxide below 500 ppm, oil vapor below 0.5 mg/m³, and stringent limits on water vapor to prevent regulator freezing.
A: Moisture poses two severe risks. First, water vapor expanding through a breathing regulator drops rapidly in temperature, which freezes the valve open or closed, cutting off the air supply. Second, moisture instantly destroys the Hopcalite catalyst, preventing the system from converting lethal carbon monoxide into carbon dioxide.
A: Operators must wear impact-resistant safety goggles and heavy-duty leather gloves. This protects against high-speed flying debris if a valve fails and prevents severe skin injection injuries from unchecked 300 bar pressure leaks. Hearing protection is also necessary due to the loud noise of automated condensate drains venting.
A: The condensate expelled by the inter-stage drains is a toxic mixture of water and synthetic compressor oil. It cannot be dumped into standard drains. You must route the automated drain lines into an oil/water separator. This device captures the hazardous hydrocarbons for proper environmental disposal while allowing the clean water to drain safely.
