| Quantity: | |
|---|---|

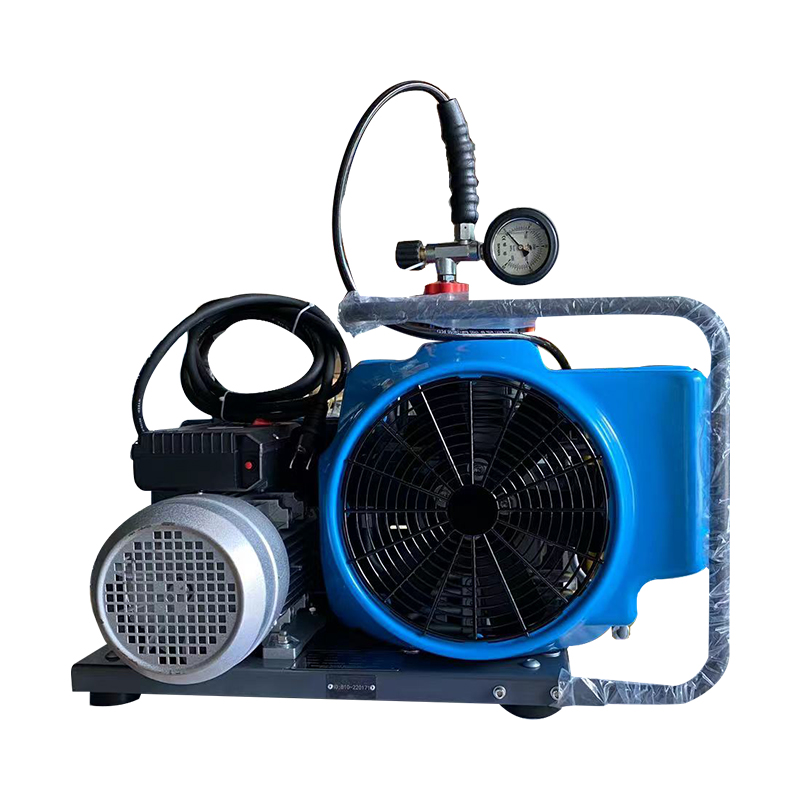

High-pressure breathing compressor is a device designed to store or deliver high-pressure breathing gases (such as air, oxygen, or mixed gases). It is commonly used in diving, firefighting, medical, industrial and other fields, with an output pressure of 200-350 bar (or even higher).
Product Parameters
| Model | Flow (L/min/cfm) | Pressure (Bar) | Power (Hp) | (V/HZ/PH) | Speed （Rpm） | Compression stage | Oil amount (L) | Operating Temp (°C) | Dimension L*W*H(mm) | Weight (Kg) | |||||
| GDR-100E | 100/3.5 | 225/350 | 3 | 220-230V 50/60HZ 1PH | 2300 | 3 | 0.36 | 5~ +45 | 770*380*420 | 45 | |||||
| GDR-100P | 100/3.5 | 225/350 | 5.5 | Honda Gasoline Engine | 2300 | 3 | 0.36 | 5~ +45 | 770*420*420 | 44 | |||||
| GDR-150E | 150/5.2 | 225/350 | 4 | 220-230V 50/60HZ 1PH | 2450 | 3 | 0.36 | 5~ +45 | 660*400*420 | 52 | |||||
| GDR-150P | 150/5.2 | 225/350 | 6.5 | Honda Gasoline Engine | 2450 | 3 | 0.36 | 5~ +45 | 790*420*420 | 47 | |||||
Features and Advantages
High Safety: Oil-free/low-oil lubrication technology prevents air contamination and complies with breathing air standards (such as EN12021 and NFPA).
Stable Air Supply: Continuously provides high-pressure clean air, suitable for extended operations.
Energy Efficiency: Optimized design reduces energy consumption, and some models support variable frequency control.
Durability: Constructed of corrosion-resistant materials, suitable for harsh environments.
Portability: Some models feature a lightweight design for easy mobility (e.g., for diving).
Application Industries
Diving: Filling diving cylinders (SCUBA, technical diving).
Fire and rescue: Inflating breathing apparatus (SCBA).
Medical: Hospital centralized oxygen supply systems and hyperbaric oxygen chambers.
Industrial: Inflating respiratory protective equipment in petrochemical and mining operations.
Military and aerospace: Supplying specialty breathing gases.
FAQs
Q1: Is regular maintenance required?
A: Filters must be replaced regularly and leaks checked to ensure air quality meets standards.
Q2: Is the output pressure adjustable?
A: Most models support pressure adjustment, but this must be tailored to the needs of the backend equipment.
Q3: What is the difference between oil-free and oil-based compressors?
A: Oil-free compressors are more suitable for breathing air to avoid oil contamination; oil-based models require additional filtration.
Q4: How long does it take to fill the air?
A: This depends on the cylinder volume and compressor power (usually several minutes to several hours).
Q5: Can I breathe the air directly from the compressor?
A: It must undergo rigorous filtration (CO adsorption, water removal, etc.) to ensure safety.
