Product Introduction

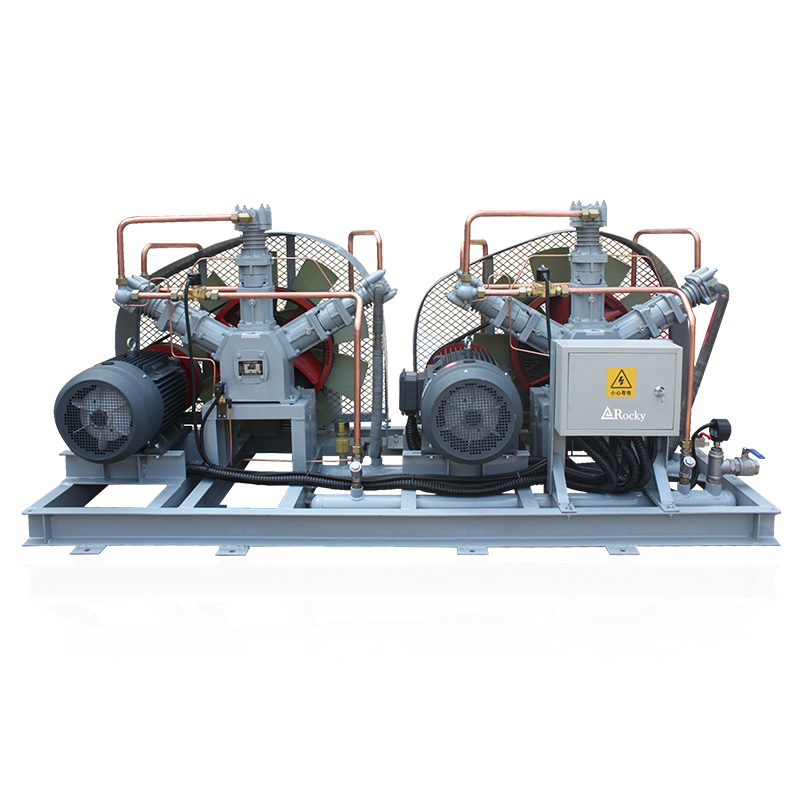

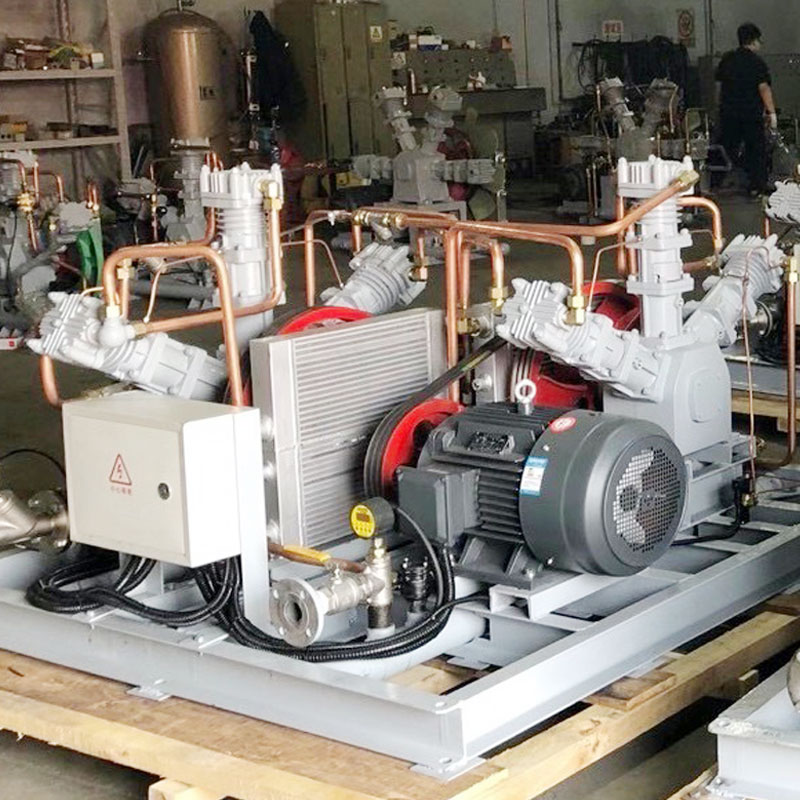

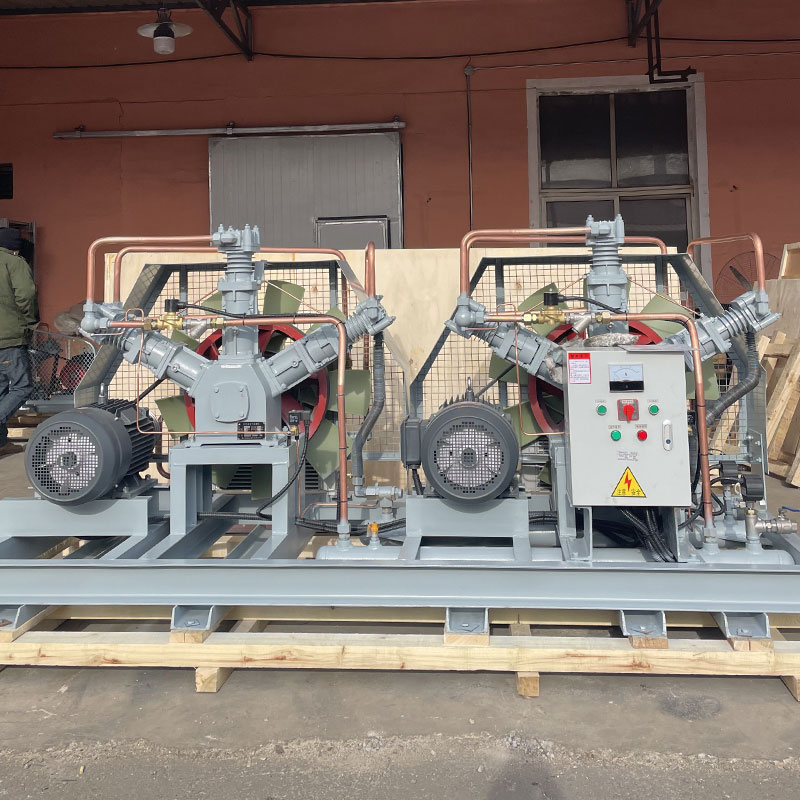

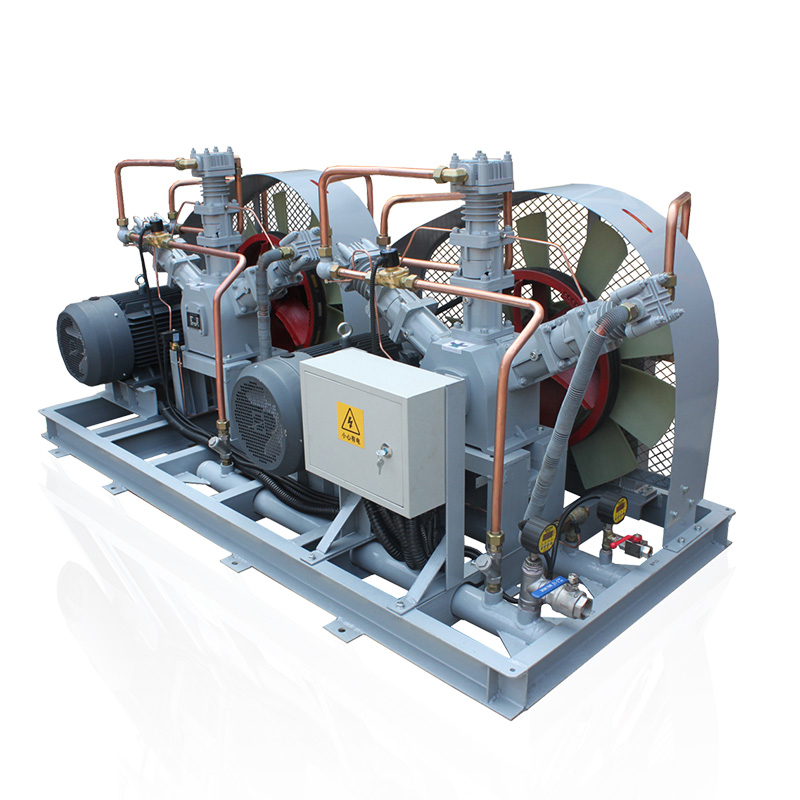

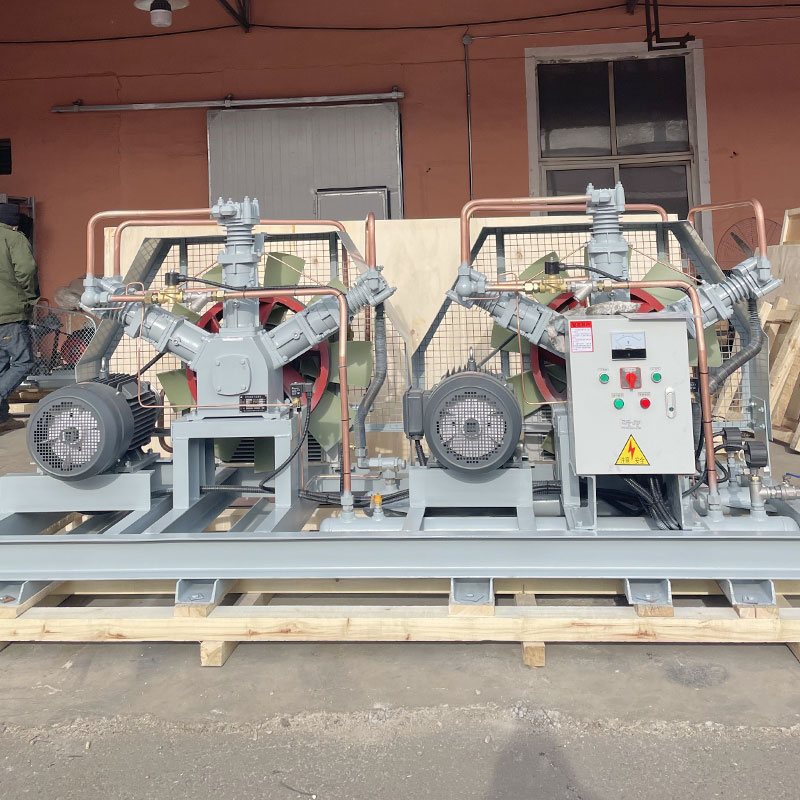

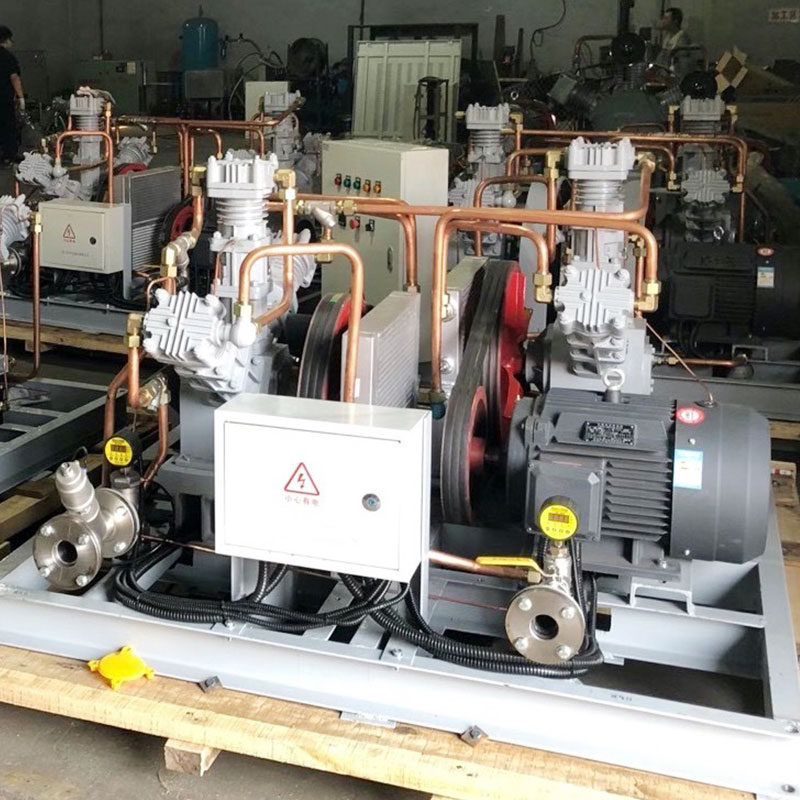

High-pressure oil-free oxygen booster is a device specifically designed for compressing oxygen. It utilizes oil-free lubrication technology (such as PTFE seals or water lubrication) to avoid oil contamination and ensure high oxygen purity and safety. Its core function is to boost low-pressure oxygen to high pressure (typically exceeding 15-300 MPa) to meet specialized industrial or medical needs.
Advantages
1. Safety and explosion-proof: The oil-free design eliminates the risk of lubricating oil coming into contact with high-pressure oxygen, preventing explosions.
2. High-purity output: Eliminates oil contamination, achieving oxygen purity exceeding 99.5%, making it suitable for industries such as medical and electronics.
3. Energy-saving and efficient: Multi-stage boosting technology reduces energy consumption and provides excellent stability.
4. Low maintenance: The oil-free design reduces mechanical wear and extends life.
Model No. | Flow rate (N m³/h) | Inlet pressure (Mpa) | Exhaust pressure (Mpa) | Power (kW) | Cylinder bore | Inlet connection size | Outlet connection sizes | Overall dimension (mm) | Weight (kg) | Speed (r/min) |
| RKWWY-5/4-150 | 5 | 0.4 | 15 | 4 | Ø50+Ø30+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 400 | 470 |
| RKWWY-10/4-150 | 10 | 0.4 | 15 | 5.5 | Ø65+Ø36+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 410 | 470 |
| RKWWY-15/4-150 | 15 | 0.4 | 15 | 7.5 | Ø65+Ø36+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 420 | 640 |
| RKWWY-20/4-150 | 20 | 0.4 | 15 | 1 1 | Ø70+Ø36+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 430 | 580 |
| RKWWY-25/4-150 | 25 | 0.4 | 15 | 1 1 | Ø70+Ø36+Ø20 | Rc 1/2 | G5/8 | 1350X1000X1100 | 430 | 640 |
| RKWWY-30/4-150 | 30 | 0.4 | 15 | 15 | Ø90+Ø50+Ø30 | Rc 1/2 | G5/8 | 1350X1000X1100 | 450 | 470 |
| RKWWY-35/4-150 | 35 | 0.4 | 15 | 15 | Ø90+Ø50+Ø30 | Rc 1/2 | G5/8 | 1350X1000X1100 | 450 | 500 |
| RKWWY-40/4-150 | 40 | 0.4 | 15 | 15 | Ø90+Ø50+Ø30 | Rc 1/2 | G5/8 | 1350X1000X1100 | 450 | 580 |
| RKSWY-45/4-150 | 45 | 0.4 | 15 | 18.5 | 2-Ø70+ Ø50+Ø30 | Rc 1/2 | G5/8 | 1450X1100X1250 | 520 | 580 |
| RKSWY-50/4-150 | 50 | 0.4 | 15 | 18.5 | 2-Ø70+ Ø50+Ø30 | Rc 1/2 | G5/8 | 1450X1100X1250 | 520 | 580 |
| RKSWY-55/4-150 | 55 | 0.4 | 15 | 18.5 | 2-Ø70+ Ø50+Ø30 | Rc 1 | G5/8 | 1450X1100X1250 | 520 | 640 |
| RKSWY-60/4-150 | 60 | 0.4 | 15 | 22 | 2-Ø70+ Ø50+Ø30 | Rc 1 | G5/8 | 1450X1100X1250 | 540 | 720 |
| RKSWY-65/4- 150 | 65 | 0.4 | 15 | 22 | 2- Φ70+ Φ50+ Φ30 | Rc 1 | G5/8 | 1450*1100*1250 | 540 | 720 |
| RKSWY-70/4- 150 | 70 | 0.4 | 15 | 22 | 2- Φ70+ Φ50+ Φ30 | Rc 1 | G5/8 | 1450*1100*1250 | 540 | 720 |
| RKWWY-75/4- 150- Ⅱ | 75 | 0.4 | 15 | 15*2 | (Φ90+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2800*1250*1200 | 1060 | 580 |
| RKWWY-80/4- 150- Ⅱ | 80 | 0.4 | 15 | 15*2 | (Φ90+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2800*1250*1200 | 1060 | 580 |
| RKWWY-85/4- 150- Ⅱ | 85 | 0.4 | 15 | 15*2 | (Φ90+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2800*1250*1200 | 1060 | 580 |
| RKSWY-90/4- 150- Ⅱ | 90 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY-95/4- 150- Ⅱ | 95 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY- 100/4- 150- Ⅱ | 100 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY- 105/4- 150- Ⅱ | 105 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY- 1 10/4- 150- Ⅱ | 1 10 | 0.4 | 15 | 18.5*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1260 | 580 |
| RKSWY- 1 15/4- 150- Ⅱ | 1 15 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 640 |
| RKSWY- 120/4- 150- Ⅱ | 120 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 640 |
| RKSWY- 125/4- 150- Ⅱ | 125 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 640 |
| RKSWY- 130/4- 150- Ⅱ | 130 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 720 |
| RKSWY- 135/4- 150- Ⅱ | 135 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 720 |
| RKSWY- 140/4- 150- Ⅱ | 140 | 0.4 | 15 | 22*2 | (2- Φ70+ Φ50+ Φ30)*2 | Rc 1 | G5/8 | 2900*1320*1300 | 1350 | 720 |
Main Application Industries
Medical: Filling medical oxygen cylinders, ventilator air supply.
Industrial: Laser cutting, aerospace fuel combustion support, ozone generators.
Energy: Fuel cell testing, hyperbaric oxygen chambers.
Research: Laboratory high-pressure gas experiments.
Frequently Asked Questions
Q1: Why is "oil-free" necessary?
A: Oxygen is highly combustible, and oil can cause explosions. Therefore, oil-free design is a rigid safety requirement.
Q2: How is the output pressure adjusted?
A: Pressure step-by-step control is achieved by adjusting the drive air pressure or an electrical control system.
Q3: Can it be used with other gases?
A: Customization is required, as the materials and seals must be adapted to the gas characteristics (e.g., hydrogen requires anti-permeation treatment).
Q4: Maintenance recommendations?
A: Regularly inspect the seals and filters to ensure no impurities enter the system.
Q5: How is it different from a conventional compressor?
A: Conventional compressors contain oil and are not explosion-proof. Oxygen boosters are designed specifically for high-pressure, high-purity oxygen, and require oxidation-resistant materials (such as stainless steel).
