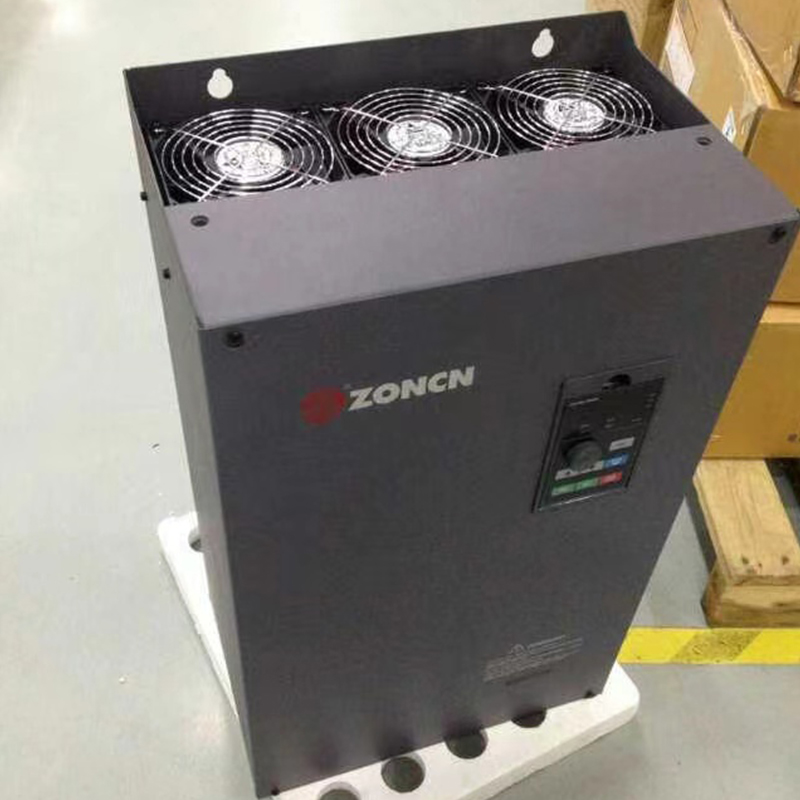

The Zoncn Z2400-110G/132P is a high-performance vector control inverter (VFD) manufactured by Zhongchen (ZONCN). Its core feature is a 110 kW/132 kW dual-rating design. It is suitable for three-phase
High starting torque ensures reliable startup under loaded compressor conditions.
SFVC vector control maintains stable speed and torque as air demand changes.
Built-in PID supports closed-loop pressure control without extra controllers.
RS485 / Modbus-RTU enables PLC, HMI, SCADA, and remote monitoring integration.
Strong overload capacity handles frequent peak loads in industrial use.
Compact IP20 design saves cabinet space and simplifies maintenance.
Dual Rating: 110 kW (G-type, constant torque) / 132 kW (P-type, variable torque) — one inverter for two load profiles.
Precise Control: Sensorless vector (SVC) and V/F modes; ±0.5% speed accuracy; 1:100 speed range.
Strong Overload: G-type 150% rated current for 60 s, 180% for 3 s.
Built-in Functions: Braking unit (standard ≤37 kW, optional above), PID, RS485 Modbus-RTU, 10 auxiliary frequency sources.
Reliable Design: AVR, rapid current limit, IP20 forced cooling; -10°C to 40°C (derate above 40°C), ≤95% RH non-condensing, ≤1000 m altitude.
Brand & Support: ZONCN (SSE: 603275), Top 10 China inverter brand; 4 factories, exports to 40+ countries.
Certification: CE certified; OEM/ODM available.
| Item | Specification |
| Model | Z2400-110G/132P |
| Power | 110/132 kW |
| Input | 3-Phase 380V ±15%, 50/60 Hz |
| Control Mode | SFVC / V/F |
| Output Frequency | 0–320 Hz (Vector) / 0–3200 Hz (V/F)* |
| Starting Torque | 150% rated torque @ 0.5 Hz (SFVC, G-type) |
| Speed Accuracy | ±0.5% speed stability (SFVC) |
| Overload Capacity | 150% rated current / 60s; 180% rated current / 3s (G-type) |
| Carrier Frequency | 1–16 kHz, auto-adaptive |
| Communication | RS485 / Modbus-RTU |
| Protection | IP20 |
| Application | Air Compressor |
Screw air compressors
Air compressor control cabinets
Industrial compressed air systems
Variable-load compressor stations
PLC / HMI / SCADA-based compressor monitoring
Air compressor OEM and retrofit projects
| How Z2400 VFD Saves Energy | ||
| Aspect | Traditional Load/Unload | VFD-Controlled |
| Motor speed | Fixed 100% (loading or idling) | Continuously adjusted |
| Pressure control | Switches between upper/lower limits | Maintains constant setpoint |
| No-load loss | 35-40% of full load | Eliminated |
| Starting current | 3-5 rated current | Soft start, near rated |
| Power factor | Low at partial load | Optimized across range |
Q1: Is this VFD original ZONCN?
Yes. We supply original ZONCN products. Model and label can be confirmed before shipment.
Q2: Can you help select the correct VFD for my compressor?
Yes. Please provide your motor nameplate data (power, voltage, current, speed) and compressor type (screw/piston/centrifugal). We will recommend the appropriate model.
Q3: What is the difference between G-type and P-type ratings?
G-type is for heavy-duty/constant-torque loads (air compressors, conveyors). P-type is for fan/pump loads (variable torque). The 220G/250P model can be used for either, with different overload ratings.
Q4: Do you provide technical support for installation?
Yes. We can assist with parameter setting, wiring diagrams, and commissioning. Remote support via video call is available.
Q5: What is the warranty?
Standard warranty is 12 months from delivery. Extended warranty is negotiable for bulk orders.
Q6: Can you ship to my country?
Yes. We ship worldwide by sea, air, and express. Please provide your address for shipping cost quotation.
Q7: Do you support OEM/ODM?
Yes. Customized labeling, packaging, and firmware settings are available for bulk orders. Please contact us for details.
Q8: What is the MOQ?
MOQ is 1 set for sample evaluation. Wholesale pricing applies to bulk orders.
Q9: How long is the delivery time?
Typically 3-15 working days after payment, depending on stock availability and order quantity.
Q10: What payment methods do you accept?
T/T (bank transfer), L/C, Western Union, and PayPal are accepted. Payment terms are negotiable for long-term partners.
